Aoxiang Alloy Circular Saw Blade Grinder, Fully Automatic Cnc Grinder, Hard Saw Blade Tooth Grinding Machine

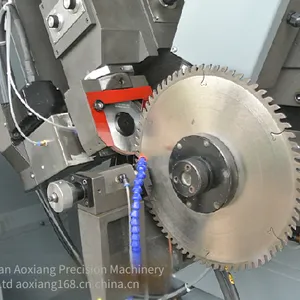

Aoxiang Alloy Circular Saw Blade Grinder, Fully Automatic Cnc Grinder, Hard Saw Blade Tooth Grinding Machine photo-1
US$ 8923.08 1 Unit
US$ 8738.46 2 Unit
US$ 8153.85 ≥3 Unit
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Foshan, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

  The fully automatic alloy saw blade tooth grinding machine is a mechanical equipment for grinding and reusing alloy circular saw blades. It can grind all tooth profiles included in the rake angle and clearance angle of alloy circular saw blades. A single machine can grind30 - 50 alloy saw blades in8 hours a day. It is a commonly used equipment for saw blade users and saw blade manufacturers. It is controlled byPLC and has a touch - screen display. The operation is simple and easy to learn. On the premise of grinding the saw blade sharp, it can also fully extend the service life of the saw blade. Each saw blade can be reused20 - 30 times. It has won the praise of a large number of users, including Guangzhou Oppein, Zhongshan Ouli Furniture, Dongguan LvDian Furniture, Heshan YouYue Furniture, Wuhan Fanzhou Zhongyue, Jiangxi Ganzhou Hongshan Wood Industry, and Anhui Lu'an Guanzhong Wood Industry.




        Technical Parameters

  Grinding outer diameter: φ80 - φ810mm
  Saw blade inner hole: φ10 - φ80mm
  Number of grinding teeth: 1 - 999 teeth
  Tooth pitch: 7 - 100mm
  Saw blade thickness: within 8mm
  Main rake angle grinding: -10° to +40°
  Tooth surface swing angle: 15° left to 15° right
  Rear angle grinding: 6 - 45°
  Tooth tip swing angle: 45° left to 45° right
  Grinding stroke: 1 - 28mm (stepless speed change)
  Working speed: 18 - 30 teeth/minute
  Grinding wheel outer diameter: φ125mm
  Grinding wheel inner diameter: φ32mm
  Grinding wheel rotation speed: 5800/minute
  Cooling device: 50kl/minute
  Total electric power: 1.64kw
  Net weight of the machine: 980kg
  Gross weight of packing: 1180kg
  Machine body size: 1700×1280×1780mm



Product Tags: Saw blade , Grinding machine , Surface grinding machine
