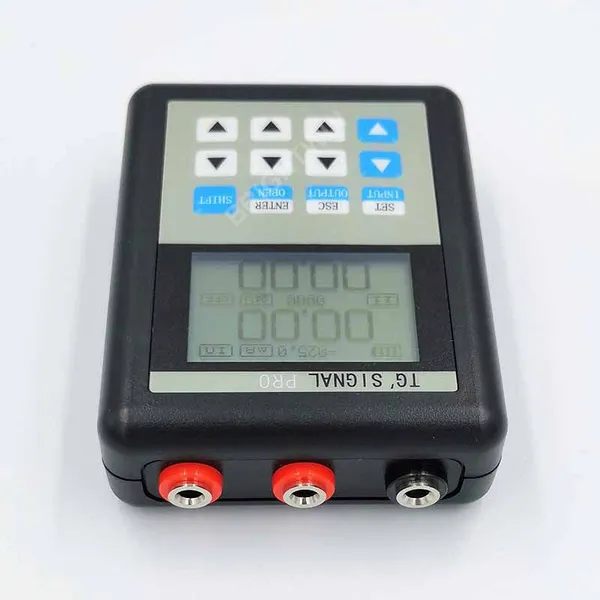

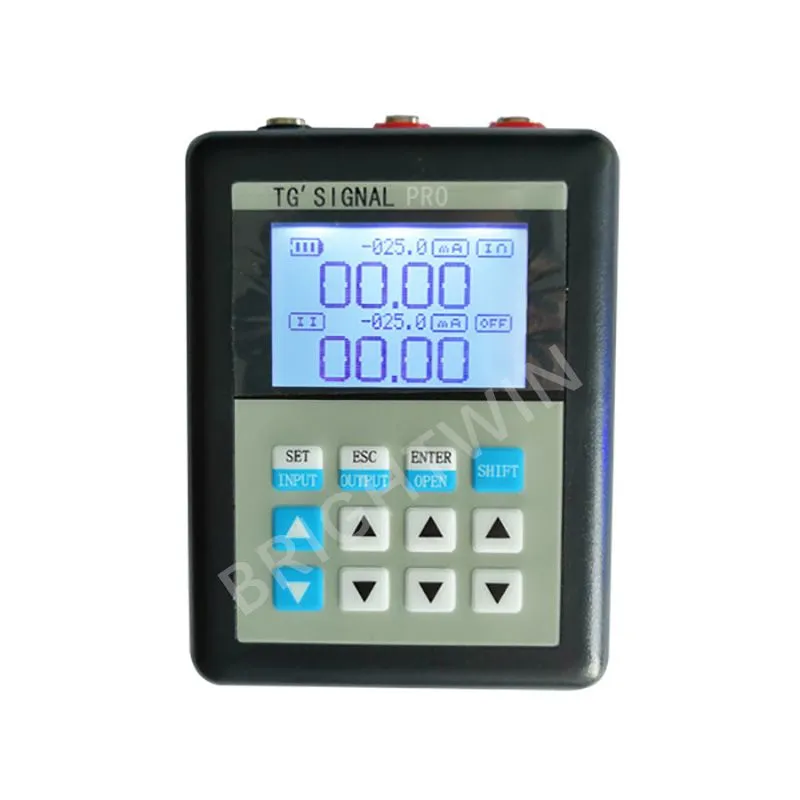

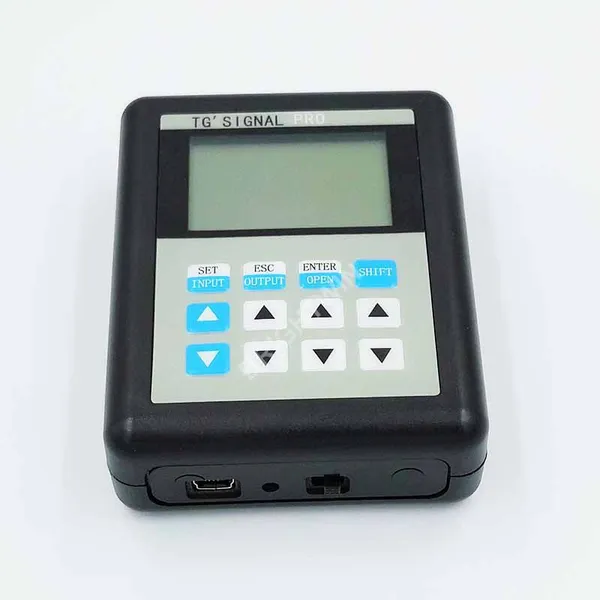

Original TG Signal Pro 24V 0-20mA 4-20mA 0-10V
Signal Generator Tester Calibrator

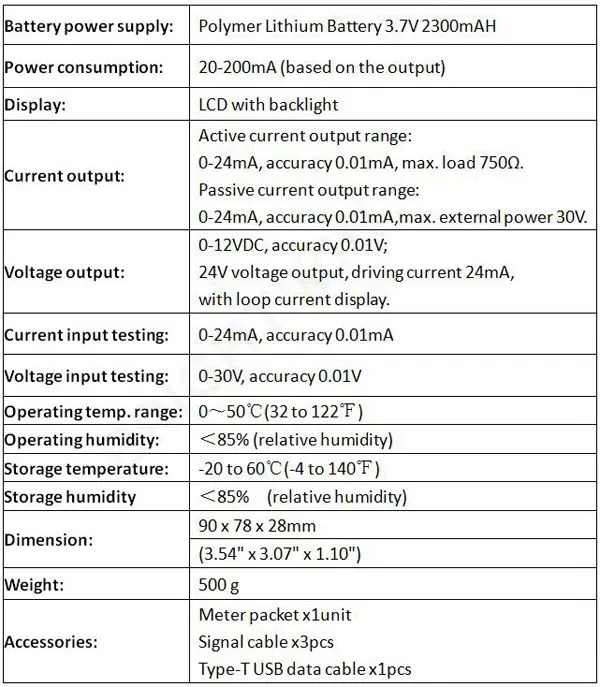

Main Features
● Handheld pocket size, easy to carry: 90x78x28mm

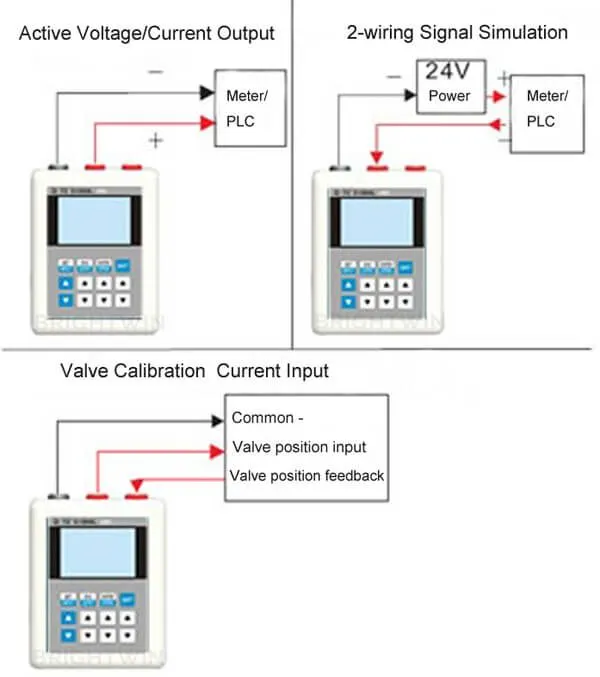

● Active current simulation: 0-24mA, accuracy 0.01mA, max. load 750Ω.
● Passive current simulation: 0-24mA, accuracy 0.01mA,max. external power 30V.
● DC Voltage Simulation: 0-12V, accuracy 0.01V.
● 24V voltage output, driving current 24mA, with loop current display.
● Current input measurement: 0-24mA, accuracy 0.01mA.
● Voltage input measurement: 0-30V, accuracy 0.01V.

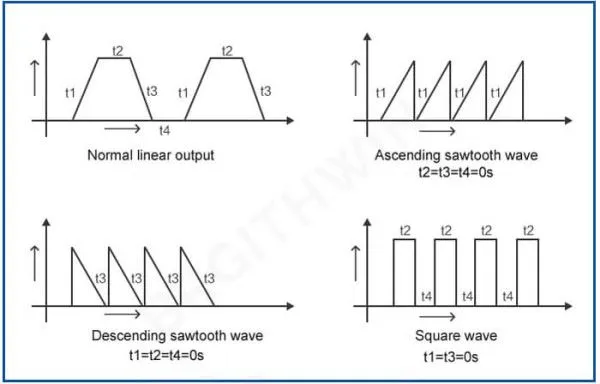

● Have current voltage automatic output function, can be set into three mode: singe rise, single down and circulation.
● Input to output conversion function: voltage to active current output mode, 4-20mA passive mode, current to voltage conversion mode.
● Using large capacity re-chargeable built-in Polymer Lithium Battery.
● Fast output mode: with shortcut key to enter into fast output mode.
● Have user-defined output function, user can set upper limit value and lower limit value.
● Have input, output terminal reverse polarity connection protection circuit embedded to avoid the damage.
● Using 128*64 Graphic LCD screen, can display various words, backlit LCD display makes it is easy to use in the conditions with dim light.
● Using original high performance low power consumption MCU, power management IC to extend the battery durability.
● Portable 24V 4-20mA 0-10V Signal Generator 0-12V 0-24mA Current Source Signal Simulator Current Voltage Measuring Multimeter
