Precision Analog 0-5V 0-11V 4-20mA 0-110mV Signal Generator LB78 Adjustable Voltage 0-24mA Current Simulator With Battery
US$ 49.98
1 - 4 Piece
US$ 46.68
5 - 9 Piece
US$ 40.98
≥10 Piece
Key Specifications
Get Latest Price
Certification:
CE
Warranty:
1year
Application:
Chemical Instrument, Thermal Power, Mechanical Instrument, Length Instrument, Time Frequency Instrument, Electromagnetic Instrument, Radio Apparatus
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
New Precision Multifunction LB02A Process Calibrator Signal Generator PT100 4-20mA Loop 0-10V Frequency Temperature CalibratorUS$ 85.28 - 89.99MOQ: 1 Piece -
Original LB02 Process Calibrator TC PT100 CU50 OHM Measuring Meter Signal GeneratorUS$ 68.88 - 71.98MOQ: 1 Piece
-
Precision mV MA Loop Temperature Multifunction Process Calibrator With Modbus LCD Display and Signal GeneratorUS$ 122.28 - 128.98MOQ: 1 Piece
-
Original Precision LB06 Process Calibrator 4-20Ma 0-10V RTD PT100 Thermocouple Temperature Calibrator Signal Generator With HART ModusUS$ 139.98 - 147.98MOQ: 1 Piece
-
New Thermocouple RTD PT100 to 4-20mA 2-wire Temperature Transmitter With USB Communication OEM Customizable Plastic HousingUS$ 8.86 - 9.98MOQ: 1 Piece
Certification
CE
Warranty
1year
Application
Chemical Instrument, Thermal Power, Mechanical Instrument, Length Instrument, Time Frequency Instrument, Electromagnetic Instrument, Radio Apparatus
Power
Electricity
After-sales Service
Lifetime warranty
LCD Display
With LCD Display
Voltage Output
Other, 24V, 0-11V 0-110mV
Current Output
Other, 4-20mA
Thermocouple (TC)
Other, 0-5V 0-11V 4-20mA 0-110mV
Resistance-Temperature Detector (RTD)
Pt100(385)
Customized
Non-Customized

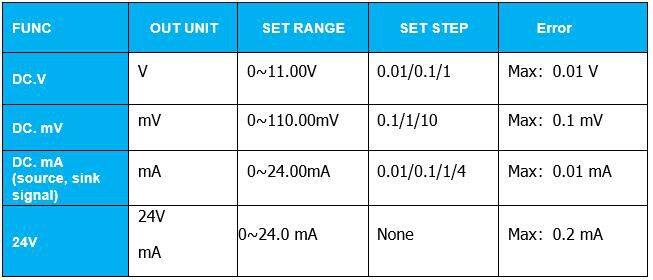

Accuracy
0.025%
Output
0-110mV, 0-24mA, 0-10V, 24V
Error
0.01mV/mA/V
Power supply
Rechargeable Li Battery
Calibration by User
None
Transport Package
carton box
Specification
108 x 66x 20mm
Trademark
brightwintech
Origin
China

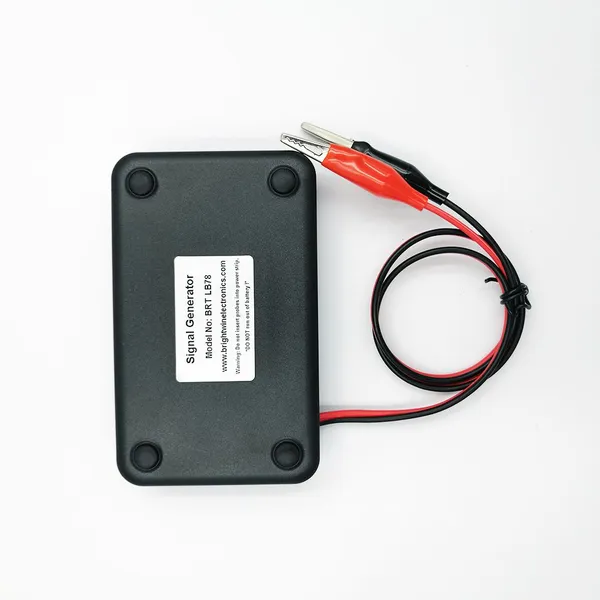

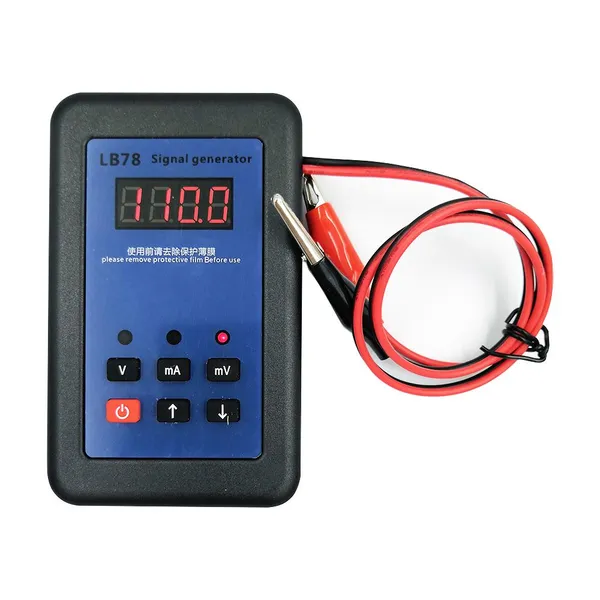

Precision Analog 0-5V 0-11V 4-20mA 0-110mV Signal Generator LB78 Adjustable Voltage
0-24mA Current Simulator with Battery
Main Features

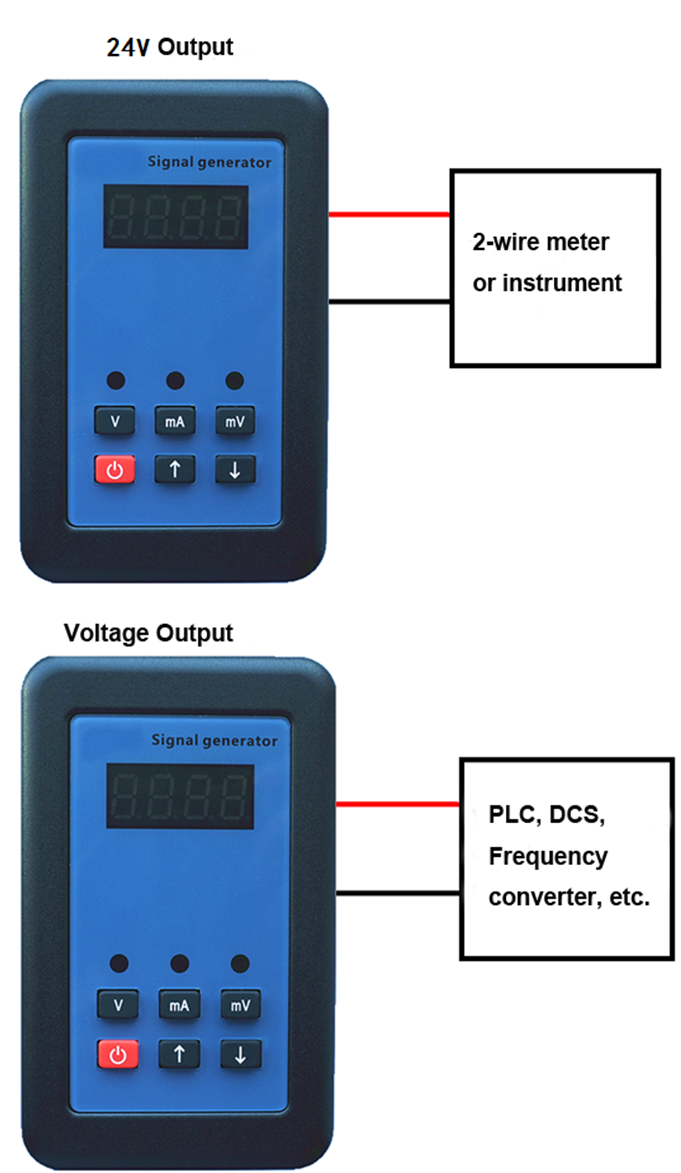

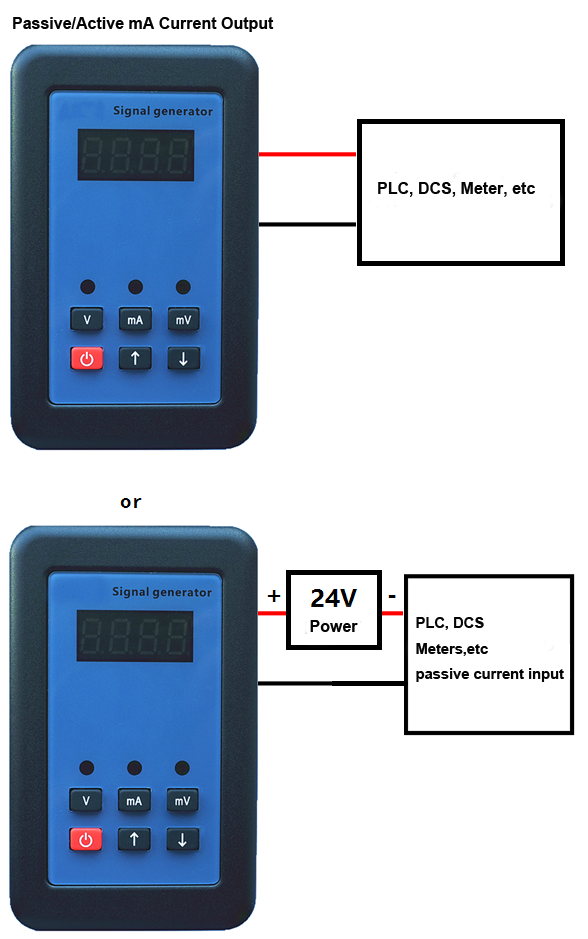

●Fast response, accurate reliable 0-24mA source or passive signal, 24V, 0-11V 0-110mV output.

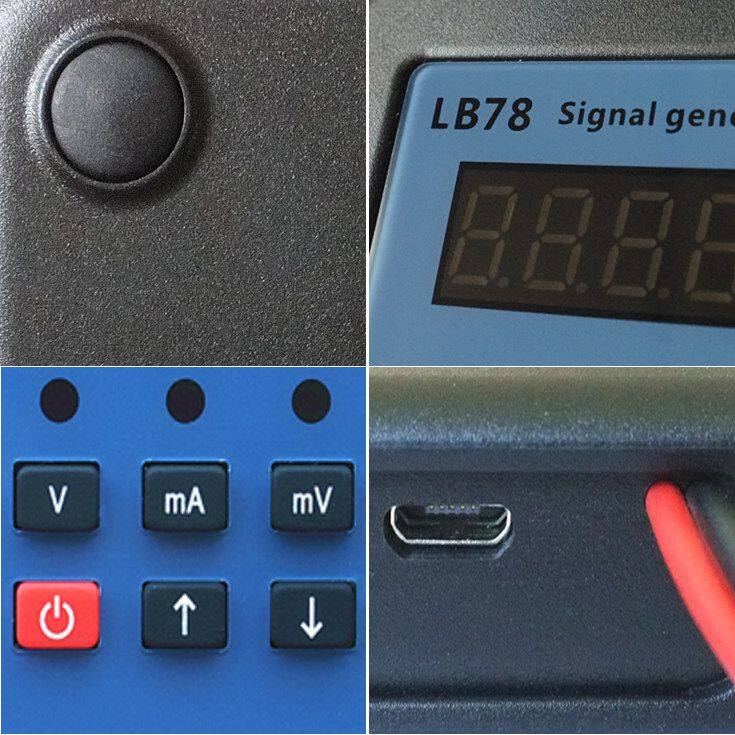

●Simple key layout, all functions have independent corresponding keys, simple easy-to-use.
● Have rechargeable Li battery inside, low power consumption and long stand-by time.
●Built-in one-time quick-break fuse can avoid instrument damages caused by improper connecting electric 110V or 220V.
●Operating temperature range: -10-+50℃, 20–85% RH humidity, non-condensation.
●Size: 108x66x20mm (LxWxH) , pocket size design.
