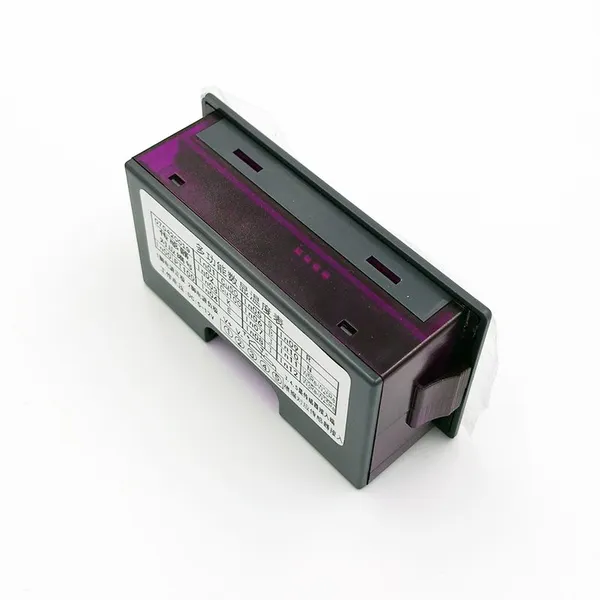

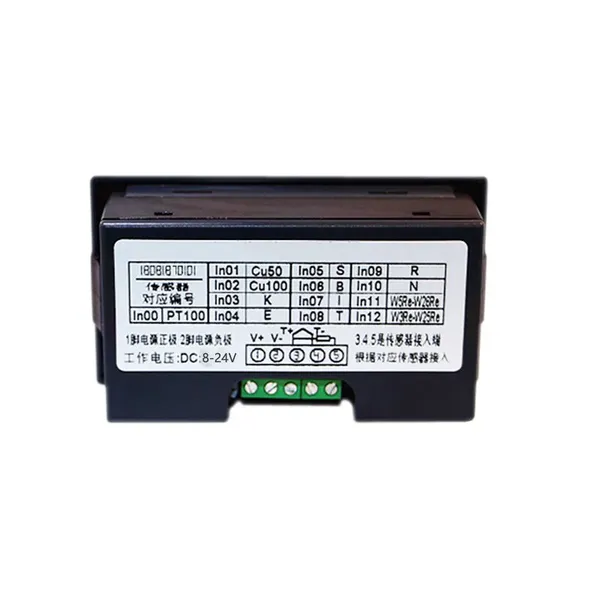

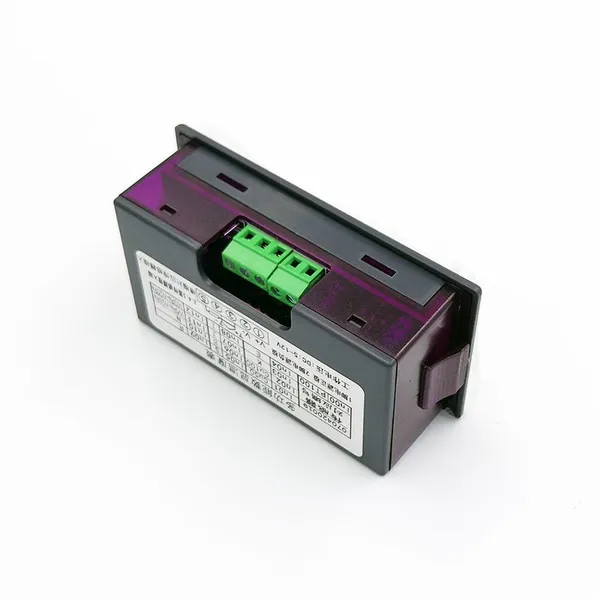

Precision Adjustable RTD PT100 Temperature Meter Thermocouple
K Thermal Resistance Temperature Sensor Panel Meter

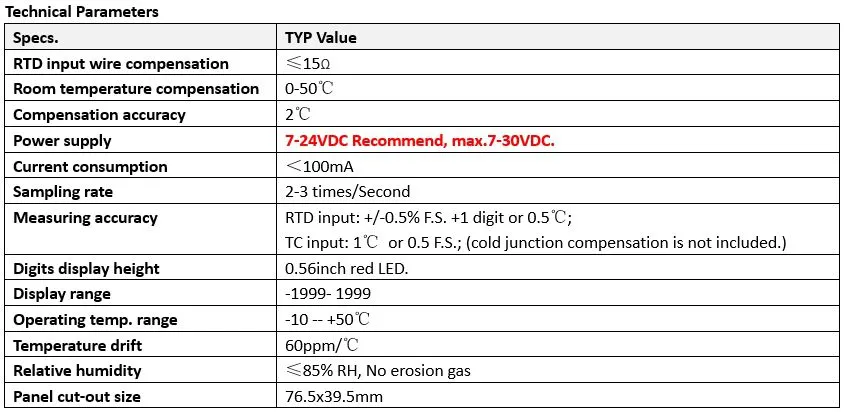

Technical Parameters
•3-wire /2-wire PT100 Sensor: -200 to 850 ℃ thermal resistance sensor signal input.
• Operating power supply: DC 5V-12V; (5V, 9V, 12VDC).
• Measuring accuracy: better than 0.5% F.S.
• Have built-in embedded compensation circuits for RTD sensor signal input, max. compensation resistance is up to 15Ω.
• Display unit ℃ can be set into hide status.
• Digits display height: 0.56inch red LED.
• External size: 79×43×25mm
• Panel Cut-out dimension: 76.5×39.2mm
• Weight: about 200g
• Operating ambient temperature range: -10℃–+50℃.
• Humidity: 85% R.H., non-condensation.
• High anti-interference capacity, stable and steady display, high efficiency circuit used.
*Note: Recommend using high precision A Level 3-wire PT100 sensor. Low precision PT100 sensor will cause large error.

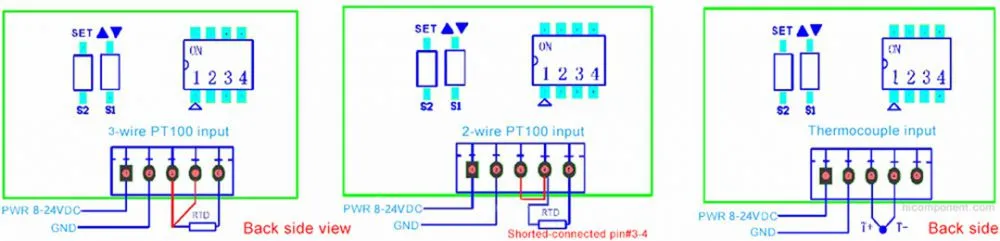

Wiring Circuits
Panel-mounted RTD Temperature Meter package including:
1 Unit x Original panel-mounted RTD PT100 temperature meter
1 Set x Professional User Manual
