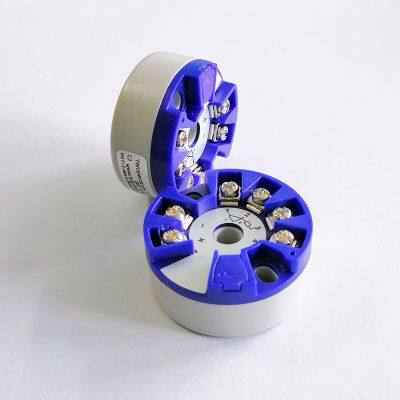

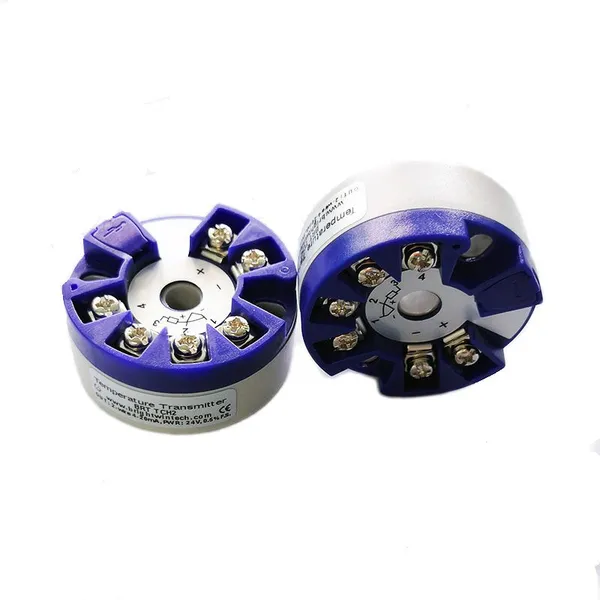

New Thermocouple RTD PT100 to 4-20mA 2-wire Temperature Transmitter With USB Communication OEM Customizable Plastic Housing
US$ 9.98
1 - 9 Piece
US$ 9.28
10 - 49 Piece
US$ 8.86
≥50 Piece
Key Specifications
Get Latest Price
Certification:
CE
Display Type:
Other, NO
Measuring Medium:
Temperature
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
New PT100 to 4-20mA Temperature Transmitter TC J K Thermocouple to 4-20Ma Signal Conditioner Converter ModuleUS$ 10.28 - 13.98MOQ: 1 Piece -
Head-mount Programmable PT100 to 0-10V Temperature Transmitter Thermocouple to Voltage Signal TransmitterUS$ 12.98 - 16.68MOQ: 1 Piece
-
Precision RTD PT100 to RS485 Converter Isolated Temperature Transmitter PT100 to Modbus Signal Conversion Module Data Aquisition Device DIN RailUS$ 13.98 - 18.98MOQ: 1 Piece
-
Adjustable 0-5V 0-10V 0-3.3V Signal Generator Voltage Signal Controller Analog Volt. V Signal Simulator 15-28V PowerUS$ 12.68 - 15.98MOQ: 1 Piece
-
Adjustable Digital 0-20mA 4-20mA Indicator 0-5V 0-10V Process Panel Meter -50mA to 50mA -50V to 50V Display Unit for Valves PLCUS$ 9.28 - 12.98MOQ: 1 Piece
Certification
CE
Display Type
Other, NO
Measuring Medium
Temperature
Site Display
Not Site Display
Customized
Customized
Type
Network Type
IP Rating
IP65
Accuracy
0.2
Input
PT100, Cu50, Cu100, TC-K, TC-J, TC-S, e
Input sensor type
RTD, TC
Power supply input
24VDC, max. 12-35VDC
Load capacity
250-500Ω
Temperature drift
≤50ppm/℃ F.S.
Output current limit
20.3mA
Transport Package
carton box

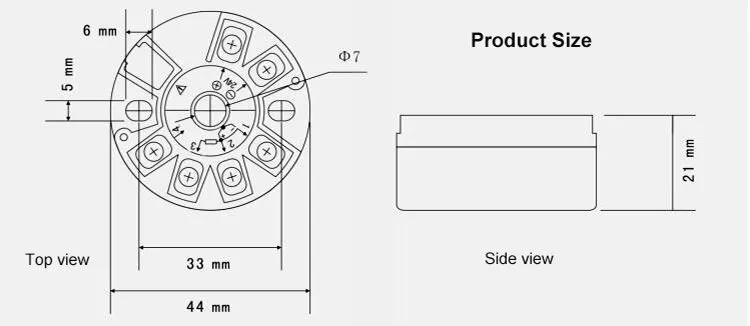

Specification
15*10*8cm
Trademark
brightwintech
Origin
China

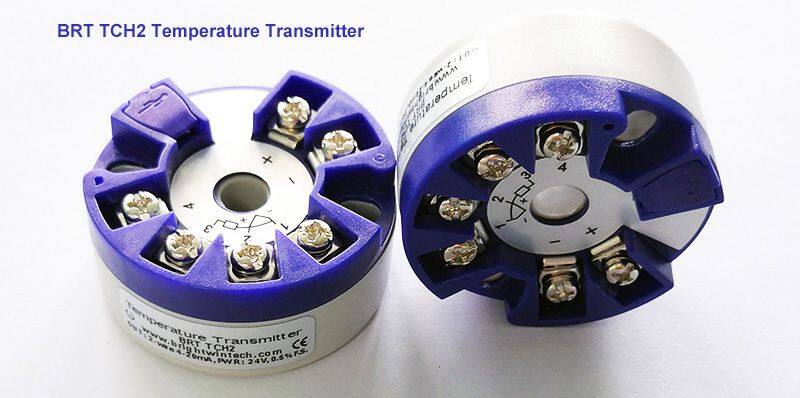

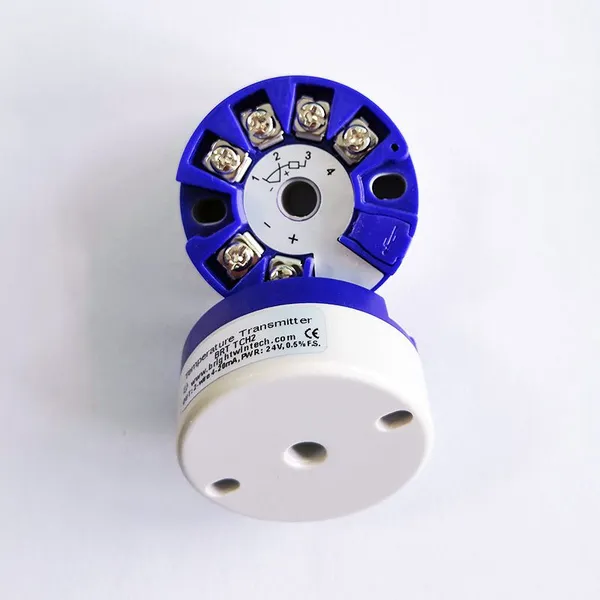

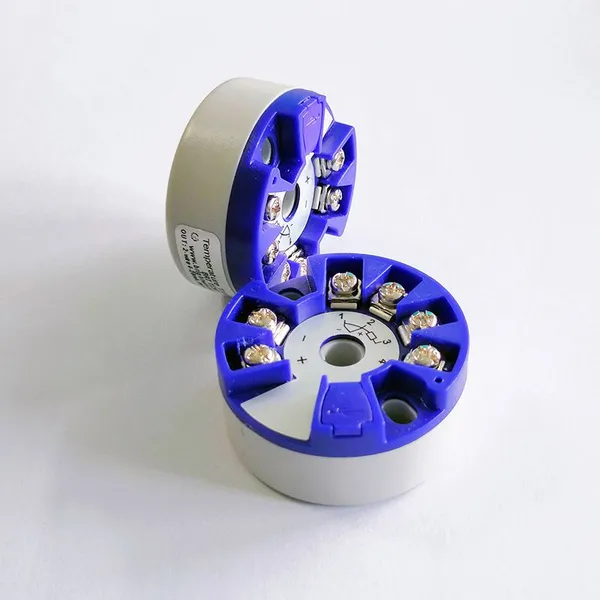

New Thermocouple RTD PT100 to 4-20mA 2-wire Temperature Transmitter with USB
Communication OEM Customizable Plastic Housing
Main Features

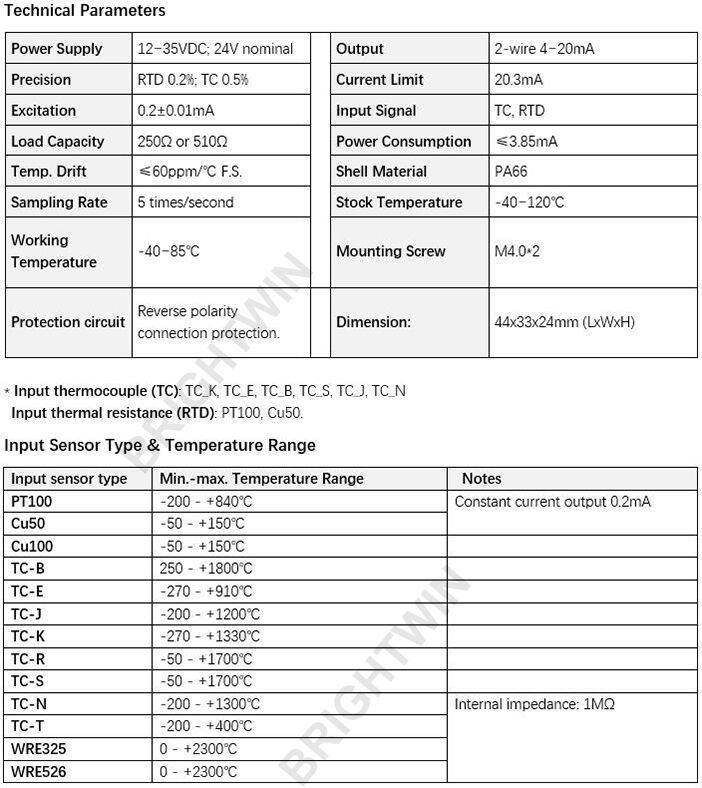

● Accuracy grade: TYP. 0.2% F.S. (RTD input), 0.5% F.S. (TC input)
● Internal embedded cold-junction compensation.

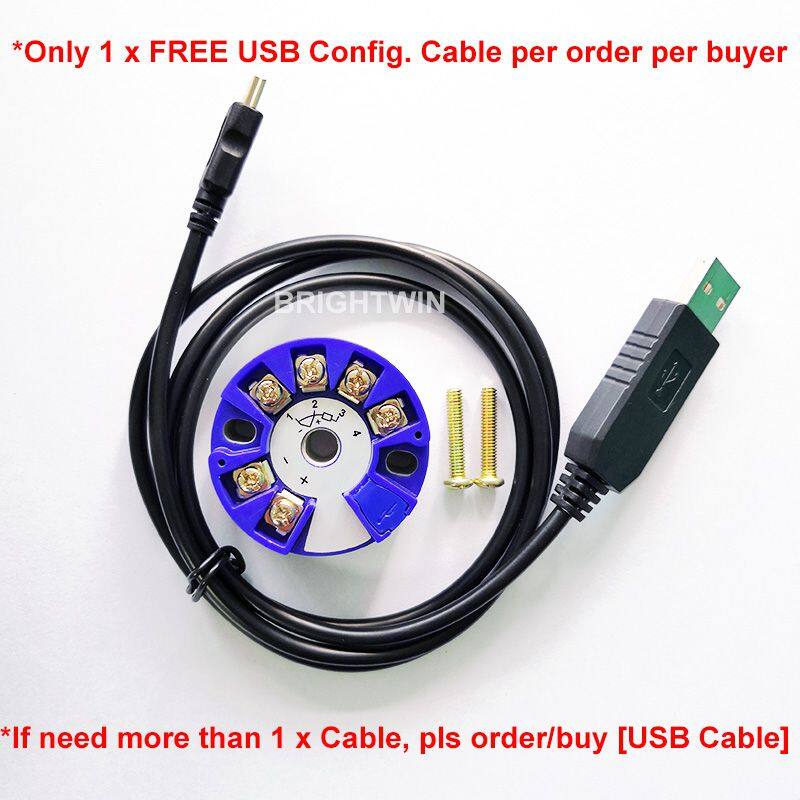

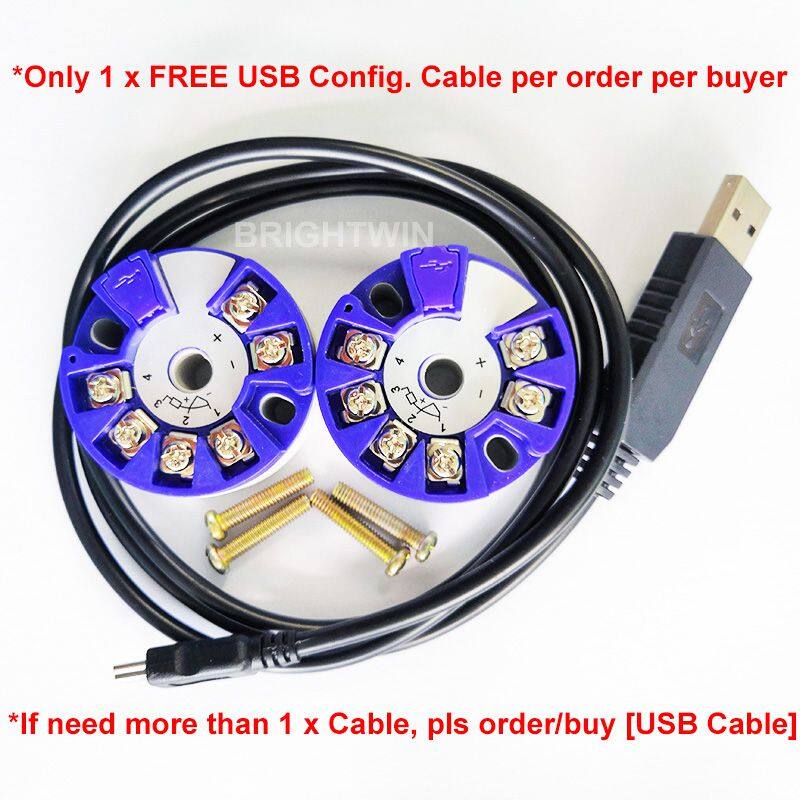

● Have USB port to set input sensor type and temperature ranges.

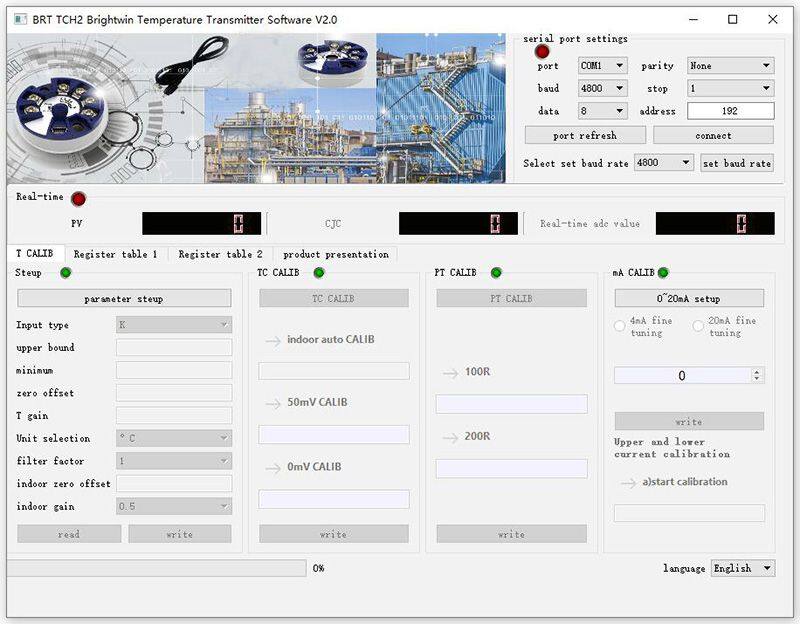

● Input sensor types, temperature ranges are programmable through software.
● 12-35V wide range power supply, 2-wire 4-20mA output.

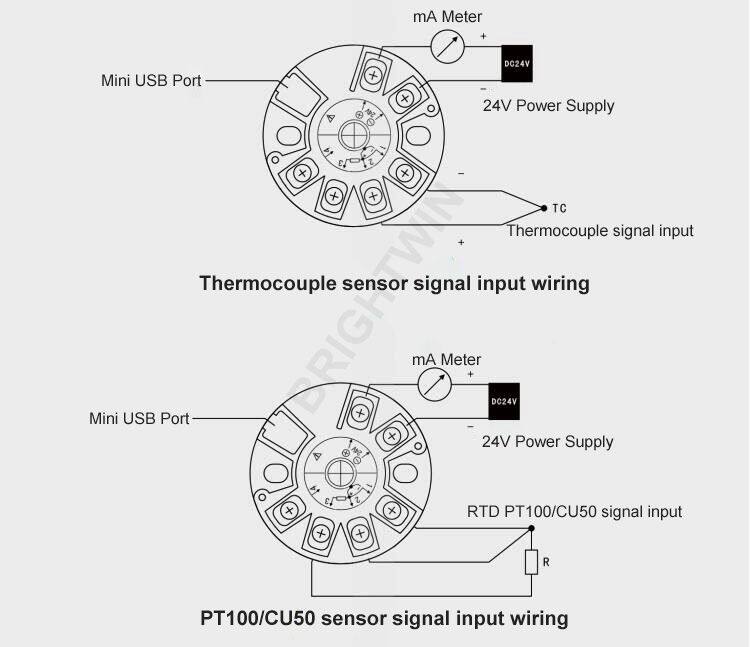

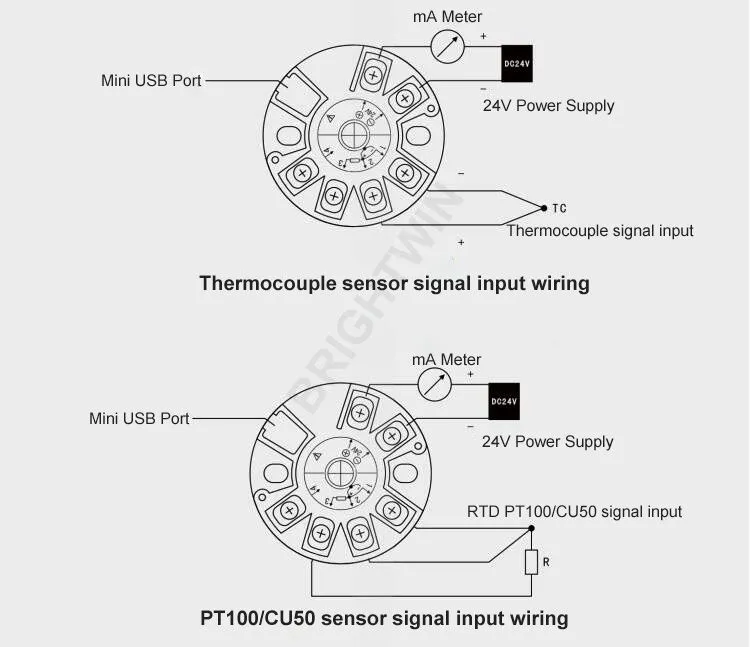

● Support 2-wire, 3-wire RTD PT100/CU50 signal input.
● Support all the thermocouple signal input, type K, J, T, S, N, R, E, B etc.

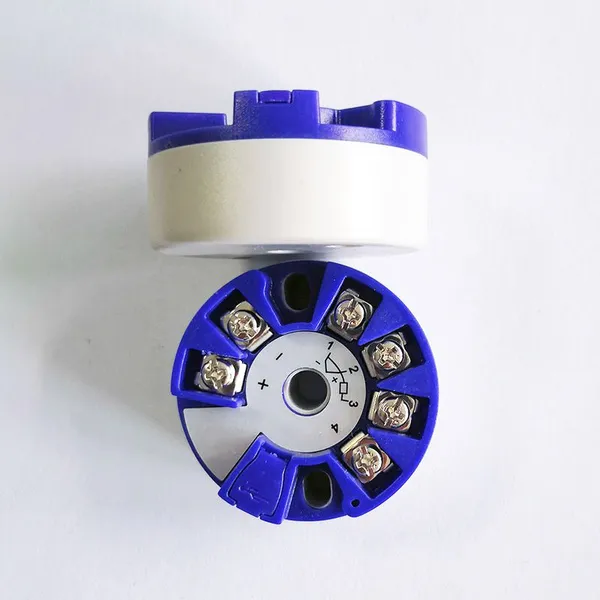

● Standard head-mounted refined frosted shell, flame-retardant material.
● High performance in withstanding shock, vibration, external interference, etc.
● In compatible with all the PLCs, temperature controllers, meters, etc.
● Industrial grade operating temperature range: -40 to +85℃
