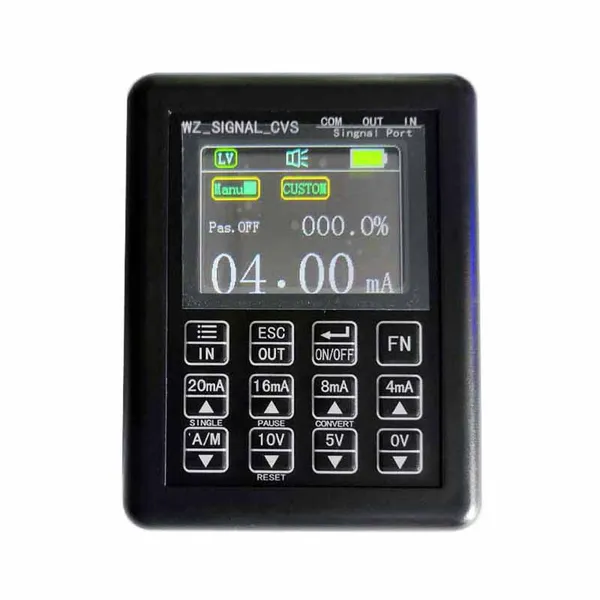

Help CenterOriginal WZ-SIGNAL-CVS Signal Generator 0-24mV Color LCD 0.3% Accuracy Process Signal Calibrator Current Source Simulator
Related Products
-
DIN Rail Adjustable 0-20mA 4-20mA 0-10V 0-5V Signal Generator Sensor Transmitter Current Voltage Signal Simulator CalibratorUS$ 14.28 - 19.98MOQ: 5 Pieces -
Original TG Signal Pro 24V 0-20mA 4-20mA 0-10V Signal Generator Tester CalibratorUS$ 40.98 - 49.99MOQ: 1 Piece
-
New Precision 0-5V 0-10V Signal Generator Voltage Signal Controller LCD DisplayUS$ 12.98 - 22.98MOQ: 1 Piece
-
BRIGHTWIN Precision -10V to 10V 0-5V 0-10V Signal Generator With 0.5% F.S. Accuracy LED Display Voltage Source SimulatorUS$ 13.28 - 16.98MOQ: 1 Piece
-
High Precision 0-5V 0-10V 4-20mA Current Voltage Signal Generator -10V 10V 0-22mA Source Simulator 0.25% Accuracy LED DisplayUS$ 10.28 - 14.98MOQ: 1 Piece
Original New Precision Multifunction Signal Generator Process Signal Calibrator Constant Current Source 0-24mA 0-20mA 0-10V Simulator
Main Features
• Pocket size: 90x70x28mm, very convenient to carry.
• Max. 0-24mA source and passive signal output, 0-12VDC, 24V output. Have signal output ON/OFF button.
• Max. 0-24mA 0-30V input measurement. • 0.01mA, 0.01V accuracy for signal output and input measurement.
• Have current voltage signal conversion functions.
• Large clear color LCD display input and output signal accurately.
• One screen task display or upper lower screen display.
• 2000mAH rechargeable battery inside, can be used in the lab or in industrial site.
• Have one button fast output, automatic ascending, descending and cycling output mode.
• Customized min. output value and max. output value are settable.

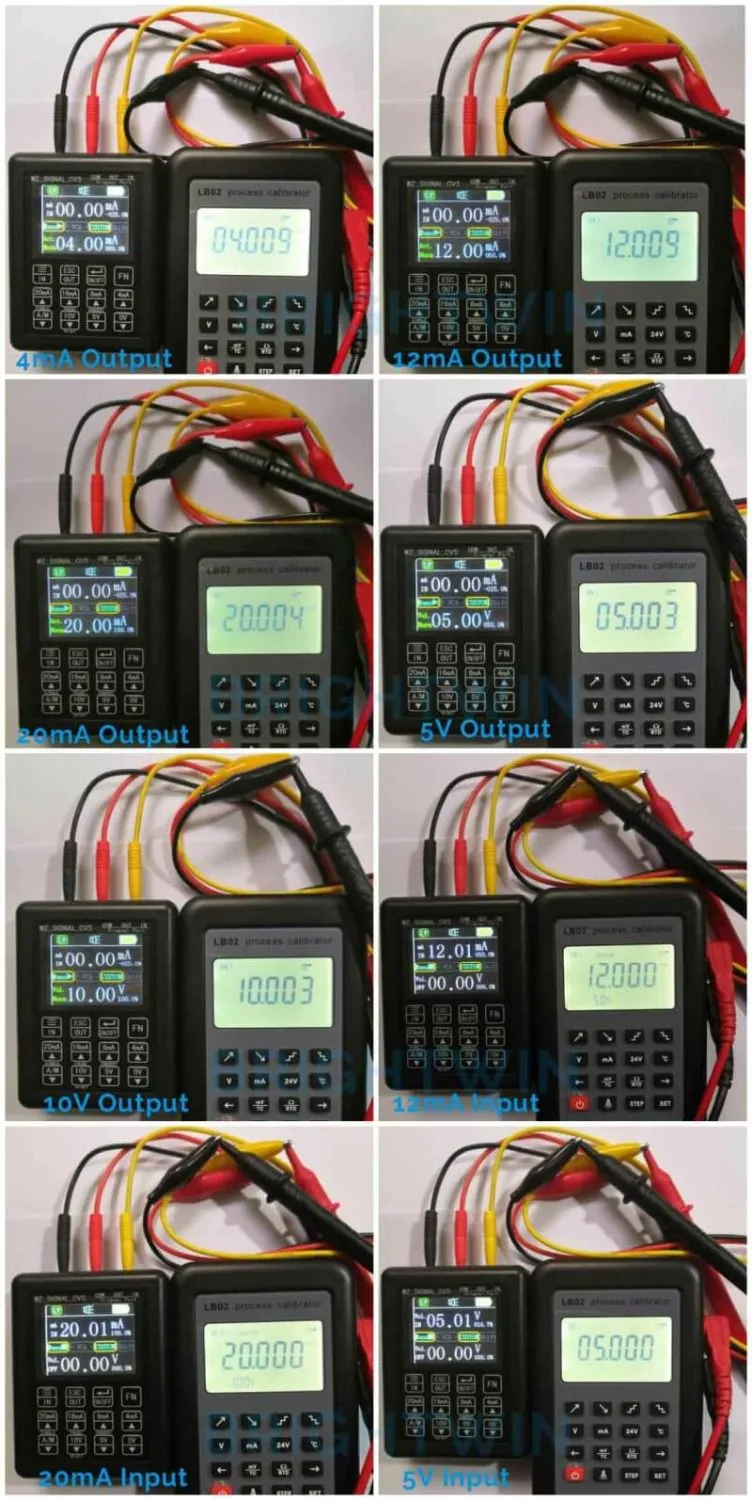

* All the technical parameters and testing show are only for the BRIGHTWIN signal generator.
* 24 months Quality warranty, buy with confidence from Brightwin!
Package Including:

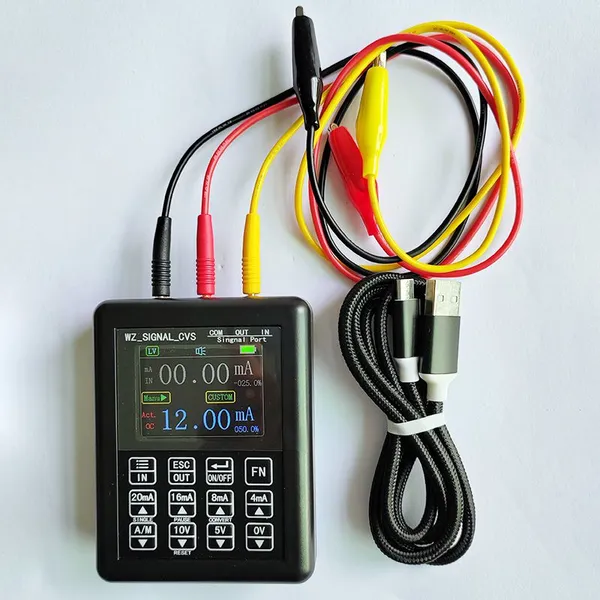

1 Unit x Original BRT LB03 WZ-SIGNAL-CVS Signal Generator
1 Set x Testing Clips (Red, Yellow, Black)
1 Pcs x High quality USB Cable
1 Set x User Mnaual Paper English Version
