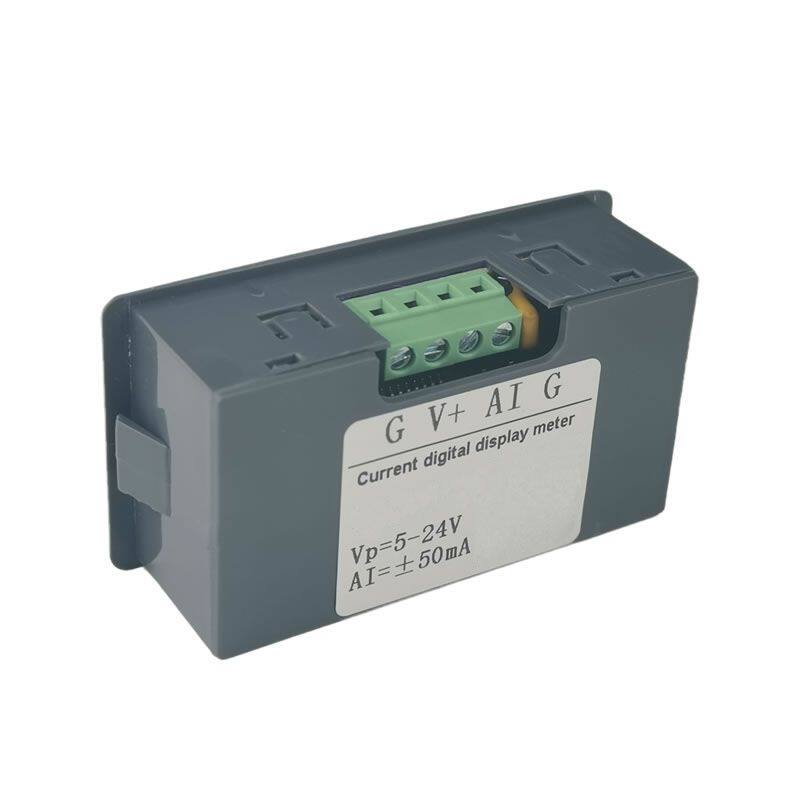

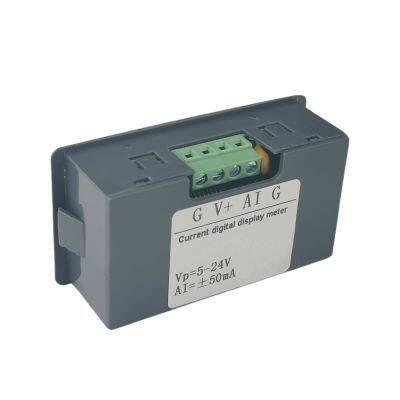

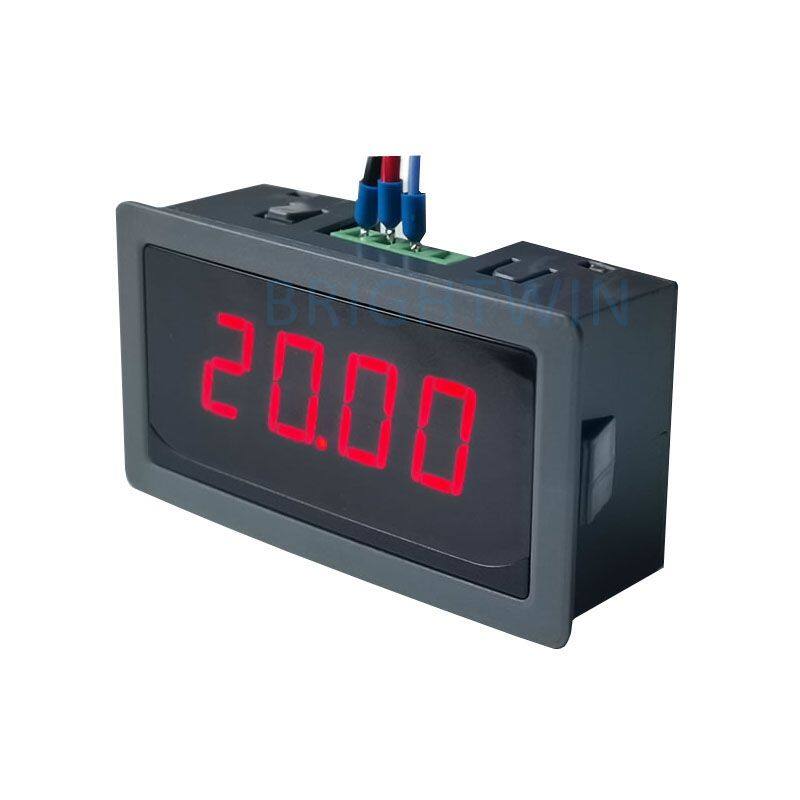

Adjustable Digital 0-20mA 4-20mA Indicator 0-5V 0-10V Process Panel Meter -50mA to 50mA -50V to 50V Display Unit for Valves PLC
Main Function
●Used for ±50mA ±50V analog signal display
●Display decimal point position can be set.
●5-24V wide range operating power supply.
●Display accuracy remains the same in long time operating status.
●Have power supply polarity reverse protection circuit, and input anti-static protection.
●High performance in durability and reliability
●Customized display mode:
-Input 4-20mA, screen displays: 0-3000
-Input 0-10V, screen displays: 0-100.0
-Displays 50.0(Hz), 100.0 (%) percentage, etc.
●Have ± digit display mode.

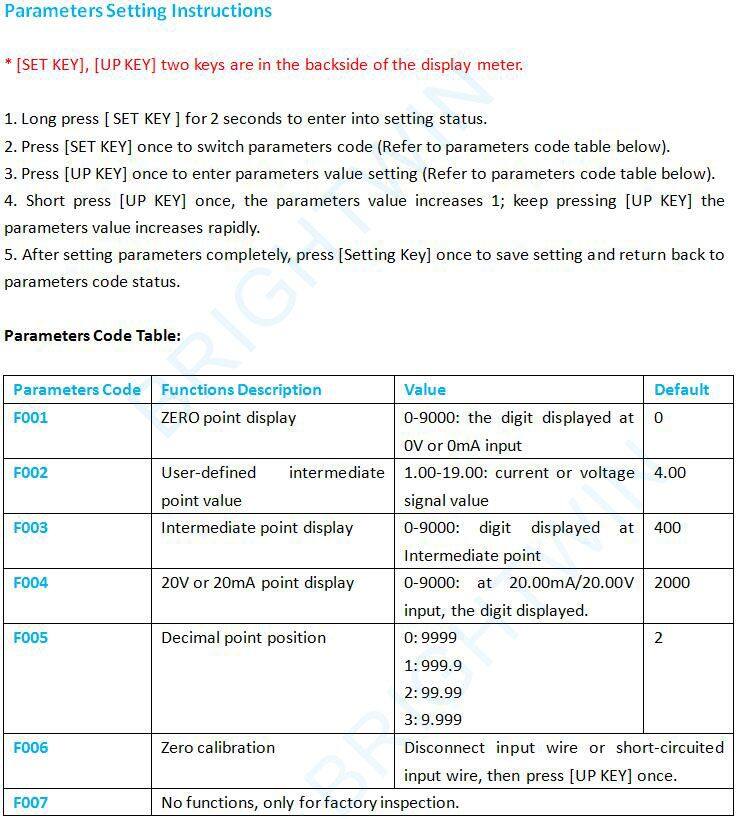

Parameters Setting Examples:
Current meter input 4-20mA, LED screen displays 0-1500, parameters code value below:
F002 =4.0 F003=0 F004=1500 F005=0
Voltage meter input 0-10V, LED screen displays 0-1.500, parameters code value below:
F002=5.0 F003=750 F004=3000 F005=3
