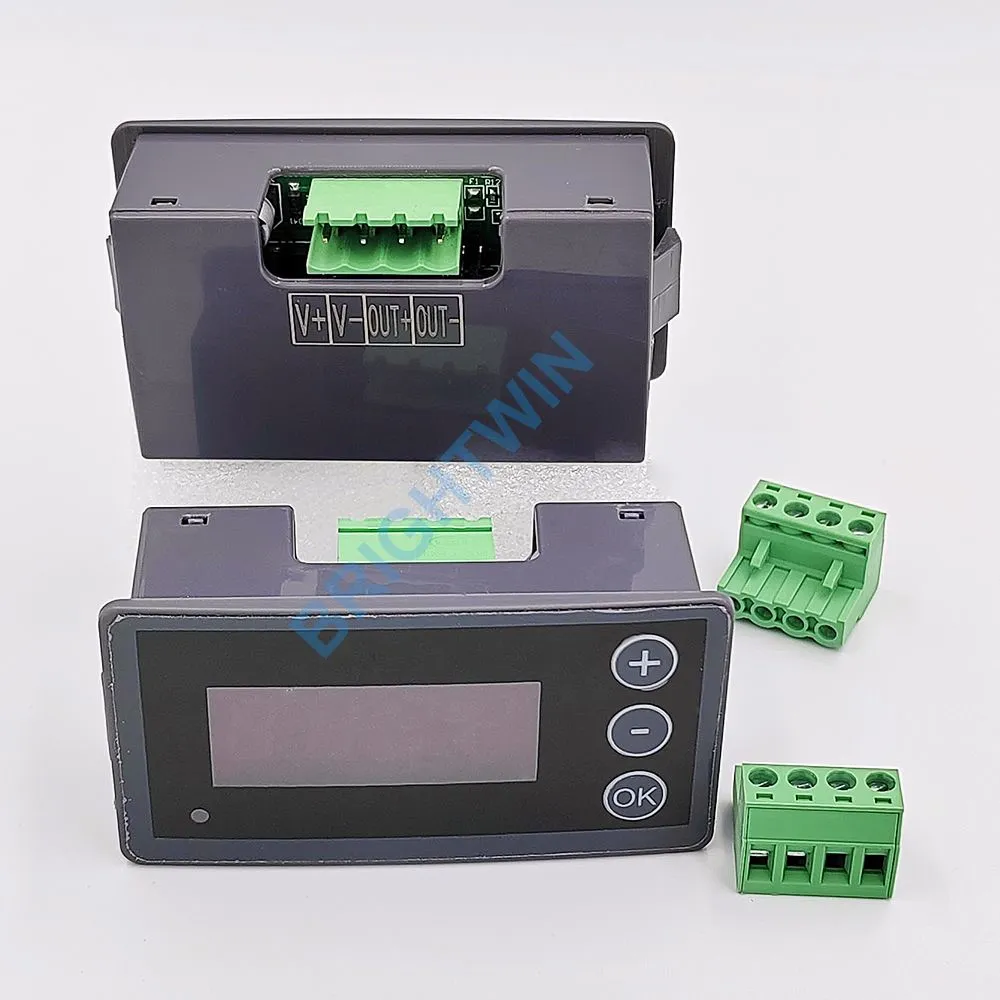

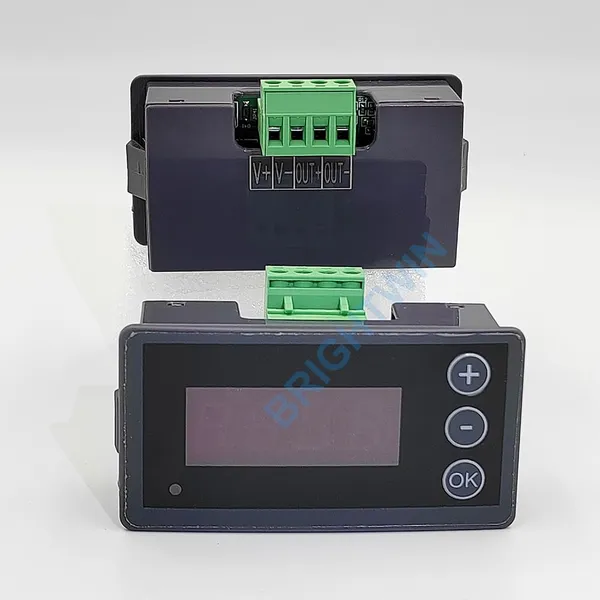

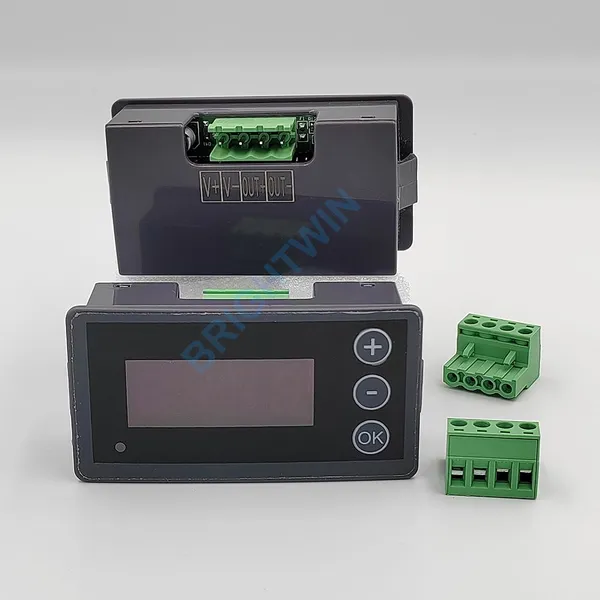

Adjustable 0-5V 0-10V 0-3.3V Signal Generator Voltage Signal Controller Analog Volt.
V Signal Simulator 15-28V Power
Main Features
1、0.5% accuracy grade, high linearity output.
2、Using long life span pressing buttons, user can use pressing button to set it.
3、Have two types of adjusting mode: rough adjustment and fine adjustment.
4、Programmable output, output range can be set into 0-3.3V, 0-5V, 2-10V, 0-10V.
5、LED display is settable among current signal value display, 0-100.0 percentage display, etc.
6、Min. Changing step can be 0.01V
7、4 digits 0.4-inch clear LED display, standard panel-mounted package.
8、4 Pin pluggable wiring terminal blocks, easy to do wire connection.
9、Output has short-circuited protection functions.
10、Have polarity reverse connection protection circuit in power supply terminals.
11、Digital encoder used, long durability, strong anti-interference capability.
Packing List:
1 unit x Original 0-5V 0-10V Signal Generator
1 x User Manual Paper
