Home > Electrical & Electronics > Transmitter > Temperature & Humidity Transmitter > Precision RTD PT100 to RS485 Converter Isolated Temperature Transmitter PT100 to Modbus Signal Conversion Module Data Aquisition Device DIN Rail
Precision RTD PT100 to RS485 Converter Isolated Temperature Transmitter PT100 to Modbus Signal Conversion Module Data Aquisition Device DIN Rail
US$ 18.98
1 - 4 Piece
US$ 17.68
5 - 9 Piece
US$ 13.98
≥10 Piece
Key Specifications
Get Latest Price
Certification:
CE
Display Type:
Other, no
Measuring Medium:
Temperature
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
New Thermocouple RTD PT100 to 4-20mA 2-wire Temperature Transmitter With USB Communication OEM Customizable Plastic HousingUS$ 8.86 - 9.98MOQ: 1 Piece -
New PT100 to 4-20mA Temperature Transmitter TC J K Thermocouple to 4-20Ma Signal Conditioner Converter ModuleUS$ 10.28 - 13.98MOQ: 1 Piece
-
Head-mount Programmable PT100 to 0-10V Temperature Transmitter Thermocouple to Voltage Signal TransmitterUS$ 12.98 - 16.68MOQ: 1 Piece
-
Original TG Signal Pro 24V 0-20mA 4-20mA 0-10V Signal Generator Tester CalibratorUS$ 40.98 - 49.99MOQ: 1 Piece
-
New Precision 0-5V 0-10V Signal Generator Voltage Signal Controller LCD DisplayUS$ 12.98 - 22.98MOQ: 1 Piece
Certification
CE
Display Type
Other, no
Measuring Medium
Temperature
Site Display
Not Site Display
Customized
Customized
Type
Network Type
IP Rating
IP65
Accuracy
Other, ±0.2℃, max. error ±1℃
Measuring temperature range
-199℃ --+600℃
Operating voltage
DC6-30V
baud rate
2400--115200bps adjustable.
Transport Package
carton box
Specification
15*10*8cm
Trademark
brightwintech
Origin
China

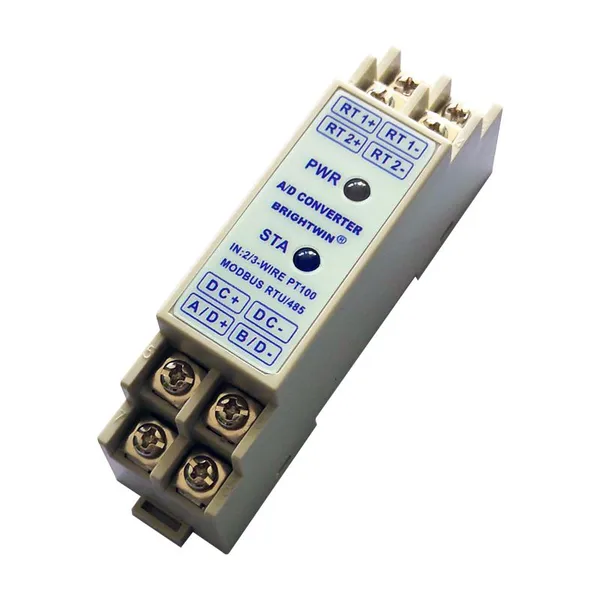

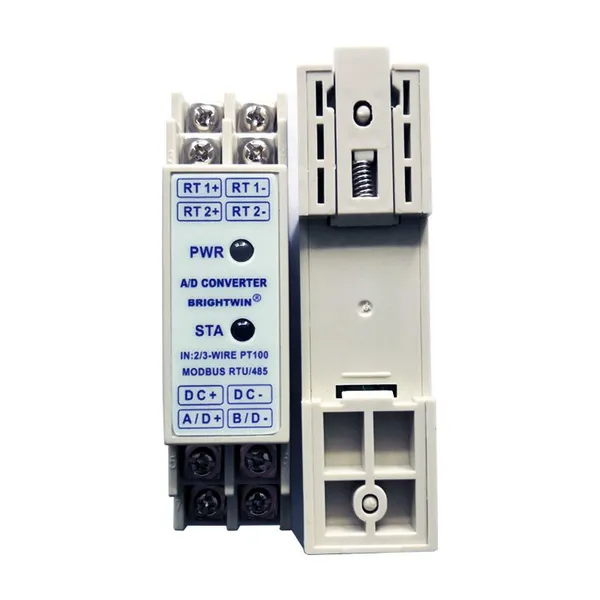

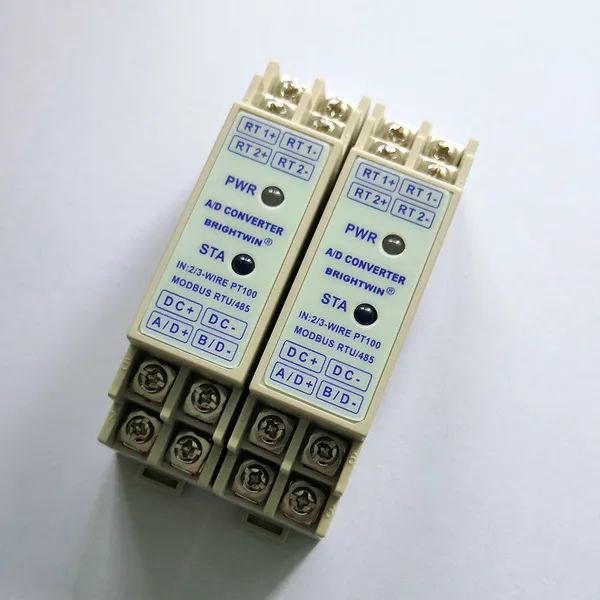

Precision RTD PT100 to RS485 Converter Isolated Temperature Transmitter PT100 to Modbus Signal Conversion Module Data Aquisition Device DIN Rail

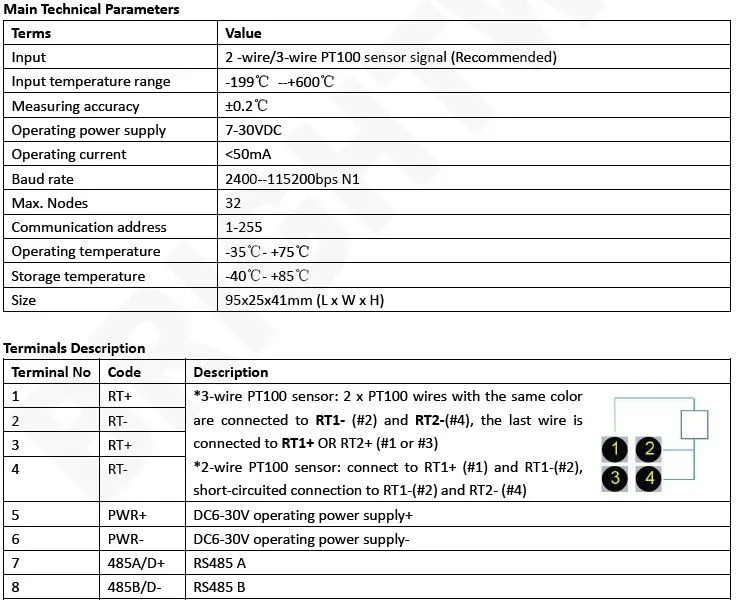

Main Features

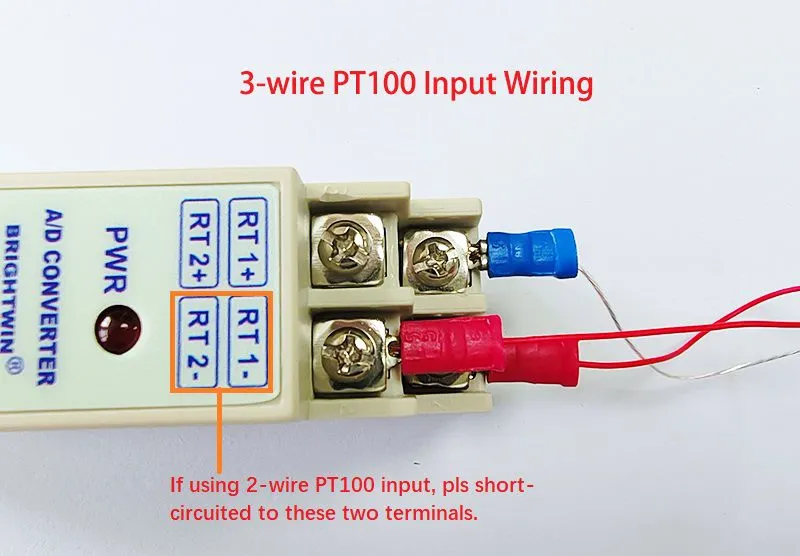

-1-channel 2-wire PT100 or 3-wire PT100 sensor signal input.
-Measuring temperature range: -199℃ --+600℃.
-Accuracy: ±0.2℃, max. error ±1℃.

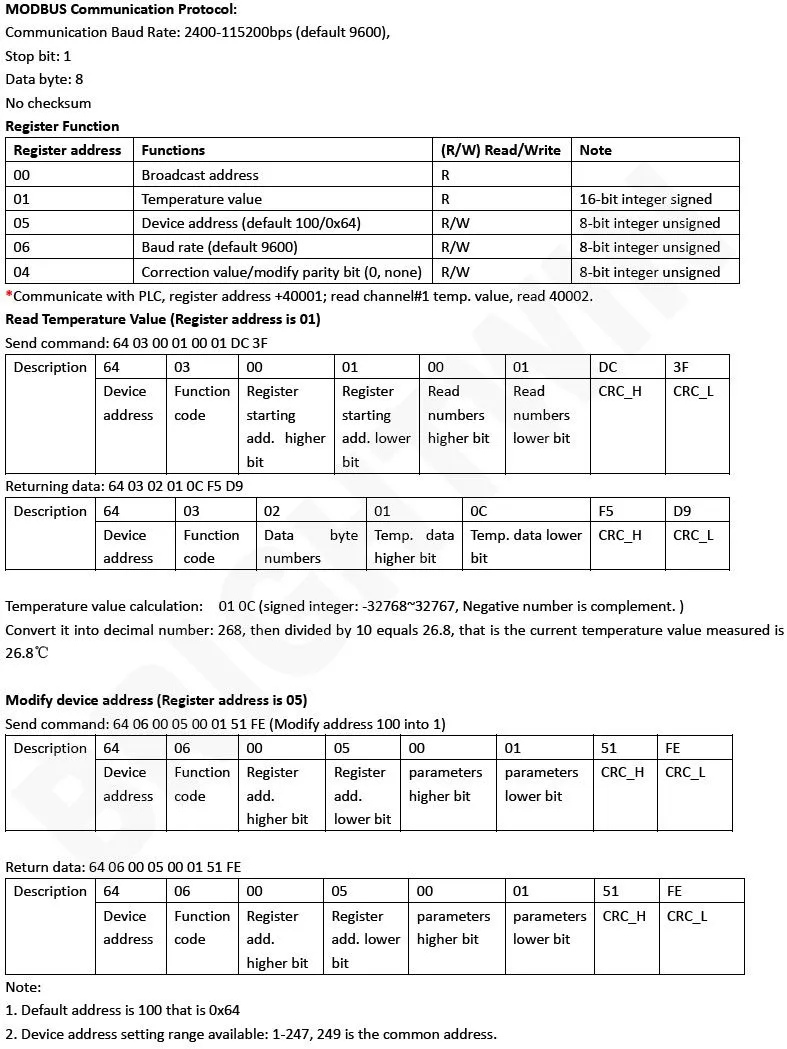

-Standard MODBUS RTU communication protocol.
-Standard RS485 port, baud rate: 2400--115200bps adjustable.
-Max. supports 32 nodes (customized nodes available).

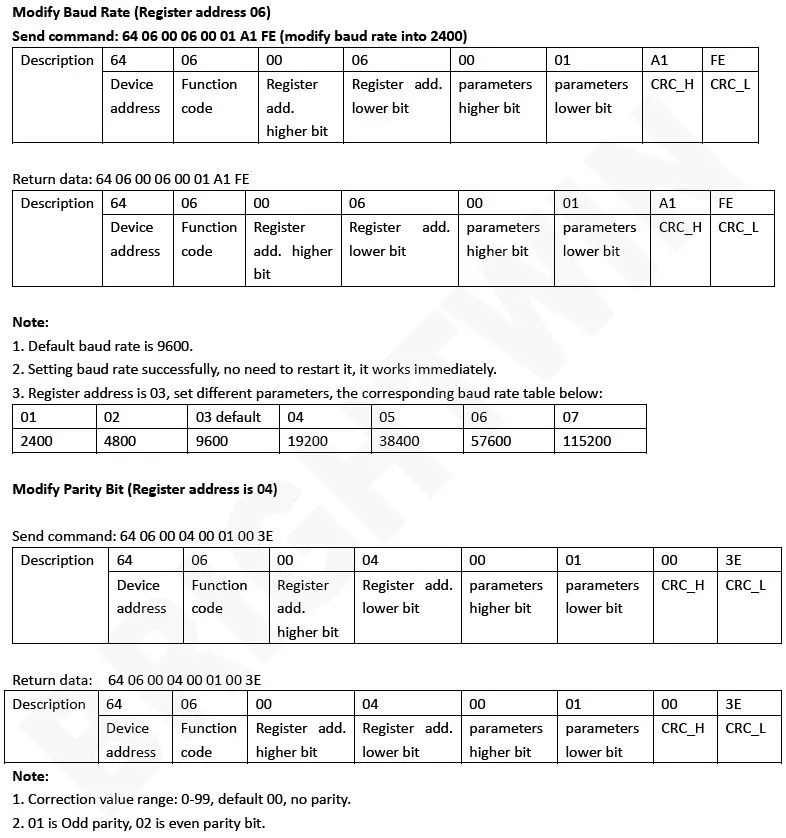

-Support read temperature value, modify address, baud rate, temperature correction value, etc.
-Operating voltage: DC6-30V.

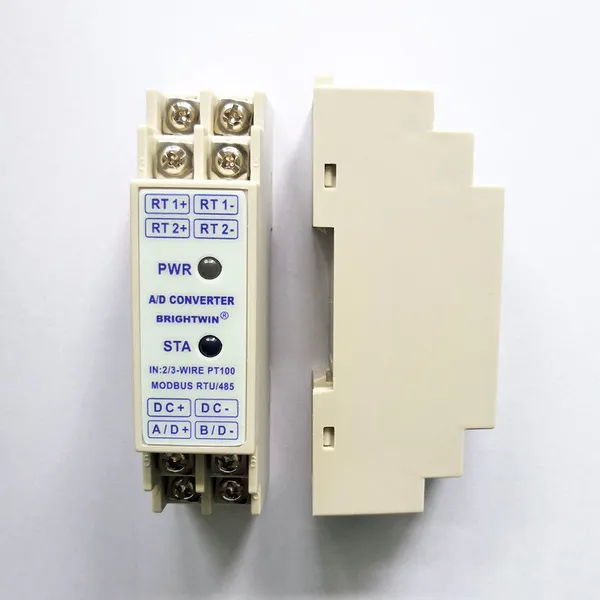

-35mm DIN Rail-mounted casing.
-Have watch dog function, automatic reset in 5 seconds in case of error.
-High accuracy high resolution AD chip used.
-Have anti-polarity reverse connection, anti-surge, over-current and EMC protection circuits.
