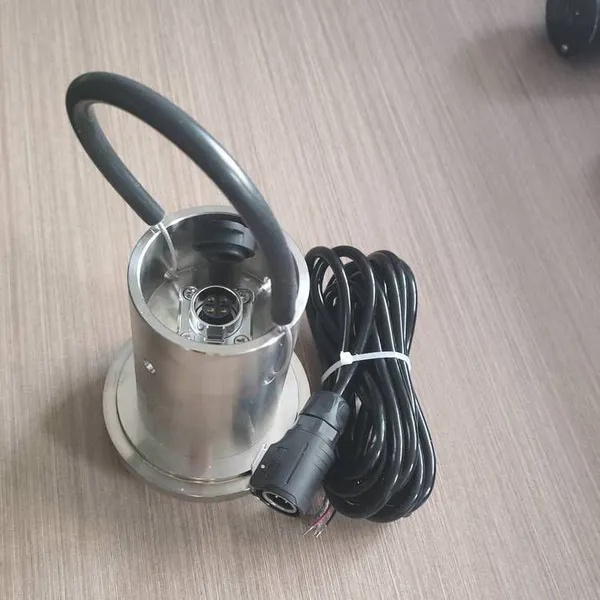

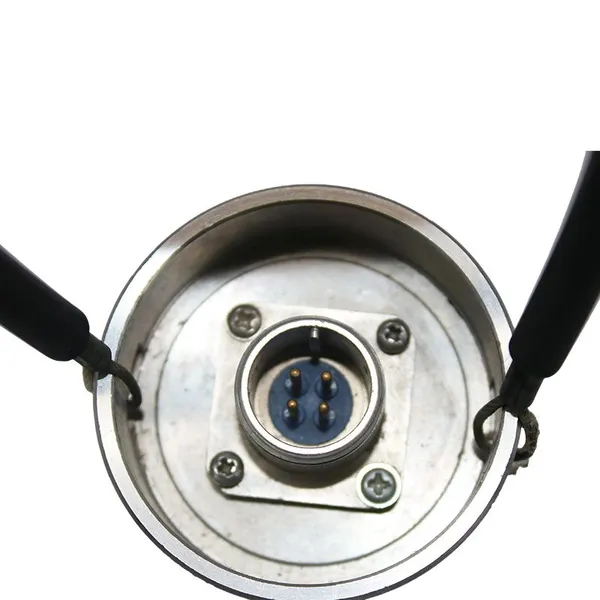

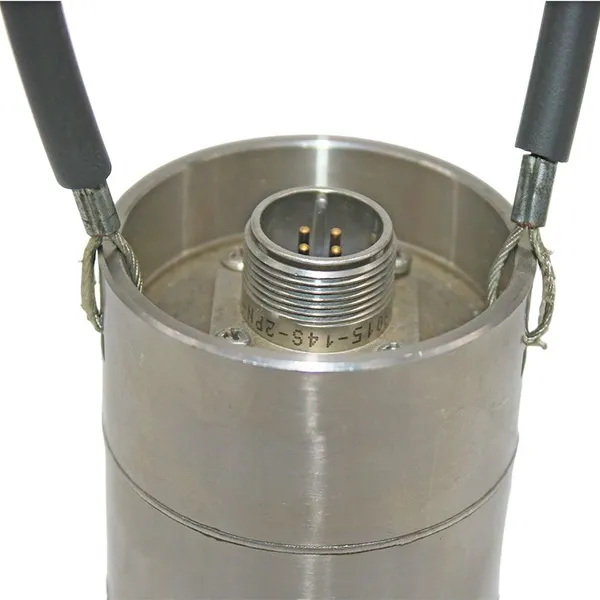

Kyue Stainless Steel Union Pressure Transmitter With 4-20mA Output for Etroleum Industry Hammer Union
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Stainless Steel
Certification:
ISO
Measuring Medium:
Other, crude oil ,slurry
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
15 days
Related Products
-
KY5002 Factory Direct Pressure Sensor 4~20mA Industrial Piezoresistive Gas Oil Liquid Pressure Transducer Gauge Pressure Absolute PressureUS$ 20MOQ: 1 Unit -
KY5001 Factory Direct Pressure Sensor 4~20mA Industrial Piezoresistive Water Pressure Transducer Stainless Steel Industrial UseUS$ 25MOQ: 1 Unit
-
KY5500 Hydraulic Pressure Transducer for Heavy Machinery Pressure Sensor 0-10000 PSIUS$ 25MOQ: 1 Piece
-
NB-IOT Zigbee MQTT Wireless Pressure Transmitter Lithium Battery Powered Industrial Explosion Proof Wireless Pressure SensorUS$ 250MOQ: 1 Unit
-
KY5005 Sanitary Pressure Transducer for Food Beverage Industry Hygienic Pressure Sensor 0.1-200MPa IP65 WaterproofUS$ 38 - 40MOQ: 1 Piece
Material
Stainless Steel
Certification
ISO
Measuring Medium
Other, crude oil ,slurry
Output Signal Type
Other, 4-20mA ,hart
Production Process
Integration
For
Other, acidizing, cementing, and hydraulic fracturing
Thread Type
Other, WECO#1502 OR WECO#2202
Wiring Type
Two-Wire
Customized
Customized
Type
Piezoresistive Pressure Sensor
IP Rating
Other, IP66
Component
SemiConductor Type
Transport Package
carton
Trademark
Kyue
Origin
Tianjin

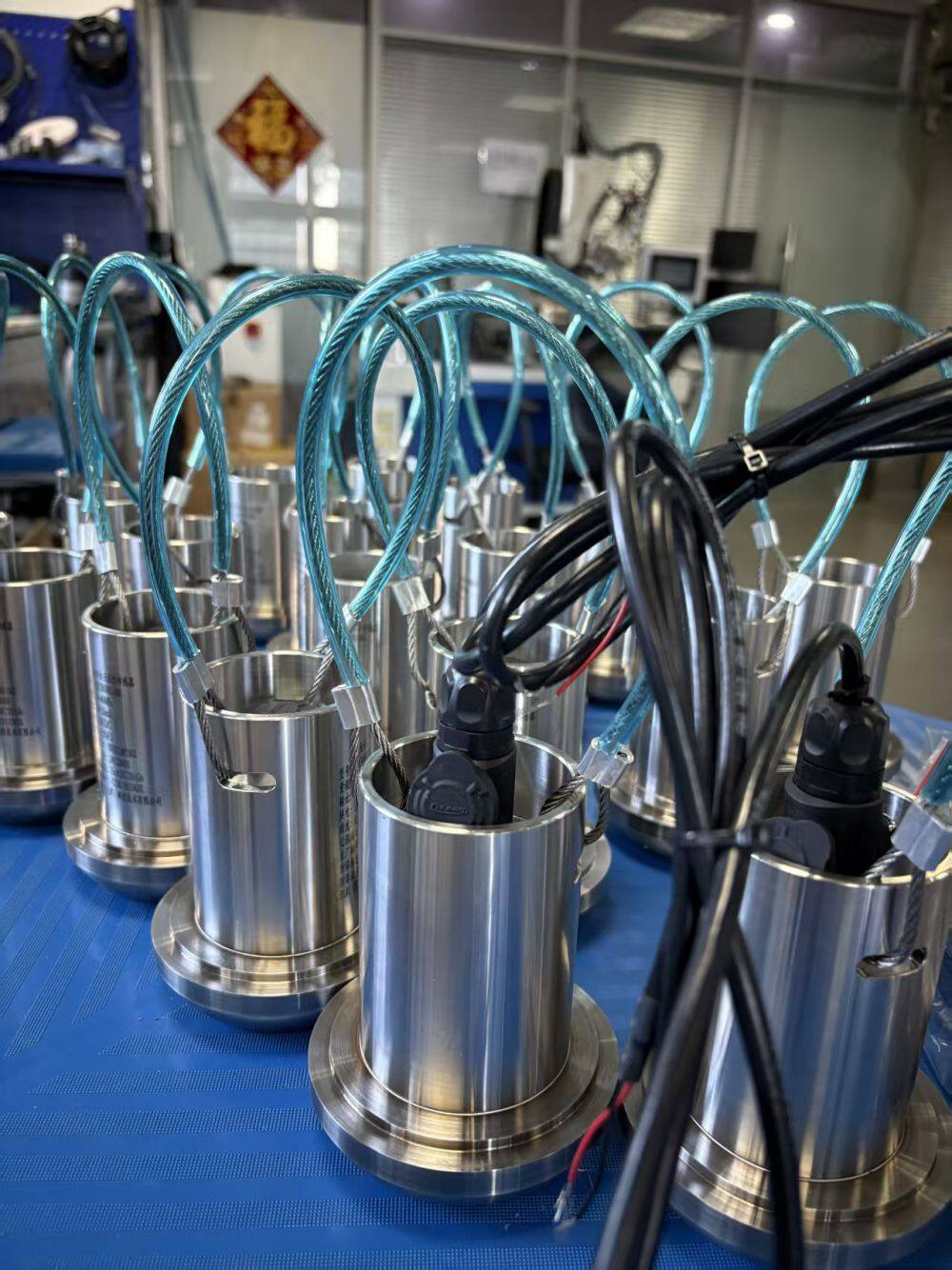

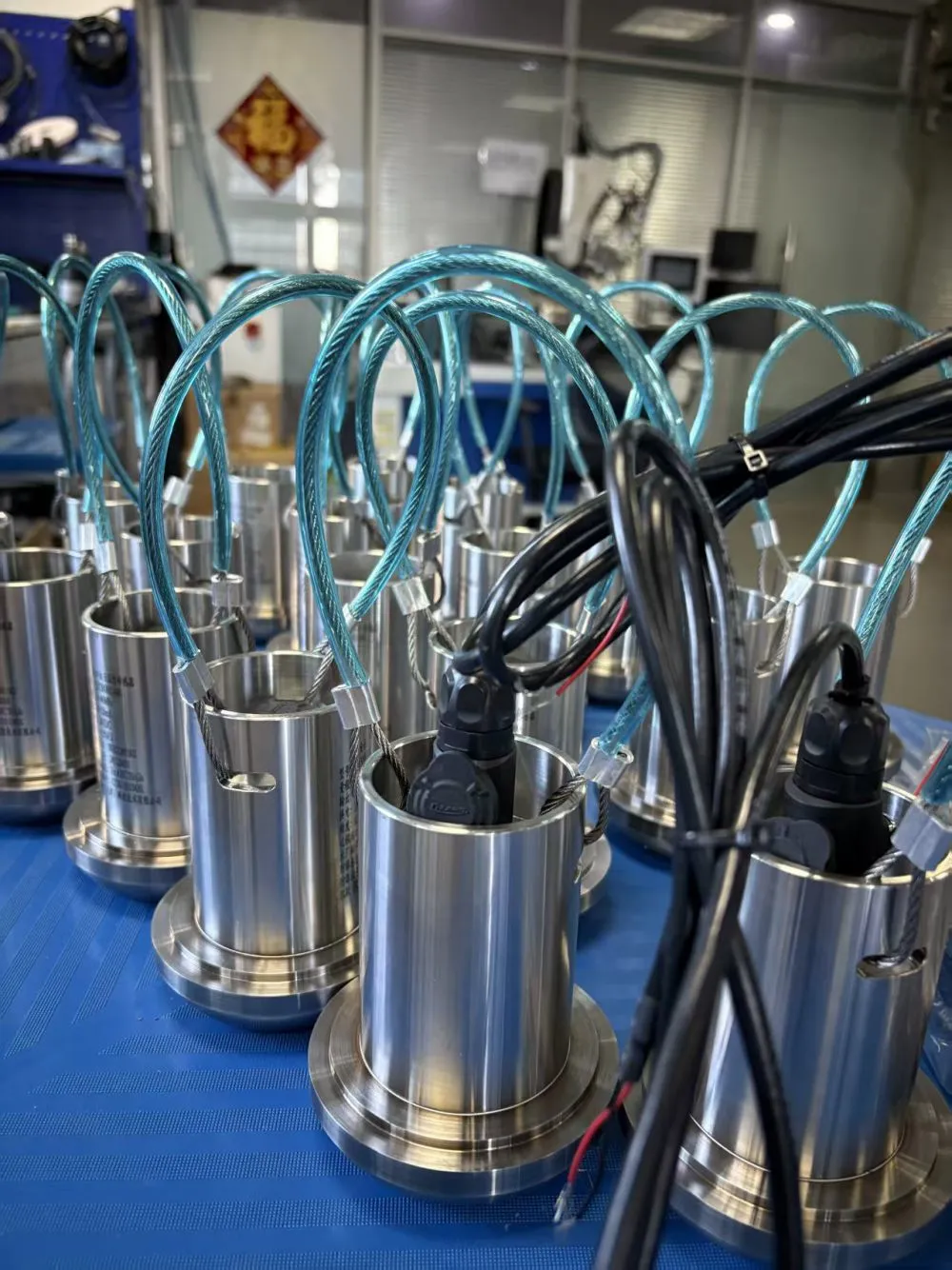

KY300HU Union Pressure Transmitter (Specialized Pressure Transmitter for Petroleum Industry)
1.Core Applications
Designed for high-risk, highly corrosive, and complex media environments in the petroleum industry, primarily applied in:
Downhole Operations: Real-time pressure monitoring during acidization, cementing, and fracturing processes
Surface & Pipeline Systems: Pressure measurement in crude oil transmission pipelines containing corrosive gases (e.g., H₂S, CO₂) and liquids, as well as in damp-soil environments
2.Technical specifications
| Range | 0‑70 MPa, 0‑100 MPa, 0‑150 MPa (customizable based on working conditions) |
| Measuring media | Crude oil ,Slurry |
| Over pressure | 200% |
| Output Signal | 4‑20 mA (two-wire system), HART protocol supported (optional) |
| Process connection | WECO#1502 OR WECO#2202(hammer union) |
| Protection Rating | IP65 |
| Accuracy | 0.2%F.S. 0.5%F.S |
| Respond time | 10ms |
| Ambinent temperature | -40-120℃ |
| Power supply | 24VDC |
3.Compatible Application Scenarios
Pressure monitoring after fracturing truck pumps (requires pulse damping devices)
Wellhead Christmas tree pressure monitoring
Pressure measurement in acid injection pipelines during acidization
Pressure monitoring in sand-containing, high-viscosity crude oil transmission pipelines
