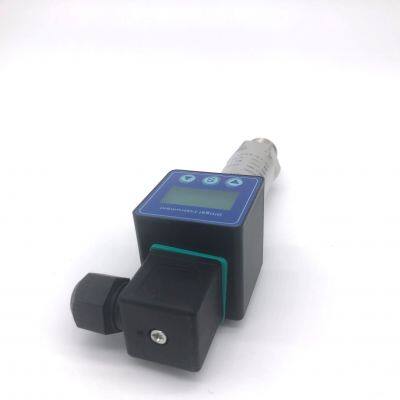

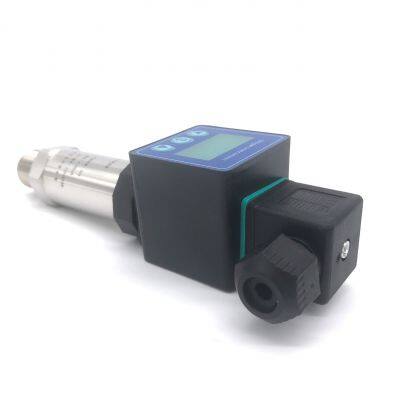

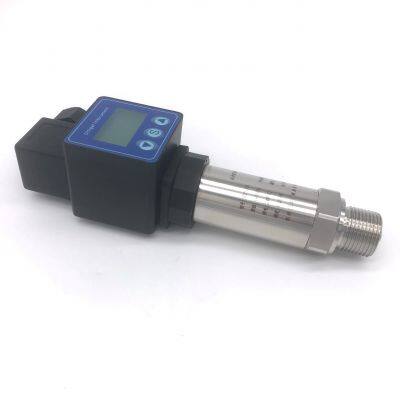

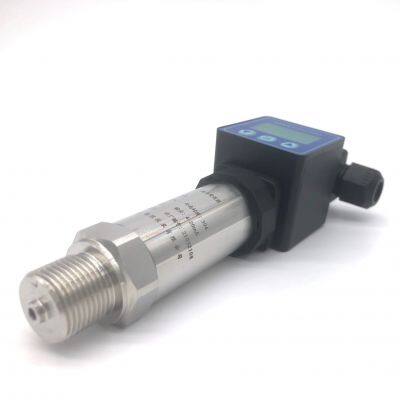

KY5006 4-20mA RS485 0-10V LCD Digital Display Pressure Sensor for Gas Hydraulic System on Site Reading Diffused Silicon Piezoresistive
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
ISO
Measuring Medium:
Other, gas ,liquid
Accuracy Grade:
0.2G
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
15 days
Related Products
-
Kyue IP66 4-20mA High Accuracy Industrial Grade Pressure Transmitter Factory Supply Digital Pressure SensorUS$ 28 - 30MOQ: 1 Piece -
Kyue IP66 4-20mA RS485 Oil Gas Liquid Pressure Transmitter Factory Supply Digital Pressure TransducerUS$ 28 - 30MOQ: 1 Piece
-
Kyue Intelligent Pressure Transmitter Factory Supply Digital Smart Pressure Sensor 1/2NPTF ConnectionUS$ 45 - 50MOQ: 1 Piece
-
High Precision Pressure Switch Explosion-proof Diaphragm Type Custom Negative Pressure Differential Pressure ControllerUS$ 150 - 155MOQ: 1 Piece
-
Kyue H100series -100kPa-15kPa Differential Micro Pressure Switch SPDT DPDT Pressure Switch for HAVC Vacuum Furnace CE CertifiedUS$ 150 - 155MOQ: 1 Piece
Certification
ISO
Measuring Medium
Other, gas ,liquid
Accuracy Grade
0.2G
Structure Type
Diffused Silicon Pressure Transmitter
Customized
Customized
Type
Normal Pressure Transmitter
IP Rating
IP65
Pressure range
Other, 0.1MPa-0-150MPa
Output signal
4-20mA,RS486
over pressure
150%
Transport Package
carton
Trademark
Kyue ,customizable
Origin
Tianjin
1.Product Overview
The KY5006 pressure transmitter features a diffused silicon sensing core and integrated digital circuitry that converts sensor signals into standard current output for direct connection to computers, PLCs, and other devices. With a compact, fully sealed stainless steel structure, it offers corrosion resistance, vibration and shock resistance, and easy installation. The device provides LCD/LED display options with support for unit switching and customizable ranges, along with water and dust resistance. It is suitable for process control, aerospace, automotive, medical, HVAC, and other fields.
2.Techinical specifications
| Item | Specification |
|---|---|
| Measurement Principle | Diffused Silicon Piezoresistive |
| Measured Media | Gases, liquids, and other non-highly corrosive media compatible with stainless steel |
| Measuring Range | 0～100 kPa to 0～100 MPa (customizable) |
| Pressure Type | Gauge, Absolute, Sealed Gauge (optional) |
| Output Signal | 4～20mA (2-wire); RS485/Modbus (optional) |
| Power Supply | 12～36 VDC (for 4～20mA); 5 VDC or 24 VDC (for digital output types) |
| Accuracy Class | ±0.25% FS, ±0.5% FS (optional) |
| Long-Term Stability | ≤±0.1% FS/year |
| Media Temperature | -20℃～+85℃ (standard type) |
| Ambient Temperature | -20℃～+70℃ |
| Process Connection | M20×1.5, G1/2, NPT 1/2, etc. (customizable) |
| Display Unit | Optional 5-digit LCD or 4-digit LED, settable units and range |
| Protection Rating | IP65 |
| Housing Material | 304 or 316 Stainless Steel |
| Vibration Resistance | ≥5g (10～2000 Hz) |
| Shock Resistance | ≥50g (11ms) |
3.Application
Industrial Control: Pressure monitoring in process automation
High-End Manufacturing: Aerospace and automotive hydraulic/pneumatic systems
Energy Infrastructure: Pipeline pressure monitoring, energy production, water treatment
Medical Equipment: High-precision pressure parameter measurement
