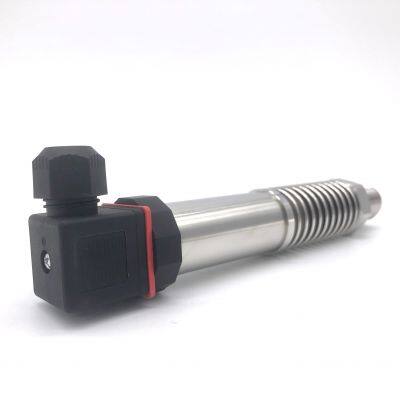

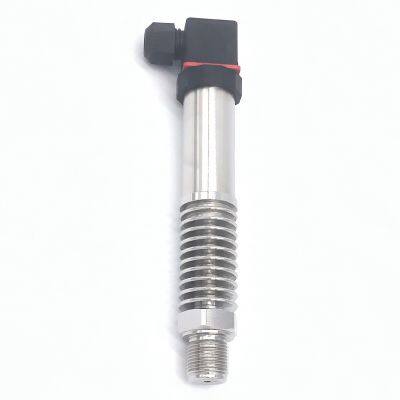

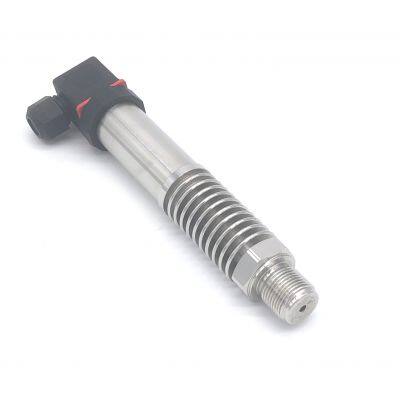

KYUE High Temperature Pressure Transmitter 4-20mA RS485 Output Pressure Sensor for Heating System
US$ 75
1 - 9 Piece
US$ 72
≥10 Piece
Key Specifications
Get Latest Price
Certification:
CE
Measuring Medium:
Other, liquid ,gas
Accuracy Grade:
Other, 0.5% F.S ,0.2%F.S
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
20 days
Related Products
-
Kyue Digital Vacuum Pressure Gauge -100kPa 200MPa 0.05% Accuracy Bar PSI Water Liquid Hydraulic Gas Air Digital Pressure GaugeNegotiableMOQ: 1 Piece -
KY5006 4-20mA RS485 0-10V LCD Digital Display Pressure Sensor for Gas Hydraulic System on Site Reading Diffused Silicon PiezoresistiveNegotiableMOQ: 1 Piece
-
Kyue IP66 4-20mA High Accuracy Industrial Grade Pressure Transmitter Factory Supply Digital Pressure SensorUS$ 28 - 30MOQ: 1 Piece
-
Kyue IP66 4-20mA RS485 Oil Gas Liquid Pressure Transmitter Factory Supply Digital Pressure TransducerUS$ 28 - 30MOQ: 1 Piece
-
Kyue Intelligent Pressure Transmitter Factory Supply Digital Smart Pressure Sensor 1/2NPTF ConnectionUS$ 45 - 50MOQ: 1 Piece
Certification
CE
Measuring Medium
Other, liquid ,gas
Accuracy Grade
Other, 0.5% F.S ,0.2%F.S
Structure Type
Diffused Silicon Pressure Transmitter
Customized
Customized
Type
Explosion-proof Pressure Transmitter
IP Rating
IP65
Pressure range
Other, -0.1-0-200MPa
Transport Package
carton
Trademark
Kyue
Origin
Tianjin
1. Product core features and suitability
High Pressure and Temperature Adaptation: 200 MPa ultra-high pressure range and 200℃ operating temperature make it suitable for high-pressure and high-temperature processes such as hydraulic systems, power energy, and petrochemicals.
Flexible Communication Modes: Provides both 4-20mA standard analog signal and RS485 digital signal, enabling easy integration into both new and legacy control systems to meet data acquisition, remote monitoring, and networking requirements.
Fast Dynamic Response: ≤1 ms response time accurately captures instantaneous pressure changes, making it suitable for dynamic pressure monitoring scenarios such as compressors, engine testing, and burst tests.
Robust and Durable: Standard M20×1.5 threaded interface for simple and secure installation; IP65 protection rating ensures stable operation in humid and dusty environments.
2.Technical specifications
| Parameter Category | Technical Specifications |
|---|---|
| Measured Media | Liquids, gases, etc. |
| Measuring Range | -0.1 ~ 0 ~ 200 MPa (full range coverage, customizable) |
| Pressure Type | Gauge, Absolute (optional) |
| Process Connection | M20×1.5 external thread (standard, other threads or flanges customizable) |
| Accuracy Class | ±0.5% F.S. ±0.2% F.S. |
| Operating Temperature | -20℃ ~ +200℃ (wide temperature range, suitable for high-temperature environments) |
| Power Supply | 12 ~ 36 VDC (standard 2-wire/3-wire wide voltage input) |
| Output Signal | 4～20mA analog / RS485 digital communication (supports Modbus and other protocols) |
| Overload Pressure | 150% of range |
| Response Time | ≤ 1 ms (rise to 90% full scale, fast dynamic response) |
| Protection Rating | IP65 |
| Long-Term Stability | High, suitable for continuous monitoring in industrial environments |
| Key Features | Ultra-high pressure range, wide operating temperature, dual-mode output (analog/digital), fast response, robust threaded interface |
3. Typical Applications
| Application Area | Typical Scenarios and Functions |
|---|---|
| Basic Industries | Pressure monitoring and process control for high-temperature liquid and steam pipelines in settings such as water treatment plants, oil refineries, and wastewater treatment plants. |
| Manufacturing | Pressure measurement of high-temperature media in production equipment within industries such as building materials, light industry, and machinery, supporting process optimization and equipment safety. |
| Aerospace | Pressure monitoring in systems with extremely high demands for precision and environmental adaptability, such as ground testing systems and auxiliary power units. |
| Chemical Industry | Pressure measurement and safety monitoring of various chemical media in high-temperature reactors, distillation columns, and transfer pipelines. |
| Equipment Integration | Pressure data monitoring for specialized equipment such as PTFE valves and high-temperature transmission systems, ensuring reliable operation and early fault warning. |
4.Please contact us for specific product selection or more detailed documentation.
