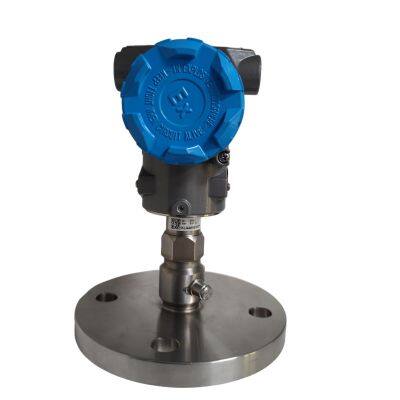

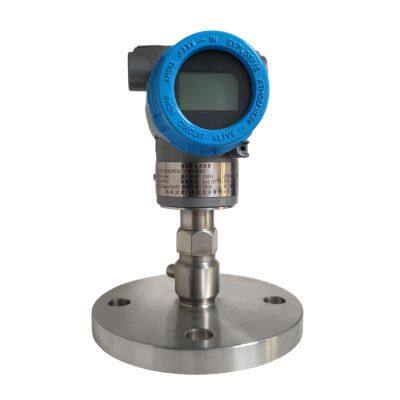

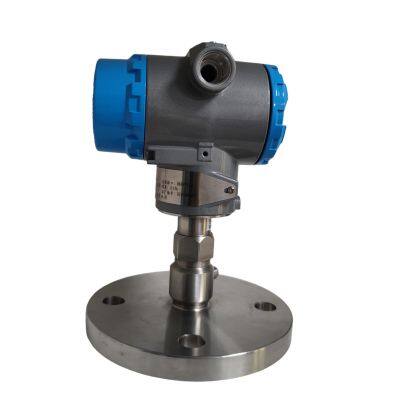

Kyue Intelligent Pressure Transmitter Factory Supply Digital Smart Pressure Sensor 1/2NPTF Connection

US$ 50 1 - 9 Piece

US$ 45 ≥10 Piece

Key Specifications

Certification:

Measuring Medium:

Other, steam ,gas ,liquid

Accuracy Grade:

Other, 0.2%F.S 0.5%F.S 0.075%

Kyue (Tianjin) Measurement & Control Technology Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

20 days

Certification CE

Measuring Medium Other, steam ,gas ,liquid

Accuracy Grade Other, 0.2%F.S 0.5%F.S 0.075%

Structure Type Diffused Silicon Pressure Transmitter

Customized Customized

Type Differential Pressure Transmitter

IP Rating Other, IP66

Pressure range Other, -0.1MPa-0-250Mpa

Transport Package Carton

Trademark KYUE

Origin Tianjin

1. Product Overview

The KY3003GP is a rugged, reliable, and cost-effective industrial universal pressure transmitter designed for pressure measurement in heavy industry and various automated processes. Constructed with an all-stainless-steel body, it offers excellent sealing, vibration resistance, and an IP66 protection rating, ensuring stable operation in complex industrial environments. With a compact design for easy installation and flexible measurement types and accuracy options, it provides an economical and efficient pressure monitoring solution for industrial processes across multiple sectors.

2.Technical specification

Parameter	Specification
Measured Medium	Liquids, gases, etc. (non-corrosive)
Pressure Type	Gauge Pressure, Absolute Pressure
Measuring Range	-0.1 MPa ~ 250 MPa (Customizable)
Overload Pressure	150% F.S.
Accuracy Class	0.2% F.S., 0.1% F.S., 0.075% F.S. (Optional)
Long-term Stability	≤±0.1% F.S./year (typical)
Output Signal	4~20mA DC (2-wire), HART Protocol
Supply Voltage	24 VDC (typical, range usually 12~36 VDC)
Response Time	≤10 ms
Operating Temperature	Medium/Ambient Temp.: -20℃ ~ +125℃
Process Connection	1/4 NPTF External Thread (Other threads customizable)
Electrical Connection	Plug connector type
Ingress Protection	IP66
Housing Material	Stainless Steel ,Die-cast aluminium
Compensation Technology	Laser-trimmed resistance, zero and temperature compensation
Electrical Protection	Short-circuit protection, Reverse polarity protection

3.Aplications

Industries	Typical scenarios
Petroleum Industry	Wellhead pressure monitoring, pipeline pressure control.
Chemical Industry	Reactor pressure detection, corrosive medium pressure measurement.
Power Industry	Boiler steam pressure monitoring, generator cooling system pressure feedback.
Metallurgy Industry	Pressure management in high-temperature production processes.
Water Treatment	Municipal sewage or industrial wastewater pressure regulation.
Machinery Manufacturing	real-time pressure acquisition in hydraulic systems.
