1. Product Overview
The KY5001 is an industrial-grade pressure transmitter designed for universal adaptability and high practicality. It features a "one-model-fits-most" design concept, eliminating the need for separate model selection across different media and common pressure ranges—significantly simplifying procurement and inventory management. Combining cost-effectiveness, rugged durability, and easy installation, it provides a reliable solution for multi-scenario pressure monitoring needs.
2. Technical Parameters & Specifications
| Measuring media | liquid ,gas ,oil etc. |
| Range | -0.1~3~50~150~250MPa (cutomizable) |
| Pressure type | gauge or absolute pressure |
| Power supply |
12~36VDC |

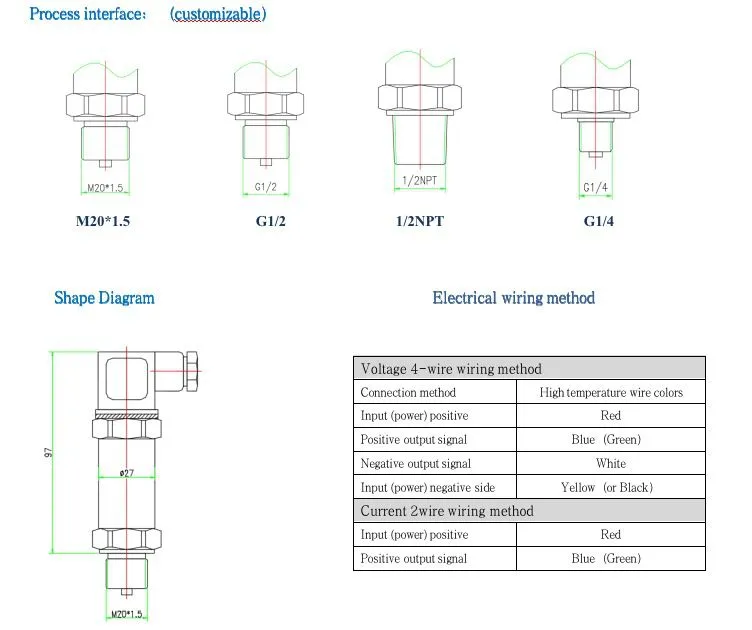

| Process connection | M20*1.5 (customizable) |
| Accuracy | ±0.5％F.S、±0.25％F.S、±0.2％F.S、±0.1％F.S |
| Ambinent temperature |
-40-85℃（ higher temperature on request） |
| Protection rating |
IP65 |
| Respond time | 10ms |
| Body Material | High-quality Stainless Steel |
| Sensor Construction | All-welded, all-stainless-steel structure (sensor to pressure port) |
3. Application Scenarios
Constant Pressure Water Supply Systems: Monitors pipeline pressure in real-time and provides feedback for system control to regulate pump operation, ensuring stable water pressure and reducing energy consumption.
Industrial Process Control & Data Acquisition:
Serves as a standard signal source, easily interfacing with PLCs, DCS, data acquisition modules, etc.
Enables accurate collection and reliable transmission of pressure data in industrial settings.
Laboratory Process Control: Meets the precise pressure measurement requirements in laboratory environments. Its rugged and waterproof design allows for easy installation on various experimental setups.
General Equipment Integration (OEM): Used as a component in original equipment manufacturing for integration into various machinery requiring pressure monitoring and control.
Water Conservancy Project Monitoring: Suitable for pressure monitoring in non-highly-corrosive liquid environments within hydraulic engineering projects.
4.For specific electrical parameters (e.g., power supply, output, accuracy, range codes), process connection dimensions, certification information, etc，please contact us .
