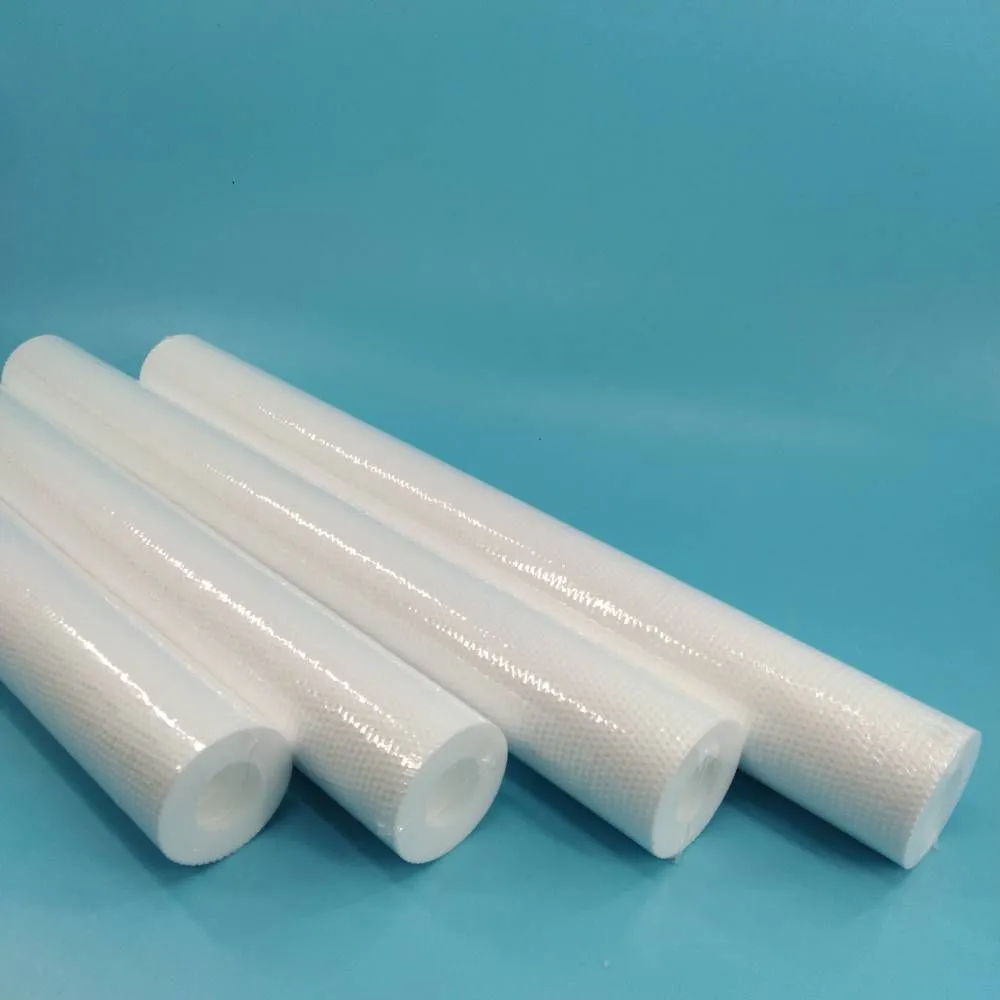

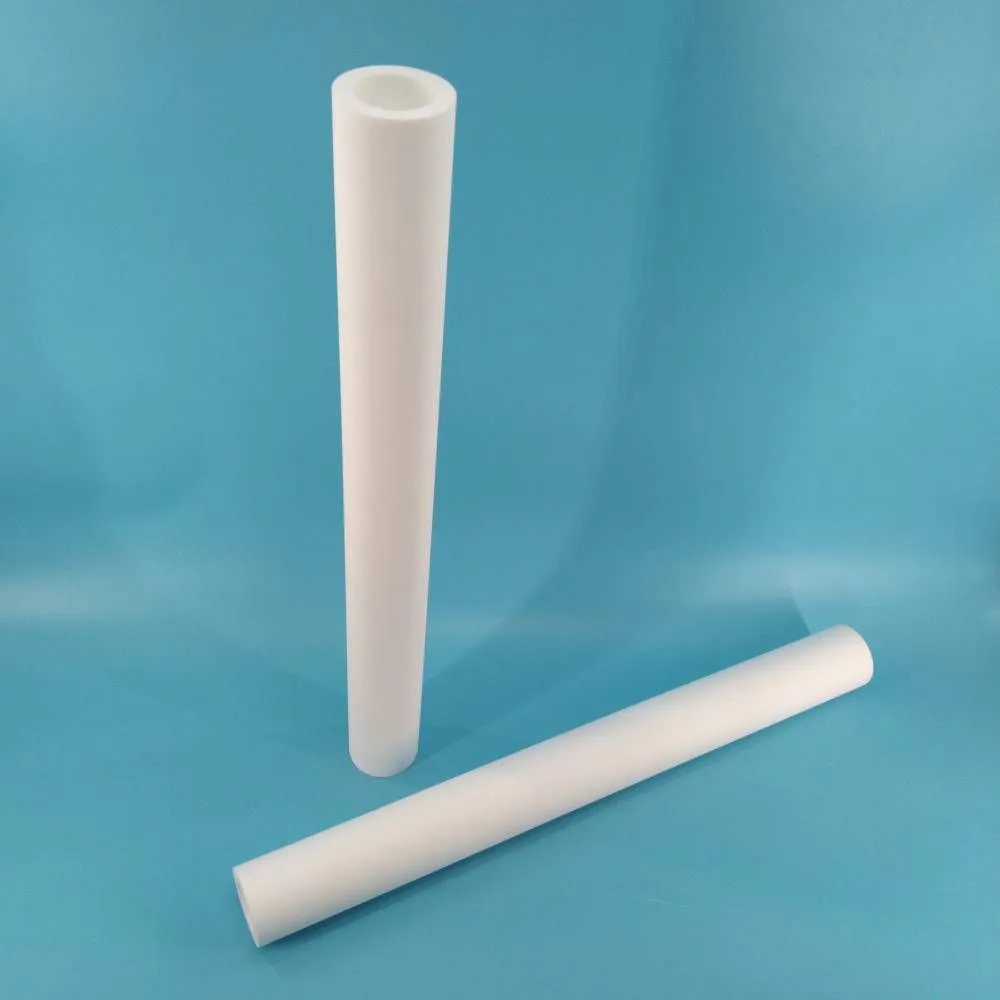

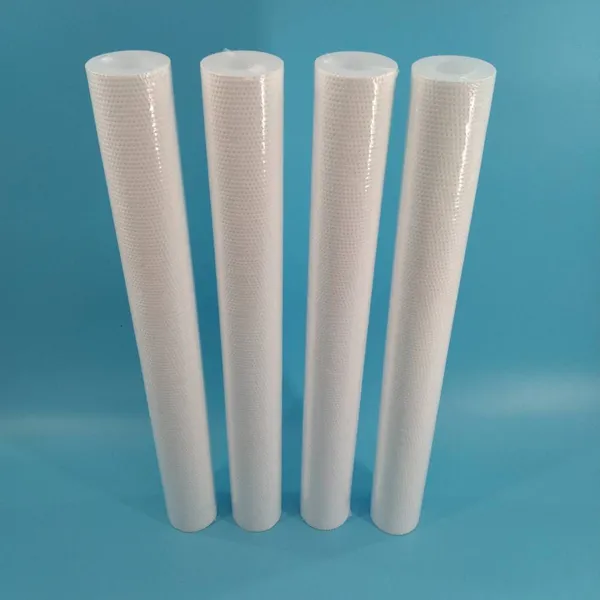

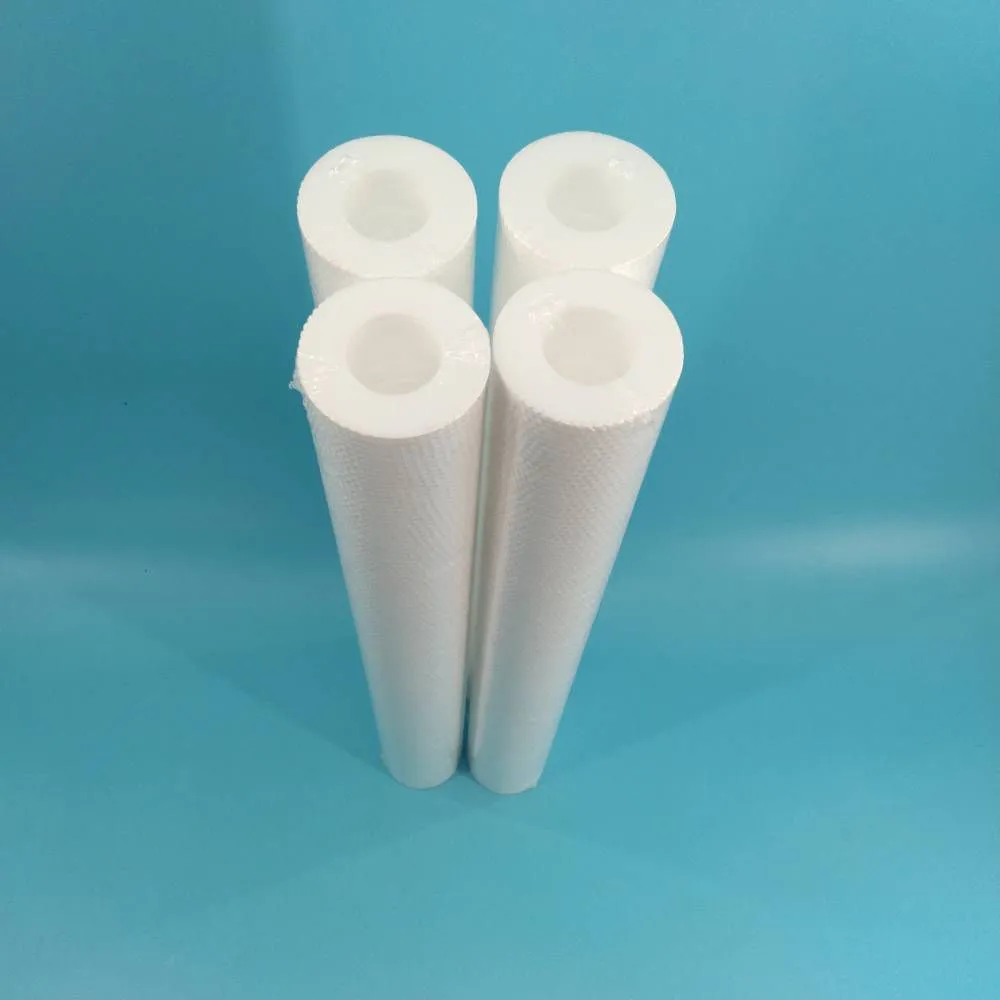

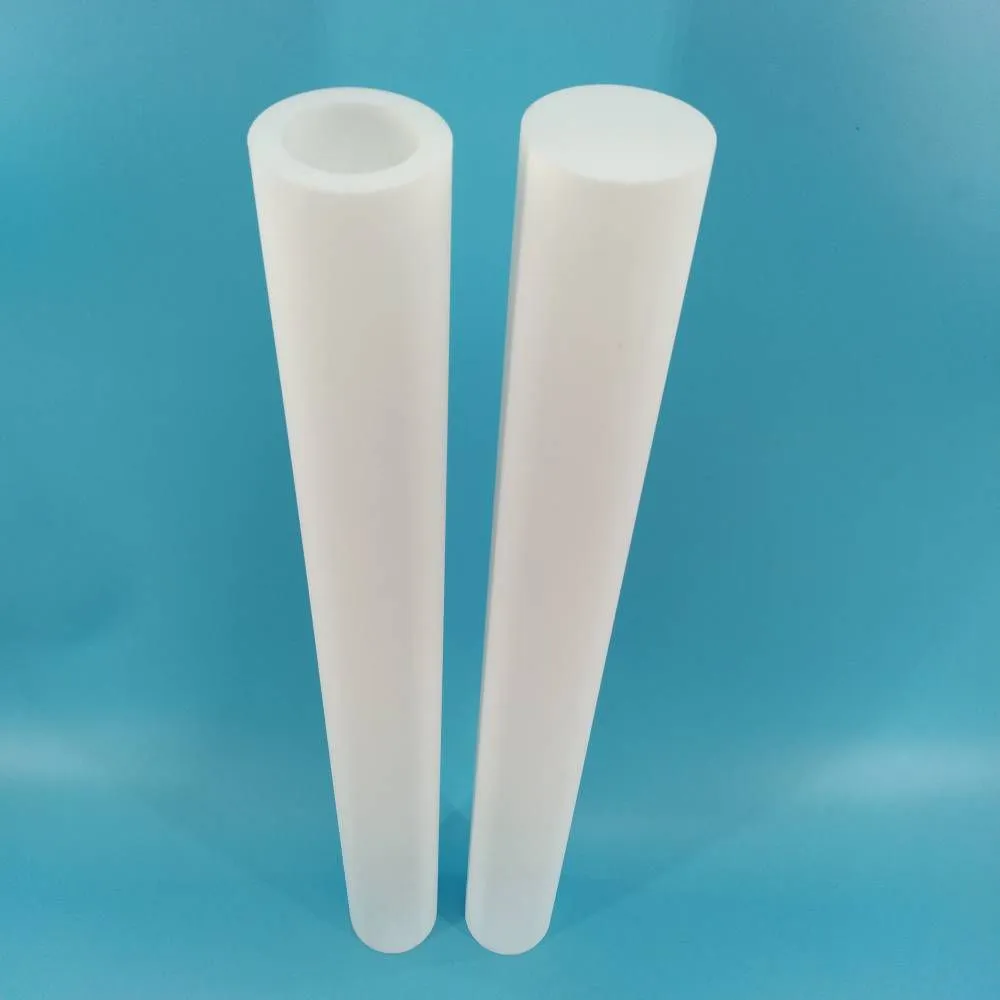

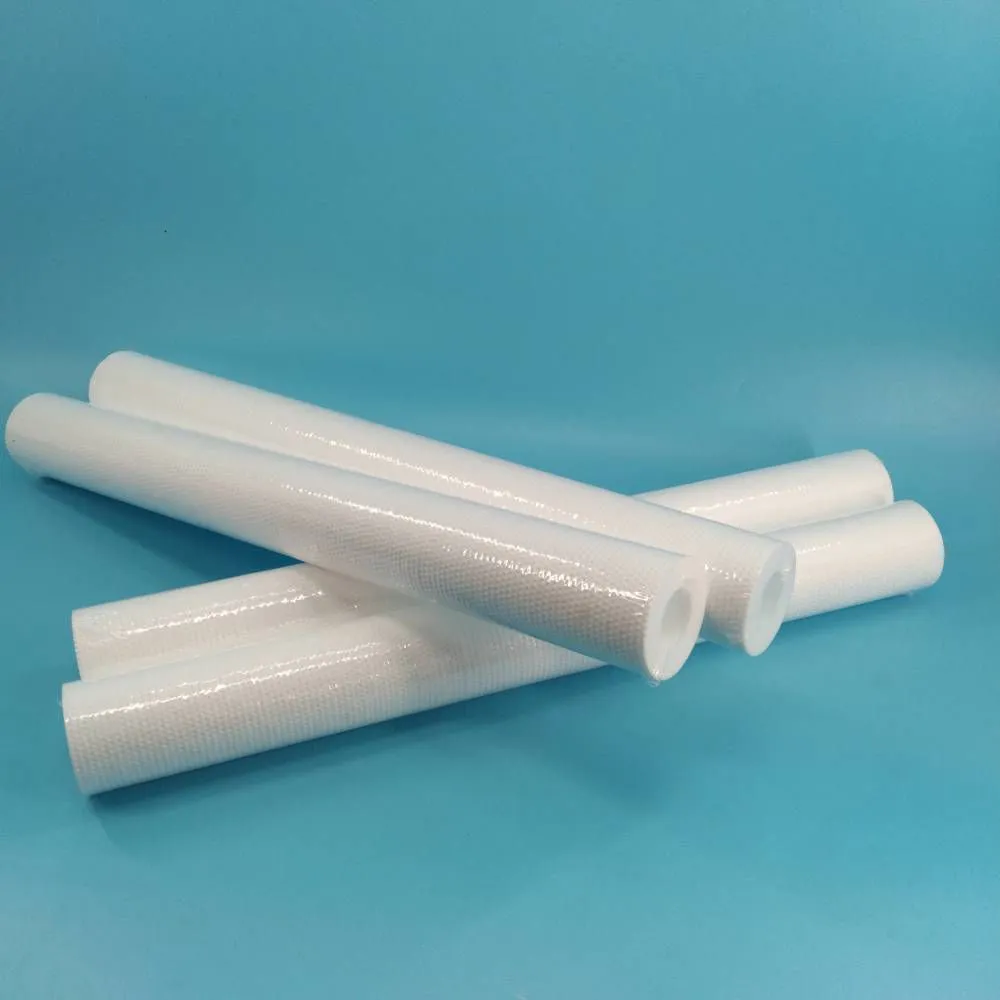

40-inch Pressure Point PP Melt-blown Filter Element, Made of Polypropylene Fiber, Supplied by Henan Jiashuo Environmental Protection Technology Co., Ltd.
Product Introduction:
PP cotton melt-blown filter element (abbreviated as: melt-blown filter element) is a tubular filter element made of odorless polypropylene particles through heating and melting, spinning, drawing, and receiving and forming. If the raw material is mainly polypropylene, it can be called a PP melt-blown filter element. It is not only widely used in water purification but also has excellent chemical compatibility, suitable for filtering strong acids, strong alkalis, and organic solvents. It has strong dirt-holding capacity, long service life, and low cost.
Product Features:
Filter efficiency and filtration accuracy: The pore size density of the PP melt-blown filter element is uniform, and the filtration efficiency reaches over ***.
Low filtration resistance, large filtration flow, large dirt-holding capacity, and long service life. During the production process of the PP melt-blown filter element, the fiber diameter and gap can be adjusted. The inner layer of the filter element's micropores is small, and the outer layer is large, which increases the flow and dirt-holding capacity. The filter element is not easy to block, thus extending the service life.
It has high self-cleanliness, no pollution to water quality, and is resistant to acids, alkalis, and organic solvents and corrosion.
It has high strength. When the water pressure difference between the inlet and outlet of the filter exceeds 0.4Mpa, the filter element will not deform. When the temperature exceeds 90°C, the filtration efficiency will not decrease.
After the polypropylene in this product is modified, it has extremely high hydrophilicity and can absorb ten times its own weight of water, so it can be used for oil-water separation.
Product Specifications:
Length: 10 inches, 20 inches, 30 inches, 40 inches
Accuracy: 1, 3, 5, 10, 20, 30, 60 (μm)
Applicable PH value: 1 - 13
Pressure difference: Forward 0.4Mpa.
Working temperature: Below 70°C at 0.25Mpa.
Sterilization: It can withstand 126°C for 30 minutes of online steam sterilization.
Endotoxin: The water extract of the filter column is tested by lAL, and the endotoxin content is less than 0.5EU/ml
Precautions:
Select the filter element according to the filtration accuracy of the liquid and the impurities it contains. For viscous liquids, secondary filtration can be used. The first stage is coarse filtration to reduce resistance and extend the service life of the filter element (generally 3 - 4 times).
Install the melt-blown filter element correctly. If the filtered water is found to be polluted, carefully check whether the filter element is skewed and whether the two ends are strictly aligned and tightened.
When the pressure difference reaches 0.2MPa, the filter element should be cleaned or replaced.
