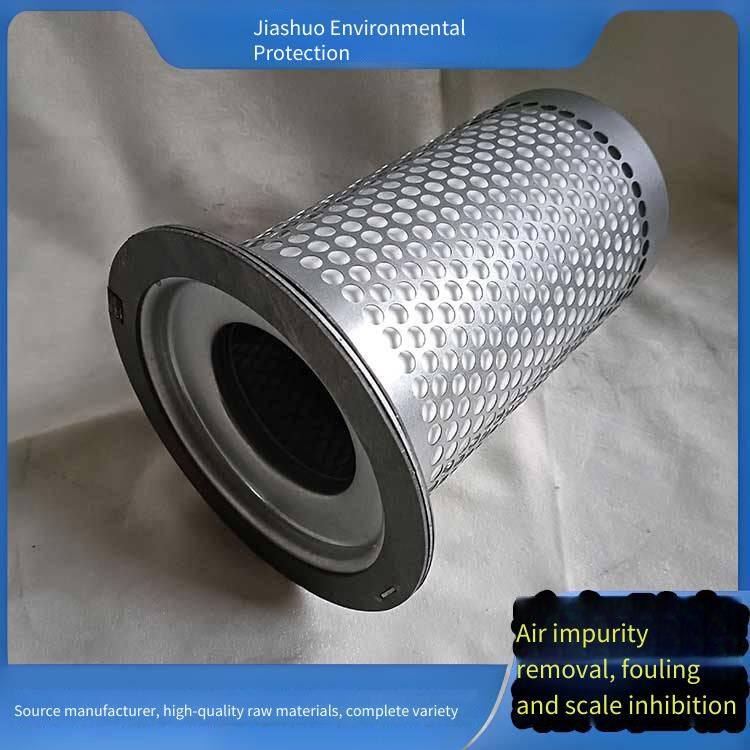

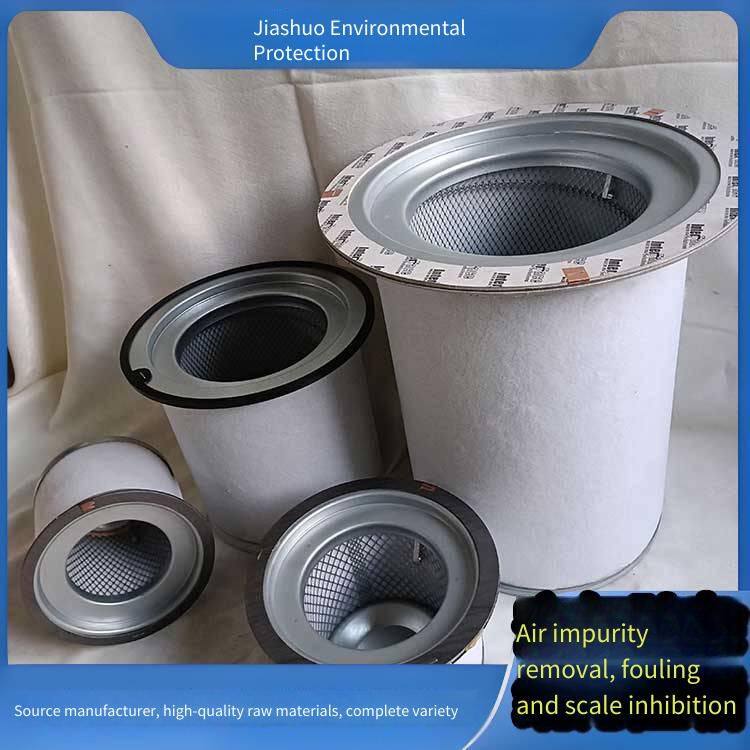

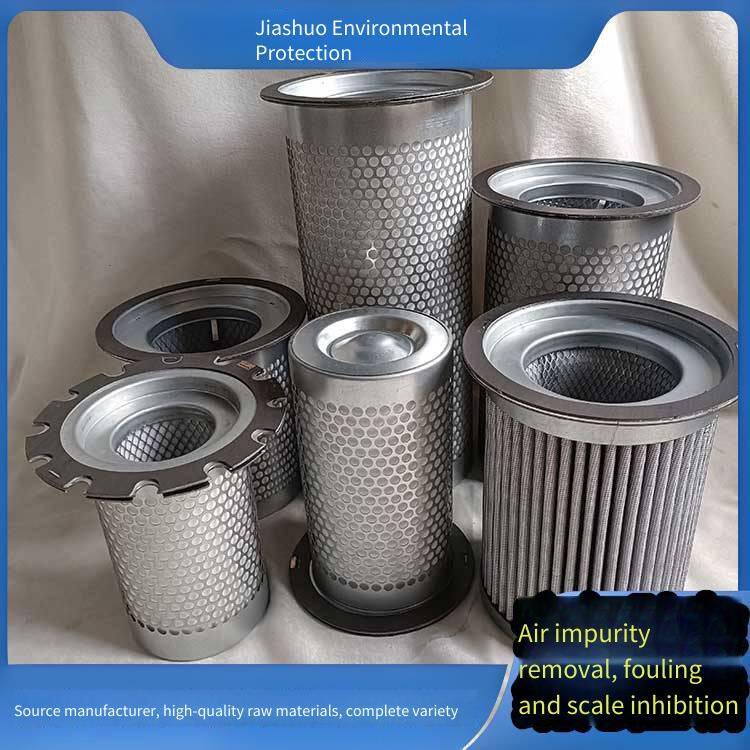

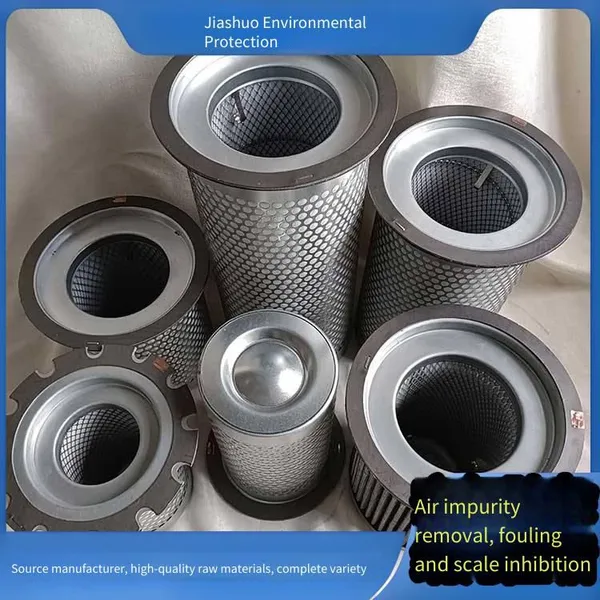

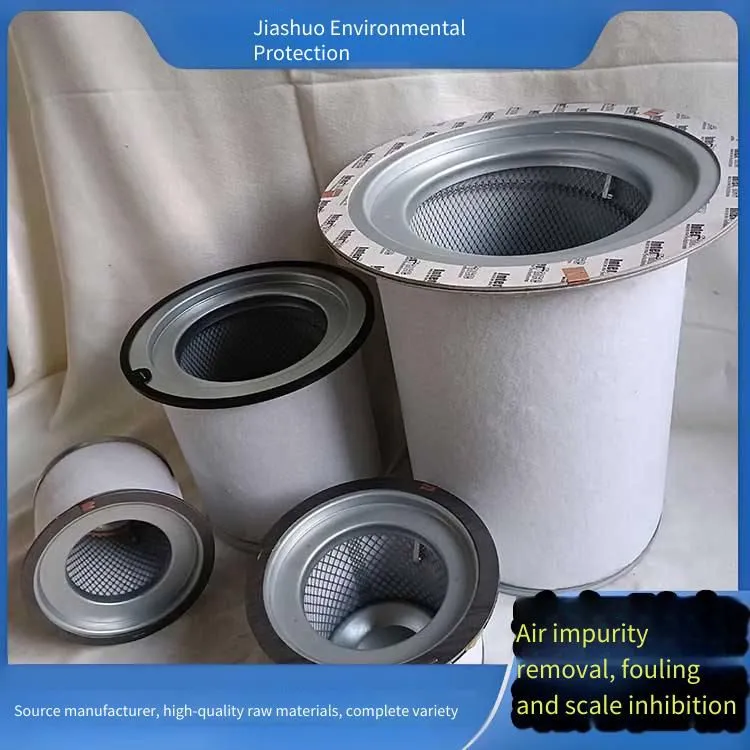

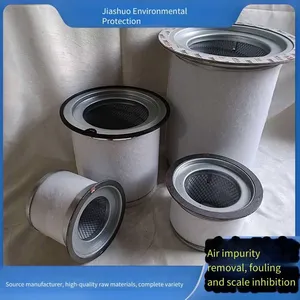

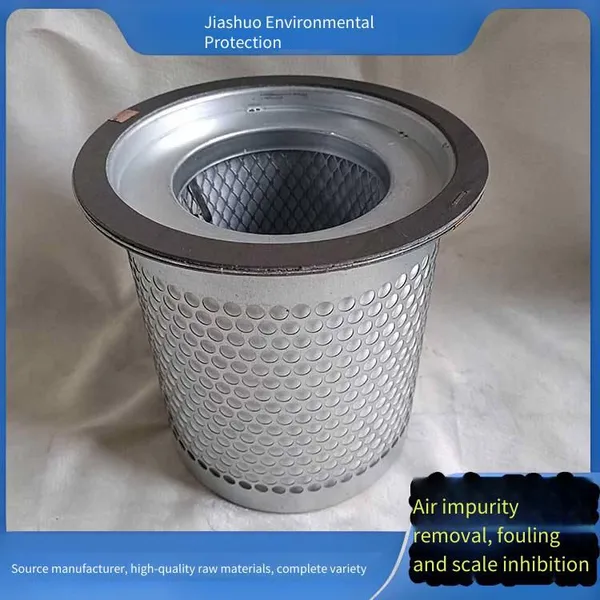

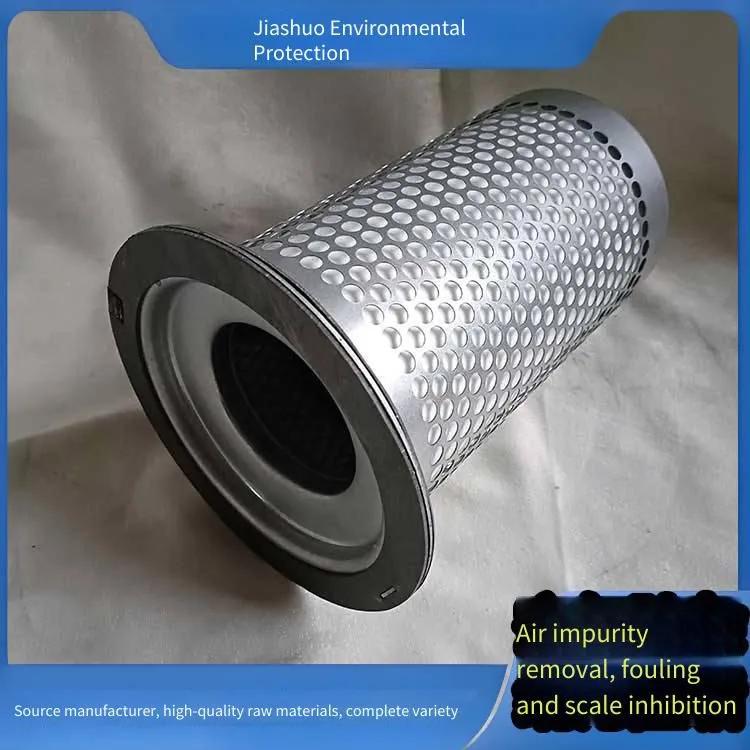

2560404002 Dryer Air Compressor, Unites Oil-Gas Separation Filter Element, Jiashuo Environmental Protection
Product Introduction
The air filter element is made of a variety of composite materials through a special process and has hydrophilic properties. It can not only filter out mechanical impurities in the medium, but also separate the emulsified water from the medium through demulsification and coalescence, and coalesce it into larger water droplets to facilitate further purification of the medium.
Filtration Principle
Droplets of oil, water and other liquids are captured by the ultrafine fibers inside the coalescer. These micron-sized fibers form tortuous channels for the airflow, forcing solid particles and liquid droplets to be captured by the ultrafine fibers under the action of three filtration mechanisms: inertial collision, diffusion interception and direct interception. The surface tension of the liquid causes small droplets to coalesce into larger droplets. Due to the effect of gravity, the large droplets settle to the bottom of the container.
The glass fiber coalescing filter element is made of high-density gradient glass fiber. It is designed as an integral single-tube structure to reduce breakage and leakage. The surface of the filter element is treated with hydrophobic and oleophobic agents to meet the requirements of various precision levels.
The polyester fiber coalescing filter element is usually made of synthetic polyester fiber materials, which have good compatibility with various fluids. The filter element is spirally wound with a multi-layer structure. Each layer uses fibers with different properties. The expected filtration precision is achieved by controlling the shape, size, thickness and density of the fibers in each layer.
The coalescing filter element mainly selects surface-treated glass fiber or polyester fiber as the coalescing medium. The structure of the filter material is specially designed to make the filter medium have good coalescing performance. The filtration precision can reach 0.1μm.
Product Advantages
The glass fiber coalescing filter element is made of high-density gradient glass fiber, which can efficiently coalesce liquid mist and droplets in the airflow and has high filtration precision. It has a stable structure, and there is no shedding of medium fibers, so it will not cause pollution to the environment and downstream products. It has good compatibility with various fluids; it has good environmental protection performance. It is made of synthetic materials and produces no pollutants when completely burned.
Warm Reminder:
The hydraulic system equipment needs to maintain a certain degree of cleanliness. It is recommended to clean or replace the filter element regularly.
There may be inconsistencies between the marked prices and the pictures in the text. If you want to learn about high-quality and cost-effective products, please feel free to call for consultation.
Henan Jiashuo Environmental Protection Technology Co., Ltd. Direct Supply from the Manufacturer Quality Assurance Complete Models After-sales Guarantee!
