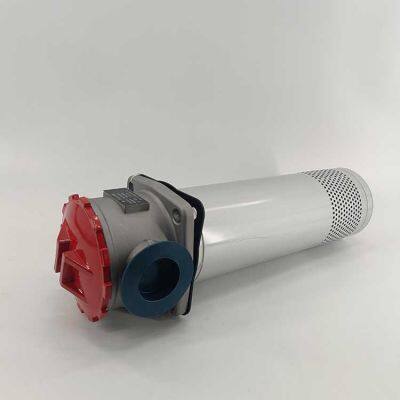

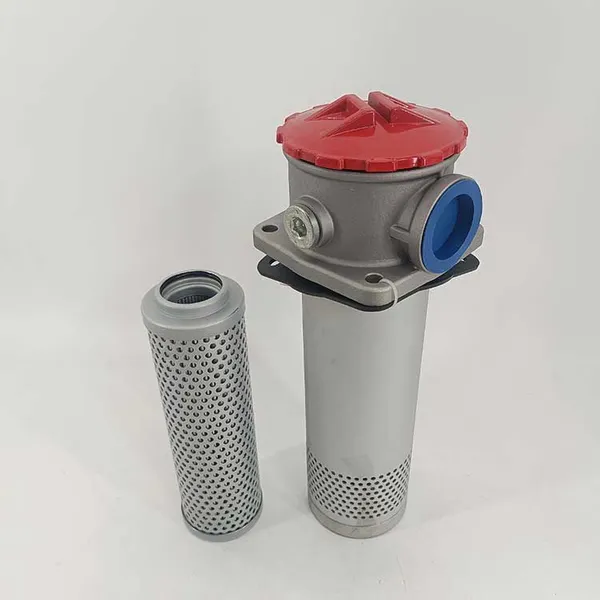

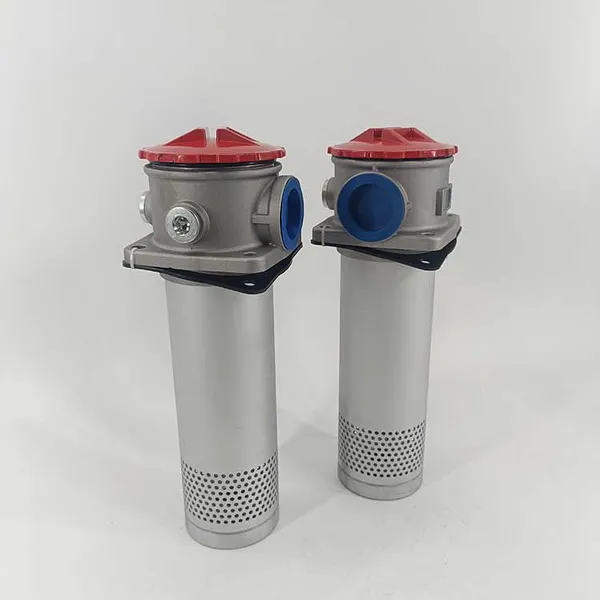

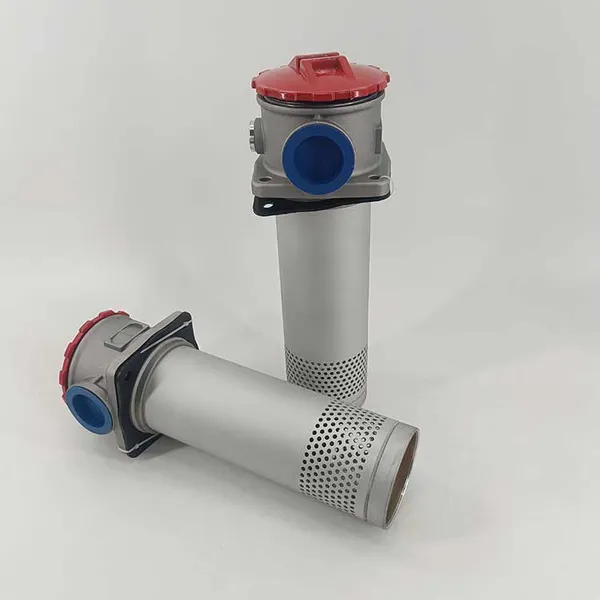

Help CenterPrecision Filtration for Hydraulic Systems RFA-100*5F-Y Return Oil Filter Supplied by Jiashuo Environmental Protection
Related Products
-
Hfu640uy060j Pall High Flow Cartridge Filter for Security Filtration, Folded Water Filter Element, Jiashuo Environmental ProtectionUS$ 15.38 - 16.77MOQ: 10 Pieces -
Stzx2-800*5q Magnetic Return Oil Filter for Hydraulic Oil Station, Jiasuo Environmental Protection AlternativeUS$ 40 - 44.62MOQ: 10 Pieces
-
Pfc8370r3ch83 Pall Oil Filter Interchangeable Hydraulic Oil Precision Filter Element, Jiashuo Environmental ProtectionUS$ 40 - 43.08MOQ: 10 Pieces
-
High-density Stainless Steel Screen, Conical Filter Element, Funnel-shaped Filter Screen, Supplied by Jiashuo Environmental ProtectionUS$ 8.46 - 11.54MOQ: 10 Pieces
-
2560404002 Dryer Air Compressor, Unites Gas-oil Separation Filter Element, Jiashuo Environmental ProtectionUS$ 44.62 - 52.31MOQ: 10 Pieces
Performance and Characteristics of Return Oil Filter
The return oil filter is a key purification component in the oil circuits of hydraulic systems, lubrication systems and environmental protection equipment. Its core function is to filter metal debris, impurities, colloids and other pollutants in the return oil of the oil circuit, prevent pollutants from circulating into the system, protect core components such as pumps, valves and oil cylinders from wear, extend the service life of equipment, and ensure stable operation of the system. Its performance and characteristics are designed around core requirements such as filtration efficiency, operational stability and adaptability, as detailed below:
I. Core Performance
High Filtration Precision and Stable Purification Effect: Adopting high-quality filter media (such as glass fiber, stainless steel woven mesh, PP melt-blown filter element, etc.), the filtration precision can reach 1μm-20μm, which can efficiently intercept pollutants of different particle sizes in the return oil. It has a particularly prominent filtering effect on metal debris and oxidation impurities generated by the hydraulic system, and can control the cleanliness of the oil circuit within the range required by the system, avoiding component jamming, leakage and other faults caused by pollutants.
Large Dirt-Holding Capacity and Long Service Life: The filter media adopts a reasonable folded structure or multi-layer composite design, which increases the effective filtration area and improves the dirt-holding capacity, enabling it to hold more pollutants, reduce the frequency of filter element replacement, and lower operation and maintenance costs. At the same time, the filter media has excellent oil resistance, temperature resistance and pressure resistance, which can adapt to the return oil environment under different working conditions, is not easy to be damaged or deformed, and ensures long-term stable filtration.
Low Pressure Loss, Energy Saving and Consumption Reduction: Optimized filter element structure and flow channel design reduce the resistance when return oil passes through the filter. The pressure loss during normal operation is ≤0.1MPa, which will not consume excessive system power, taking into account both filtration effect and energy saving needs, and is suitable for long-term operation of high-flow and high-pressure oil circuit systems.
Strong Adaptability to Temperature and Pressure: Temperature and pressure resistance specifications can be customized according to different working condition requirements. Conventional products have a temperature resistance range of -20℃~120℃ and a pressure resistance range of 0.6MPa~31.5MPa, which can adapt to the return oil filtration needs of different scenarios such as industrial hydraulics, construction machinery and environmental protection equipment, and can maintain stable performance even under harsh working conditions.
Reliable Sealing Performance, No Leakage Risk: Adopting high-quality seals and combined with precise structural design, it ensures tight sealing at the connections between the filter housing, filter element and pipeline, no oil leakage, avoids oil circuit pollution, pressure drop and other problems caused by seal failure, and ensures the safety of system operation.
II. Core Characteristics
Compact Structure and Easy Installation: The overall design is compact and small in size, which can be directly installed on the system return oil pipeline without occupying too much installation space. The interface adopts a standardized design (such as thread, flange connection), which is simple to install and disassemble, facilitating later filter element replacement and equipment maintenance, and reducing the difficulty of manual operation and maintenance.
Intelligent Operation and Maintenance, Convenient and Efficient: It can be equipped with a differential pressure gauge and a clogging alarm device to real-time monitor the pollution degree of the filter element. When the differential pressure reaches the set value due to filter element clogging, the alarm device will remind in time, facilitating the staff to replace the filter element in time and avoid system faults caused by excessive clogging of the filter element. Some high-end products can be equipped with an automatic backwashing function to realize self-cleaning of the filter element and further reduce manual intervention.
Strong Versatility of Filter Element and Low Replacement Cost: The filter element is produced in standardized specifications, and the same specification of filter element can be used for different models of filters, facilitating customers to reserve spare parts. At the same time, a variety of filter media materials are available for selection, which can be flexibly selected according to the oil circuit medium and pollution degree, taking into account both use needs and cost control.
Comprehensive Protection Function and High Safety: Some products are equipped with a bypass valve. When the filter element is accidentally clogged or the system pressure suddenly rises, the bypass valve will automatically open to ensure the normal circulation of return oil, prevent damage to the filter or potential safety hazards caused by excessive system pressure. The housing is made of high-strength materials (such as carbon steel, stainless steel), which is impact-resistant and corrosion-resistant, extending the overall service life of the equipment.
Wide Adaptability and Strong Versatility: It can be widely used in various fields such as hydraulic systems, lubrication systems, construction machinery, mining equipment, environmental protection water treatment equipment and chemical equipment, adapting to the return oil filtration of different media (such as mineral oil, synthetic oil, fire-resistant hydraulic oil, etc.), with strong versatility and no need for separate customization for different systems.
Supplementary Note: The performance and characteristics of the return oil filter can be customized and optimized according to specific application scenarios (such as environmental protection equipment supporting, construction machinery, high-pressure hydraulic systems, etc.). Henan Jiashuo Environmental Protection can provide suitable return oil filter products and selection guidance according to customers' actual needs, helping equipment operate efficiently and stably.
