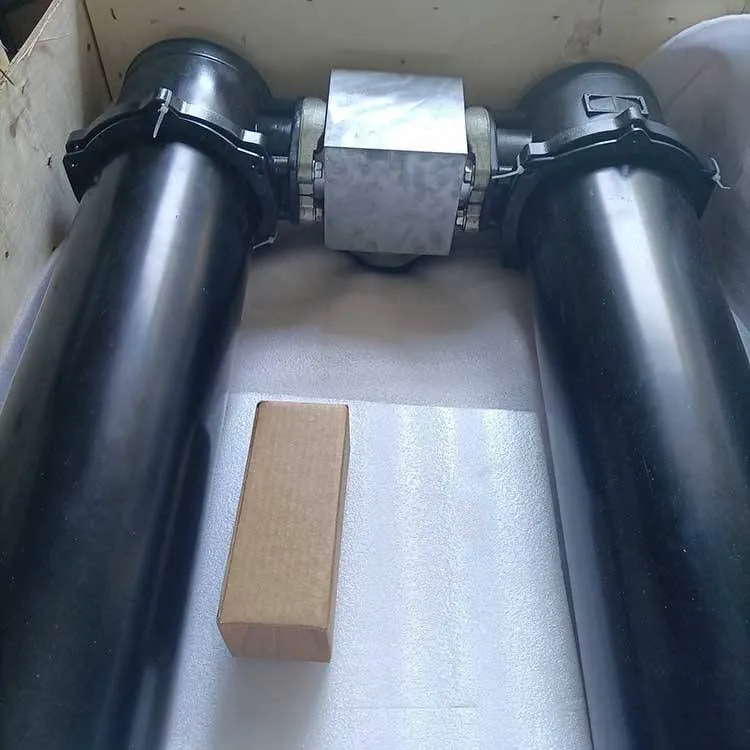

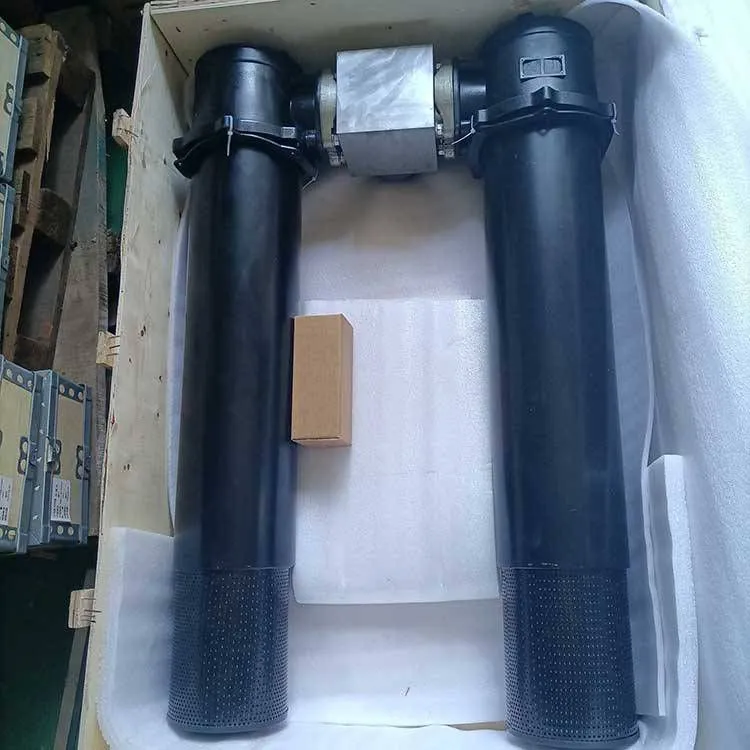

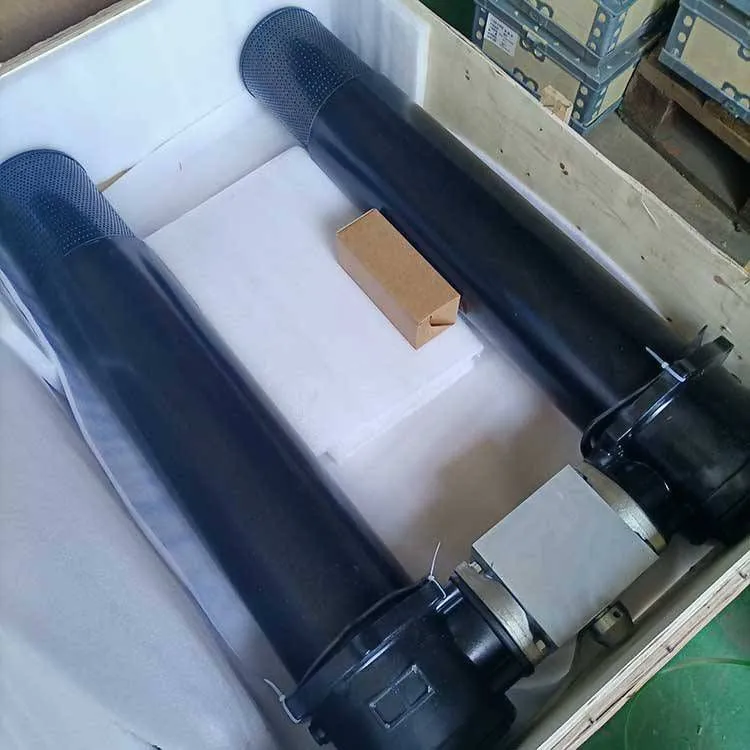

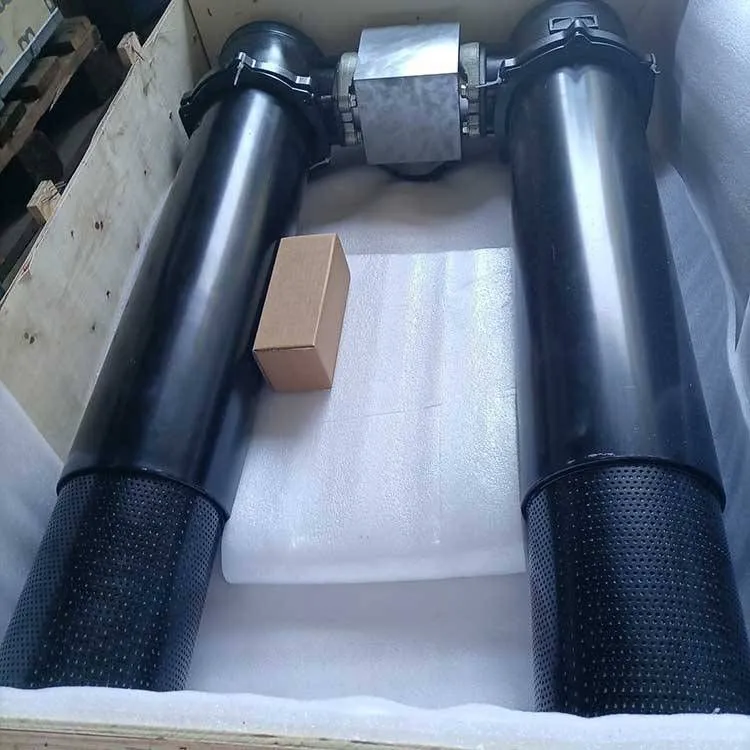

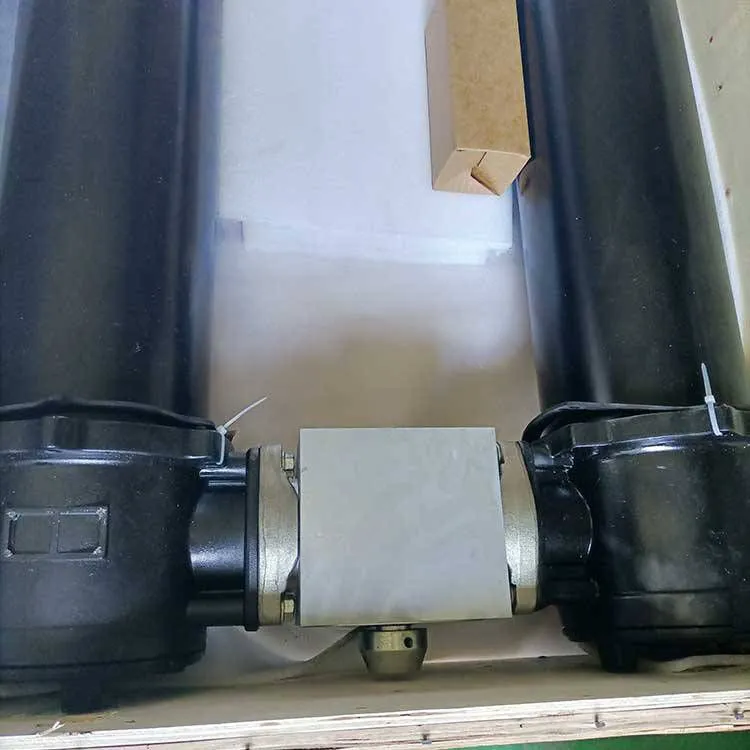

SRFA-630*10F-C/Y Double-barrel Return Oil Filter, Liming Oil Filter, Replaced by Henan Jiashuo Environmental Protection Technology Co., Ltd.
1. SRFA-630*10F-C/Y The return oil filter is directly installed on the tank cover plate. The filter head is exposed outside the tank, and the return oil cylinder is immersed in the tank. The oil inlet is provided with pipe and flange connections, which simplifies the system pipeline. It makes the system layout more compact and the installation and connection more convenient.
2. A filter element pollution signal device and an oil circuit bypass valve are set to improve the reliability of the hydraulic system. When the filter element is blocked by pollutants, or the system fluid temperature is too low, or the flow pulsation and other factors cause the oil inlet pressure to be 0.35Mpa, the signal device will send a signal indication. The filter element should be replaced in time or the oil temperature should be increased. If these faults cannot be dealt with immediately by shutting down the machine at this time, the bypass valve located at the lower part of the filter element will automatically open for operation (the opening pressure of the bypass valve is 0.4Mpa) to protect the filter and the hydraulic system to work normally.
3. The direct return oil filtration design is adopted, which makes it very convenient to replace the filter element or refuel the tank. Just unscrew the filter cover (cleaning cover) to replace the filter element or refuel the tank. There are 2 M18×1.5 oil ports on the filter head, which can be used to install a signal device on either side or for a small amount of oil in the system to flow back to the tank for filtration.
4. It has a liquid flow diffuser. The diffuser is set at the bottom of the return oil cylinder, which can make the return oil medium flow smoothly into the tank, and it is not easy to produce bubbles, thus reducing the re-entry of air and weakening the agitation of the deposited pollutants.
5. The filter element uses glass fiber filter material. It has the advantages of high filtration accuracy, large oil passing capacity, small original pressure loss, and large dirt holding capacity. Its filtration accuracy is calibrated by filtration accuracy. The filtration ratio β3, β5, β10, β20 ≥ 200, and the filtration efficiency η ≥ 99.5%. The evaluation methods are ISO16889-99 and GB/T18853-2002.
Service life: The service life of the RFA filter itself is not fixed. Its use is closely related to the cleaning of the filter element and also has a great relationship with the quality. If there are too many impurities in the use environment, then the filter is more likely to suck in unclean gas, which increases the working pressure of the filter. Too many impurities will also quickly block the filter element. However, do not continue to use it when the hydraulic oil filter element is found to be blocked or damaged. Small particle impurities will enter the lubricating oil of the system, accelerating the oxidation of the lubricating oil.
Our factory's oil filter has a one-year warranty for normal use (the filter element has a 2000-hour warranty).
Ordering and selection: If you have the original model, please order according to the model. If there is no model, you can provide the connection size of the oil filter, the size of the oil filter element, the mesh accuracy, the flow rate, samples, or drawings.
RFA Return Oil Filter Parameters and Performance Features
1. Easy to install and connect, simplifying the system pipeline
2. Filtration accuracy: 1-30μm
3. Filter element material: Glass fiber, housing material: Carbon steel
4. Working pressure: 1.6MPA
5. Matching filter element model: FAX
6. Equipped with differential pressure transmitter and liquid flow diffuser
