The Three Bottle Gas Cylinder Cabinet-GCC719 is designed to provide high-volume gas storage with a specific focus on fire resistance and mechanical stability. When your lab requires multiple gas sources—such as Nitrogen for inerting, Oxygen for combustion, or Hydrogen for reduction—the GCC719 offers a unified, safe, and compliant solution.
The Challenges of Gas Storage in Testing Labs
Material testing facilities often operate near heat sources, furnaces, or high-pressure rigs. This proximity creates a unique set of hazards for compressed gas cylinders:
Heat Exposure: Radiant heat can increase internal cylinder pressure to dangerous levels.
Mechanical Vibration: Heavy machinery can cause unsecured cylinders to tip or regulators to loosen.
Complex Manifolds: Using three different gases simultaneously requires an organized, stable housing to prevent line tangling and accidental cross-connection.
Key Features: Engineered for Stability and Safety
1. Fire-Resistant Insulation Design
The GCC719 is built with a focus on thermal protection. Unlike standard single-sheet lockers, this model incorporates a design philosophy aimed at delaying heat transfer:
Insulated Barrier: The double-walled steel construction acts as a thermal buffer, protecting the cylinders from external temperature spikes often found in industrial testing zones.
High-Temperature Powder Coating: The finish is not just for aesthetics; it is a high-performance epoxy resin that maintains its integrity under thermal stress, preventing the steel from oxidizing or weakening.

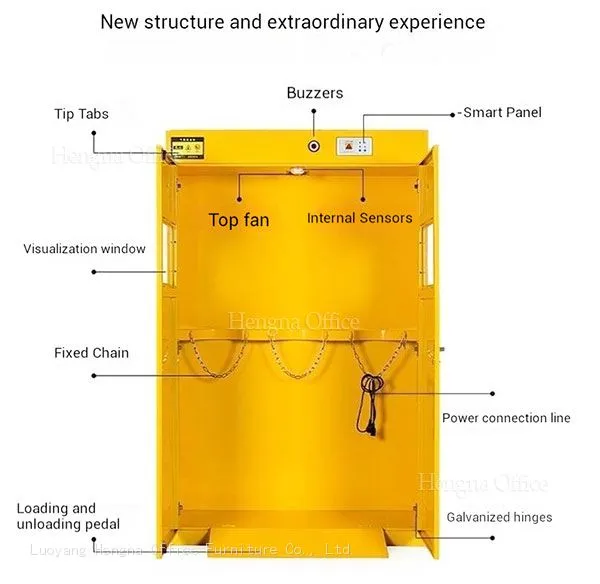

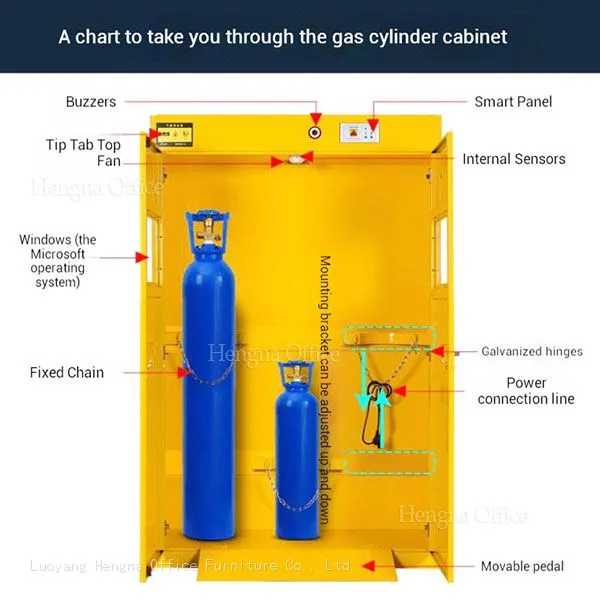

2. Adjustable Heavy-Duty Safety Chains
Cylinder stability is the cornerstone of laboratory safety. A falling 50L high-pressure tank can become a projectile.

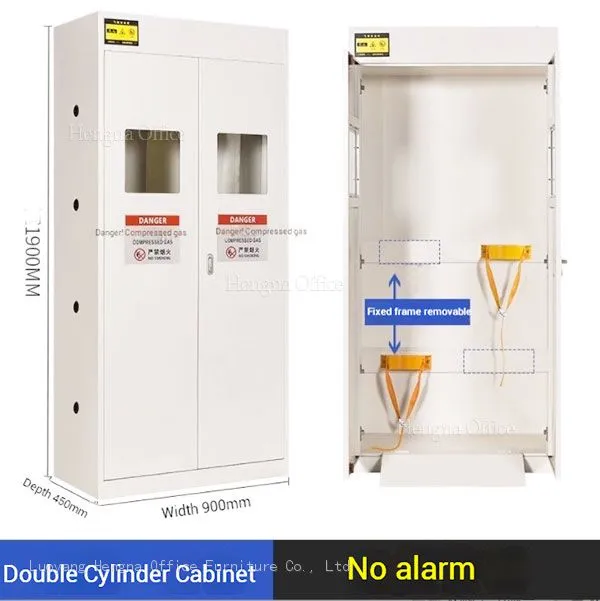

Dual-Level Retention: The GCC719 features two rows of safety chains—one for the upper third of the bottle and one for the lower third—ensuring total vertical stability.
Universal Fit: The chains are fully adjustable, allowing the lab to secure bottles of varying diameters, from standard industrial tanks to smaller specialty calibration gas cylinders.
3. High-Capacity Triple Bottle Configuration
Efficiency in a testing lab is driven by "uptime." The 3-bottle capacity of the GCC719 allows for:
Centralized Gas Station: Instead of having individual lockers scattered around the lab, you can centralize your gas supply in one reinforced location.
Easy Manifold Access: The wide interior provides ample room for the installation of gas manifolds and change-over regulators, allowing for a clean and professional gas piping setup.
Technical Specifications: Model GCC719
| Feature | Specification |
| Model Number | GCC719 (High-Volume Series) |
| Storage Capacity | 3 Cylinders (Up to 50L each) |
| Construction | Double-Walled Industrial Grade Steel |
| Safety Chains | Adjustable Dual-Row Galvanized Steel |

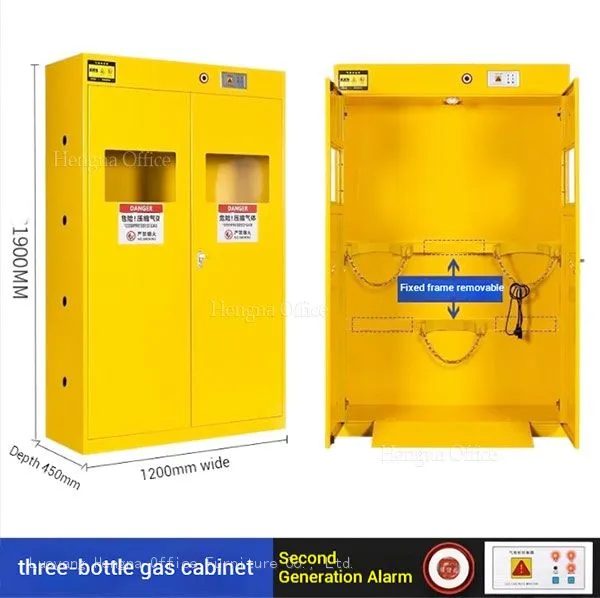

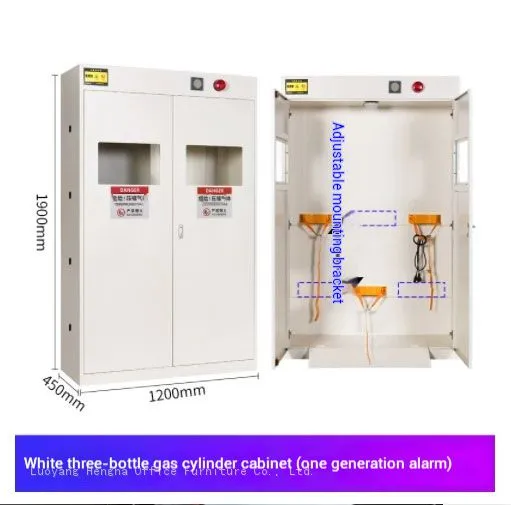

| External Dimensions | 1900mm (H) x 1200mm (W) x 450mm (D) |
| Monitoring System | Optional Smart Alarm Integration |
| Ventilation Port | Dual Side Vents + Top Exhaust Flange |
| Load-Bearing | Reinforced Base Plate with Integrated Ramp |
Optimizing Laboratory Safety Workflows
The GCC719 isn't just a cabinet; it’s a workflow optimizer. For labs conducting ASTM or ISO material standards testing, documentation and safety compliance are critical.
Visual Inspection: Large, fire-rated observation windows allow lab managers to check pressure gauges on the regulators without opening the doors, maintaining the internal temperature and safety seal.

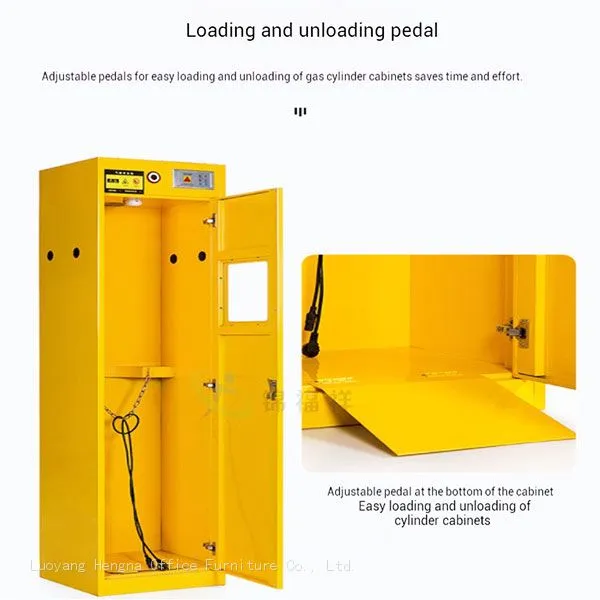

Ergonomic Loading: The reinforced floor is designed at a low profile, and the included flip-down ramp ensures that the heavy transition of cylinders is a one-person job that complies with OSHA manual handling guidelines.
Compliance with International Standards
The GCC719 is designed to meet or exceed:
NFPA 1: Fire Code requirements for compressed gas.
OSHA 1910.101: Proper securing and storage of compressed gas.
ISO 9001: Manufactured in a facility with rigorous quality control.
Frequently Asked Questions (FAQ)
Q1: Can I store flammable and oxidizing gases in the same 3-bottle cabinet?
A: According to most safety regulations (like NFPA 55), flammable gases (like Hydrogen) and oxidizing gases (like Oxygen) should be separated by a fire-rated wall or a specific distance. While the GCC719 is robust, we recommend using separate cabinets or a model with an internal fire-rated partition if you intend to store incompatible gas classes together.
Q2: Is the GCC719 suitable for outdoor use?
A: The GCC719 is primarily designed for indoor laboratory or industrial workshop use. While its anti-corrosion coating is excellent, for permanent outdoor installation, we recommend an additional weather-protective roof or our specific "Outdoor Series" gas lockers to prevent rain accumulation in the ventilation ports.
Q3: How do the adjustable safety chains lock?
A: The chains use a high-tensile snap-hook or a tensioning latch system. This allows for a tight, "zero-wiggle" fit around the cylinder, which is vital for preventing the "domino effect" if one cylinder is bumped during a swap.
Built for the Rigors of Research
The Three Bottle Gas Cylinder Cabinet-GCC719 is the professional choice for any Material Testing Laboratory that values durability and volume. By combining fire-resistant features with the flexibility of adjustable safety chains, it ensures that your gas supply remains secure, even in the most demanding testing environments.
