The HENGNA Medical Oxygen Cylinder Cabinet is designed specifically for healthcare environments. It safely stores two oxygen cylinders (or other medical gases) behind an explosion‑proof glass window that allows staff to verify cylinder contents and pressure without opening the door. An integrated gas alarm monitors for leaks, and the cabinet can be customized to match hospital color codes or branding. With its robust construction and thoughtful safety features, this cabinet helps NYC hospitals maintain compliance with NFPA 99 (Health Care Facilities Code) and Joint Commission standards.
This guide explains how the HENGNA medical cabinet meets the unique demands of hospital oxygen storage.
Key Specifications
| Parameter | Value |
|---|---|
| Model | HNG‑MED‑DBL |
| External Dimensions | H1900 × W500 × D450 mm (double bottle) |
| Cylinder Capacity | 2 standard medical oxygen cylinders (E or H size) |
| Material | cold‑rolled steel |
| Surface Coating | Phosphorus‑free epoxy powder coat (white or custom color) |
| Door | Full‑length with embedded handle |
| Lock | All‑steel, rust‑resistant (key or combination lock optional) |
| Window | Explosion‑proof tempered glass, full door height |
| Cylinder Restraint | Retaining chains (included) |
| Bottom Plate | Removable, accommodates cylinders up to 400mm diameter |
| Gas Sensor | Oxygen sensor or combustible gas detector (configurable) |
| Alarm Type | Audible (85dB) + Visual (red flashing light) |
| Exhaust Fan | Optional (not typically required for oxygen, but available) |
| Electrical | 110V AC, 60Hz (for alarm system) |
| Weight | ~80 kg |
| Custom Options | Hospital logo, color matching, additional shelving, alarm integration |
Why NYC Hospitals Choose This Cabinet
1. Explosion‑Proof Glass Window for Safe Visual Inspection
In busy hospital settings, staff need to quickly verify which cylinder is in use and how much gas remains. The full‑height tempered glass window allows this at a glance—without opening the cabinet. Opening the door unnecessarily can expose the cylinder to potential impacts or allow oxygen to enrich the room. The glass is rated explosion‑proof, meaning it won’t shatter if struck or if a cylinder inside were to rupture (a rare but serious event).
2. Gas Alarm Tailored for Medical Gases
While oxygen itself is not flammable, it vigorously supports combustion. A small leak in an enclosed space can create an oxygen‑enriched atmosphere where materials that normally don’t burn (like clothing or furniture) can ignite easily. The cabinet can be equipped with an oxygen sensor that triggers an audible and visual alarm if oxygen levels rise above normal (23.5% or higher). For hospitals storing other gases like nitrous oxide or medical air, alternative sensors are available.
| Gas Type | Sensor Recommendation |
|---|---|
| Oxygen | Oxygen deficiency/enrichment sensor |
| Nitrous Oxide | Combustible gas sensor (for flammable anesthetics) or specific N₂O sensor |
| Medical Air | No alarm needed (inert) |
| Carbon Dioxide | CO₂ sensor (for asphyxiation risk) |
3. Double Bottle Capacity for Common Medical Use
Most hospital applications require a primary and reserve cylinder. The double‑bottle cabinet holds two cylinders side by side, allowing easy changeover when one empties. The 500mm width is compact enough to fit in corridors, procedure rooms, or storage alcoves.
4. Custom Support for Hospital Branding and Workflow
NYC hospitals often have strict requirements for equipment appearance and integration. HENGNA offers:
Custom colors to match hospital decor (white is standard, but any color is possible).
Hospital logos or text on the door.
Alternative locking systems (key, combination, or electronic access) to match facility security.
Integration with nurse call or building management systems for remote alarm monitoring.
Additional shelving for accessories like regulators or masks.
Designed for Healthcare Environments
Material and Cleanability
| Layer | Material | Function |
|---|---|---|
| Base | Cold‑rolled steel (1.2mm) | Strength and rigidity |
| Conversion | Phosphorus‑free treatment | Environmentally friendly, improves coating adhesion |
| Powder coat | Epoxy resin | Smooth, non‑porous surface that resists stains and is easy to clean |
| Topcoat | Scratch‑resistant finish | Maintains appearance with regular disinfectant wiping |
The smooth epoxy coating can be wiped down with hospital‑grade disinfectants without damage—important for infection control.
Physical Safety Features
Retaining chains secure cylinders and prevent tipping.
Removable bottom plate allows cylinders to be rolled in/out without lifting.
Anti‑tip stability from cabinet footprint and optional floor anchors.
Explosion‑proof window eliminates glass breakage risk.
How the Alarm Works (Oxygen Sensor Version)
Continuous monitoring: The sensor measures oxygen concentration inside the cabinet.
Normal range: 20.9% oxygen (ambient air). The alarm remains silent.
High oxygen alarm: If the sensor detects oxygen above 23.5%, the audible alarm sounds and the red light flashes. This indicates a leak that could create an oxygen‑enriched environment.
Staff response: Personnel investigate the leak, close the cylinder valve if needed, and ventilate the area.
Auto‑reset: Once oxygen levels return to normal, the alarm stops.
Note: An exhaust fan is not typically used for oxygen cabinets because exhausting oxygen‑enriched air could create a fire hazard elsewhere. If requested, we can provide a fan with appropriate safety controls.
Applications in NYC Hospitals
| Location | Typical Use | Why This Cabinet Works |
|---|---|---|
| Emergency Department | Oxygen for resuscitation, trauma | Quick visual check of cylinder status; alarm alerts staff to leaks |
| Operating Rooms | Oxygen, nitrous oxide, medical air | Compact size fits in OR suite; custom colors match hospital decor |
| Patient Rooms | Oxygen for respiratory therapy | Secure storage prevents unauthorized access; window allows nurse verification |
| Central Supply | Bulk cylinder storage | Double capacity; alarm monitors for leaks in storage area |
| Laboratories | Medical gases for analyzers | Custom shelving for regulators and accessories |
Frequently Asked Questions
Q1: Why do I need an alarm for oxygen? Isn't oxygen safe?
Oxygen is not flammable, but it strongly supports combustion. In an oxygen‑enriched environment (above 23.5%), materials that are normally flame‑resistant can ignite easily and burn violently. A small leak in an enclosed cabinet can create such an environment. The alarm gives early warning so staff can correct the leak before a fire hazard develops.
Q2: Can I get this cabinet without the glass window?
Yes. While the explosion‑proof window is standard for medical applications, we also offer a solid steel door version for facilities that prefer no glass. However, the window allows visual inspection without opening the door, which is a key safety feature recommended by NFPA.
Q3: What sizes are available? Can I store three cylinders?

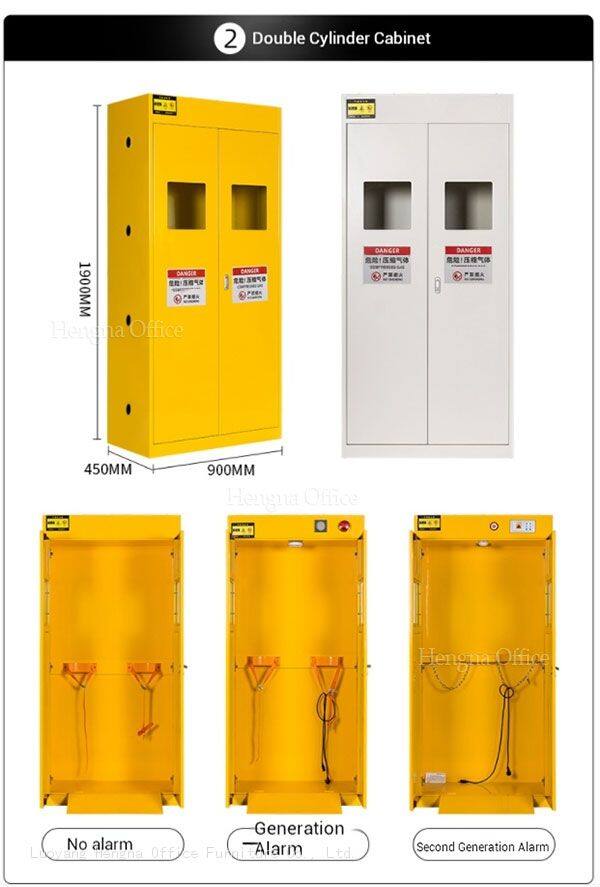

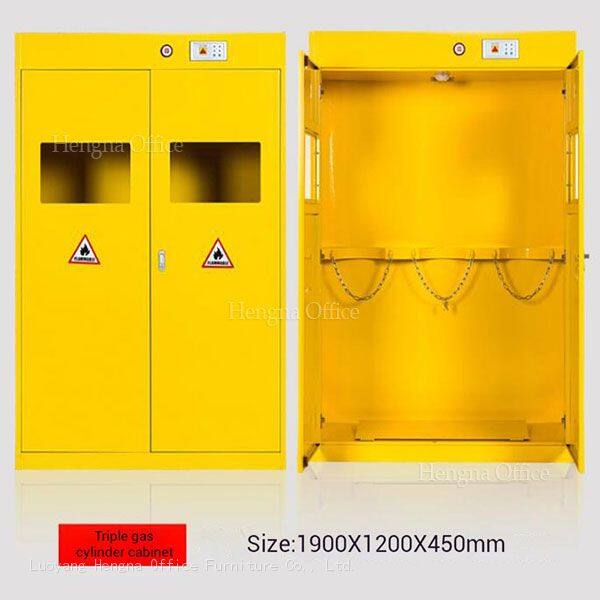

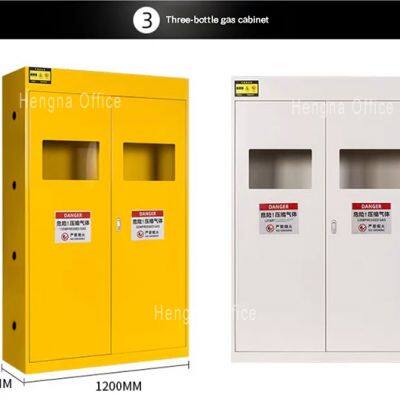

We offer single (500mm width), double (900mm width), and triple (1200mm width) cabinets. For most hospital applications, the double cabinet is ideal. The triple cabinet may be used in central supply areas. All have the same 1900mm height and 450mm depth.
Customization Options for NYC Hospitals
HENGNA works directly with hospital facilities managers, architects, and safety officers to deliver cabinets that integrate seamlessly.
| Custom Feature | Options |
|---|---|
| Color | Match hospital brand or room decor |
| Logo | Silk‑screen hospital name or logo on door |
| Lock | Key lock, combination lock, electronic card reader |
| Alarm Integration | Dry contacts for connection to nurse call or BMS |
| Sensor | Oxygen, CO₂, combustible gas, or multi‑gas |
| Accessories | Additional shelves, regulator holders, hose storage hooks |
| Labeling | Pre‑printed gas type and warning labels |
Why HENGNA for Medical Gas Storage
HENGNA has supplied medical gas cabinets to hospitals across the United States, including several in the NYC area. Our factory in Luoyang, China, produces to international standards, and we ship directly to your facility. With custom support, we ensure the cabinet meets your exact needs—whether it's a single unit for a small clinic or dozens for a major medical center.
15+ years of manufacturing experience
Direct factory pricing – no distributor markups
Custom engineering – we work with you to get it right
Spare parts available from our US warehouse
For NYC hospitals, safe medical gas storage is essential to patient care and facility safety. The HENGNA Medical Oxygen Cylinder Cabinet combines visual inspection through an explosion‑proof window, intelligent gas monitoring, and robust physical security in a compact, customizable package. Whether you need a standard double cabinet or a fully customized solution with hospital branding and integrated alarms, HENGNA delivers.
Choose HENGNA for:
Safety – Explosion‑proof window, gas alarm, secure restraints
Visibility – Full‑height glass for at‑a‑glance cylinder checks
Customization – Colors, locks, sensors, and integrations
The contact information of the sales manager is shown in the picture below. You can make inquiries directly without waiting.
