The HENGNA Gas Cylinder Security Enclosure is designed specifically for vocational schools. It combines all the essential safety features of our industrial cabinets with thoughtful design elements that support teaching: a flip‑down loading ramp that makes cylinder handling easy and safe for students, a secure lock that prevents unauthorized access, and rugged construction that stands up to daily use in a busy shop class. Most importantly, it helps instructors teach proper gas cylinder safety by demonstrating correct storage procedures.
This guide explains why vocational schools across Ohio choose this cabinet for their training programs.
Key Specifications
| Parameter | Value |
|---|---|
| Model | HNG‑VOC‑SGL (single) / HNG‑VOC‑DBL (double) |

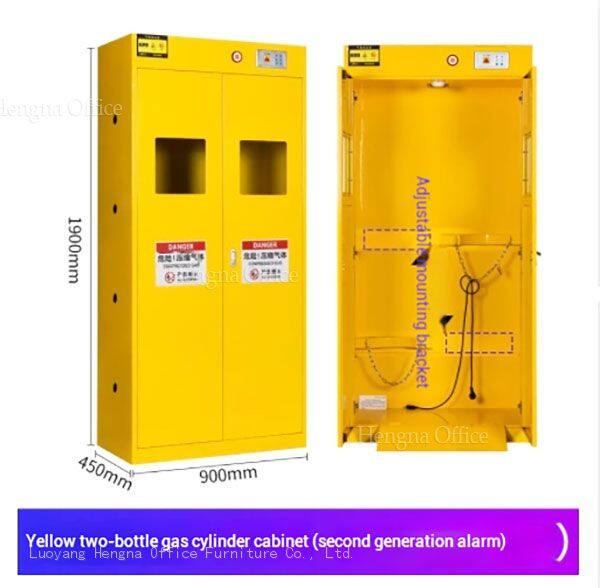

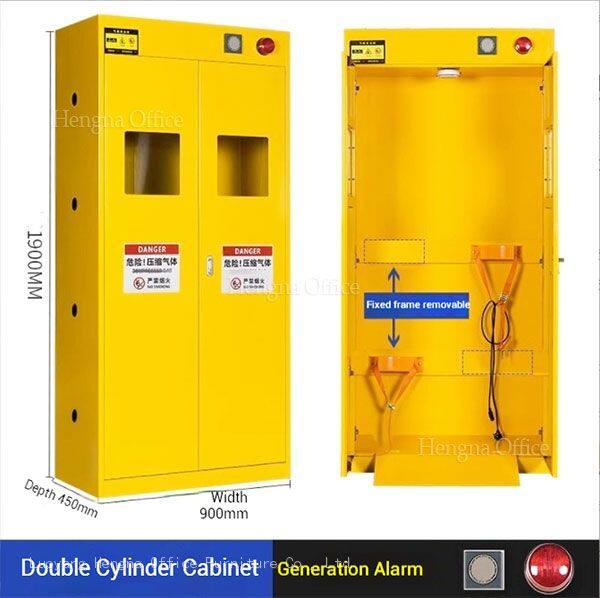

| External Dimensions | H1900 × W500 (single) or W900 (double) × D450 mm |
| Cylinder Capacity | 1 or 2 standard gas cylinders |
| Material | cold‑rolled steel |
| Surface Coating | Phosphorus‑free epoxy powder coat (yellow or gray) – scratch‑resistant |
| Door | Full‑length with embedded handle |
| Lock | Heavy‑duty all‑steel lock (key or combination lock optional) |
| Window | Explosion‑proof tempered glass, full door height |

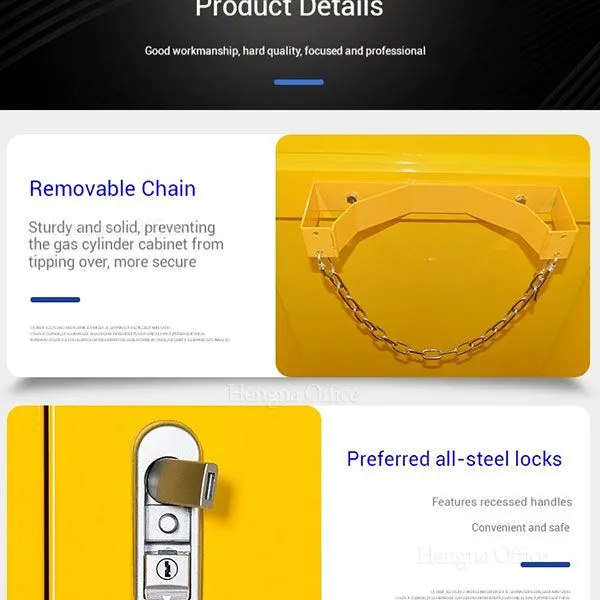

| Cylinder Restraint | Retaining chains (included) |
| Loading Ramp | Flip‑down removable bottom plate – no lifting required |
| Gas Sensor | Optional (combustible gas detector with audible/visual alarm) |
| Electrical | 110V AC (only if alarm option is ordered) |
| Weight | ~75 kg (single), ~95 kg (double) |
Why Ohio Vocational Schools Choose This Cabinet

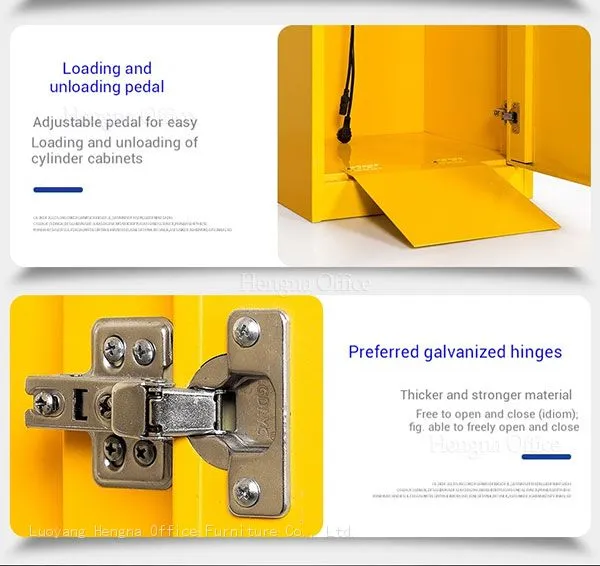

1. Flip‑down Loading Ramp – Safe Cylinder Handling for Students
Lifting a heavy gas cylinder is one of the most common causes of injury in shops and labs. For students who may not have developed proper lifting techniques, the risk is even higher. The flip‑down loading ramp eliminates lifting entirely:
Step 1: Open the cabinet door.
Step 2: Pull out the bottom plate and flip down the attached support legs. The plate becomes a ramp resting on the floor.
Step 3: Roll the cylinder up the ramp into the cabinet.
Step 4: Lift the ramp back to horizontal and slide it into place under the cylinder.
Step 5: Secure the retaining chains and close the door.
This simple mechanism allows even a smaller student to safely load a full cylinder without assistance. It also teaches proper technique: roll, don't lift.
2. Secure Lock – Prevents Unauthorized Access
In a school setting, not everyone should have access to gas cylinders. The cabinet includes a heavy‑duty all‑steel lock. Options include:
Key lock – Standard, with multiple keys provided for instructors
Combination lock – No keys to lose; ideal for shared instructor access
Padlock hasp – For use with school‑standard padlocks
This keeps cylinders secure after hours and prevents students from accessing them without supervision.
3. Built for Teaching – Clear Visibility and Simple Operation
The full‑height explosion‑proof glass window serves two purposes:
For instructors: At a glance, verify that cylinders are properly secured and valves are closed.
For students: See exactly how cylinders are stored without opening the door. This reinforces learning about proper storage.
The cabinet is simple to operate, which means less time explaining and more time teaching the skills that matter.
4. Durable Enough for the Classroom
Vocational shops see heavy use. Students bump into things, tools get dropped, and equipment gets dirty. The HENGNA cabinet is built to take it:
1.2mm steel – Stands up to impacts
Epoxy coating – Resists scratches and cleans easily
Rust‑resistant hardware – Hinges and locks won't fail after years of use
Easy to clean – Wipe down with shop cleaners; coating won't degrade
Designed for Vocational Education
Safety Features That Teach
| Feature | What It Does | What Students Learn |
|---|---|---|
| Retaining chains | Secures cylinder in place | Always restrain cylinders to prevent tipping |
| Flip‑down ramp | Allows rolling instead of lifting | Use mechanical advantage, not brute force |
| Glass window | Allows visual inspection without opening | Check cylinders regularly without exposing them |
| Lock | Prevents unauthorized access | Only trained personnel should handle gas cylinders |
| Optional alarm | Alerts to leaks | Gas leaks are serious – respond immediately |

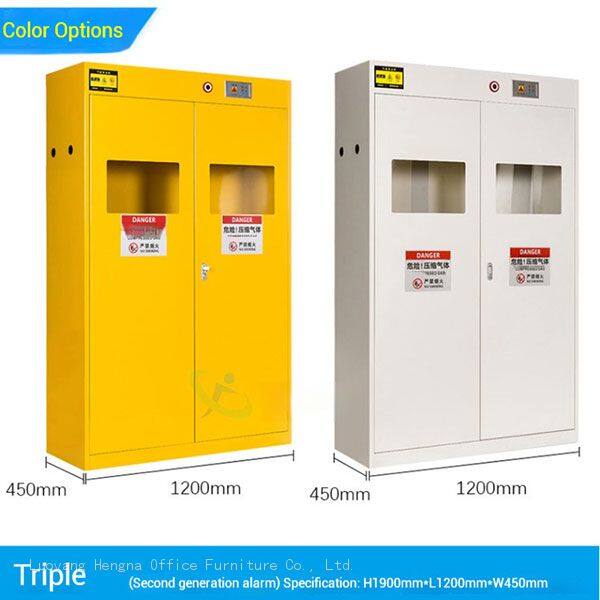

Color Options for Safety Coding
Many vocational programs use color coding for safety. The cabinet is available in:
Safety yellow – High visibility, standard for hazardous materials
Machine gray – Blends with shop equipment
Custom colors – Match your school's safety system
Applications in Vocational Training
| Program | Typical Gases | Why This Cabinet Works |
|---|---|---|
| Welding | Oxygen, acetylene, argon | Flip‑down ramp makes cylinder changes easy during busy class periods; glass window lets instructor verify cylinder contents |
| Automotive Technology | Oxygen, acetylene (for cutting), nitrogen (for strut tools) | Secure lock prevents after‑hours access; compact size fits in shop bays |
| HVAC/R | Nitrogen (for pressure testing), refrigerant cylinders | Retaining chains secure different cylinder sizes; optional alarm for leak detection |
| Manufacturing Technology | Argon (for TIG welding), CO₂ (for MIG) | Double cabinet holds two common welding gases in one location |
| Construction Trades | Propane (for torches), oxygen | Rugged construction withstands job‑site style training environments |
Optional Alarm System for Advanced Training

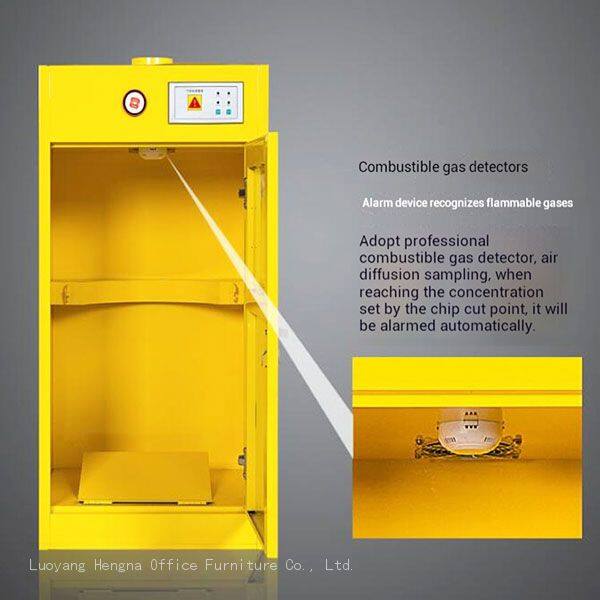

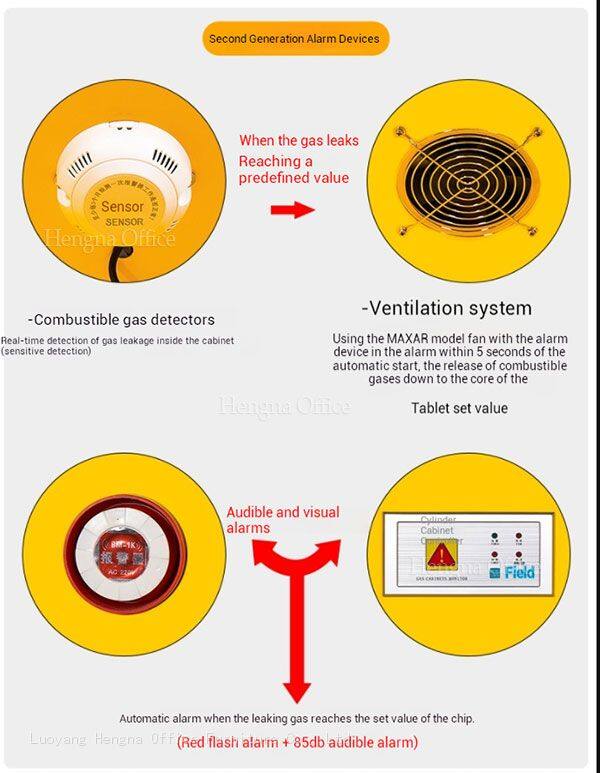

For programs that want to teach gas detection and emergency response, the cabinet can be equipped with a combustible gas sensor, 85dB audible alarm, and red flashing light. When a leak is detected:
The alarm sounds and light flashes.
Instructors can use this as a teaching moment: "What do we do when the alarm goes off?"
Students learn to identify the source, shut off the cylinder if safe, and evacuate if necessary.
The alarm system operates on standard 110V power and includes a test button for routine drills.
Frequently Asked Questions
Q1: Do vocational schools really need a special gas cabinet?
Yes. While any gas cylinder cabinet provides basic safety, vocational schools have unique needs: students with varying levels of experience, high‑traffic environments, and the need to teach proper procedures. The flip‑down ramp, secure lock, and durable construction address these specific challenges. Additionally, many school districts require lockable storage for hazardous materials.
Q2: What size cabinet should I get for my welding shop?
For most welding programs, the double cabinet (900mm wide) is ideal. It holds one oxygen and one acetylene cylinder side by side—the two most common gases in welding. If you also use argon for TIG welding, consider a second double cabinet or a triple cabinet (1200mm wide) for three cylinders.
Q3: Can students use the flip‑down ramp safely?
Absolutely. The ramp is designed for ease of use. It supports the full weight of a cylinder and provides a stable rolling surface. Students should still be supervised during cylinder changes, but the ramp eliminates the dangerous lifting motion that causes injuries.
Comparison: Standard Cabinet vs. Vocational School Cabinet
| Feature | Standard Industrial Cabinet | Vocational School Cabinet |
|---|---|---|
| Loading | Removable plate (requires some lifting) | Flip‑down ramp (no lifting) |
| Lock | Standard key lock | Key, combination, or padlock options |
| Durability | Industrial grade | Same industrial grade |
| Glass window | Standard | Standard |
| Alarm | Optional | Optional |
| Teaching focus | No | Yes – design supports instruction |
| Best for | Factories, labs | Schools, training centers |
Why HENGNA for Vocational Schools
HENGNA has supplied gas cabinets to technical colleges and vocational schools across the United States, including many in Ohio. We understand the budget constraints of educational institutions and the need for equipment that lasts.
15+ years of manufacturing experience
Direct pricing – No distributor markups, fits school budgets
Custom options – Colors, locks, alarms to match your program
Easy ordering – Purchase orders accepted
Technical support – We help you choose the right cabinet
Maintenance for School Environments
Daily
Visual check through glass window – cylinders secured, valves closed
Wipe exterior if dirty
Monthly
Test optional alarm using test button
Check that door closes and locks properly
Inspect retaining chains for wear
Annually
Calibrate gas sensor (if equipped)
Lubricate hinges if needed
Touch up any scratches with matching paint (available from HENGNA)
For Ohio vocational schools, teaching safety is just as important as teaching skills. The HENGNA Gas Cylinder Security Enclosure helps you do both. With its flip‑down loading ramp, secure lock, and rugged construction, it provides a safe, practical solution for storing compressed gases in a teaching environment. And when you're ready to teach gas detection, the optional alarm system turns a storage cabinet into a learning tool.
Choose HENGNA for:
Student safety – No‑lift loading ramp prevents injuries
Security – Lock keeps cylinders accessible only to trained staff
Durability – Built to withstand busy shop classes
Teaching value – Demonstrates proper gas cylinder storage
Prepare your students for industry careers with the gas storage solution designed for vocational education.
The contact information of the sales manager is shown in the picture below. You can make inquiries directly without waiting.
