The HENGNA Heavy Duty 3-Cylinder Storage Cage is built for these high-volume applications. With a 1200mm width, it holds three standard gas cylinders side by side, maximizing storage capacity in a single footprint. The smart control panel provides real-time monitoring of gas levels and alarm status, while the rugged steel construction stands up to the harsh desert environment. Whether you're outfitting a new industrial station or upgrading an existing facility, this cabinet delivers the capacity and intelligence you need.
This guide explains why industrial stations in Phoenix and across Arizona choose this heavy-duty cabinet for their gas storage needs.
Key Specifications
| Parameter | Value |
|---|---|
| Model | HNG-IND-TRP |

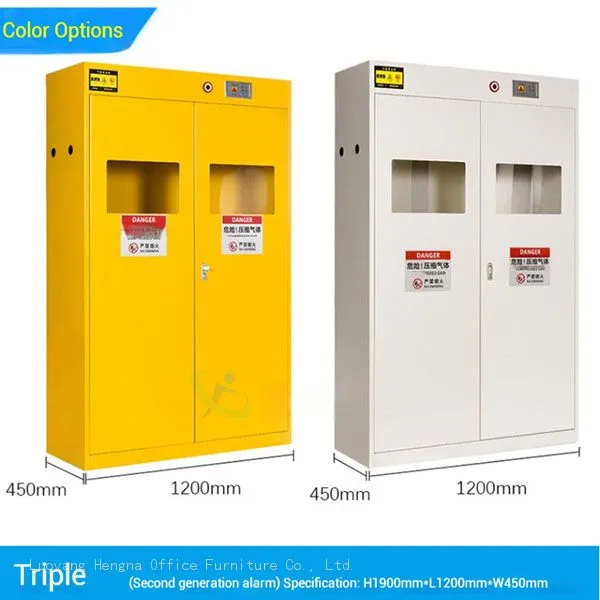

| External Dimensions | H1900 × W1200 × D450 mm |
| Cylinder Capacity | 3 standard gas cylinders (up to 230mm diameter each) |
| Material | Heavy-duty cold-rolled steel (reinforced frame) |
| Surface Coating | Phosphorus-free epoxy powder coat (yellow or gray) – UV resistant for desert sun |
| Door | Full-length dual doors (each 600mm wide) with embedded handles |
| Lock | Heavy-duty all-steel lock, rust-resistant |
| Window | Explosion-proof tempered glass in each door |
| Cylinder Restraint | Independent retaining chains for each cylinder (3 sets) |
| Bottom Plate | Removable, accommodates cylinders up to 400mm diameter |
| Control Panel | Smart LCD display (real-time gas concentration, system status, alarm history) |

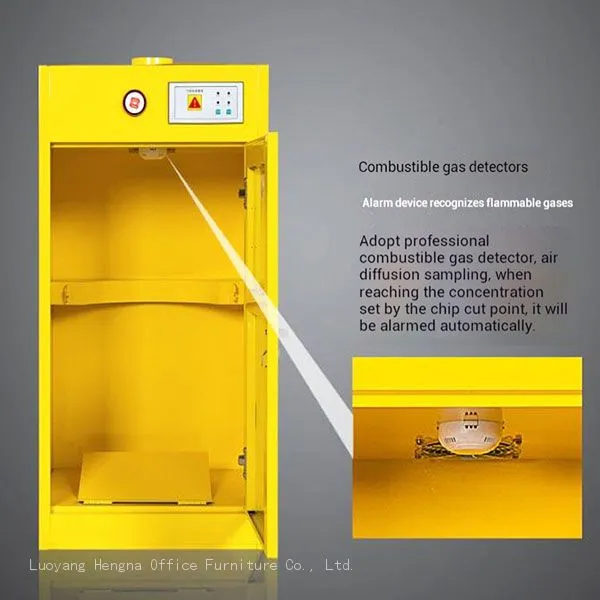

| Gas Sensor | Combustible gas detector (field-adjustable threshold) |
| Alarm Type | Audible (85dB) + Visual (red flashing light) |
| Exhaust Fan | Dual MAXAR fans (one per compartment section), automatic activation |
| Response Time | Fans start within 5 seconds of alarm trigger |
| Electrical | 110V AC, 60Hz (standard US) |
| Weight | ~150 kg |
Why Phoenix Industrial Stations Choose This Cabinet
1. Large Capacity – Three Cylinders in One Cabinet
Floor space is valuable in any industrial facility. The 1200mm wide cabinet stores three cylinders in the space that would normally hold two standard cabinets. This consolidation:
Reduces footprint – More cylinders in less floor space
Lowers cost – One cabinet instead of two or three
Simplifies monitoring – Single control panel for all three cylinders
Improves organization – All gases stored together in one location
2. Smart Control Panel for Real-Time Awareness
The integrated LCD display gives operators continuous visibility into cabinet status:
Real-time gas concentration (displayed in PPM or %LEL)
System status (normal, warning, alarm)
Sensor readings for each zone (cabinet is internally monitored as a single volume)
Alarm history – last 10 events with time stamps
Self-diagnostic results – verifies sensor and fan operation
This information helps safety personnel verify that the cabinet is functioning correctly and provides data for incident investigations and compliance reporting.
3. Dual Fan System for Rapid Exhaust
With three cylinders, the potential volume of a leak is larger. The cabinet addresses this with two MAXAR exhaust fans – one pulling from each side of the cabinet. When the gas sensor detects a leak, both fans activate simultaneously within 5 seconds, providing double the exhaust capacity of standard cabinets. This ensures rapid removal of leaked gas, even from a significant release.
4. Built for Desert Conditions
Phoenix summers are extreme. Temperatures regularly exceed 110°F, and UV exposure is intense year-round. The HENGNA heavy-duty cabinet is engineered for these conditions:
UV-resistant epoxy coating – Formulated to resist fading and degradation from sun exposure
Vented design – Allows natural airflow to prevent heat buildup inside the cabinet
Heavy-gauge steel – 1.5mm thickness provides thermal mass and structural integrity
Corrosion resistance – Coating protects against humidity and occasional monsoon moisture
Designed for Industrial Use
Structural Reinforcement
| Component | Feature | Benefit |
|---|---|---|
| Frame | Welded steel channel construction | Maximum rigidity, no flexing under load |
| Doors | Dual doors with reinforced edges | Easy access to individual cylinders, reduced door weight |

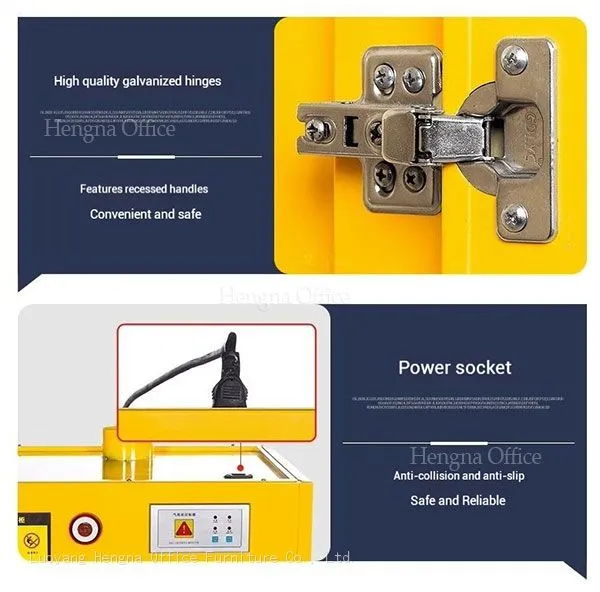

| Hinges | Heavy-duty galvanized steel | Smooth operation, no rust, rated for 10,000+ cycles |
| Bottom | Cross-braced support | Handles weight of three full cylinders without deflection |
Safety Features for High-Volume Storage
Independent cylinder restraints – Each cylinder has its own retaining chains. If one cylinder is removed, the others remain secured.
Dual doors – Each door covers two cylinders (left door) or one cylinder (right door). Open only the door you need, reducing exposure.
Explosion-proof windows – Tempered glass in each door allows visual inspection without opening.
Anti-tip stability – Wide footprint and low center of gravity; optional floor anchors available.
Removable bottom plates – Each cylinder position has its own removable plate for easy loading.
How the Smart Control Panel Works
The LCD panel is the command center for the cabinet:
Normal Operation Display
Current gas reading: 0% LEL (or low PPM)
System status: NORMAL (green indicator)
Time and date
Sensor health: OK
Warning Display
Gas reading approaching threshold (e.g., 15% LEL)
System status: WARNING (yellow indicator)
Audible beep (intermittent)
Message: "Check for leaks"
Alarm Display
Gas reading above threshold
System status: ALARM (red indicator, flashing)
Loud continuous audible alarm (85dB)
Message: "LEAK DETECTED – EVACUATE IF NEEDED"
Fans: ON (display shows "EXHAUST ACTIVE")
Event History
Press the menu button to view last 10 alarms
Each entry shows: date, time, peak gas reading, duration
Useful for safety audits and trend analysis
Applications Across Phoenix Industrial Sites
| Facility Type | Typical Gases | Why This Cabinet Works |
|---|---|---|
| Welding & Fabrication Shops | Oxygen, acetylene, argon | Three-cylinder capacity holds all welding gases in one place; dual doors allow access to just the cylinder needed |
| Water Treatment Plants | Chlorine, sulfur dioxide, oxygen | Smart panel monitors for toxic gas leaks; dual fans provide rapid exhaust |
| Power Plants | Hydrogen (cooling), nitrogen, CO₂ | Large capacity for generator cooling gases; rugged construction withstands plant environment |
| Manufacturing Facilities | Nitrogen, argon, compressed air | Centralized storage for multiple workstations; reduces cylinder clutter on shop floor |
| Distribution Centers | Propane (forklift fueling), oxygen | Secure storage prevents unauthorized access; smart panel alerts to leaks in unattended areas |
Frequently Asked Questions
Q1: Can this cabinet store different gases at the same time?
Yes, the cabinet can hold up to three cylinders, and they can contain different gases. The gas sensor detects any combustible gas, so it will alarm if any cylinder leaks. For toxic gases like chlorine, we recommend a sensor specific to that gas. Contact us to configure the right sensor for your gas mixture.
Q2: How do I access cylinders in the back?
The cabinet is 450mm deep, which allows easy access to all cylinders from the front. Each cylinder sits on its own removable plate. To access a specific cylinder, open the corresponding door (left or right), remove the plate if needed, and roll the cylinder forward. You never need to reach over other cylinders.
Q3: What maintenance does the smart panel require?
The LCD panel itself is maintenance-free. The gas sensor should be calibrated annually. The panel includes a calibration reminder function. Calibration can be done on-site using a calibration gas kit (instructions provided) or by returning the sensor to HENGNA. The fans should be tested monthly using the panel's test function.
Comparison: Triple Cabinet vs. Multiple Singles
| Factor | Three Single Cabinets | One Triple Cabinet |
|---|---|---|

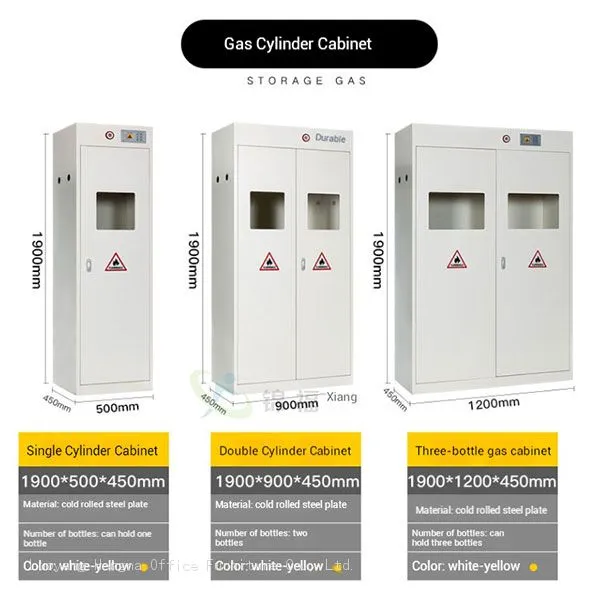

| Total Width | 1500mm (3 × 500mm) | 1200mm |
| Floor Space | More space required | 20% less floor space |
| Cost | Higher (3 cabinets, 3 alarms) | Lower (1 cabinet, 1 alarm) |
| Monitoring | Three separate panels | One integrated panel |
| Access | Open individual cabinets | Open left or right door |
| Installation | Three electrical connections | One electrical connection |
| Best For | Distributed storage | Centralized storage |
Why HENGNA for Phoenix Industrial Stations
HENGNA has supplied heavy-duty gas cabinets to industrial facilities across Arizona and the Southwest. Our factory-direct model means competitive pricing and direct engineering support.
15+ years manufacturing experience
Heavy-duty construction – 1.5mm steel, reinforced frame
Smart technology – LCD panels with real-time monitoring
Desert-ready – UV-resistant coating, vented design
Direct support – Talk to the people who build your cabinet
For Phoenix industrial stations that need to store multiple gas cylinders safely and efficiently, the HENGNA Heavy Duty 3-Cylinder Storage Cage is the ideal solution. Its 1200mm width holds three cylinders in a single footprint, while the smart control panel provides real-time monitoring and rapid dual-fan exhaust. Built to withstand Arizona's extreme conditions, this cabinet delivers the capacity, intelligence, and durability that industrial operations demand.
Choose HENGNA for:
Maximum capacity – Three cylinders, one cabinet
Smart monitoring – LCD panel with real-time gas display
Rapid response – Dual fans activate within 5 seconds
Desert durability – UV-resistant coating, heavy-gauge steel
Consolidate your gas storage, simplify monitoring, and protect your personnel with the heavy-duty cabinet trusted by industrial stations across Phoenix.
The contact information of the sales manager is shown in the picture below. You can make inquiries directly without waiting.
