Help CenterIntelligent Gas Cylinder Cabinet for Semiconductor Fabs, Standard Gas Leak Alarm & Automatic Exhaust System, OEM/ODM Supported
Product Spotlights
Related Products
-
Ventilated Gas Cylinder Storage for Chemical Plants, Epoxy Resin Coated Steel Cabinet With Gas Sensor & Audio-Visual Alarm, Best SellingUS$ 90 - 500MOQ: 5 Combos -
Gas Safety Cabinet for Chip Factories, 1900x900x450mm, Smart LCD Monitor & 5s Response Ventilation Safety Unit, Factory DirectUS$ 90 - 500MOQ: 5 Combos
-
Industrial Gas Bottle Safety Locker for Oil & Gas Sites, Steel Storage With Retaining Chains & Loading Pedal, HENGNA China SupplierUS$ 90 - 500MOQ: 5 Combos
-
Medical Oxygen Cylinder Cabinet for Hospitals, Double Bottle Capacity Safety Storage With Explosion-proof Windows & Gas Alarm, Custom SupportedUS$ 90 - 500MOQ: 5 Combos
-
1900mm Single Gas Cylinder Cabinet for Research Universities, Intelligent Gas Leakage Detection & Automatic Fan SystemUS$ 90 - 500MOQ: 5 Combos
The HENGNA Intelligent Gas Cylinder Cabinet brings semiconductor‑grade reliability to your fab. Built with a standard gas leak alarm and automatic exhaust system, it provides continuous protection without complexity. And because every fab has unique requirements, we offer full OEM/ODM support—so you can integrate our cabinets seamlessly into your existing safety infrastructure.
This guide explains how the HENGNA cabinet meets the rigorous demands of San Jose semiconductor manufacturing, from its robust construction to its smart monitoring capabilities.
Key Features at a Glance
| Feature | Description |
|---|---|
| Gas Leak Detection | Combustible gas sensor continuously monitors internal atmosphere |
| Automatic Exhaust | MAXAR fan activates within 5 seconds of alarm trigger |
| Audible & Visual Alarm | 85dB sound + flashing red light alerts personnel immediately |
| Rugged Construction | Heavy‑duty steel with phosphorus‑free epoxy coating |
| Physical Restraints | Retaining chains and removable bottom plate secure cylinders |
| Explosion‑Proof Window | Tempered glass allows safe visual inspection |
| OEM/ODM Support | Custom colors, logos, control interfaces, and panel layouts available |
Technical Specifications
| Specification | Detail |
|---|---|

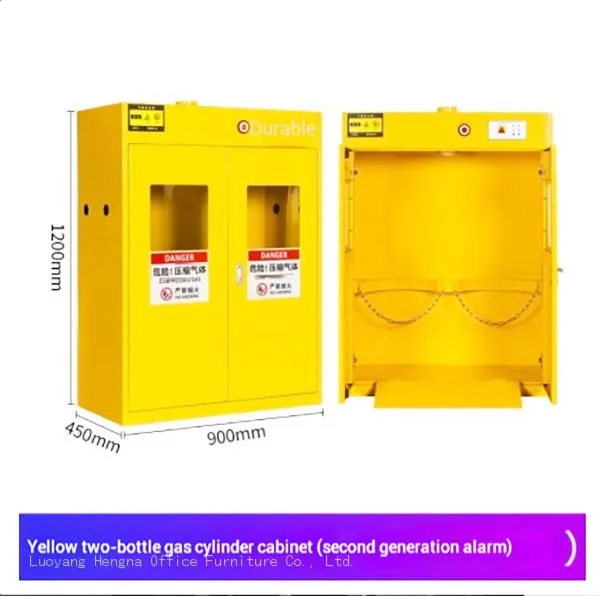

| Model | HNG‑SEMI‑DBL (double bottle) / HNG‑SEMI‑SGL (single bottle) |
| Target Industry | Semiconductor fabrication |
| Cylinder Capacity | 1 or 2 standard gas cylinders |

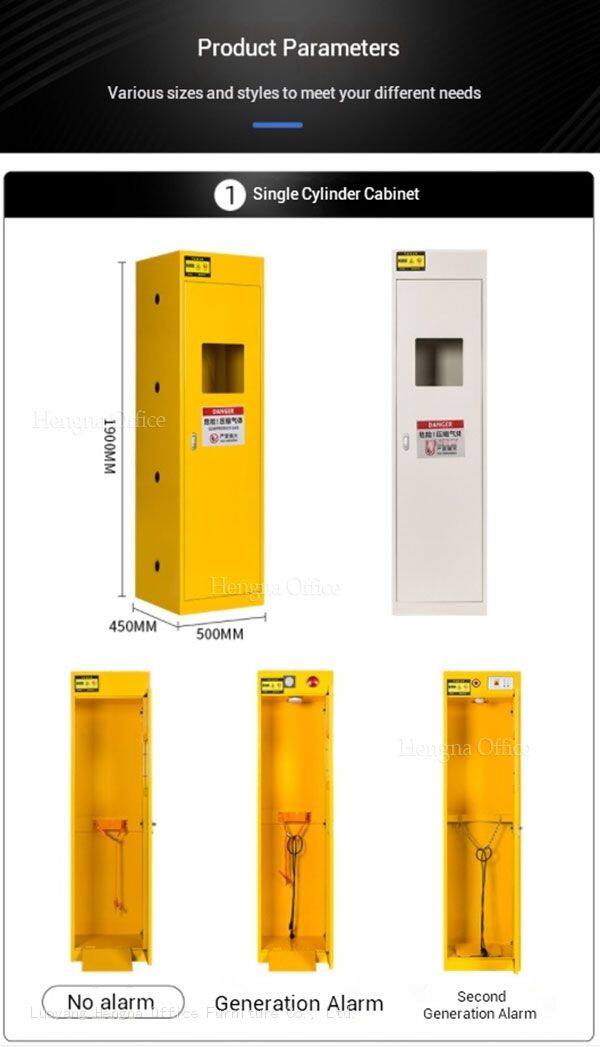

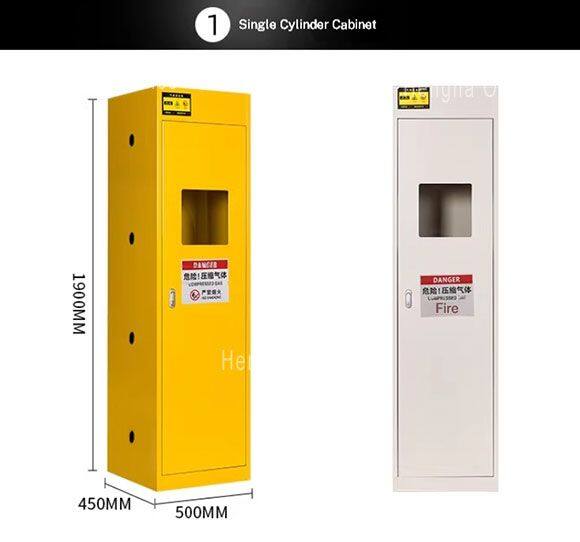

| External Dimensions | H1900 × W500–1200 × D450 mm (depending on model) |
| Material | Cold‑rolled steel |
| Surface Finish | Phosphorus‑free epoxy powder coating (yellow/gray) |
| Door | Full‑length, with embedded high‑strength handle |
| Lock | All‑steel lock, rust‑resistant |
| Window | Explosion‑proof glass, full door height |
| Weight | Approx. 80–120 kg |
Why Semiconductor Fabs Choose HENGNA
1. Reliable Leak Detection – No False Alarms
In a fab, every second counts. The HENGNA cabinet uses a high‑quality combustible gas detector that triggers only when gas concentration reaches a preset threshold. This minimizes nuisance alarms while ensuring real threats are caught instantly. The sensor is positioned optimally inside the cabinet to detect leaks from regulators, valves, or cylinder connections.

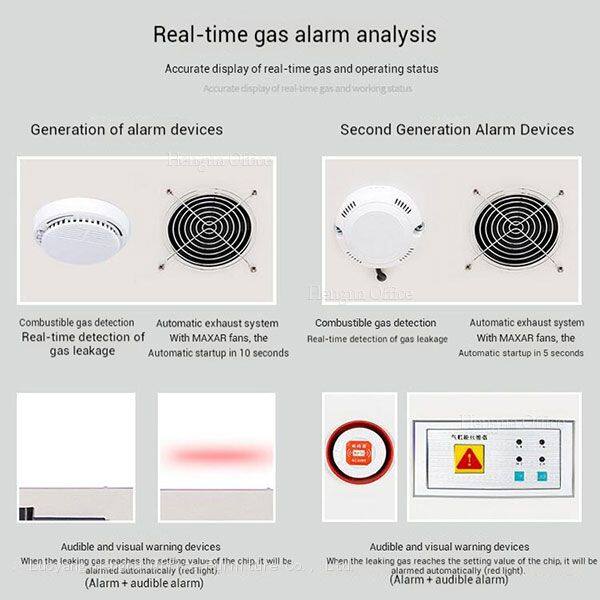

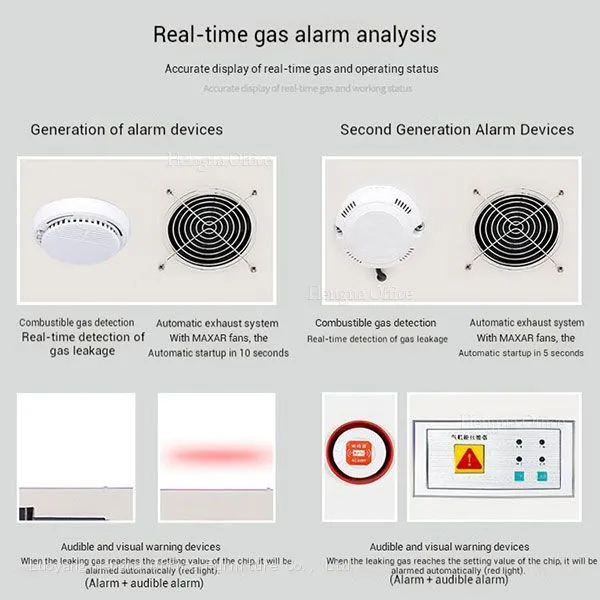

2. Lightning‑Fast Automatic Exhaust
When a leak is detected, the MAXAR exhaust fan kicks in within 5 seconds. This rapid response prevents gas accumulation, reducing the risk of fire, explosion, or toxic exposure. The fan runs until gas levels drop to safe values, then shuts off automatically—no manual intervention required.

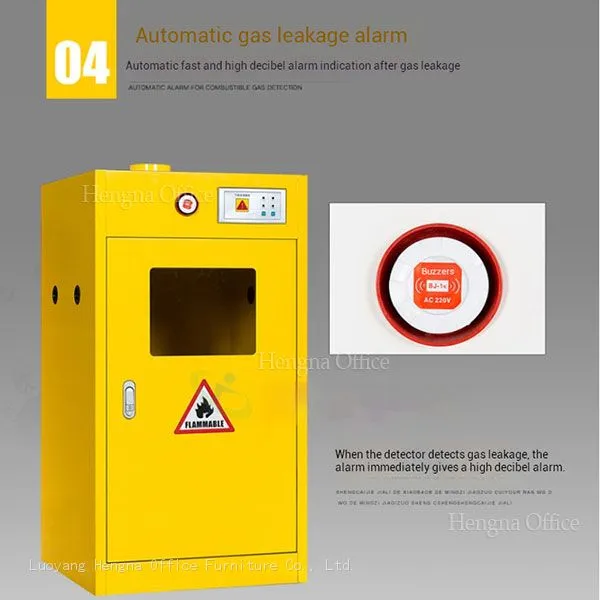

3. Clear Alerts for Immediate Action
Two alarm modes work together:
Audible alarm – 85dB tone loud enough to be heard over fab background noise.
Visual alarm – Bright red flashing light visible from a distance, even through safety glasses.
These alerts give operators and safety personnel instant awareness, enabling swift evacuation or investigation.
Built for the Fab Environment
Semiconductor fabs are demanding environments: vibrations from tools, chemical traces in the air, and strict cleanroom protocols all affect equipment longevity. The HENGNA cabinet is engineered to withstand these conditions.
Material Excellence
Base steel – 1.2mm cold‑rolled steel provides structural rigidity.
Phosphorus‑free conversion layer – Environmentally friendly pre‑treatment enhances coating adhesion.
Epoxy powder coat – Resists corrosion, scratches, and common fab chemicals.
Scratch‑resistant topcoat – Maintains professional appearance despite frequent wipe‑downs.

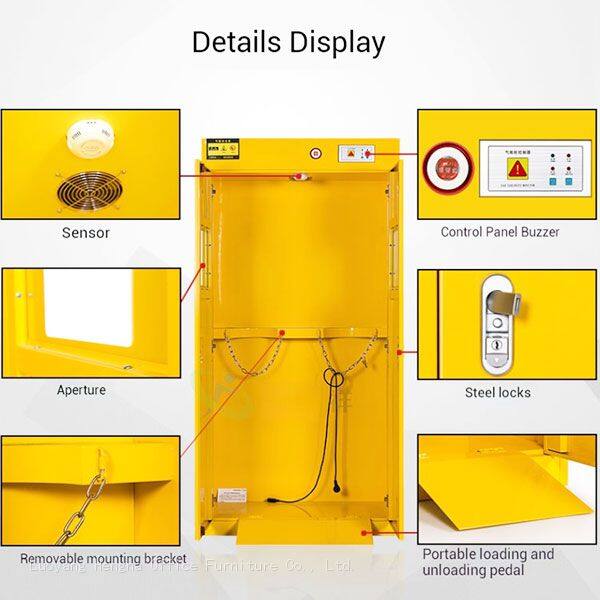

Physical Safety Features
Retaining chains – Each cylinder is secured independently; chains are sturdy and easy to operate.
Removable bottom plate – Allows cylinders up to 400mm diameter to be rolled in/out without heavy lifting.
Anti‑tip stability – Cabinet footprint and optional floor anchors prevent tipping.
Operation and User Experience
Simple Daily Use
Loading a cylinder: Remove the bottom plate, roll the cylinder onto the base, replace the plate, and secure with the retaining chain.
Monitoring: Glance through the explosion‑proof glass to check pressure gauges or cylinder labels.
Access: Use the embedded handle and all‑steel lock—smooth, rust‑proof, and secure.
Maintenance
Sensor calibration recommended annually (simple procedure, or return to HENGNA for factory service).
Fan and alarm self‑test via control panel (optional LCD upgrade available).
Exterior cleaning with standard lab disinfectants—coating is chemically resistant.
OEM/ODM: Tailored to Your Fab
No two semiconductor fabs are identical. That’s why HENGNA offers extensive customization through our OEM/ODM program.
| Customization Option | Details |
|---|---|
| Cabinet Color | Match your facility’s color scheme or safety standards |
| Corporate Branding | Add your logo, model numbers, or safety instructions |
| Control Interface | Choose basic alarm panel or upgrade to LCD with real‑time gas concentration display |
| Sensor Type | Specify detector for specific gases (e.g., hydrogen, silane) |
| Electrical Integration | Voltage options, communication protocols for building management systems |
| Accessory Add‑ons | Extra shelves, tool holders, or purge connections |
Contact our engineering team to discuss your fab’s exact needs. We’ll work with you to develop a solution that fits seamlessly into your safety ecosystem.
Comparison: Standard vs. Enhanced Models
| Feature | Standard Alarm (This Model) | Enhanced LCD Model |
|---|---|---|
| Gas Detection | Combustible gas sensor | Combustible gas sensor |
| Alarm Indication | Audible (85dB) + Red flashing light | Same + LCD shows gas concentration |
| Exhaust Fan | MAXAR, auto‑start within 5s | MAXAR, auto‑start within 5s |
| User Interface | Indicator lights only | Full LCD panel with event memory |
| Self‑Diagnostics | Basic (power‑on test) | Advanced (sensor, fan, circuit checks) |
| Data Logging | None | Last 10 alarm events recorded |
| Ideal For | Fabs needing reliable core protection | Fabs wanting detailed monitoring and audit trails |
Both versions are available with OEM/ODM customization.
Application Scenarios in a Semiconductor Fab
| Area | Typical Gases Stored | Why This Cabinet Works |
|---|---|---|
| Diffusion / Furnace | Nitrogen, Oxygen, Hydrogen | Rapid exhaust prevents hydrogen accumulation |
| Etch | Chlorine (if compatible) | Corrosion‑resistant coating, optional sensor tuning |
| Implant | Arsine, Phosphine (with special sensors) | Custom sensor configurations available |
| PVD / CVD | Argon, Nitrogen, Silane | Continuous monitoring protects sensitive processes |
| General Gas Yard | Multiple cylinder types | Versatile design, easy to relocate |
Frequently Asked Questions
Q1: Can this cabinet detect all gases used in semiconductor fabs?

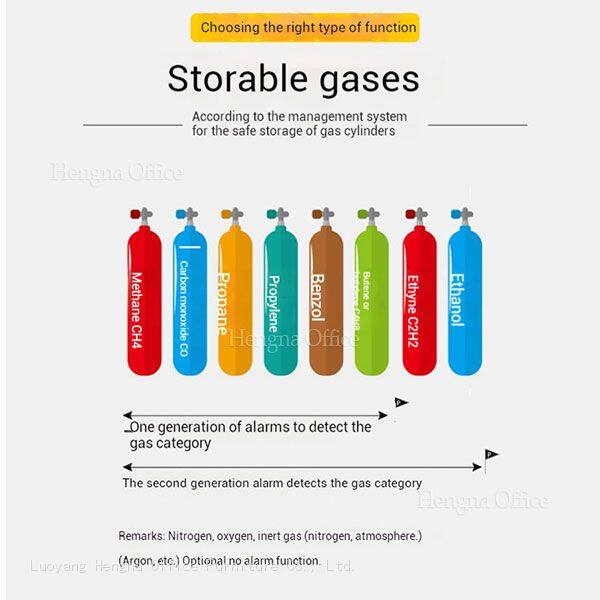

The standard combustible gas detector is optimized for hydrocarbon and hydrogen‑based gases. For specialty gases like silane, arsine, or chlorine, we recommend selecting a sensor specific to that gas during the ordering process. HENGNA offers a range of detector options to match your gas types.
Q2: How do I integrate the cabinet’s alarm with my fab’s central monitoring system?
Our OEM/ODM service includes optional relay outputs or communication modules (Modbus, 4‑20mA, dry contacts) that can interface with your building management system. Simply specify your requirements, and we’ll configure the cabinet accordingly.
Q3: What maintenance is required for the automatic exhaust fan?
The MAXAR fan is designed for long life in clean environments. We recommend an annual functional test (simulate a leak or use the test button). If your fab environment has particulates, periodic cleaning of the fan blades may be needed—instructions are provided in the manual.
For San Jose semiconductor fabs, reliable gas storage is not optional—it’s the foundation of safe, uninterrupted production. The HENGNA Intelligent Gas Cylinder Cabinet delivers exactly that: proven leak detection, automatic exhaust, and rugged construction, backed by the flexibility of OEM/ODM customization.
Choose HENGNA for:
Safety – 5‑second response, clear alarms, physical restraints
Durability – Epoxy‑coated steel built for fab conditions
Flexibility – Customize to your exact specifications
Support – Engineering assistance from concept through installation
Protect your people, your processes, and your reputation with the gas storage solution trusted by semiconductor facilities worldwide.
The contact information of the sales manager is shown in the picture below. You can make inquiries directly without waiting.
