The Industrial Gas Bottle Cabinet-GSC268 is engineered to manage this risk in high-volume settings. Equipped with a professional MAXAR exhaust system and high-security hardware, it is the definitive choice for hospitals and industrial medical gas distributors.
The Challenge of Bulk Oxygen Management
Bulk storage areas often face the "Oxygen Enrichment" hazard. In enclosed storage rooms, even minor leaks from multiple valves can raise the oxygen concentration above the safe limit of 23.5%. This creates an environment where a single spark could lead to an uncontrollable fire.
The GSC268 Solution: This cabinet doesn't just store bottles—it creates a controlled micro-environment. By using an active, high-volume extraction system, it ensures that any leaked oxygen is immediately diluted and removed from the facility.
Key Features: Built for Heavy-Duty Industrial Use

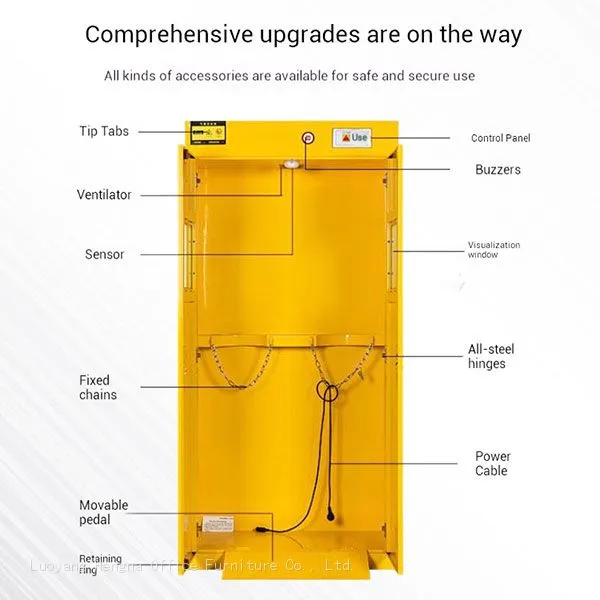

1. MAXAR High-Performance Exhaust Fan
The core of the GSC268's safety system is the industrial-grade MAXAR fan.
High CFM Rating: Unlike standard computer-style fans found in cheap lockers, the MAXAR system is designed for continuous operation and high cubic-feet-per-minute (CFM) air displacement.
Spark-Resistant Design: The fan motor is shielded to prevent electrical sparks, which is a mandatory safety requirement for oxygen-enriched environments.
Smart Linkage: The fan is connected to the cabinet's internal sensors, allowing it to toggle between "Energy-Saving Mode" and "Emergency Flush Mode."
2. Heavy-Duty Steel Security Locks
In many facilities, gas cylinders are high-value assets and potential safety hazards if tampered with.
Three-Point Locking System: The GSC268 uses a reinforced steel rod system that secures the door at the top, middle, and bottom simultaneously.
Industrial Grade Handles: The high-strength zinc alloy handles are designed for thousands of cycles and can be integrated into a facility's master key system or secured with additional padlocks for restricted access.
3. Reinforced All-Steel Architecture
The GSC268 is built to survive the rigors of an industrial oxygen room where heavy carts and cylinders are constantly in motion.
Impact Resistance: Constructed from thick-gauge cold-rolled steel, the cabinet acts as a physical shield against accidental impacts from forklifts or hand trucks.
Seismically Rated Base: The floor of the cabinet is reinforced with cross-beams to support the weight of multiple 50L steel cylinders without bowing or warping.
Technical Specification Table
| Feature | Industrial Specification |
| Model Number | GSC268 (Industrial Series) |
| Ventilation System | MAXAR High-Velocity Exhaust Fan |
| Locking Mechanism | Heavy-Duty 3-Point Steel Linkage Lock |
| Capacity | 2 Large Cylinders (Optional 3-bottle config) |
| Material | 1.2mm Cold-Rolled Steel (Explosion-proof Grade) |
| Finish | Anti-static, Fire-resistant Epoxy Powder |
| Hinges | Heavy-duty Galvanized Continuous Hinges |

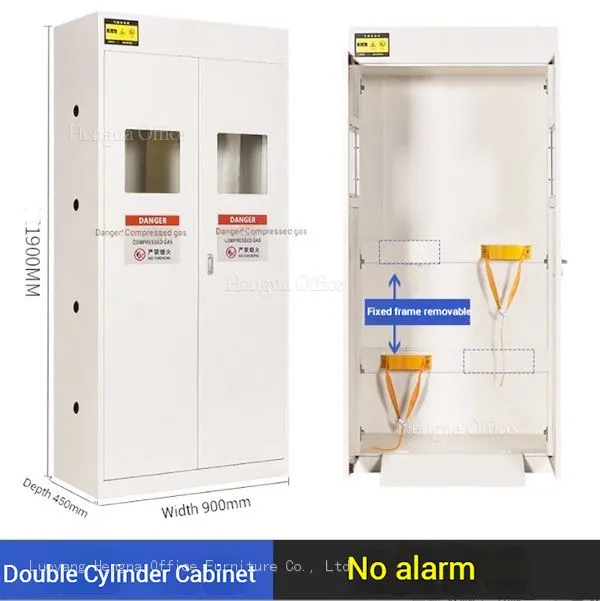

| Dimensions | 1900mm (H) x 900mm (W) x 450mm (D) |
Optimizing Safety in Medical Oxygen Rooms
When managing an oxygen storage room, the GSC268 simplifies compliance with international fire codes.
Segregation made Easy: Use multiple GSC268 units to separate full bottles from empty ones, a key requirement for many medical audits.
Heat Shielding: The double-walled steel construction provides a thermal barrier, protecting cylinders from external heat sources or localized fires.
Explosion-Proof Glass: The observation window allows for "closed-door" inspection of the oxygen regulators, ensuring the seal is never broken unnecessarily.
Installation & Maintenance in Industrial Zones
The GSC268 is designed for rapid deployment. It features adjustable leveling feet to compensate for uneven warehouse floors and pre-drilled holes for anchoring the unit to the wall or floor—a critical safety step for heavy gas storage.
Frequently Asked Questions (FAQ)
Q1: Can the MAXAR fan be connected to our building's central fire alarm?
A: Absolutely. The GSC268 control system includes a signal output port (Dry Contact) that can be wired to your fire control panel. In the event of a building-wide fire, the cabinet can be programmed to shut off ventilation to prevent fanning flames, or vice-versa during a leak.
Q2: Is the steel lock resistant to "bolt cutters" or tampering?
A: The internal linkage rods are encased within the door's steel frame, making them inaccessible to cutters. The external handle is designed with a breakaway feature to prevent forced entry via torque.
Q3: Does the cabinet come with the exhaust ducting?
A: We provide the standard Φ100mm flange on top of the cabinet. Due to varying room heights, we do not provide the flexible ducting, but the GSC268 is compatible with all standard industrial HVAC hosing.
Conclusion: The Industrial Strength Your Facility Needs
The Industrial Gas Bottle Cabinet-GSC268 provides a level of security and air-exchange performance that standard cabinets simply cannot match. For Medical Oxygen Storage Rooms where the stakes are high, the combination of a MAXAR Exhaust Fan and Heavy Duty Steel Locks makes the GSC268 an unbeatable safety asset.
The contact information of the sales manager is shown in the picture below. You can make inquiries directly without waiting.
