The Intelligent Gas Bottle Locker-GBC269 represents the pinnacle of secondary containment technology, specifically engineered for the rigorous demands of modern Gas Chromatography Rooms.
1. The Challenge of Gas Chromatography Safety
Gas Chromatography involves the use of diverse gases, including flammable carriers like Hydrogen ($H_2$) and inert gases like Helium ($He$), Nitrogen ($N_2$), or Argon ($Ar$). In a concentrated laboratory setting, the risks are twofold:
Explosion Hazard: Hydrogen is highly flammable with a wide explosive limit.
Asphyxiation Risk: Even inert gases can displace oxygen in small, poorly ventilated GC rooms if a regulator or valve fails.
The GBC269 is not merely a storage unit; it is an integrated safety system designed to monitor, detect, and react to these specific laboratory hazards.

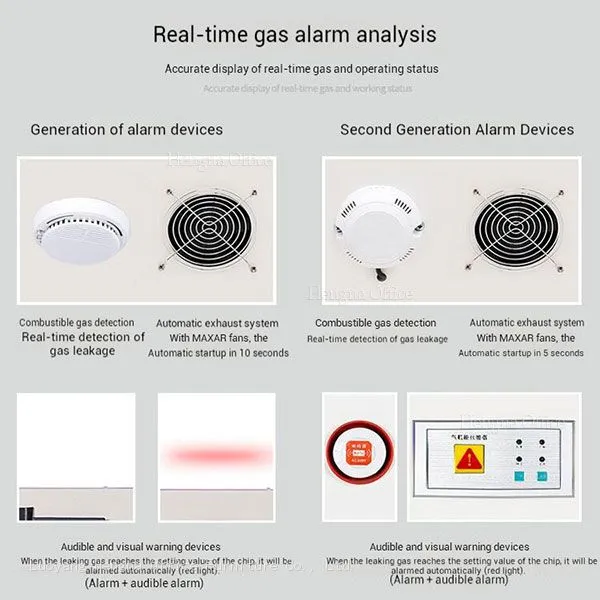

2. Technical Highlight: Real-time Intelligent Sensor Monitoring
The "Intelligent" prefix of the GBC269 is earned through its advanced sensing array. Unlike passive lockers, this model features a continuous sampling environment.
Multi-Gas Compatibility: The GBC269 can be equipped with various sensors tailored to your GC setup. Whether you are monitoring for $H_2$ leakage or $O_2$ depletion, the sensors provide high-accuracy data with minimal drift.

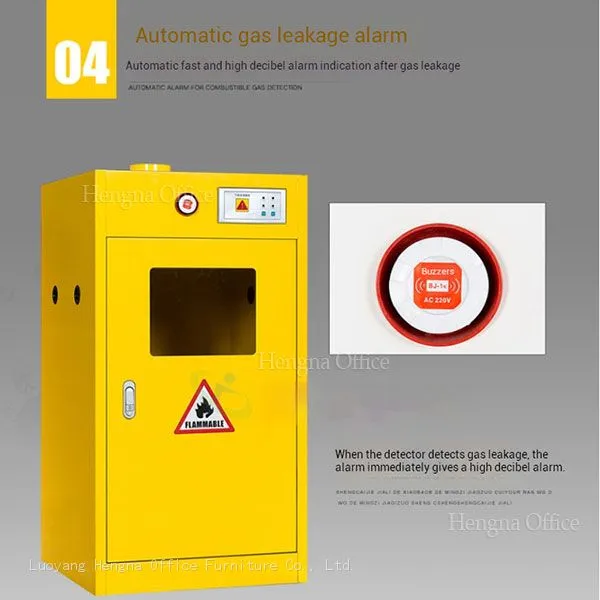

The Smart Control Hub: The front-mounted micro-processing controller acts as the brain of the unit. It features a digital display showing current concentration levels. If levels deviate from the safety baseline, the system initiates a tiered response:
Level 1 (Pre-alarm): Local visual flashing and low-volume alert.
Level 2 (Critical): High-decibel alarm, activation of the exhaust fan, and optional signal output to the building’s main Laboratory Information Management System (LIMS).
3. Structural Integrity: Explosion-proof Steel Engineering
When dealing with pressurized cylinders, the physical "envelope" is the last line of defense. The GBC269 utilizes premium Explosion-proof Steel construction techniques.
Heavy-Duty Materials: Built with 1.2mm high-quality cold-rolled steel, the cabinet is laser-welded for maximum structural rigidity. The double-walled design (in specific zones) provides superior thermal insulation and impact resistance.

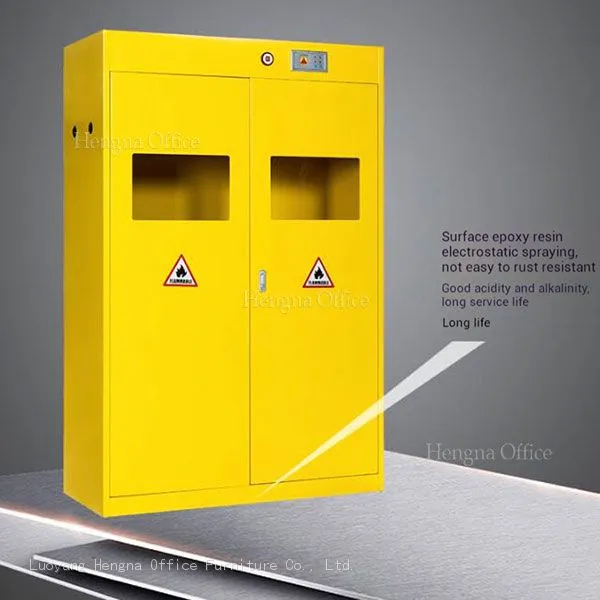

Surface Treatment: Every steel component undergoes an intense pickling and phosphating process before being finished with an anti-static, chemical-resistant epoxy powder coating. This ensures the locker remains spark-free and resistant to the corrosive atmospheres sometimes found in chemical labs.
Secure Containment: The unit includes reinforced three-point linkage locks and heavy-duty galvanized hinges that prevent door warping even under internal pressure.
4. Detailed Product Specifications
| Component | Technical Detail |
| Model Number | GBC269 (Dual Bottle Capacity) |
| External Dimensions | 1900mm (H) x 900mm (W) x 450mm (D) |
| Body Material | 1.2mm Cold Rolled Steel (Explosion-proof Grade) |
| Sensor Type | High-precision Diffusion Sensor (Customizable) |
| Safety Features | Dual Safety Chains, Adjustable Bottle Brackets |
| Ventilation Port | Top-mounted Φ100mm flange |
| Internal Floor | Reinforced steel with integrated loading ramp |
| Window Material | 5mm Clear Explosion-proof Tempered Glass |
5. Optimized for GC Room Workflow

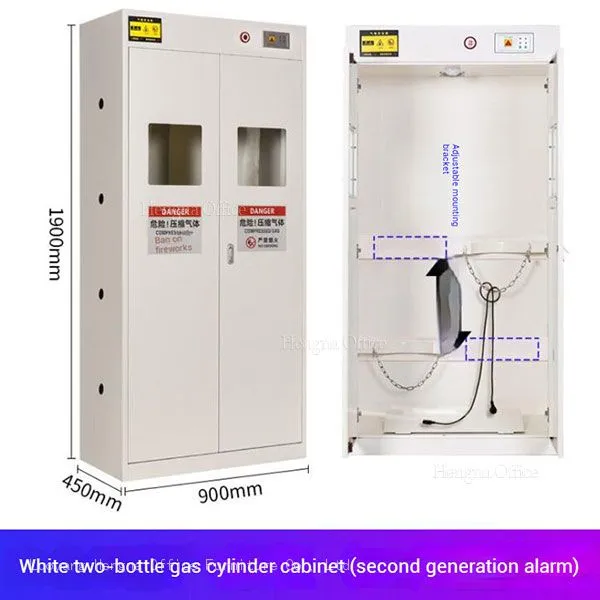

With a width of 900mm, the GBC269 is perfectly sized to hold two large 40L or 50L gas cylinders. This is the ideal configuration for Gas Chromatography, where one bottle typically serves as the active carrier and the second as a standby to ensure zero downtime during critical runs.

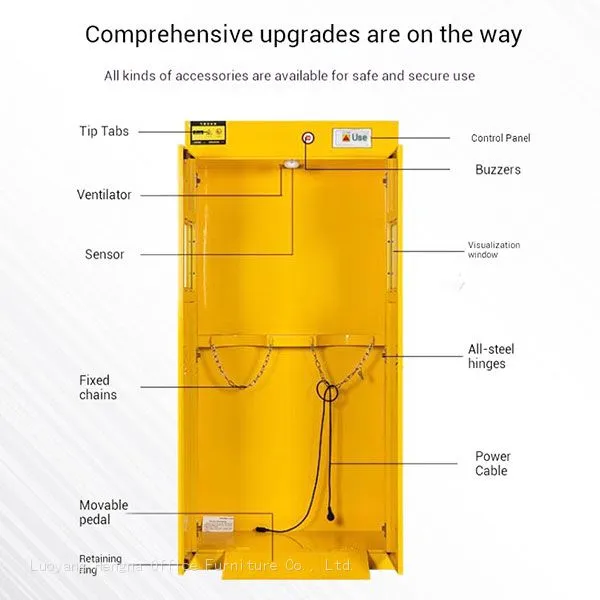

Ergonomic Loading: The flip-down floor ramp allows for seamless cylinder exchange, reducing the physical strain on lab technicians and preventing the "clanging" that can damage sensitive gas regulators.

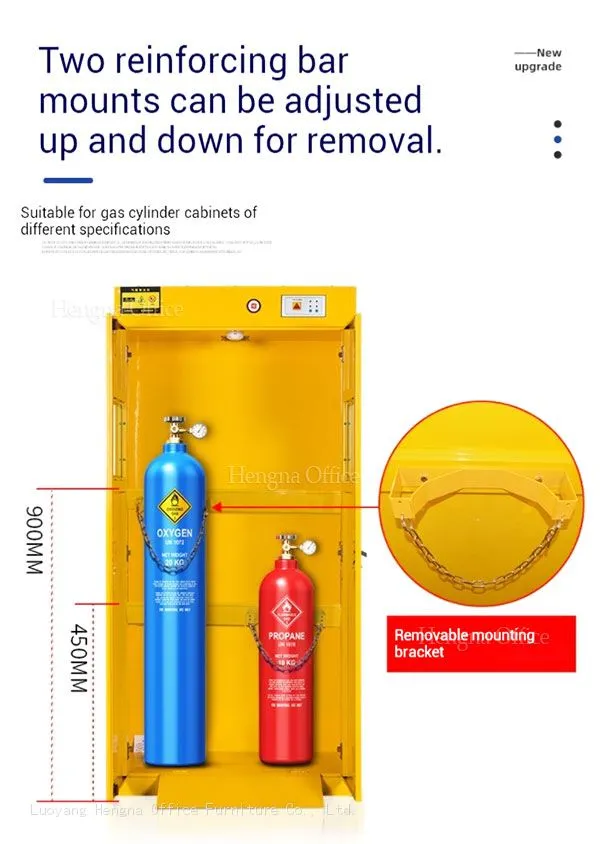

Internal Organization: Adjustable safety chains ensure that bottles of varying heights—from small calibration mixtures to large carrier tanks—are held securely against the back wall.
6. Compliance and Standards
The GBC269 is designed to help laboratories meet strict international safety codes, including:
NFPA 55: Compressed Gases and Cryogenic Fluids Code.
OSHA 1910.101: General requirements for compressed gases.
SEFA 8-M: Laboratory Grade Metal Casework standards.
Frequently Asked Questions (FAQ)
Q1: How often do the sensors in the GBC269 need to be replaced?
A: Most high-quality electrochemical or catalytic bead sensors have a lifespan of 2 to 3 years depending on the environment. The GBC269 system will display a maintenance alert when the sensor signal weakens, ensuring you are never left unprotected.
Q2: Can I connect this locker to my lab's central alarm system?
A: Yes. The GBC269 comes standard with a dry contact (RS485 optional) signal output. This allows the cabinet to trigger a building-wide alarm or alert security personnel if a leak is detected after hours.
Q3: Does the "Explosion-proof Steel" mean the cabinet can survive a cylinder explosion?
A: "Explosion-proof" in this context refers to two things: first, the cabinet's ability to prevent external sparks from entering (Intrinsically Safe components); and second, its high-tensile construction which is designed to contain localized fires and prevent the "domino effect" in a lab, providing critical time for evacuation. No cabinet is "invincible," but the GBC269 maximizes containment compared to standard storage.
A Smart Investment in Laboratory Continuity
In the Gas Chromatography Room, a single gas-related incident can cost a facility hundreds of thousands of dollars in equipment damage and lost research time. The Intelligent Gas Bottle Locker-GBC269 is a proactive investment. By combining Real-time Monitoring with Explosion-proof Engineering, it provides a fail-safe environment that allows scientists to focus on their data, not their safety risks.
The contact information of the sales manager is shown in the picture below. You can make inquiries directly without waiting.
