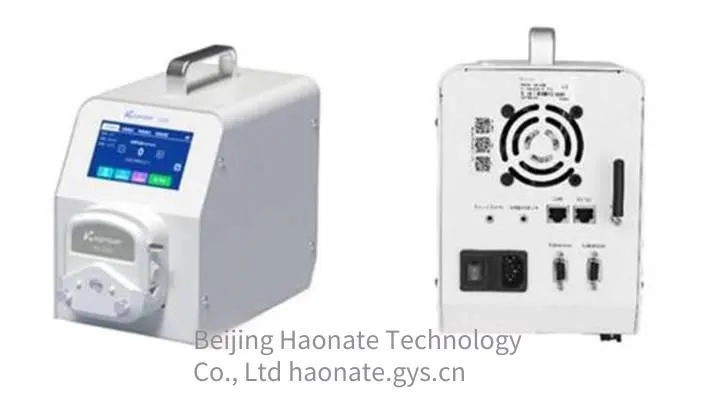

Honort UIP Series Intelligent Peristaltic Pumps
Product Features:
Small size, large flow rate, easy pump tube replacement, stainless steel rotor, long service life, stepper motor for precise control; suitable for transporting viscous and non-viscous liquids; thick pump tube wall can withstand high pressure;
Built-in 4 working modes for easier use; can be externally connected to sensing devices for automation; can be controlled via mobile phone App.
Typical Applications:
Dispensing instruments: Food automatic packaging machines, reagent automatic dispensers
Chemical reagent delivery: Laboratory liquid transfer
Note: Optional pump heads (the more rotors, the smaller the pulse)
Optional pump tube materials:
| Pump Tube Material | Code |
Diagram |
Characteristics |
Compliance Standards |
|
|
PharMed BPT |
B |
It has excellent resistance to general chemicals, as well as outstanding resistance to acids, alkalis and oxides. The product is opaque and resistant to ultraviolet radiation, which helps protect sensitive liquids. Operating temperature: -60°C~135°C. |
RoHS FDA |
||
Silicone tube |
S |
Low adsorption, good temperature resistance, not easy to age, low extractables, etc. Its chemical corrosion resistance decreases with the increase of temperature. Operating temperature: -60°C~200°C. |
RoHS Complies with food-grade certification (GB4806.11-2016) |
Selection Markings:
| Standards | National Standard |
American Standard |
European Standard |
British Standard |
Australian Standard |
Code |
GB US |
EU |
UK |
AU |
Risk Warning:
1. For the hose to withstand liquid media, it is necessary to check the chemical compatibility or conduct immersion tests. Improper hose selection may cause the hose to be damaged quickly.
2. The working environment temperature of the product is 0°C - 60°C, and the relative humidity is
3. The liquid leakage accident caused by hose rupture depends on the liquid medium and your specific application conditions.
4. Overloading operation may cause premature damage to the product.
