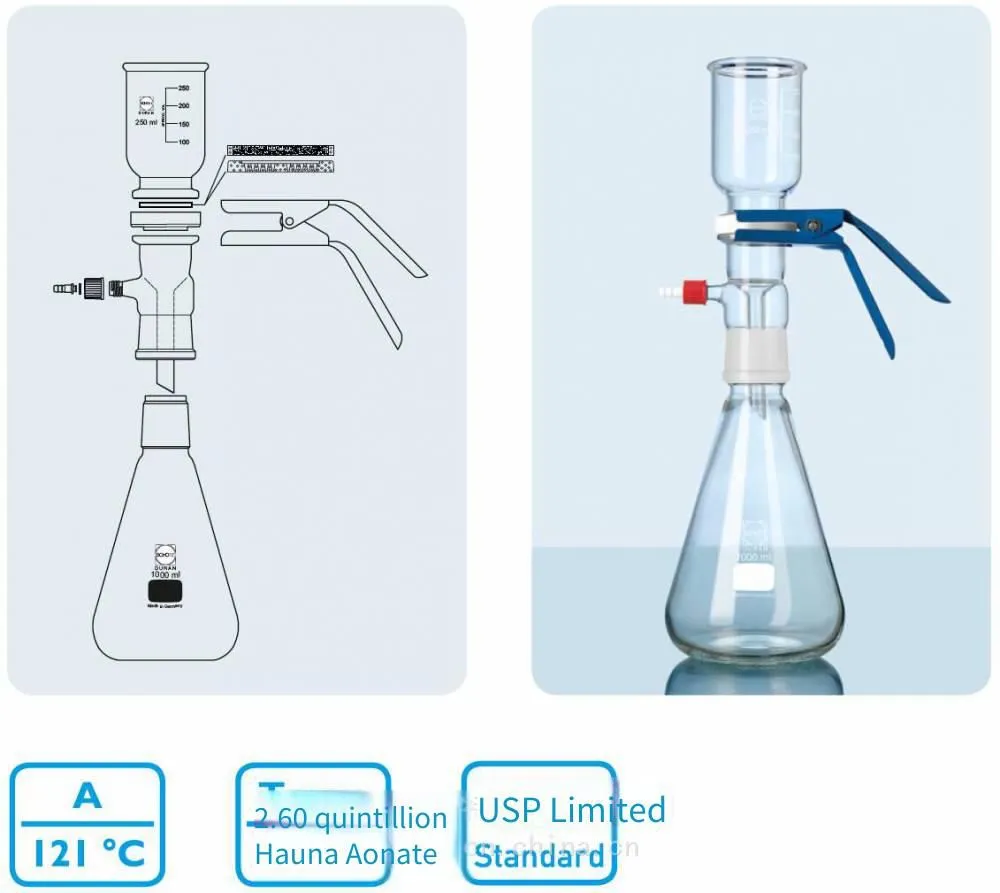

Duran Glass Filter Set, Conical Filter Flask, Suction Filter Flask, Glass Filter Cup, Spray Pump, Formerly from Schott
Manufacturer: DWK Life Science
Brand: Duran
Products: Glass filters, filter flasks, suction filter flasks, filter cups, spray pumps, etc.
Origin: Germany
Duran Group is a world-leading manufacturer of borosilicate glass. Borosilicate glass was invented by Mr. Otto Schott in 1887, and the DURAN® trademark was registered in 1938. Duran Group has a complete industrial chain from glass raw material melting to glass forming and processing, and has production bases in Germany, the UK, and Croatia.
In 2017, Duran Group, Wheaton Industries, and Kimble Chase together formed DWK Life Science. The three major laboratory glassware brands, Duran®, Wheaton®, and Kimble®, provide more perfect products and services for your laboratory. Since then, the logo of Schott Duran® will be replaced by the logo of Duran®, and the product quality will remain unchanged.
Duran® Glass Filtering Apparatus Filtering Apparatus
Made of borosilicate glass 3.3, it is a universal glass filtering device.
The funnel with scale is easy to add liquid and comes with a metal clip.
There are two types of filter elements, glass sieve plate and porous sintered glass sand core filter plate, which can be replaced.
It has a connection piece made of PTFE, which is easy to clean, replaceable, and can be equipped with a 47mm filter membrane.
There is a hose connector with a GL14 threaded cap on the side, which can be connected to a vacuum pump.
All parts can be ordered separately as spare parts.
It has a durable sintered white print.
Application examples: Filtering coarse particles, HPLC solvent filtration, residue analysis.
Product List:

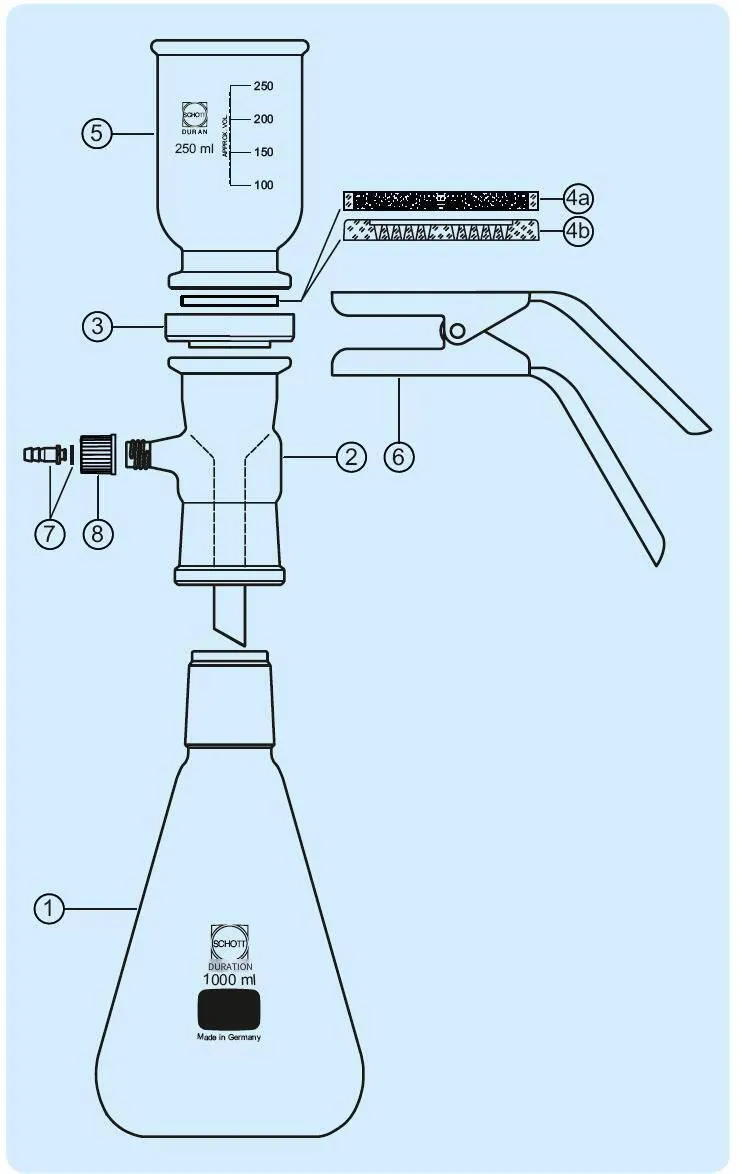

| Product Code | Product Description | Serial Number in the Picture Below | Packaging |
| 257105451 | Glass filter set, 250ml filter cup, 1000ml receiving flask Complete set | 1 set/box | |
| 257106304 | Glass filter set, 500ml filter cup, 2000ml receiving bottle | Complete set | 1 set/box |
| 294002803 | PTFE Connecting piece | 3 | 1 piece/pack |
| 290763609 | Clamp (Aluminum alloy) | 6 | 1 piece/pack |
| 247223602 | Filter cup 250ml, graduated funnel | 5 | 1 piece/box |
| 247224401 | Filter cup 500ml, graduated funnel | 5 | 1 piece/box |
| 243173203 | NS 45/40 Adapter | 2 | 1 piece/pack |
| 242025404 | Receiving bottle NS45/40, 1000 ml | 1 | 1 piece/box |
| 242026306 | Receiving bottle NS45/40, 2000 ml | 1 | 1 piece/box |
| 292550603 | GL 14 Connector (with silicone sealing ring) | 7 | 10 pieces/pack |
| 292270508 | GL 14 Sealing screw cap, red, PBT material | 8 10 pieces/pack | |
| 252050208 | DURAN® Sand Core Filter Disc, diameter 50mm, with glass edge, porosity 2 | 4a | 1 piece/pack |
| 213403108 | DURAN® Glass Mesh Filter Disc, diameter 48mm | 4b | 10 pieces/pack |
Duran® PTFE Threaded Filter Receiver Bottle Adapter PTFE Adapter
Made of PTFE material, with EPDM material gasket, and GL45 thread at the lower end.
It can be loaded under the NS45/40 adapter in the above picture and is threadedly connected to the Duran® GL45 laboratory glass bottle.
It is recommended to use the DURAN® pressure plus+ bottle for connection.
Product List:
| Product Number | Product Description | Size | Packaging |
| 294001207 | PTFE Threaded Receiver Bottle Adapter | d=53mm, d1=40mm, h=67mm |
1 piece/pack |
Duran® Plastic Hose Connection
Made of polypropylene (PP), with a red silicone gasket.
It can be connected to the GL14 red PBT opening cap (Product Number 292270508) and then connected to a suction flask or other containers .
Product List:
| Product Number | Product Description | Size | Packaging |
| 292550603 | Plastic Hose Connection, GL14 | d=8.6mm, d1=5mm |
10 pieces/pack |
Duran® Filter Apparatus Witt Type
Made of borosilicate glass 3.3, the lower end can be connected to a vacuum pump, and the interface pipe diameter is 9mm.
Comes with a KECKTM flat flange kit, which can also be ordered separately.
The upper end has a 29/32 standard ground joint.
The receiving bottle has a large volume, suitable for filtering larger volumes.
Product list:
| Item number | Product description | Ground joint size |
Height |
Remarks | Packaging |
| 247304603 | Witt type filtration device, DN100 | 29/32 |
h=160mm, h1=76mm |
Includes flat flange kit 243984605 | 1 piece/box |
| 247305702 | Witt type filtration device, DN150 | 29/32 |
h=200mm, h1=102mm |
Includes flat flange kit 243985704 | 1 piece/box |
| 247306107 | Witt type filtration device, DN200 | 29/32 |
h=300mm, h1=126mm |
Includes flat flange kit 243986109 | 1 piece/box |
Duran® Witt type filtration device Filter Apparatus Witt Type
Made of borosilicate glass 3.3, the lower end can be connected to a vacuum pump with an interface pipe diameter of 9mm.
Comes with a KECK TM flat flange kit, which can also be ordered separately.
The upper end has a 45/40 standard ground joint.
The receiving bottle has a large volume, suitable for filtering larger volumes.
Product list:
| Item number | Product description | Ground joint size |
Height |
Remarks | Packaging |
| 247314604 | Witt type filtration device, DN100 | 45/40 |
h=160mm, h1=84mm |
Includes flat flange kit 244504608 | 1 piece/box |
| 247315703 | Witt type filtering device, DN150 | 45/40 |
h=200mm, h1=112mm |
Includes flat flange kit 244505707 | 1 piece/box |
