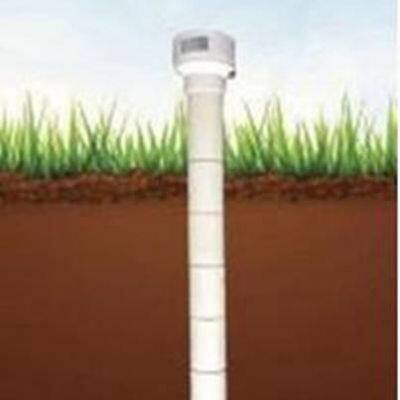

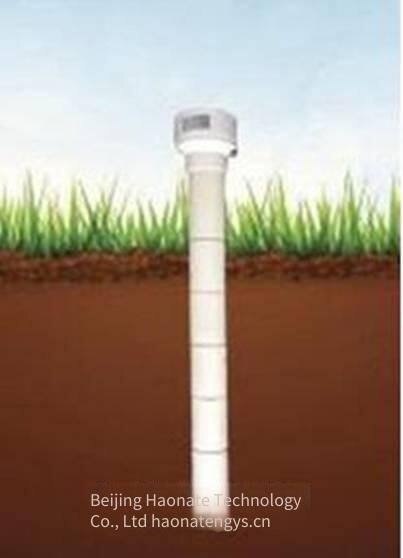

HNT-GS Series Soil Profile Temperature and Humidity Measuring Instrument (Soil Moisture Monitor)
The soil profile temperature and humidity measuring instrument is also known as the soil moisture monitor. The soil profile temperature and humidity recorder adopts the internationally leading (FDR) frequency domain reflection measurement principle, combined with advanced low-power current reflection digital processing technology. The obtained data is accurate and reliable. It is a fast soil moisture tester that is convenient to use and carry and has powerful functions. Among them, the sensor and the recorder are designed in an integrated manner. With a special soil auger, it can measure the temperature and humidity parameters at any point on the soil profile at any time. It is very suitable for long-term field monitoring. It adopts an integrated design and is made of PVC composite materials throughout. The operating temperature range can reach: -30°C～70°C.
Technical parameters:
Temperature range: -30°C～70°C. Humidity range: 0～100‰
Measurement accuracy: ±0.4°C. Measurement accuracy: ±3%
Temperature resolution: 0.05°C. Humidity resolution: 0.5%
Temperature type: PT1000 platinum resistor. Humidity parameter: relative water content
Average power consumption:
Functions and features:
Low power consumption: Average power consumption: Average operating current
Battery powered: Storage interval 60 seconds).
Integrated: Full - range data tracking, long recording time. It integrates data acquisition, processing, storage, multi - layer moisture (and temperature) sensors, and communication terminals. The data will not be lost after power failure. The recording interval can be set arbitrarily from 1 minute to 100 days (it is recommended to set it above minutes)
Memory and storage functions: It can store and retrieve detection data at any time, which speeds up the information processing.
Supports Bluetooth: Data reading, exporting, and device startup via mobile APP.
Accuracy and Stability:
Logical judgment and statistical processing functions. It can analyze, statistics, and correct the detection data, and can also compensate for errors such as linearity, non - linearity, temperature, noise, response time, cross - induction, and slow drift, improving the measurement accuracy. Self - diagnosis and self - calibration functions. It can perform a power - on self - test when the power is turned on, conduct self - tests during operation, and perform real - time self - diagnostic tests to determine which component has a fault, improving the operational reliability. Representative data: It measures a larger soil volume. The sensed soil range is a cylinder with a diameter of 70 cm and a height of 7 cm, which is more than ten times that of ordinary sensors.
