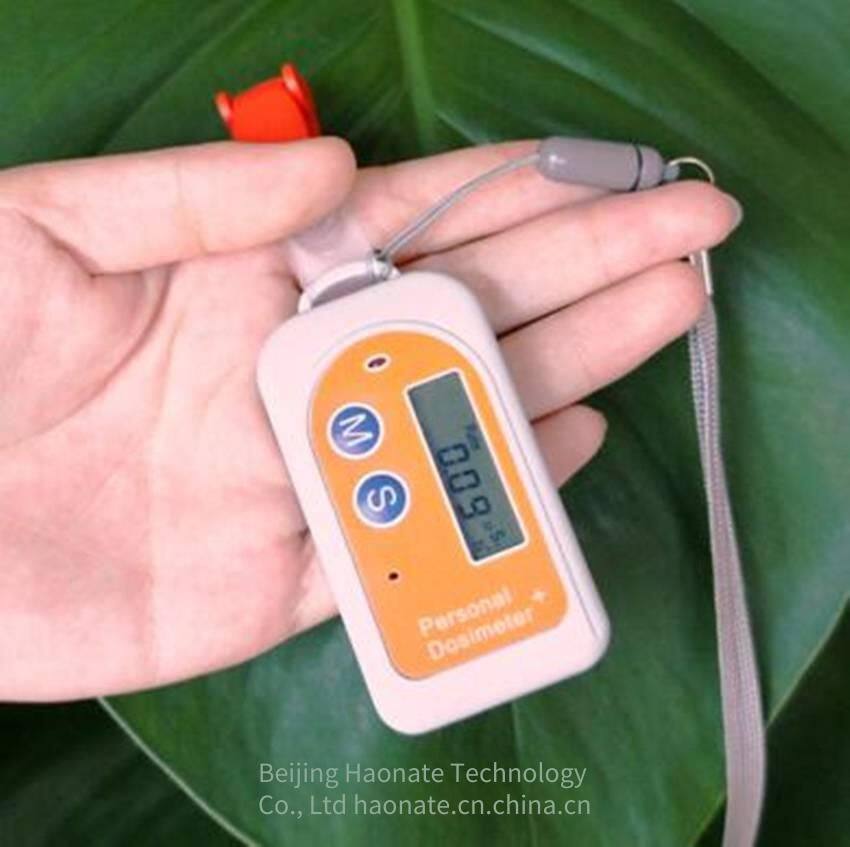

Honort mini-2 Nuclear Radiation Personal Dosimeter
1. Functions
This model of dosimeter mainly monitors the personal cumulative dose equivalent and dose equivalent rate caused by X and γ radiation. When the cumulative dose or dose equivalent rate exceeds the alarm value, it will give real-time audible and visual alarms. This dosimeter is controlled by a low-power single-chip microcomputer and has functions such as real-time display of measured values, audible and visual alarms when exceeding the threshold, EEPROM data storage, setting of alarm threshold parameters, detector fault alarm, and battery undervoltage detection. The measurement data can be stored and will not be lost when the power is off.
2. Main Technical Indicators
Detector |
Semiconductor Detector |
Measurement range |
Cumulative dose Hp(10): 0.0mSv~10Sv Dose rate H’p(10): 0.1mSv/h~500mSv/h |
Alarm threshold setting |
The cumulative dose alarm is continuously adjustable between 1mSv~10Sv; The dose rate alarm is continuously adjustable between 1mSv/h~500mSv/h |
Alarm type |
In the form of sound and light or LCD indication, alarm for cumulative dose and dose rate exceeding the threshold, battery undervoltage, overtime work or detector failure. The sound and light prompt for cumulative dose increment can be set |
LCD measurement value display |
Cumulative dose: 0.00mSv~9999mSv Dose rate: 0.05mSv/h~999.9mSv/h Working time: 00:00~99:59 (99 hours and 59 minutes) |
Energy response |
|
Angular response |
For Am-241 (60keV), For Cs-137 (662keV), |
Temperature characteristics |
|
Humidity characteristics |
|
Relative intrinsic error |
|
Overload characteristics |
>10Sv/h |
Power supply |
3.6V rechargeable lithium battery. The continuous working time after a full charge is >100h, and it can still work for more than 8 hours after the battery undervoltage indication appears. |
Data storage and communication |
The measurement data is saved in the dosimeter and will not be lost when the power is off. It can also be transmitted to the computer through the USB port for processing and storage. |
Dimensions |
52㎜×40㎜×14㎜ |
Weight |
Approximately 35g |
Honort mini-2 Nuclear Radiation Personal Dosimeter
