Honort S5/M9 Doppler Velocity and Flow Profile Measuring Instrument
I. Main Features :
1. Multiple frequency transducer configuration, which can automatically convert cell size, operating frequency, sampling frequency and operating mode to accurately complete continuous measurements from shallow to deep water with the optimized system configuration and the best resolution.
The measurement range of flow velocity is ±20 m/s, the accuracy is up to ±0.25%, the minimum measurement distance is 0.06 m, and the maximum water depth measurement range can reach 15 m.
2. Vertical ultrasonic beam, which directly and accurately measures water depth and riverbed cross-section.
3. The built-in microprocessor directly calculates the flow and saves the data. There is no need to rely on external programs, and the data will not be lost due to communication interruption.
4. Automatically select the sampling mode of pulse correlation technology to ensure the highest resolution measurement performance during shallow water measurement.
5. The brand - new RiverSurveyor Live software is used to download, view and analyze data files. It can run not only on computers but also on mobile phones.
6. By using multiple advanced communication technologies such as Bluetooth, spread - spectrum radio stations, and mobile phones, the system performance is greatly improved and its applications are expanded.
Honort S5/M9 Doppler Velocity and Discharge Profiler
II. Technical Parameters:
1. Flow velocity:
1) Measurement range - distance: 0.06m to 5m; Measurement range - flow velocity: ±20m/s
2) Resolution: 0.001m/s
3) Accuracy: ±0.25% of the measured flow velocity; ±0.002m/s
4) Number of cells: 128; Cell size: 0.02m to 0.5m
5) Transducer configuration: 5 transducers: 4 symmetric beams with an inclination of 25° at 3.0MHz and 1 vertical beam at 1.0MHz
2. Depth:
1) Measurement range: 0.2m to 15m;
2) Resolution: 0.001m;
3) Accuracy: 1%
3. Discharge calculation: Completed internally
4. Temperature sensor:
1) Resolution: 0.01℃;
2) Accuracy: ±0.1℃
5. Compass/tilt sensor:
1) Measurement range: 360°;
2) Heading accuracy: ±2°;
3) Roll/Pitch accuracy: ±1°
6. Host memory (non-volatile): 8GB
7. Power supply: Operating voltage: 12-18V DC; Capacity/Continuous operation: 8 hours (4 hours @RTKGPS)
8. Communication:
1) RS232 communication;
2) RS232 serial port GPS input;
3) Maximum data output frequency: 2Hz
4) Internal sampling frequency: Up to 70Hz
Wireless communication options/GPS:
1) Spread spectrum radio: 2000 meters
2) GGA/VTG GPS accuracy: Sub-meter level
9. Environment:
Operating temperature: -5°C to 45°C; Storage temperature: -10°C to 70°C; Physical parameters: Dimensions: 6.1 cm (diameter of the submerged part) 12.7 cm (lower diameter); 25.4 cm (height)
10. Weight: 1.1 kg (in air); -0.3 kg (in water)
III. Configuration:
1) One Doppler velocity and flow profile measuring instrument host
2) One set of power supply
3) One 10-meter power communication cable
4) One data processing software
5) One set of DGPS unit

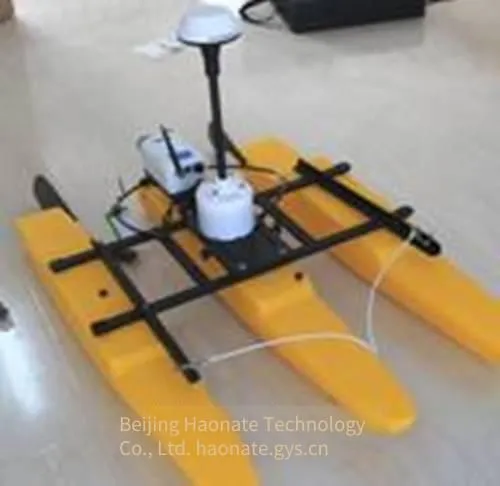

6) One original trimaran
Honort S5/M9 Doppler velocity and flow profile measuring instrument
