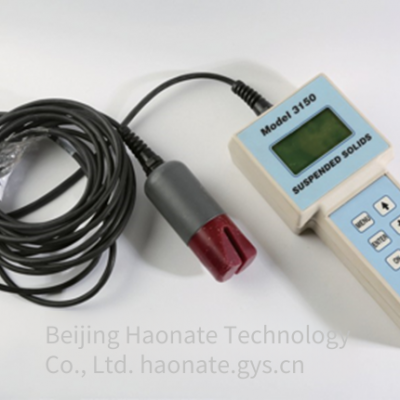

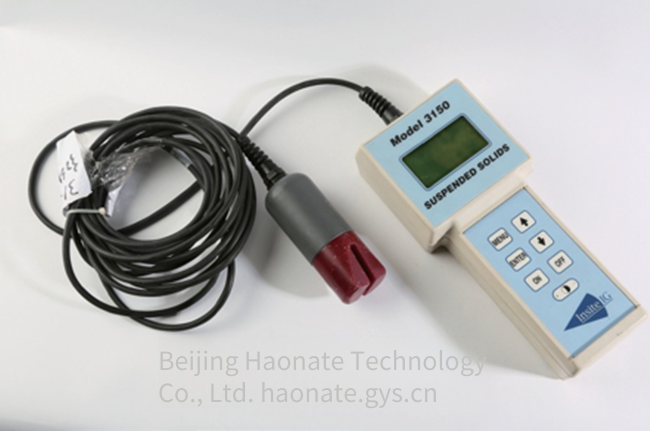

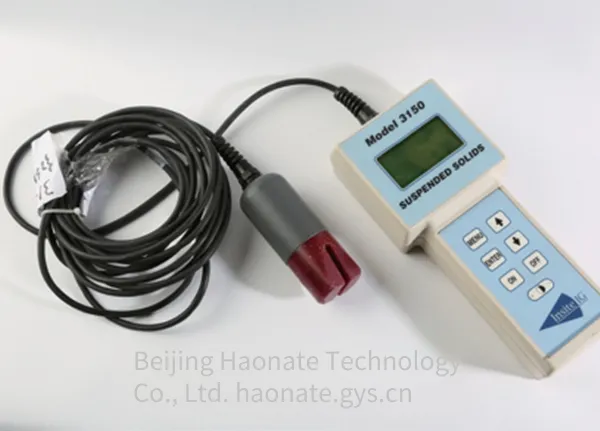

Honort Model3150 Infrared Sand Detector
Instrument Introduction:
The portable infrared sand detector is an instrument that uses infrared sensing technology to detect the sand content in liquids. The instrument consists of a sensor and a main unit. The main unit features a large - screen data display. The user - operation interface is simple and easy to use, and the data is clearly shown. There is no need to conduct analysis experiments in the laboratory every day. Users can carry the instrument directly to the site for measurement and data reading, which reduces the work intensity for users and provides reliable on - site data. The portable infrared sand detector can also measure the sludge layer in the sediment.
Functional Features:
The infrared sand detector has a wide range of applications. It is suitable for water conservancy and hydrological stations, flood rapids, scientific research, mudslides, groundwater in factory and mining areas, environmental protection detection stations, experimental research institutes, water conservancy departments of schools, fresh - water and sea - water research institutes, geological exploration institutes, water affairs bureaus and other professional units engaged in the research of sand content in water conservancy and hydrology. The infrared sand detector features accurate measurement, easy operation, convenient portability and simple maintenance. It is currently an ideal sand - measuring instrument.
Technical parameters:
Measuring range: 0-30000mg/L
Measuring accuracy: 3% of the measured value or 20mg/L
Sensitivity: 1mg/L below 1000mg/L,
10mg/L between 1000-9999mg/L,
100mg/L above 10000mg/L
Repeatability: +/-0.5%
Drift: Less than 1% per year
Temperature: 0℃-65℃
Probe inspection: Automatic
Output port: RS232
Data storage: Available
Screen display: Adjustable luminosity, large backlit screen
Sensor cable: 20 feet (6.1 meters)
Ambient temperature: -20℃-70℃
Maximum pressure: 6.89 standard atmospheres
Weight: 1.8kg
