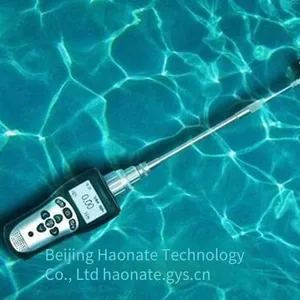

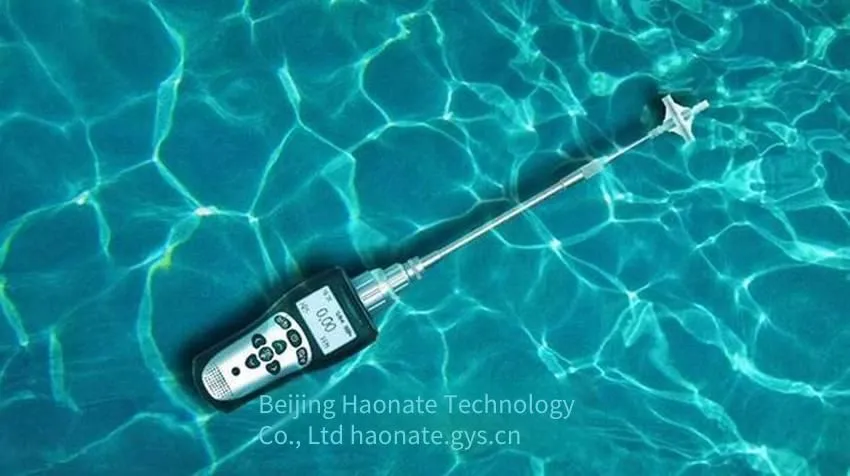

Honort C2H6O-LX Portable Pump-suction Alcohol Detector
The C2H6O-LX Portable Single Pump-suction Alcohol Detector is mainly used for quickly and accurately detecting gas leakage or gas concentration exceeding the standard for alarm. The main detection principles for gas detection include: electrochemistry, infrared, catalytic combustion, thermal conductivity, PID photoionization, etc. The C2H6O-LX is widely used in fire protection, emergency rescue, confined spaces, petroleum, chemical, metallurgy, refining, gas, warehousing, medicine, environmental protection, air treatment and other occasions.
Functional features of the alcohol detector:
* Built-in pump-suction measurement, can be switched to diffusion type, diffusion + pump-suction detection mode.
* Pump blockage alarm
* LED lighting (optional)
* Free switching of units, optional units: umol/mol, ppm, pphm, ppb, mg/m3, ug/m3, %Vol, %LEL
* 8-button operation, quick one-key calibration function
* Data storage, storage capacity of not less than 100,000 records
* Communication interface: TYPE-C, optional: Bluetooth
* Fall alarm
* Data recovery function, partial or full recovery of factory data
* Display of maximum value, minimum value, weighted average value
* Setting of multiple alarm modes and alarm types
Alarm modes: audible and visual alarm, vibration alarm, voice alarm
Alarm types: concentration alarm, under-voltage alarm, fault alarm, pump blockage alarm
Alarm modes: Low alarm, high alarm, interval alarm, TWA/STEL alarm
*Mistake operation recognition function, automatic recognition and prevention of misoperation in concentration calibration
*Automatic zero tracking to avoid zero drift
*Multi-level calibration of target points
*Intrinsic safety circuit design, explosion-proof, shockproof, anti-static, and radiation-resistant
*Protection class IP68, rain and immersion proof, dustproof, and corrosion-resistant
*Implementation standards:
GBT 3836.1—2021 "Electrical apparatus for explosive gas atmospheres - General requirements"
GBT 3836.4—2021 "Electrical apparatus for explosive gas atmospheres - Intrinsically safe type 'i'"
GB T50493-2019 "Design standard for detection and alarm of combustible and toxic gases in petrochemical industry"
GB 15322.3-2019 "Combustible gas detectors - Part 3: Portable combustible gas detectors for industrial and commercial use"
Technical parameters of alcohol detector:
Detection factor |
Alcohol C2H6O |
||
Detection range |
0-100PPM |
||
Resolution |
0.01PPM |
||
Unit display |
Selectable units: umol/mol, ppm, pphm, ppb, mg/m3, ug/m3, %Vol, %LEL |
||
Detection principle |
Electrochemical principle |
||
Sensor lifespan |
2-3 years |
||
Detection method |
Built-in pump suction type, can be switched to diffusion type, diffusion + pump suction type detection methods |
||
Display method |
LCD |
||
Display content |
Real-time concentration, unit, gas name, alarm status, time, storage status, communication status, battery level, charging status, etc. |
||
Detection accuracy |
≤±3% FS |
Uncertainty |
≤±2% |
Linearity |
≤±2% |
Repeatability |
≤±2% |
Response time |
T90≤20 seconds (general) |
Recovery time |
≤30 seconds (general) |
Operating power supply |
DC3.7V*2 |
||
Battery capacity |
2500mAH rechargeable polymer battery with overcharge, over-discharge, overvoltage, short-circuit and overheat protection functions |
||
Usage environment |
Temperature: -20℃~+60℃, customizable to -40℃~+70℃; Relative humidity: 10-95%RH |
||
Communication interface |
Standard Type-C (fully charged in 2 hours) |
||
Data storage |
Standard capacity is not less than 100,000 entries; Supports on-board viewing, deletion or data export, and the storage time interval can be set arbitrarily |
||
Interface language |
Chinese, English and other languages can be customized |
||
Explosion-proof type |
Intrinsically safe type C2H6OiaⅡCT4Ga |
||
Protection level |
IP68 |
||
Shell material |
High-strength, corrosion-resistant and fireproof polycarbonate with a rubber protective cover, shockproof, wear-resistant and anti-static, effectively resistant to drops of ≥5 meters |
||
External dimensions |
Maximum size 165×64×61mm (L×W×H) including the thickness of the back clip |
Weight |
Approximately 280g |
Standard accessories |
Pump suction nozzle, instruction manual, certificate of conformity, USB charger (including data cable), instrument packaging box, |
||
Optional accessories |
1. 0.2-meter swan neck sampling probe; 2. Activated carbon filter; 3. 0.4-meter stainless steel sampling handle (including 1-meter hose); 4. 0.9-meter retractable sampling handle (including 1-meter hose); 5. External Bluetooth printer. |
