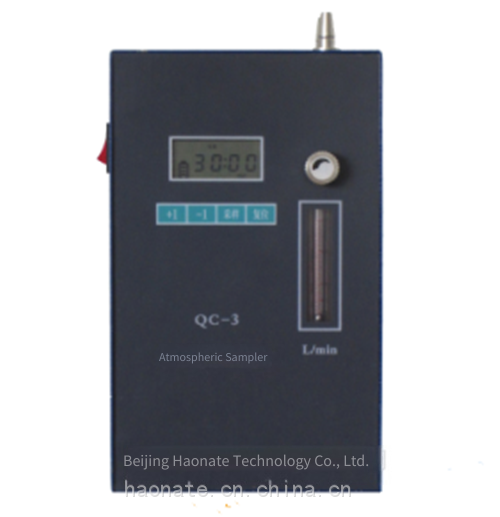

Honort QC-3 Single-channel Air Sampler
Instrument Introduction:
The QC-3 single-channel air sampler is a conventional instrument with a liquid crystal digital display for time. It is used to collect gas samples in the atmospheric environment or the working environment (mainly applied in large-flow sampling). It consists of an air pump, a flow meter, a time control circuit, and a power supply. The air pump is a diaphragm pump, which features high suction pressure, strong load capacity, stable flow, and low noise. It can be widely used in sectors such as metallurgy, mining, chemical engineering, construction, foundry, power, environmental monitoring, and health and epidemic prevention. This sampler has the advantages of electronic timing, compact structure, small size, light weight, easy portability, simple operation, durability, and stable and reliable performance. It is an ideal product among the large-flow gas samplers in China at present.
Technical Parameters:
a. Load Capacity: Flow ≥ 2L/min under a load of 4000Pa
b. Flow Range: 0.2 - 3L/min
c. Flow Stability: ≤ 5%
d. Flow Error: ≤ 5%
e. Timing Range: 1 - 99min
f. Timing Error: g. Working Temperature: -10 - 45℃
h. Continuous Working Time: ≥ 5 hours when using batteries
i. Main Unit Dimensions: 115×190×60mm
j. Weight (including battery): 700g
Honort QC-3 Single Gas Path Air Sampler
