hikasagiken J-8125 Floating Joint, Zhengzhou Pingshan Trading Co., Ltd.
hikasagiken J-8125 Floating Joint, Zhengzhou Pingshan Trading Co., Ltd.
hikasagiken J-8125 Floating Joint, Zhengzhou Pingshan Trading Co., Ltd.

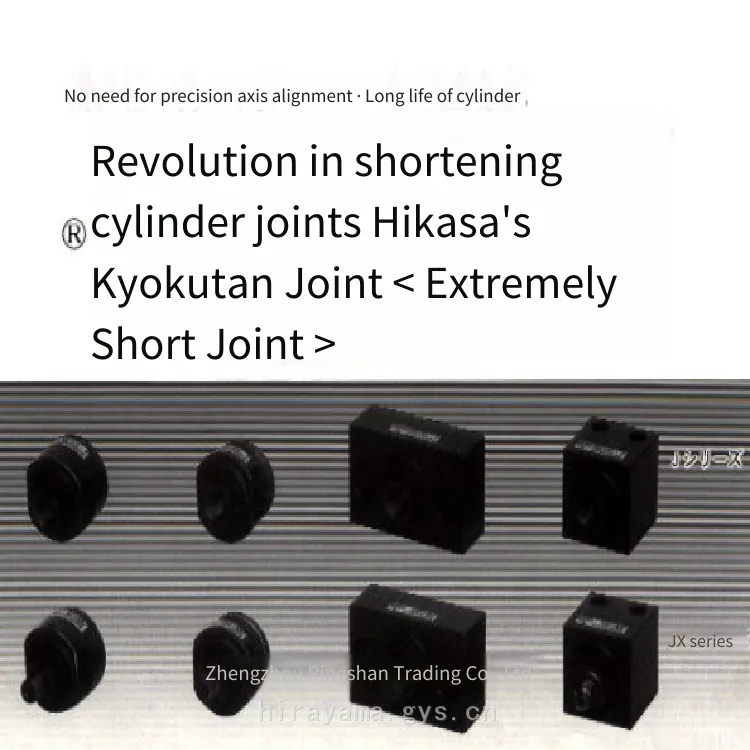

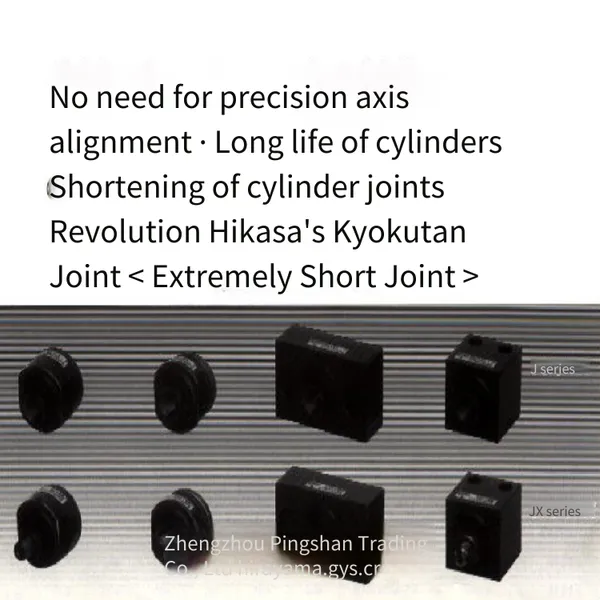

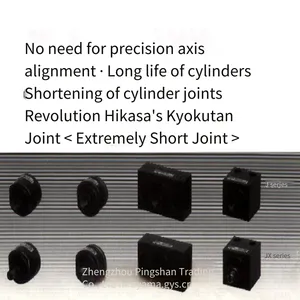

No need for precise axis alignment, extends cylinder service life.
Short joint
The thread depth has flexibility! It can be further shortened in the installed state.
Hang it with just one nut, and it hardly gets stuck at the bottom; even if it gets stuck, you can loosen it for use without rotating it 1 - 2 turns.
Easy to install and adjust the positioning!
No need to operate the side nuts.
Compatible with mainstream cylinders of major brands! (Also compatible with thin-threaded cylinders)

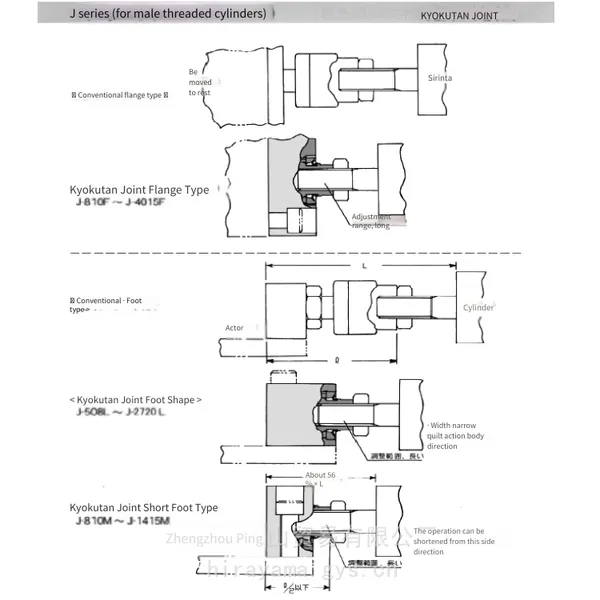

Multiple installation methods
Basic type, short type, flange type, foot type, short foot type
Comes with a dust cover!
Low-cost design!

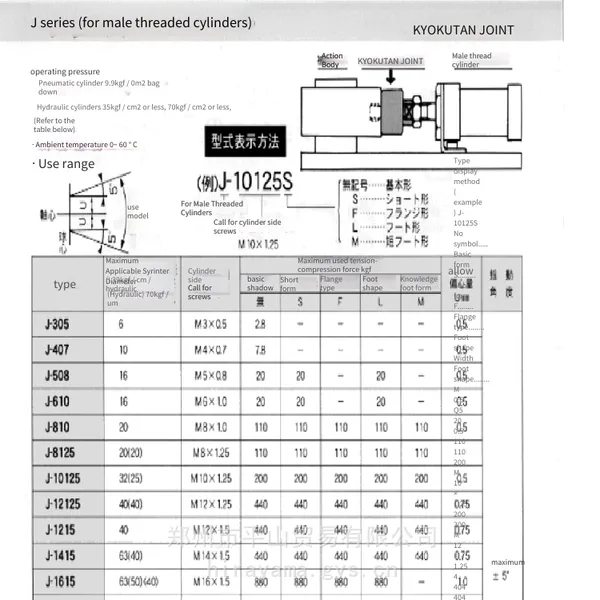

J series For inner diameter cylinders
Air pressure cylinder: below 9.9kgf/cm2
Hydraulic cylinder: below 35kgf/cm2, below 70kgf/cm2
Ambient temperature 0 - 60℃
Precautions for use
· Please consult whether it can be used for non-pneumatic cylinders.
· Do not rotate for use.
· Do not disassemble and reuse.
Lubricant is already filled.
Please screw the cylinder-side screw into the deep part of the bolt wrench connection area. (The deeper, the better the safety and shortening effect)
Even if it touches the nut, there is no need to rotate it 1 - 2 turns.
· Please make sure there are no foreign objects in the screw hole before installation.
The work will be easier if it is first installed on the moving part. (The cylinder can be installed later (especially for the flange type)) Please use tools such as a thin-handled wrench or an electric wrench for tightening.

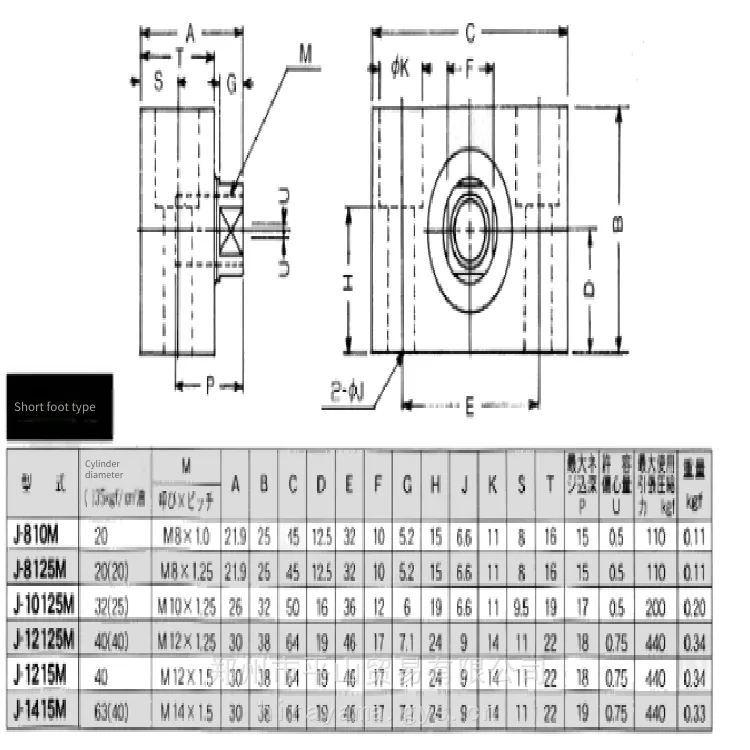

J-8125M Size M8X1.25 Weight 0.11kg Allowable eccentricity 0.5U
