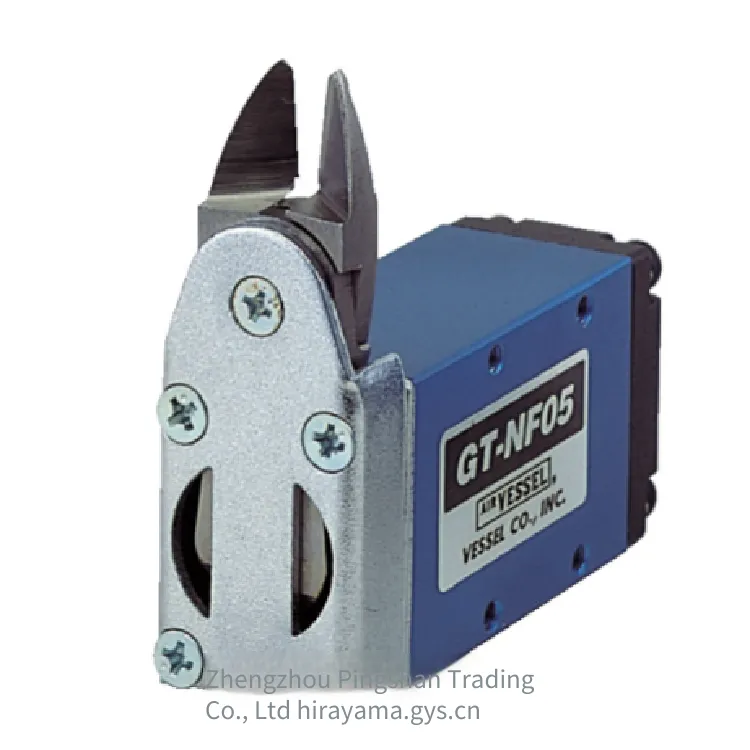

VESSEL Vivi Fixed Pneumatic Shears GT-NF05 High-precision Gate Cutting
VESSEL Vivi Fixed Pneumatic Shears GT-NF05 High-precision Gate Cutting
VESSEL Vivi Fixed Pneumatic Shears GT-NF05 High-precision Gate Cutting
Considering the small and lightweight clamps installed inside the device, high-density installation can be reliably carried out.
It is most suitable for installation in places with limited space, such as gate cutting devices and automatic winding machines.
Applications
For cutting ABS resin, etc.
Notes
The blades are sold separately. Please note that there are right-hand and left-hand blades.
Product Specifications
Specifications, Specifications
Cutting capacity (mm) for iron wire: 1.0
Cutting capacity (mm) for copper wire: 1.6
Cutting capacity (mm) for soft resin: 3.0
Cutting capacity (mm) for hard resin: 2.0
Pressing force (N): 350
Air consumption (㎤/stroke): 43
Operating air pressure (MPa) overall: 0.4 - 0.5
Width (mm): 23
Depth (mm): 59.9
Height (mm): 39.5
Replacement blades for iron and copper: NY05BJ, NY05RBJ
Replacement blades for resin: NY05AJ, NY05AJL, NY05AJB, NY05AJT, NY05AH, NY05RAJ, NY05RAH
Hose installation port: Inner diameter of hose port φ2.5mm × φ4mm
Mounting hole: M3
Operating air pressure (MPa): 0.4 - 0.5
Material
Die-cast steel
Mass/Unit of mass
101ｇ
