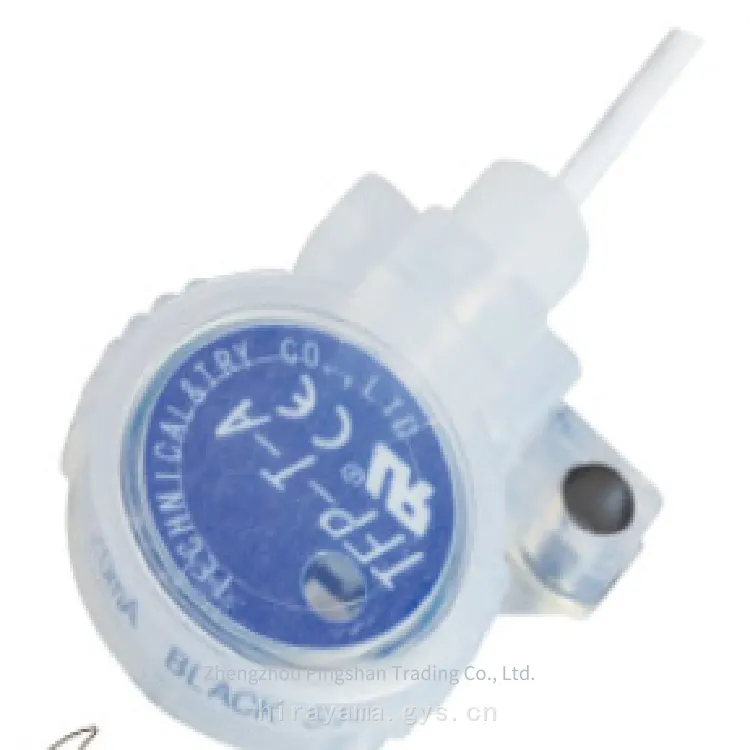

Japan TECH-TRY Leak Detector Sensor TFP-T-A-2M-R(OP-1) Zhengzhou Pingshan Trading Co., Ltd.
Japan TECH-TRY Leak Detector Sensor TFP-T-A-2M-R(OP-1) Zhengzhou Pingshan Trading Co., Ltd.
Japan TECH-TRY Leak Detector Sensor TFP-T-A-2M-R(OP-1) Zhengzhou Pingshan Trading Co., Ltd.
Thin (10mm thick) with the cable extending horizontally, can be installed in a narrow space
Equipped with an interlock function (bracket detachment detection function)
Built-in amplifier (50mA), PNP output specification available!

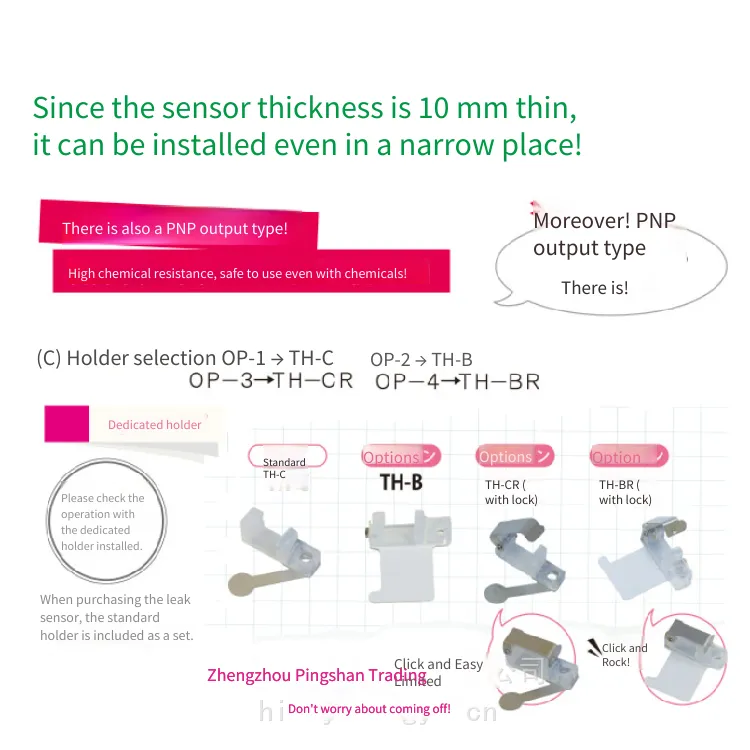

Four types of fixing brackets and a wide range of options are available!
Detection method: Infrared reflected light reflector

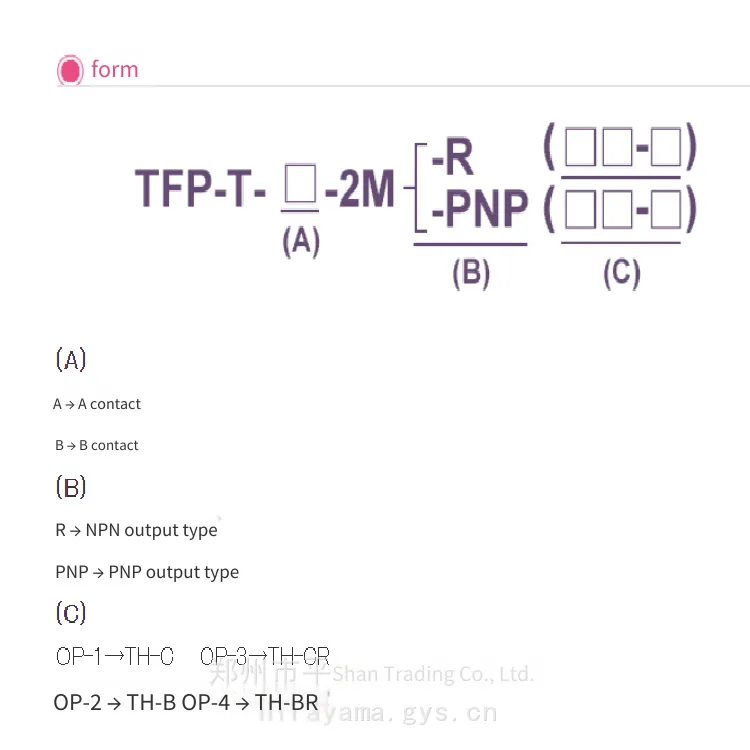

Detection output: Transistor output, Type A: a connection action, Type B: b contact action, 50mA MAX
Detection speed: 0.5 - 1 second (pure water)
Input voltage: 12V - 24V
Power consumption: ≤25mA
Indication: Green LED when normal, red LED when detecting
Ambient temperature: -10 - 60℃
Weight: Approximately 20g (excluding cable)
Material: PFA
Cable: φ2.2 AWG28 (outer diameter 0.7±0.05), 3-core (material FEP)
Cable color: Brown: Power input
Black: Output
Blue: Power signal common GND

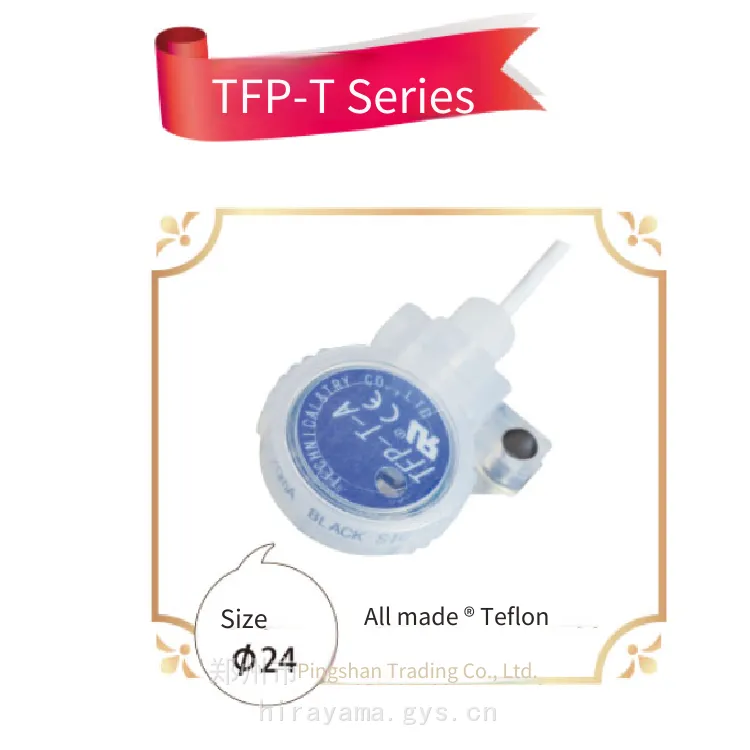

Shape: Sensor diameter φ24, length approximately 40mm, height 10.2mm
