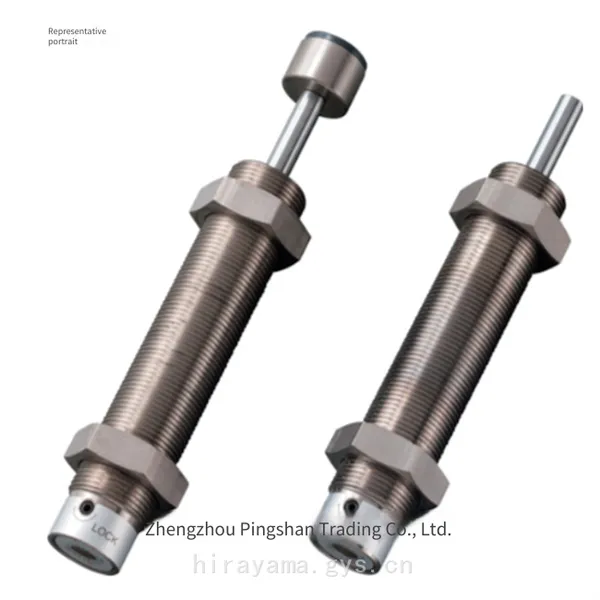

FUJILATEX Hydraulic Buffer FWM-2725FBD-C Adjustable Shock Absorber Zhengzhou Pingshan Trading Co., Ltd.
FUJILATEX Hydraulic Buffer FWM-2725FBD-C Adjustable Shock Absorber Zhengzhou Pingshan Trading Co., Ltd.
FUJILATEX Hydraulic Buffer FWM-2725FBD-C Adjustable Shock Absorber Zhengzhou Pingshan Trading Co., Ltd.
The adjustable shock absorber can be used in a wide range of conditions.
The absorption characteristics can be adjusted.
The orifice area can be finely adjusted.
Applications
Shock absorption in the handling and assembly processes of precision machinery, production lines, parts processing, electronic machines, etc.
Precautions
When using, please carefully read the instruction manual attached to the product.
It cannot be used in an oily environment or in a vacuum.
Please do not apply an eccentric load to the soft absorber.
Product Specifications
Specifications, Specifications
Adjustable Shock Absorber
Orifice Type: Multi-hole Irregular Type
Stroke (mm): 25
Collision Speed (m/s): 0.3～2.0
Thread Size: M27×1.5
Type: Adjustable Formula
Absorbed Energy (J): 79.3
With Cover
Thread Pitch: M27×1.5
Oil Used: Silicone Oil
Operating Temperature Range ℃: -5～70
Piston Rod Return Force N(kgf): ≤27.3(2.78)
Orifice Type: Multi-hole Irregular Type
Absorbed Energy (kgf・m): 8.1
Resistance Value N(kgf): 6370(650)
Equivalent Mass kg(kgf): 450(450)
Available Cycles per Minute cycle/min: 60
Absorbed Energy per Minute J/min(kgfm/min): 539(55)
Material
Steel
Mass/Mass Unit
460ｇ
Terms of Use
-5℃～70℃
