Japanese TECH-TRY Liquid Leak Detector Sensor KP-7-C Sold by Zhengzhou Pingshan Trading Co., Ltd.
Japanese TECH-TRY Liquid Leak Detector Sensor KP-7-C Sold by Zhengzhou Pingshan Trading Co., Ltd.
Japanese TECH-TRY Liquid Leak Detector Sensor KP-7-C Sold by Zhengzhou Pingshan Trading Co., Ltd.
Body Material: P.P (Polypropylene), Cable Material: PVC (Vinyl Chloride)

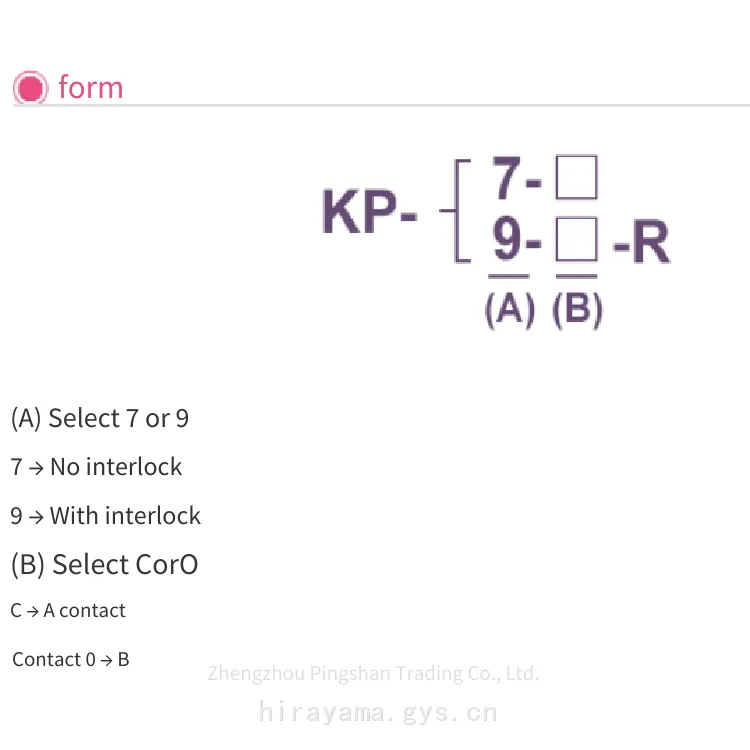

There are products corresponding to explosion-proof specifications! Interlock function (Detection function for detachment from the fixed bracket) is optional!
You can choose the sensor for water detection / Interlock function (Bracket falling-off detection function)
Detection Method: Infrared reflected light reflector
Detection Output: Transistor output C type A connection action, O type B contact action, 50mA MAX
Detection Speed: 0.5 - 1 second (Pure water)
Input Voltage: DC12V - 24V
Power Consumption: ≤ 25mA
Indication: Green LED when normal, Red LED when detecting
Ambient Temperature: -10 - 60℃
Weight: Approximately 20g (Excluding cable)
Material: P.P (Polypropylene)
Cable: 2-core shielded cable (Sheath material PVC)
Cable Color: Brown: Power input
White: Output
Shield: Common GND for power supply signal

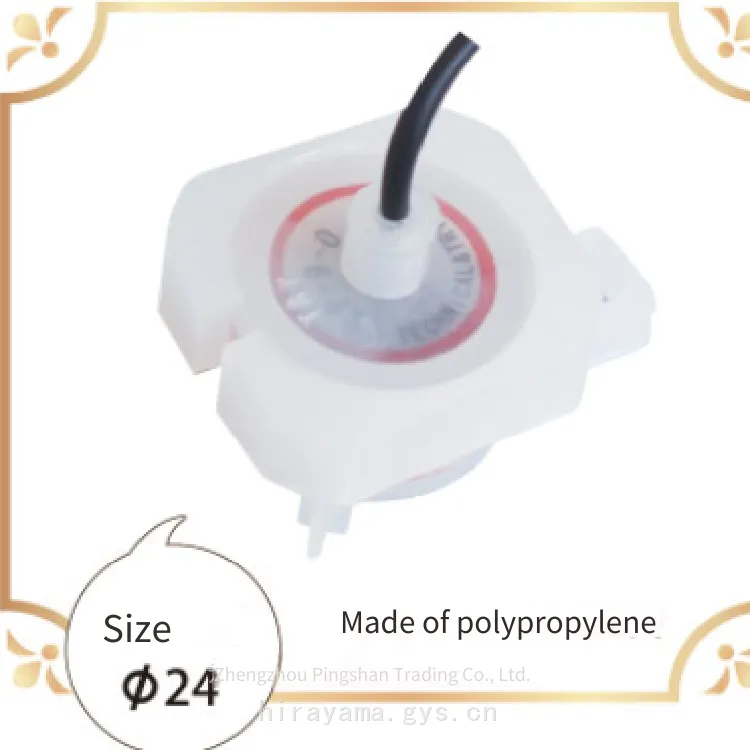

Shape: Sensor diameter φ24, Height approximately 25mm
