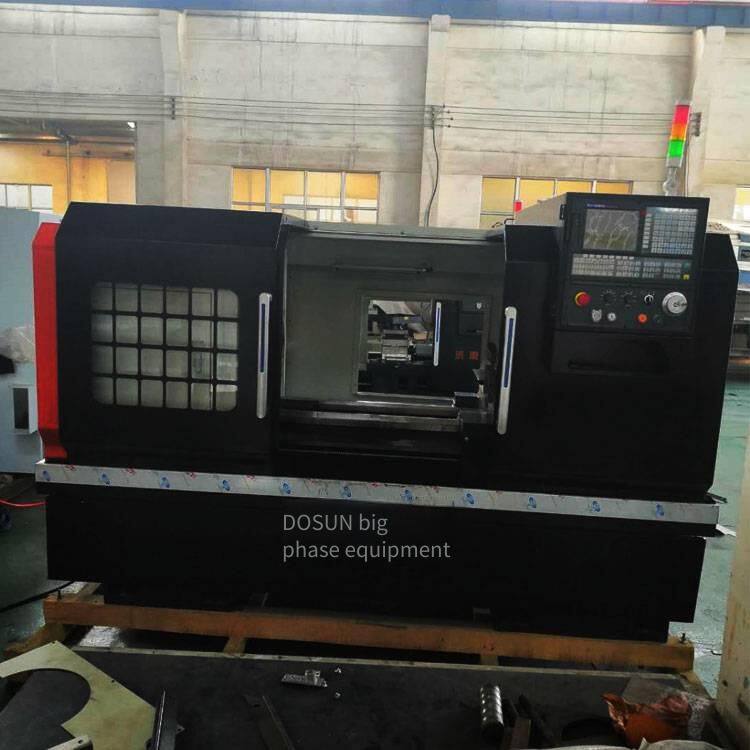

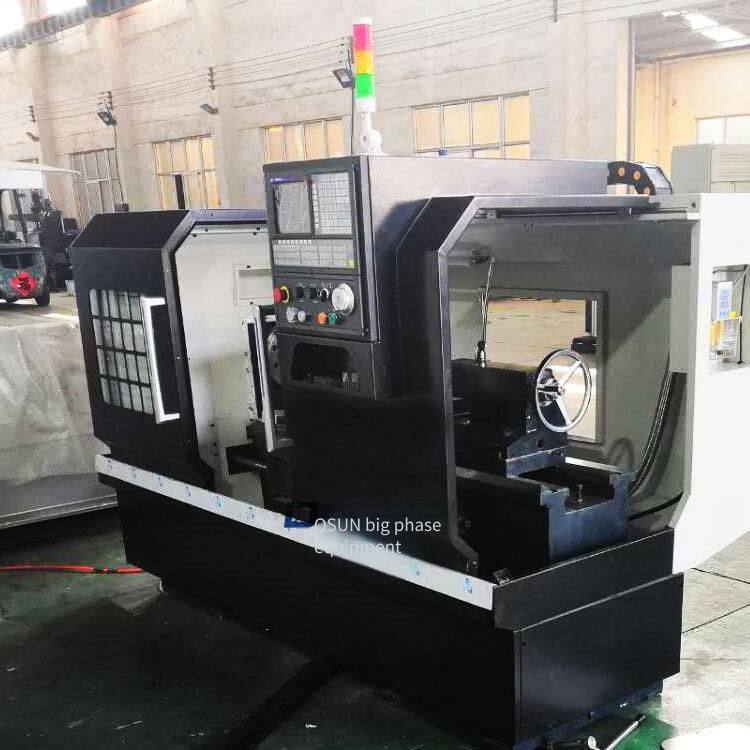

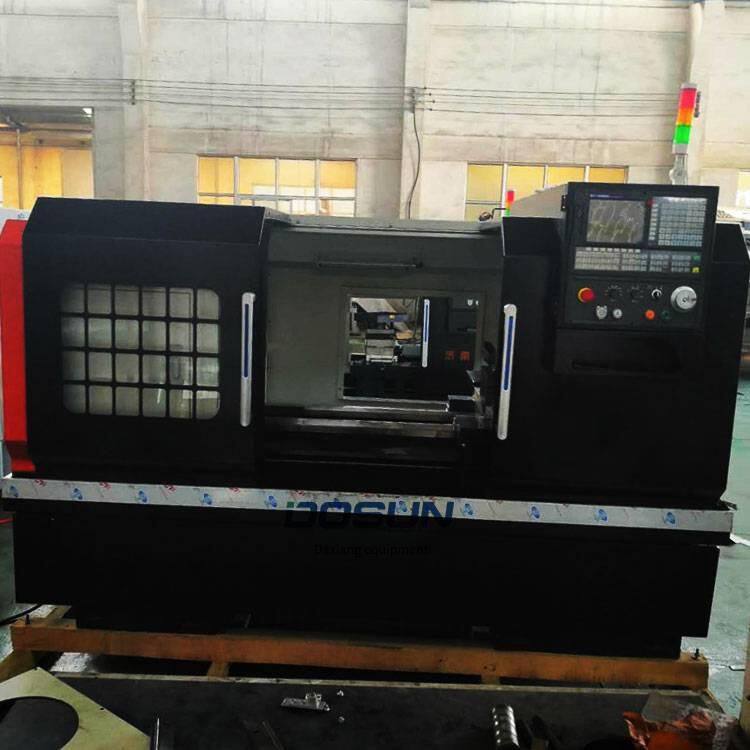

Help CenterCnc Lathe 6150, Horizontal Cnc Lathe With Hard Rail and Flat Bed 6150
Related Products
-
Cnc Vertical Machining Center 1060NegotiableMOQ: 0 Unit -
Cnc Horizontal Lathe 6163NegotiableMOQ: 0 Unit
-
Cnc Vertical Machining Center Vmc650 Small Machining Center - Three-axis Linear Guide Rail With Optional Control System, Export Customized ModelNegotiableMOQ: 0 Unit
-
850 Cnc Machining Center, Vertical Machining Center 850, Small Machining CenterNegotiableMOQ: 0 Unit
-
High-speed Vertical Machining Center V800 With Taiwanese Lead Screws, Fully Automatic Cnc Machining Center - Jiangsu DaxiangNegotiableMOQ: 0 Unit
1. The machine tool has high precision. The spindle is supported by high-precision double-ball bearings of HRB from Harbin Bearing. It features low noise, high precision, and good stability. HRB
2. The bed guide rail is finely ground after super-audio quenching, with high hardness and good rigidity.
3. The electric four-position tool post uses a precision tooth disc for positioning, with high repeat positioning accuracy.
4. The tailstock is equipped with a quick cam clamping device, ensuring high work efficiency. There is a device in the tailstock sleeve to prevent the drill bit from rotating, which avoids damage to the taper of the inner hole of the tailstock sleeve caused by the rotation of the drill bit due to misoperation, effectively protecting the tailstock components.
5. The numerical control system uses well-known domestic and international brands such as GSK or KND. It can be driven by a hybrid stepping motor or an AC servo motor, and other systems can also be selected according to user requirements.
6. It is easy to operate, especially suitable for the processing of complex parts or large quantities of parts with high precision requirements. It is also suitable for numerical control teaching.
CK6150 Technical parameters of CNC lathe | |||
Specification |
Unit |
CK6150 |
|
Processing capacity |
Swing diameter over the bed |
mm |
500 |
Swing diameter over the tool post |
mm |
280 |
|
Workpiece length |
mm |
7 50 / 1000 / 1500/2000 |
|
Bed guide rail width |
mm |
360 |
|
Travel |
X -axis travel |
mm |
260 |
Z -axis travel |
mm |
680 /930/1430/1930 |
|
Spindle |
Spindle speed range |
mm |
2 -speed gear shifting 40 - 1600 |
Stepless speed change 40 - 1600 | |||
Stepless speed change ( Two-speed motor )40-2500 | |||
Spindle end size |
mm |
C6 |
|
Spindle internal taper |
MT |
6# |
|
Spindle through-hole diameter |
mm |
Φ 52 / 62 / 80 / 105 |
|
Tool post |
Number of tools |
No. |
4 / 6 / 8 |
Tool holder size |
mm |
25×25 |
|
Tool change time |
sec |
2.0 |
|
Feed |
X axis rapid feed speed |
mm/min |
4 000 |
Z axis rapid feed speed |
mm/min |
6 000 |
|
Cutting feed per revolution |
mm/r |
0.005-100 |
|
Tailstock |
Tailstock quill taper |
MT |
5 # |
Tailstock quill diameter |
mm |
75 |
|
Tailstock quill stroke |
mm |
1 5 0 |
|
Motor |
Main motor power |
kw |
5.5 / 7.5 |
X axis, Z axis motor torque |
N.M |
4 & 6 |
|
CK6150 CNC lathe overall dimensions (length * width * height) and weight | |||
Center distance |
750mm |
2 3 50 * 1 35 0 * 1 8 00 mm/2000kg |
|
1000mm |
2600*1350*1800mm/2200kg |
||
1500mm |
3100*1350*1800mm/2500kg |
||
2000mm |
3600*1350*1850mm/2800kg |
||
