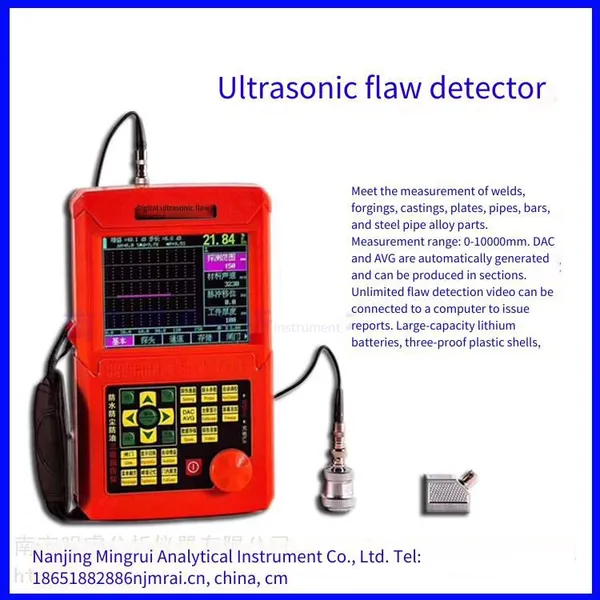

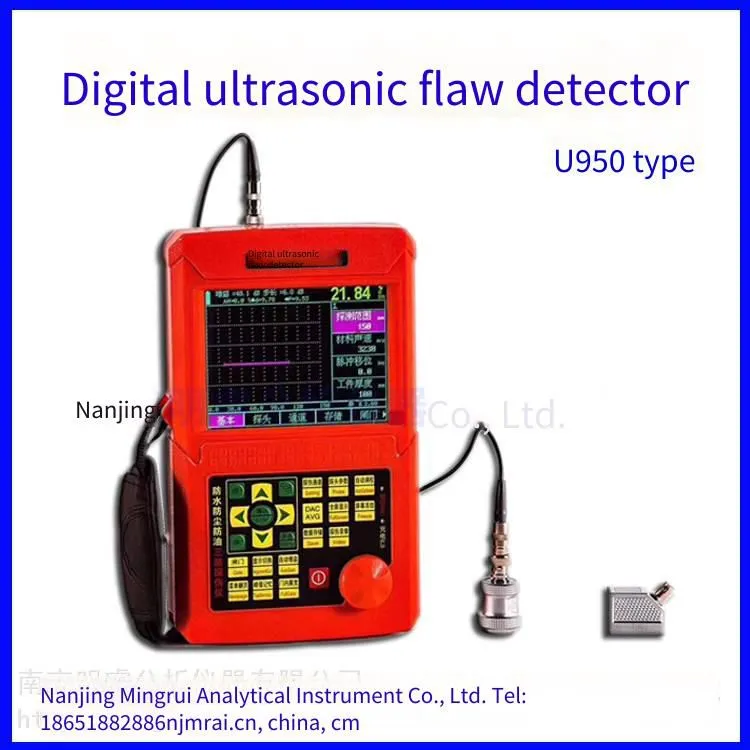

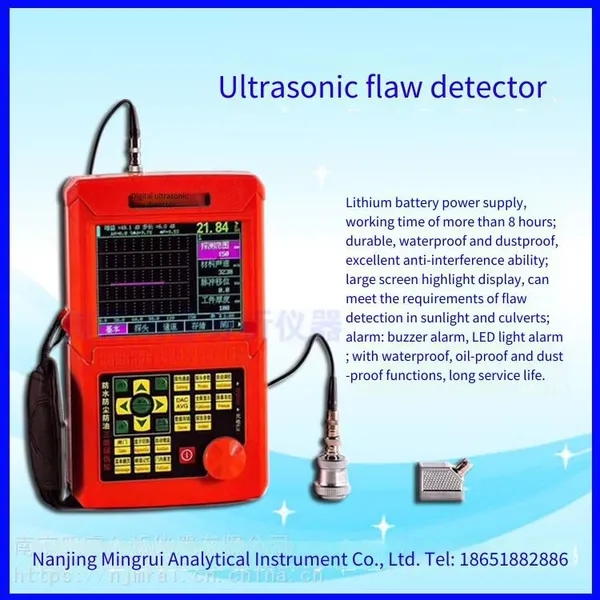

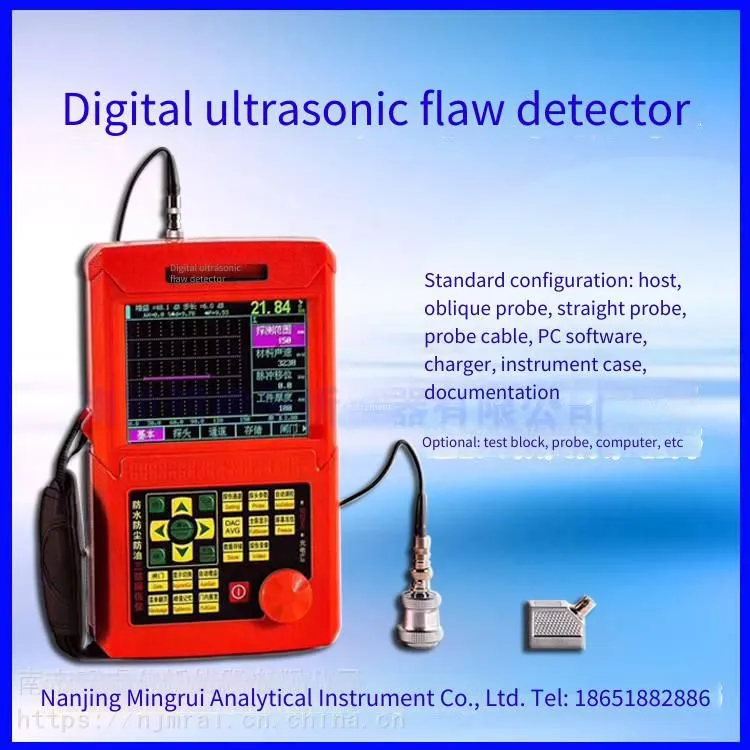

Nanjing Mingrui U950 Seamless Steel Pipe Ultrasonic Flaw Detector , unlimited flaw detection video recording, can be connected to a computer to generate reports, AC and AVG are automatically generated and can be produced in segments, large-capacity lithium battery, three-proof plastic shell. Widely used in laboratories, special inspection institutes, shipbuilding, oil and gas equipment, aerospace, military industry, chemical industry, power, steel, metallurgy, railway, automobile manufacturing, machinery, boiler pressure vessels, special equipment, oil pipelines, construction industry, mold manufacturing, universities and other industries. Tel: 18651882886 (WeChat ID).
Seamless Steel Pipe Ultrasonic Flaw Detector Main functions:
● High-precision quantification and positioning, meeting the requirements of flaw detection at relatively close and long distances;
● Small near-field blind zone, meeting the requirements of flaw detection for small-diameter and thin-walled pipes;
● Automatic calibration: One-key automatic calibration, very convenient to operate, automatically tests the "zero point", "K value", "front edge" of the probe and the "sound velocity" of the material;
● Automatically displays the position of the defect echo (depth d, horizontal p, distance s, amplitude, equivalent dB, aperture ф value);
● Freely switches between three scales (depth d, horizontal p, distance s);
● Automatic gain, echo envelope, and peak memory functions improve the flaw detection efficiency;
● Automatically records the flaw detection process and can perform dynamic playback; (unlimited time)
● ф value calculation: For forging flaw detection with a straight probe, automatically calculates the aperture ф value when finding the defect wave, and automatically calculates for the large flat bottom;
● 500 independent flaw detection channels (expandable), can freely input and store flaw detection standards for any industry, no need to carry test blocks for on-site flaw detection;
● Can freely store and replay 1000 A-scan waveforms and data;
● DAC, AVG, TCG curves (depth compensation) are automatically generated and can be produced in segments, the sampling points are not limited, and can be corrected and compensated; Manual B-scan function can obtain the cross-sectional information of the workpiece;
● 13 built-in flaw detection standards can be called out;
● Any industry standard can be freely input.
● The emission pulse width and intensity are adjustable.
● Communicate with the computer to achieve computer data management, and the flaw detection report in Excel format and on A4 paper can be exported.
● It has an IP65 standard aluminum-magnesium alloy shell, which is sturdy and durable, waterproof and dustproof, and has excellent anti-interference ability.
● The functions of the instrument system can be upgraded using the PC communication software.
● It features a 260,000-color true-color ultra-high-brightness display with adjustable brightness, suitable for working environments with strong or weak light.
● It is powered by a high-performance, safe and environmentally friendly lithium battery, allowing for continuous operation for 10 hours.
● Real-time clock recording: Track and record the real-time flaw detection date and time, and store them.
● Power-off protection ensures that the stored data will not be lost.
● The flaw detection parameters can be automatically tested or preset.
● Digital suppression does not affect the gain and linearity.
● Gain compensation: Correct the Db attenuation caused by factors such as surface roughness, curved surfaces, and long-distance flaw detection of thick workpieces.
● Automatically match the damping, perform intelligent and rapid flaw detection, and the gate will automatically alarm.
