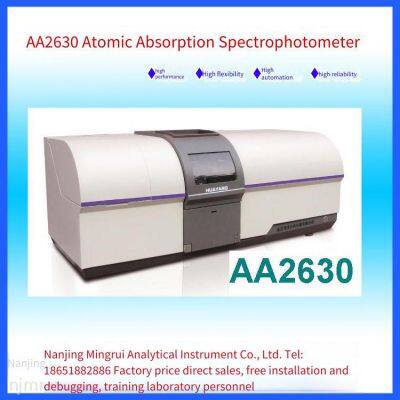

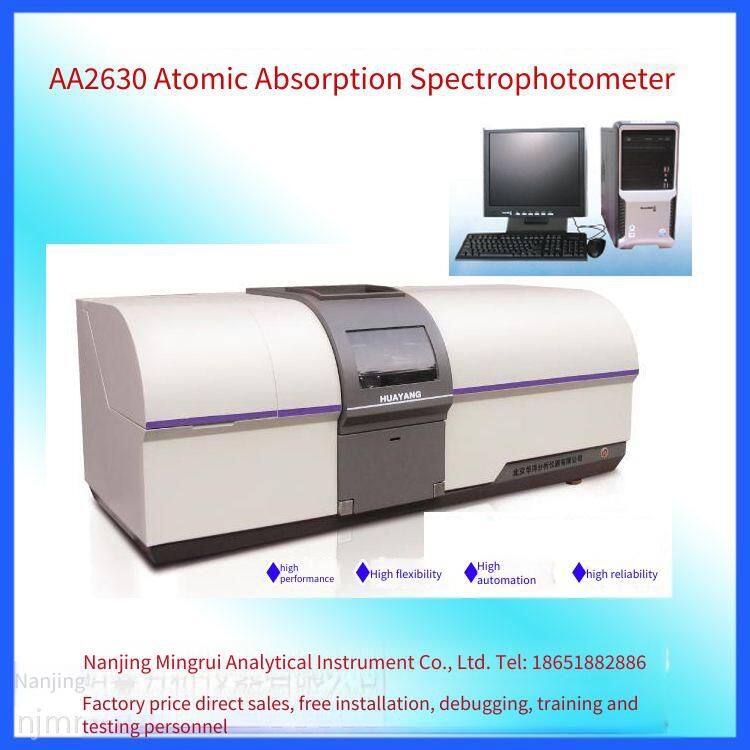

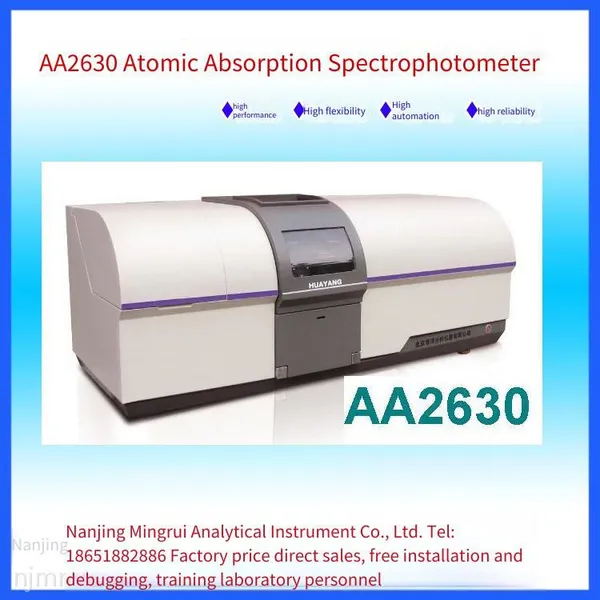

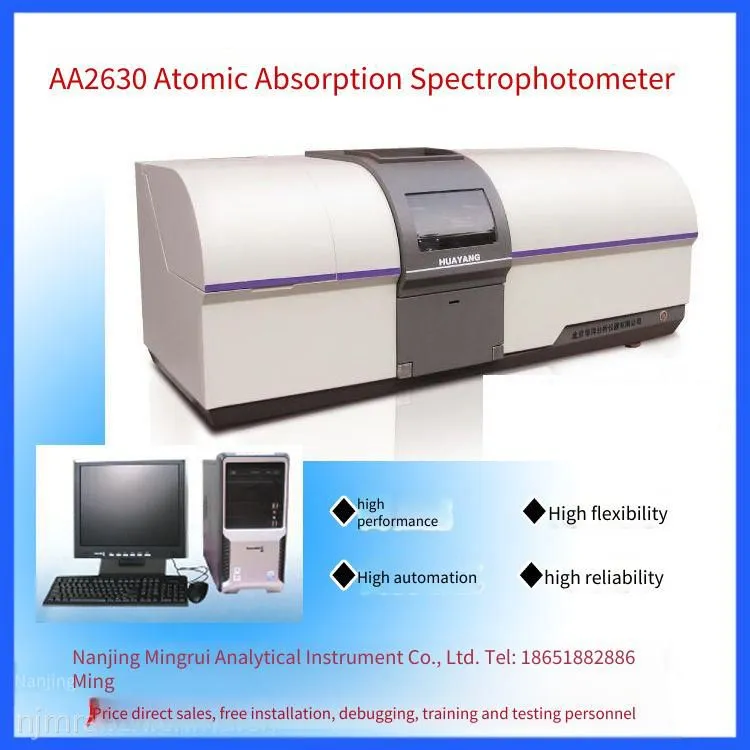

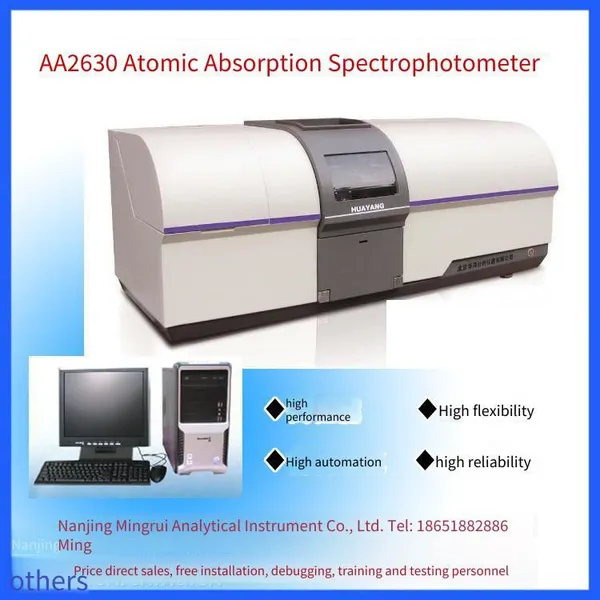

Nanjing Mingrui Analytical Instruments Co., Ltd. AA2630 Precious Metal Electroplating Spectral Analyzer uses a PC to fully automatically control the instrument and process data. The detection accuracy of the instrument reaches the ppb level. It can detect more than 70 kinds of trace metal elements, including gold, palladium, nickel, copper, platinum, rhodium, ruthenium, cobalt, silver, zinc, iron, calcium, magnesium, zinc, lead, mercury, etc. It is widely used in many production and scientific research fields such as rare earth analysis, precious metal analysis, alloy materials, electronic products, metallurgy, geology, petroleum, chemical industry, commodity inspection, environmental protection, colleges and universities, research institutes, geological exploration, mining and mineral processing, PCB circuit boards, surface treatment, energy and environmental protection, medical and health, agriculture, food, feed, biology, chemical fertilizers, chemistry, etc. Tel: 18651882886 (WeChat ID).
Main features: Use a PC to automatically control the instrument and process data; The integrated structure design of the flame atomizer and the graphite furnace atomizer allows automatic switching between the two; The eight-lamp automatic switching turret automatically adjusts the power supply and optimizes the beam position. The working conditions of the hollow cathode lamp can be preset and optimized, which is convenient for multi-element detection; Automatic flow setting, automatic ignition, and automatic protection against flameout; Automatic adjustment of negative high voltage and lamp current; Automatically set the flame height and the position of the atomizer, select the analysis conditions to ensure reliable analysis results; Automatically switch the spectral bandwidth, 0.1, 0.2, 0.4, 1.0, 2.0nm (five levels are automatically selectable), automatically control the wavelength scanning, automatically find the peak, quickly scan and locate the full band, complete automatic zero adjustment within 30 seconds, automatically set the gas flow, and automatically select the combustion-support ratio for element analysis. An advanced and reliable safety protection system protects the safety of operators. A reliable position recognition system monitors the cooling water flow, flame, and abnormal pressure in real-time, which not only ensures the safety of the machine but also the safety of operators. Once an accident occurs, water, electricity, and gas are automatically shut off. A hydride generator can be optionally configured. It has an excellent optical system with a suspended design. Vibration and changes in ambient temperature do not affect the stability of the instrument. It has strong light energy and extremely high stability. The newly designed flame atomizer and the ultra-high sensitivity graphite furnace can automatically optimize the temperature rise program through PC control within the whole process range. The high stability of the heating power further improves the reliability of the analysis value.
This set is equipped with the most convenient, reliable, and practical assistant software, which supports the Windows system platform. It has simple man-machine dialogue, powerful data analysis and processing functions, and convenient and fast data output functions, ensuring the accuracy and reliability of the results.
Precious Metal Electroplating Spectral Analyzer detailed description:
Optical system wavelength range: 190 - 900nm
Monochromator: Aberration-corrected C-T type monochromator dispersion element
Plane diffraction grating: 1800 lines/mm
Engraving area: 40x40mm2
Spectral bandwidth: 0.1, 0.2, 0.4, 1.0, 2.0nm, five gears with automatic wavelength selection. The full band is better than ±0.20nm
Wavelength repeatability: <0.10nm in the full band
Baseline drift: 0.004A/30min
Detector: High-sensitivity, wide spectral range photomultiplier tube
Resolution: When the spectral bandwidth is 0.2nm, separate the manganese doublet (279.5nm and 279.8nm) and the valley-to-peak energy ratio <20%
Characteristic concentration of flame atomization system: (Cu) 0.02ug/ml/1%
Detection limit (Cu): 0.005ug/ml
Burner: 100mm metal titanium burner, air-cooled pre-mixed type. Precision RSD≤0.8%
Sprayer: Glass nebulizer. The atomization chamber is made of corrosion-resistant materials. The position of the atomization chamber can be adjusted. The height and front-back position of the flame burner are automatically set. It has safety measures and various automatic safety protection functions
Characteristic quantity of graphite furnace atomization system (Cd): 0.5×10-12g
Detection limit (Cd): 1.0×10-12g
Precision: RSD≤3%
Heating temperature range: Room temperature - 3000℃
Heating temperature control method: Power control method in the drying and ashing stages
In the atomization stage, the light control high-power method is used. Temperature control accuracy: Accuracy ≤1%
Temperature rise rate: > 2000℃
Heating condition setting: Up to 11 programs for ramp heating, stage heating, and high-power heating. It has safety protection, including argon under-pressure indication, insufficient cooling water flow, overheating, over-current alarm and automatic protection functions.
Background correction: Deuterium lamp background correction ≥30 times at 1A. Self-absorption background correction ≥30 times at 1A
Concentration calculation method of graphite furnace method: Standard curve method (1 - 3 order curves), interpolation method
Number of repeated measurements for the standard addition method: 1 - 20 times. Calculate the average value of repeated measurements, automatically give the standard deviation and relative standard deviation. The results can be printed
Parameter printing: Print data results and graphics
Summary report software environment: Windows 2000/XP
Instrument parameter - Main unit power supply: AC220V/50Hz
Power: 220VA
Weight: 100kg
Volume: 1000mm (length) × 350mm (width) × 390mm (height)
Graphite furnace power supply: AC380V/50Hz
Power: 12KVA
Weight: 45kg
Volume: 500mm (Length) × 320mm (Width) × 800mm (Height)
Working environment temperature: 10～35℃
Working environment humidity: ≤80%
Standard configuration of the main unit: Wooden box packaging and transportation, low-noise oil-free air compressor
Installation and debugging: Special air pressure gauge head and random accessories, on-site training for users on the usage method
