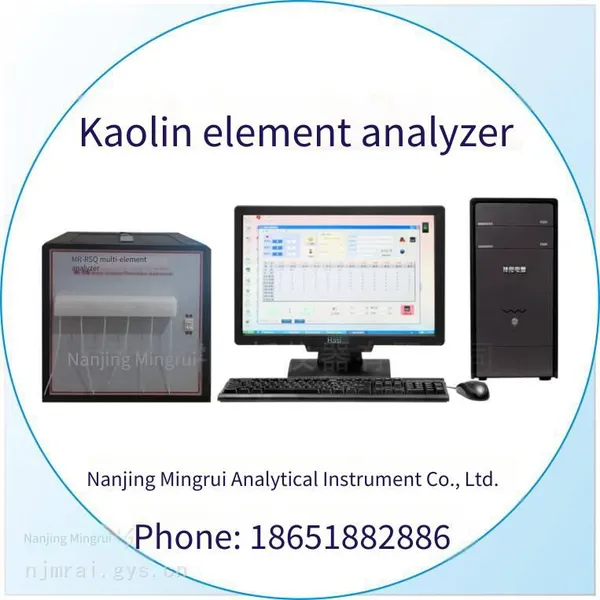

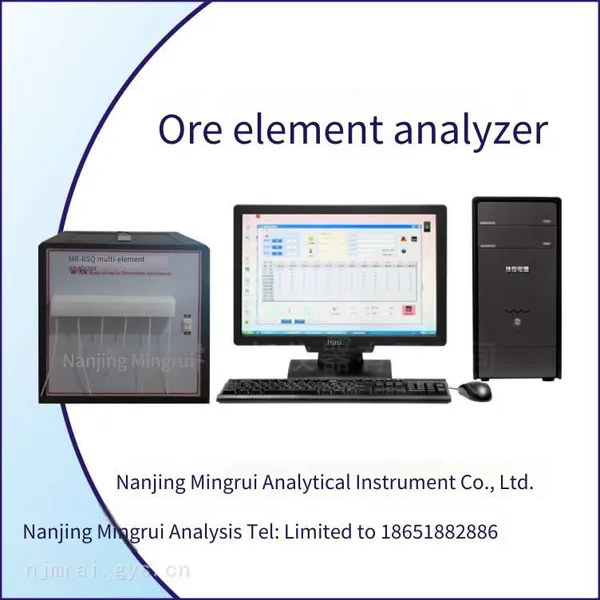

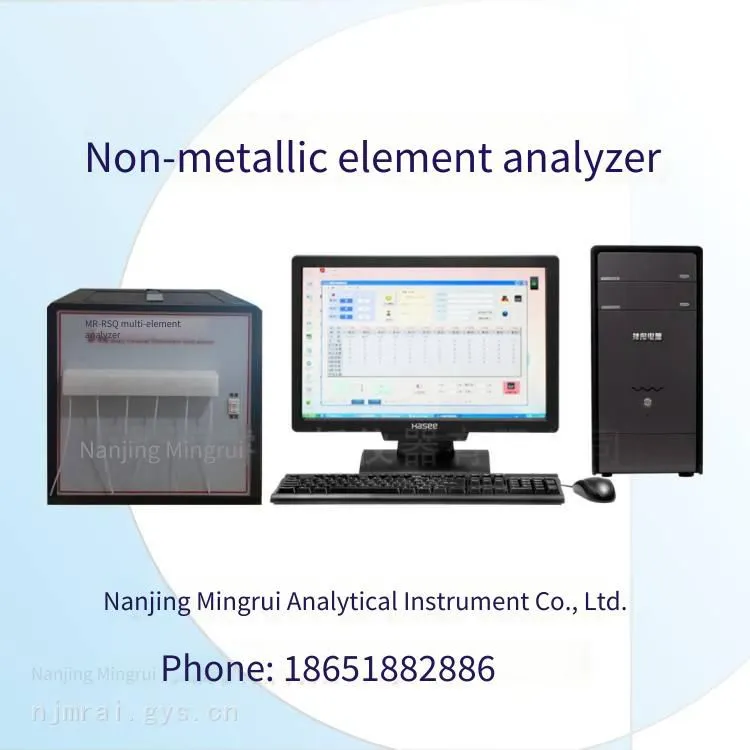

Nanjing Mingrui MR-RSQ Type Mica Powder Composition Analyzer , Analysis process: Sample preparation ---> Weighing and melting the sample ---> Leaching and color development ---> Instrument measurement of data ---> Software analysis and processing of results ---> Computer storage, printing and output of results. Widely used in the fields of ceramics, non-metallic materials, building materials, glass, graphite, steel, refractory materials, thermal insulation materials, cement, graphite carbon materials, etc. Phone: 18651882886 (WeChat ID).
It has six high-speed measurement channels. The channels can automatically suck and discharge liquid, enabling rapid and simultaneous measurement of six elements, which greatly shortens the measurement time. It is specially optimized for the quantitative analysis of chemical components in the non-metallic industries such as the ceramic industry, refractory materials, a wide variety of inorganic non-metallic minerals, and the non-ferrous metals and smelting industries of tungsten, molybdenum, nickel, cobalt, copper, etc. With a brand-new design, the manual zero adjustment is cancelled. The newly developed multi-functional analysis software can automatically zero and correct linear deviation. The stability of the instrument has been greatly improved compared with the previous generation products. The instrument is easier to operate. Beginners can quickly, accurately and efficiently perform quantitative analysis on the content of more than twenty elements. The measurement accuracy is higher and the reliability is better.
Mica Powder Composition Analyzer Detection speed and detection error:
1. Detection speed:
Usually, starting from weighing, the detection of the eight conventional components (CaO, SiO2, Al2O3, Fe2O3, MgO, TiO2, K2O, Na2O) in 2 - 4 samples can be completed within 3 hours, and the analysis of other elements can be completed within 4 - 6 hours.
2. Measurement error:
The analysis accuracy of each element meets the allowable error specified in the relevant national standard analysis methods. For ceramic materials, refer to GB/T4734 (specific parameters are shown in Appendix 23), and for refractory materials, refer to GB/T6900 (specific parameters are shown in Appendix 24). For the allowable error of high-silicon, high-aluminum or other high-content components without national standards, refer to the error specified in the Al2O3 item of GB/T6900 or the industry standard.
Mica Powder Composition Analyzer Main elemental components and ranges measured:
SiO2: 0.00001~99% Al2O3: 0.00001~99% Fe2O3: 0.00001~99% TiO2: 0.00001~99% K2O: 0.00001~15% Na2O: 0.00001~15% CaO: 0.00001~99% MgO: 0.00001~99% B2O3: 0.00001~30% ZrO2: 0.00001~99% PbO: 0.00001~20% ZnO: 0.00001~99% MnO: 0.00001~15% Cr2O3: 0.00001~15% BaO: 0.00001~10% NiO: 0.00001~15% CoO: 0.00001~10% P2O5: 0.00001~30% Li2O: 0.00001~15% SnO: 0.00001~99%
Note: If the content range of the measured elements exceeds the specified scope, users can appropriately reduce the sample weighing or aliquoting amount according to the measurement method to meet the measurement requirements. Users can also propose in advance that we provide corresponding chemical analysis processes to meet their measurement needs
Mica powder composition analyzer Measurable substance types:
1. Rapid quantitative determination of components in silicate minerals and materials.
2. Rapid quantitative determination of each component in raw materials, semi - finished products, and finished products used in the production of cement, ceramics, refractory materials, glass, limestone, etc.
3. Rapid quantitative determination of the main components of the following chemical raw materials: Chromium salt products, V2O5 and vanadium salt products, NiO and nickel salt products, Co¬2O3 and cobalt salt products, MnO and manganese salt products, Titanium dioxide, Phosphates, Zinc oxide, Borax, Boric acid, Barium carbonate, Sodium silicate, Sodium humate, Zirconium oxide, Zirconium silicate, Potassium salt products, Sodium salt products, Molybdate products etc.
4. Determination of each component in various non - ferrous metal minerals such as molybdenum ore, nickel ore, cobalt ore, tungsten ore, etc.
Mica powder composition analyzer Working conditions:
1. Voltage regulator power supply: 220V, 50Hz
2. Main unit power: 100w (excluding computer, etc.)
3. Installation area: 3500×800mm
4. Ambient temperature: 20±10℃
5. Relative humidity: ≤85％
Mica powder composition analyzer Installation and debugging
We will send professional technicians to the site for installation, debugging, and training until users master the operation.
