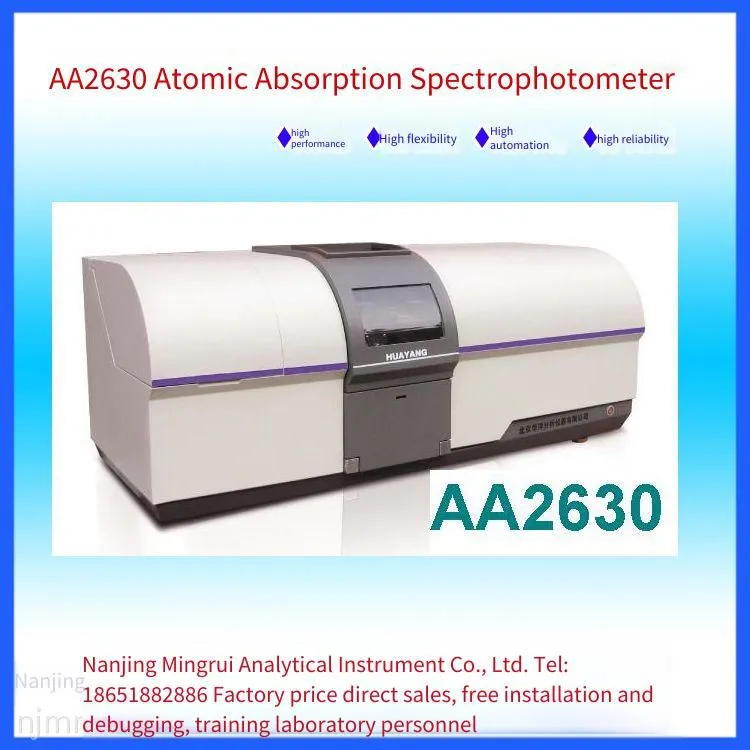

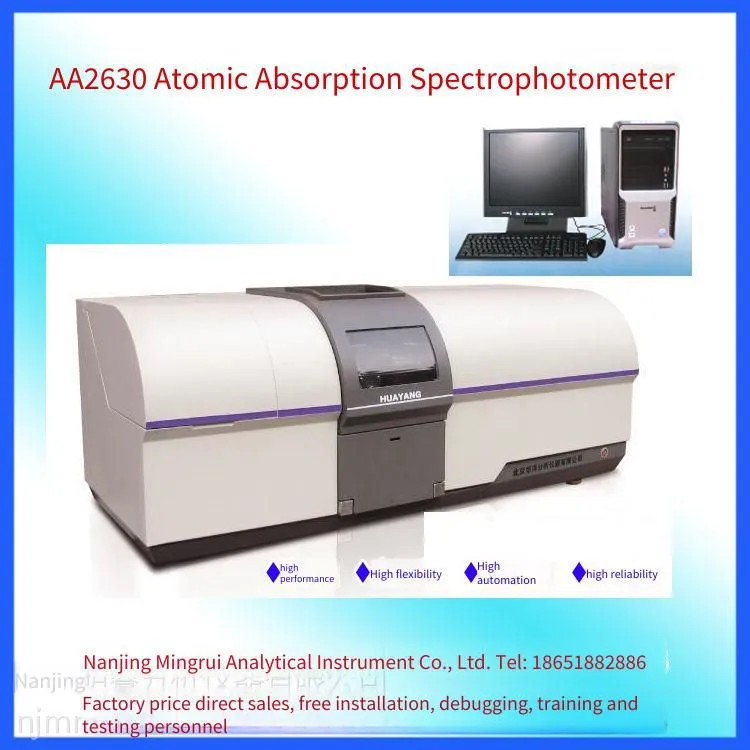

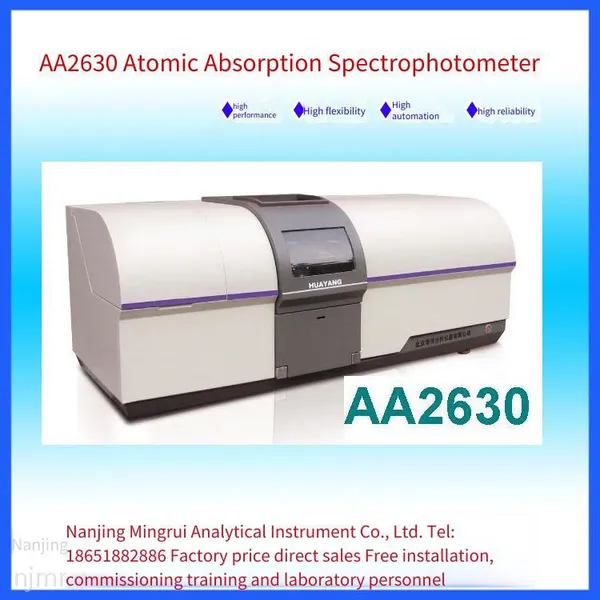

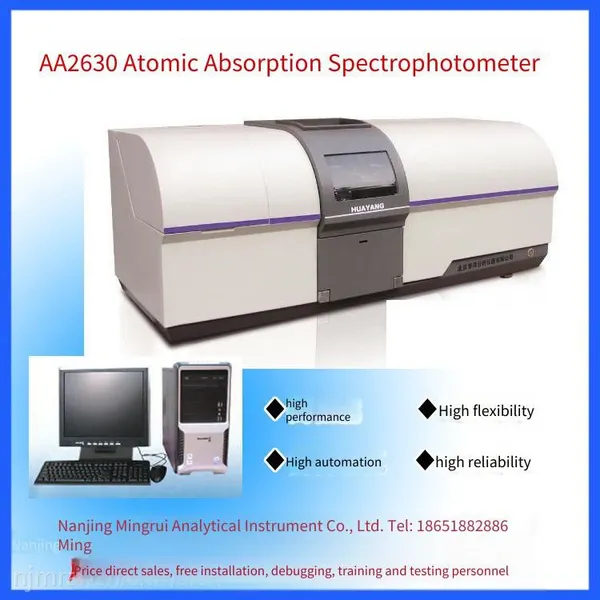

Nanjing Mingrui Analytical Instruments Co., Ltd. AA2630 Daily-use Fine Porcelain Material Analyzer uses a PC to automatically control the instrument and process data, fully meeting all requirements of modern analysis. It can detect a variety of trace metal elements, including more than 70 elements such as lead, chromium, cadmium, copper, iron, calcium, magnesium, zinc, chromium, mercury, arsenic, and selenium. The detection accuracy of the instrument reaches the ppb level. Phone: 18651882886 (WeChat ID).
This model is equipped with the most convenient, reliable, and practical assistant software, fully supporting the Windows system platform. With simple man-machine dialogue, powerful data analysis and processing functions, and convenient and fast data output functions, it ensures the accuracy and reliability of the results. The integrated structural design of the flame atomizer and the graphite furnace atomizer allows for automatic switching between the two; the eight-lamp automatic switching turret automatically adjusts the power supply and optimizes the beam position, and pre-sets the working conditions of the hollow cathode lamp for easy multi-element detection; automatic flow setting, automatic ignition, and automatic flameout protection; automatic adjustment of negative high voltage and lamp current.
It automatically switches the spectral bandwidth, with 0.1, 0.2, 0.4, 1.0, and 2.0nm (five automatic options), automatically controls wavelength scanning, automatically searches for peaks, and features international-level full-band fast scanning and positioning. It completes automatic zero adjustment within 30 seconds, automatically sets the gas flow, and automatically selects the fuel-to-oxidant ratio for element analysis. The advanced and reliable safety protection system comprehensively protects the safety of operators. The reliable position recognition system monitors the cooling water flow, flame, and abnormal pressure in real-time, ensuring both the safety of the machine and the safety of operators. In case of an accident, water, electricity, and gas will be automatically shut off. It can be optionally equipped with a hydride generator. The high-quality optical system features a suspended design, and vibrations and changes in environmental temperature do not affect the stability of the instrument. It has strong light energy and extremely high stability. The newly designed flame atomizer and the ultra-high-sensitivity graphite furnace automatically optimize the temperature-rising program through PC control within the whole process range, and the high stability of the heating power further improves the reliability of the analysis values.
Daily-use Fine Porcelain Material Analyzer Detailed Description:
Optical System Wavelength Range: 190 - 900nm
Monochromator: Aberration-corrected C - T type monochromator dispersion element
Plane Diffraction Grating: 1800 lines/mm
Engraving Area: 40x40mm2
Spectral Bandwidth: 0.1, 0.2, 0.4, 1.0, 2.0nm Five automatic options for wavelength. The full band is better than ±0.20nm
Wavelength Repeatability: Full band
Baseline drift: 0.004A/30min
Detector: High-sensitivity, wide-spectrum range photomultiplier tube
Resolution: When the spectral bandwidth is 0.2nm, separate the manganese doublet (279.5nm and 279.8nm), and the valley-to-peak energy ratio
Characteristic concentration of flame atomization system: (Cu) 0.02ug/ml/1%
Detection limit (Cu): 0.005ug/ml
Burner: 100mm metal titanium burner, air-cooled pre-mixed type. Precision RSD ≤ 0.8%
Nebulizer: Glass nebulizer. The atomization chamber is made of corrosion-resistant materials. The position of the atomization chamber can be adjusted. The height and front-back position of the flame burner are automatically set. It has multiple automatic safety protection functions.
Characteristic quantity of graphite furnace atomization system (Cd): 0.5×10-12g
Detection limit (Cd): 1.0×10-12g
Precision: RSD ≤ 3%
Heating temperature range: Room temperature - 3000℃
Heating temperature control method: Power control method in the drying and ashing stages
In the atomization stage, the light control high-power method is used. Temperature control accuracy: Accuracy ≤ 1%
Temperature rise rate: > 2000℃
Heating condition setting: Up to 11 programs for ramp heating, stage heating, and high-power heating. It has safety protection functions, including argon under-pressure indication, insufficient cooling water flow, overheating, over-current alarm, and automatic protection functions.
Background correction: Deuterium lamp background correction ≥ 30 times at 1A. Self-absorption background correction ≥ 30 times at 1A
Concentration calculation method for graphite furnace method: Standard curve method (1 - 3 order curves), interpolation method
Number of repeated measurements for standard addition method: 1 - 20 times. Calculate the average value of repeated measurements, automatically give the standard deviation and relative standard deviation, and print the results
Parameter printing: Print data results and graphics
Software environment for summary report: Windows 2000/XP
Analyzer for daily fine porcelain materials parameters
Main unit power supply: AC220V/50Hz
Power: 220VA
Weight: 100kg
Volume: 1000mm (length) × 350mm (width) × 390mm (height)
Graphite furnace power supply: AC380V/50Hz
Power: 12KVA
Weight: 45kg
Volume: 500mm (length) × 320mm (width) × 800mm (height)
Working environment temperature: 10 - 35℃
Working environment humidity: ≤ 80%

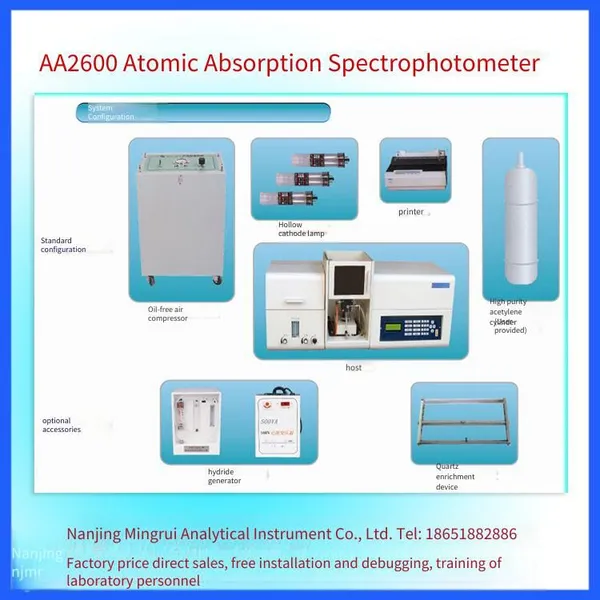

Standard configuration of the main unit: Wooden box packaging and transportation, low-noise oil-free air compressor
Installation and commissioning: Special air pressure gauge head and random accessories. Provide on-site training on the usage method for users.
