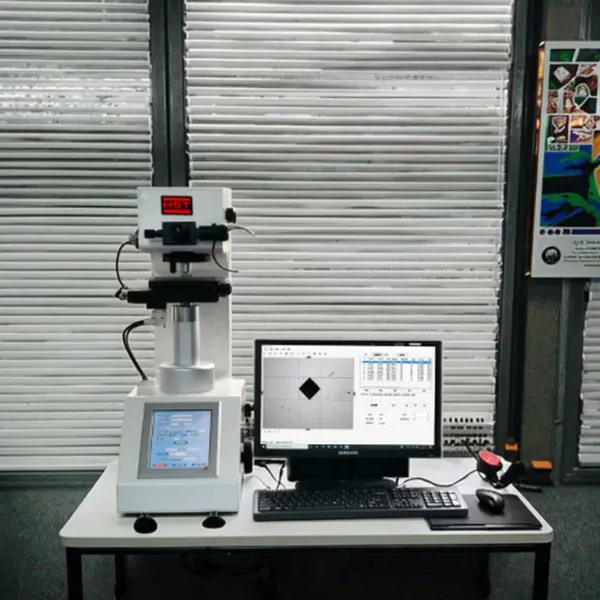

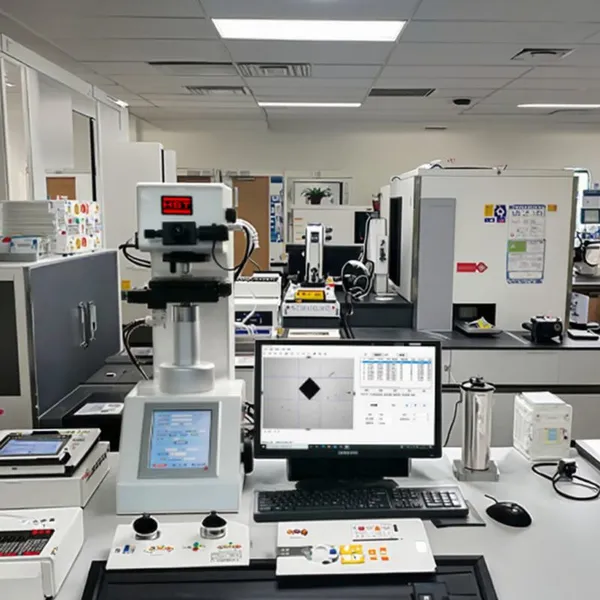

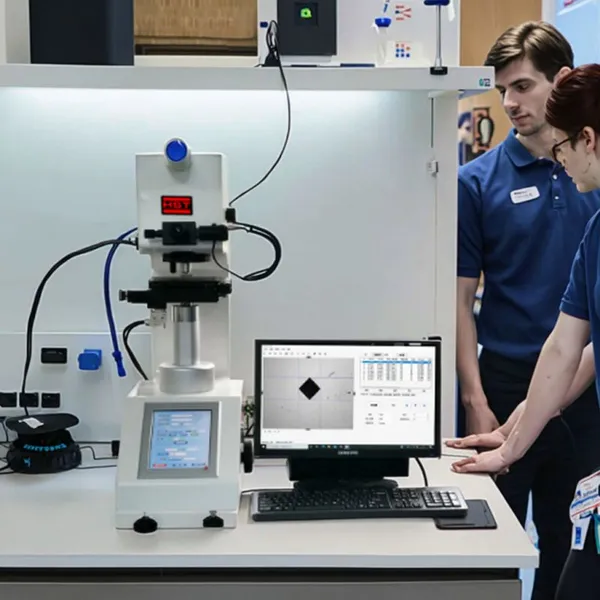

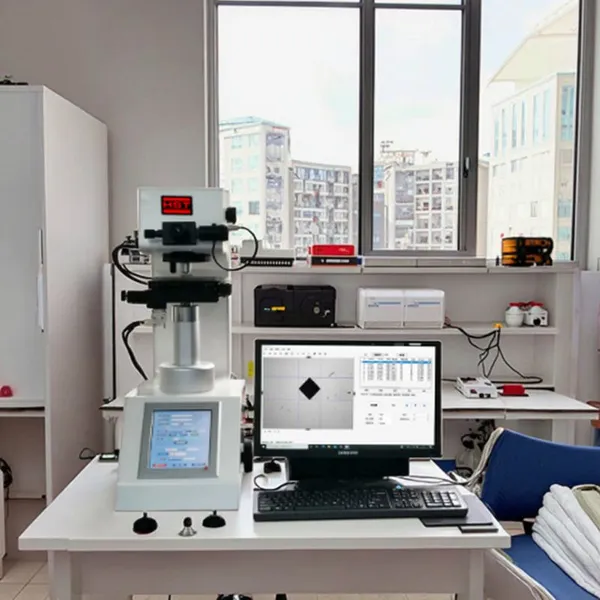

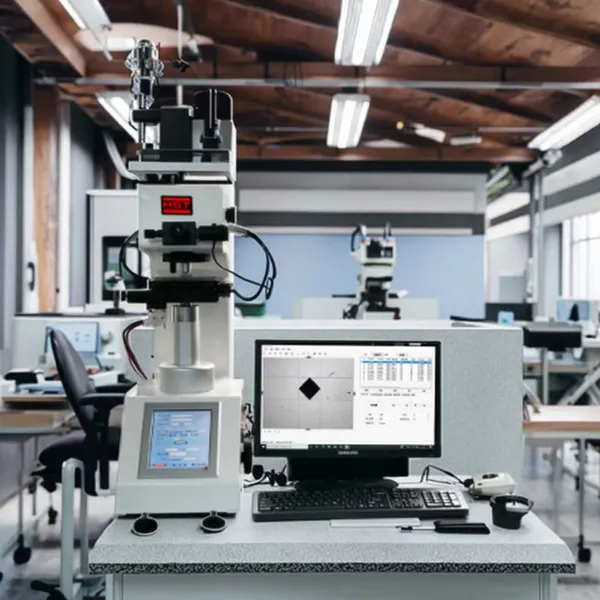

High Quality HST-HVS-AT-XY Automatic Vickers/Micro Hardness Tester
US$ 8560 - 10080
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Loading Method:
Automatic (Loading/Dwell/Unloading)
Accuracy:
≤±1%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality HST-PHB3000 Hydraulic Brinell Hardness Tester With Measuring SystemUS$ 3200 - 3760MOQ: 1 Set -
High Quality HST-HB3000ETZW Digital Automatic Brick Tower Brinell Hardness TesterUS$ 4490 - 5280MOQ: 1 Set
-
High Quality HST-HBS62.5ZT Automatic Turret Small Load Brinell Hardness TesterUS$ 2650 - 3120MOQ: 1 Set
-
High Quality HST-HB3000XP-AZF-5 Full Automatic Brinell Hardness Tester Fully Automatic Five-position Brinell Hardness TesterUS$ 10350 - 12180MOQ: 1 Set
-
High Quality HST-HB3000D Electric Brinell Hardness TesterUS$ 3060 - 3600MOQ: 1 Set
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Logo/graphic design
Laser Engraving
Product name
Automatic Vickers/Micro hardness tester
Model
HST-HVS-AT-XY
Test Force
10gf~1000gf
Test Range
8HV~2900HV
Test Mode
HV/HK
X-Y Test Table Moving
X-Y axis automatic moving through the software
Total Magnification
100, 400
Resolution
0.01μm
Dwell Time
1~90s
HST-HVS-AT-XY Semi- Automatic Micro Vickers Hardness Tester
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Applications :
2.Technical Parameters:
HST-HVS-AT-XY Semi- Automatic Micro Vickers Hardness Tester is integrated with several new technologies such as optical imaging,mechanical displacement, electronic control, digital imaging, image analysis, computer processing and so on. It controls the Micro Vickers hardness tester and automatic test table by the computer, and displays the indentation image on the computer screen. By means of automatic reading and manual reading, it accurately measures the HV hardness, hardening depth, film thickness, distance between two points of metals and some non-metallic materials and various films. It also can shoot metal surface morphology and taking fixed rate printing etc. This system breaks through the traditional test method, realize the hardness test of fully automatic, high precision, high repeatability, and it is the important equipment for materials analysis.
2.Technical Parameters:
Model |
HST-HVS-AT-XY |
Test Force |
0.098n(10gf), 0.246n(25gf), 0.49n(50gf), 0.98n(100gf), 1.96n(200gf), 2.94n(300gf), 4.90n(500kgf), 9.80n(1000gf) |
Test Range |
8HV~2900HV |
Test Mode |
HV/HK |
Loading Method |
Automatic (Loading/Dwell/Unloading) |
X-Y Test Table Moving |
X-Y axis automatic moving through the software |
Conversion Scale |
HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HS, HB |
Data Output |
Built-in Printer WORD or EXCEL Report with Curve Chart |
Hardness Reading |
Indentation Displaying and Automatic Measuring on PC |
Total Magnification |
100×, 400× |
Resolution |
0.01μm |
Dwell Time |
1~90s |
Light Source |
Halogen Lamp |
X-y Test Table |
Size: 150×150mm; Travel: 50×50mm; Resolution: Less than 1 um - 3 um |
Max. Height of Specimen |
160mm |
Throat |
160mm |
Power Supply |
AC220V, 50Hz |
Execute Standard |
ISO 6507, ASTM E384, jIS Z2244, GB/T 4340.2 |
Dimension |
540×260×650mm Packing |
Weight (kg) |
Gross Weight: 50 |
