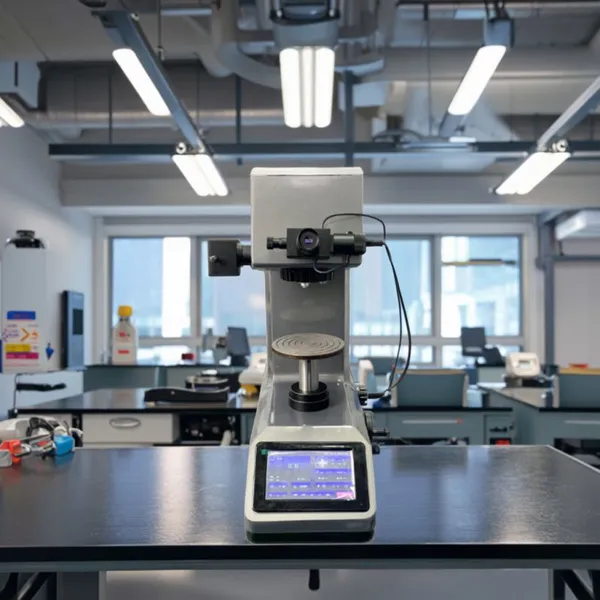

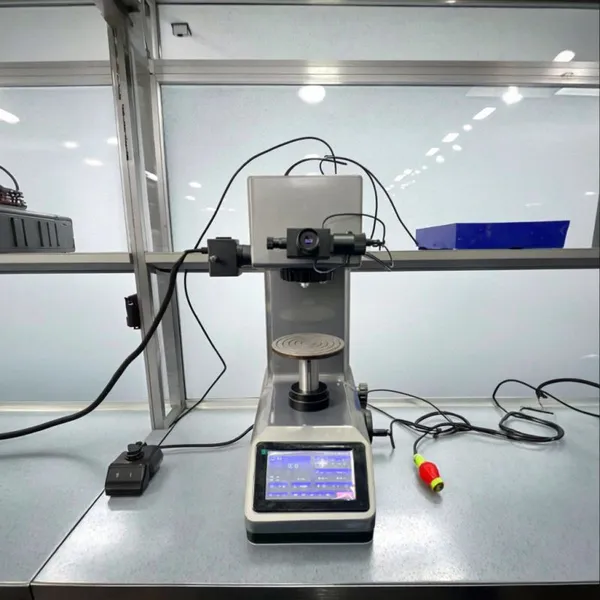

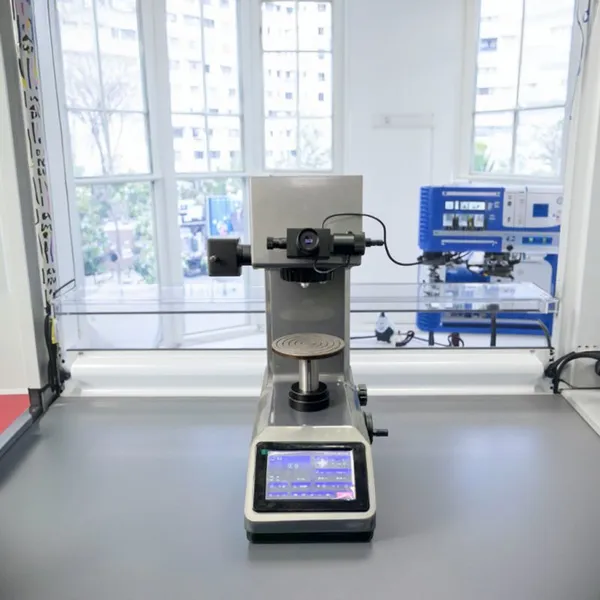

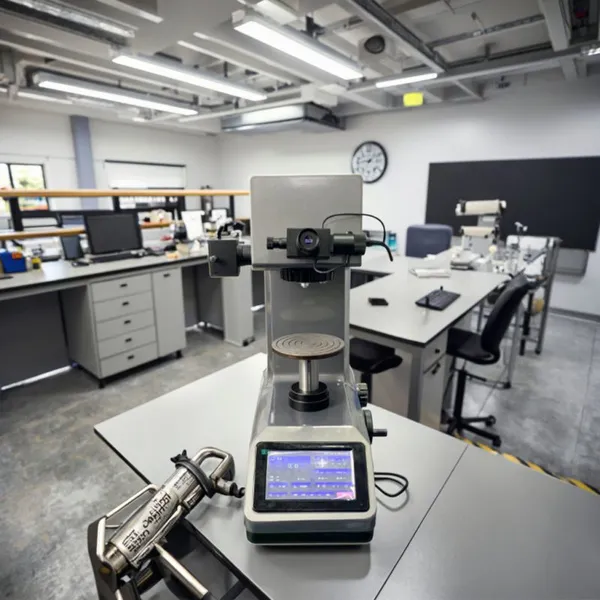

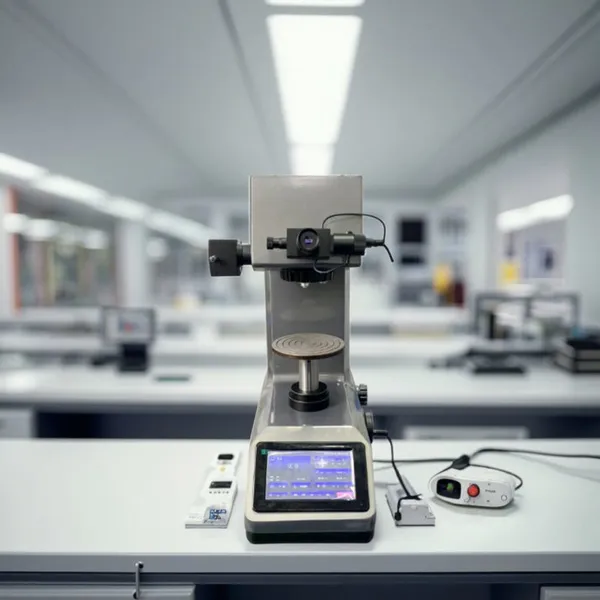

High Quality HST-HBS62.5ZT Automatic Turret Small Load Brinell Hardness Tester
US$ 2650 - 3120
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤±1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality HST-HB3000XP-AZF-5 Full Automatic Brinell Hardness Tester Fully Automatic Five-position Brinell Hardness TesterUS$ 10350 - 12180MOQ: 1 Set -
High Quality HST-HB3000D Electric Brinell Hardness TesterUS$ 3060 - 3600MOQ: 1 Set
-
High Quality HST-HB-3000DB Electronic Heightening Brinell Hardness TesterUS$ 4990 - 5880MOQ: 1 Set
-
High Quality HST-HB3000XP-AZF Full Automatic Brinell Hardness Tester Fully Automatic Single-station Brinell Hardness TesterUS$ 8500 - 10080MOQ: 1 Set
-
High Quality HST-HBS3000CT Touch Screen Electric Brinell Hardness TesterUS$ 1360 - 1580MOQ: 1 Set
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Logo/graphic design
Laser Engraving
Product name
Automatic Turret Brinell Hardness Tester
Model
HST-HBS62.5ZT
Test force
1~62.5KGF
Test microscope magnification
50X ,100X
Maximum height of specimen
180mm
Distance from center to inner wall
160mm
Hardness resolution
0.1HBW
Measuring device resolution
0.1um
Power supply
AC220+5%,50~60Hz
Net weight
50kg
HST-HBS62.5ZT Small load automatic turret digital display Brinell hardness tester
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Applications :
especially suitable for softer metals, such as pure aluminum, copper, lead, tin, zinc, etc. and their alloys. The hardness of
Brinell is very accurate, and the Brinell hardness has high measurement accuracy, so the repeatability and representativeness are good.
Direct reading and small load Brinell hardness tester can read the hardness value on the display screen, which simplifies the tediousness of looking up the table.
Automatic digital display, no artificial reading error
Strong, rigid, precise, reliable, durable, and highly efficient in testing. The test process is automated, and there is no human
operation error; LCD display, menu operation, complete functions, (data processing, hardness conversion, etc.)
2.Technical Parameters:
The direct-reading low-load Brinell hardness tester selects a relatively small part of the Brinell hardness value, so it is
especially suitable for softer metals, such as pure aluminum, copper, lead, tin, zinc, etc. and their alloys. The hardness of
Brinell is very accurate, and the Brinell hardness has high measurement accuracy, so the repeatability and representativeness are good.
Direct reading and small load Brinell hardness tester can read the hardness value on the display screen, which simplifies the tediousness of looking up the table.
Automatic digital display, no artificial reading error
Strong, rigid, precise, reliable, durable, and highly efficient in testing. The test process is automated, and there is no human
operation error; LCD display, menu operation, complete functions, (data processing, hardness conversion, etc.)
2.Technical Parameters:
Model |
HST-HBS62.5ZT |
Test force |
1kgf, 5kgf, 6.25kgf, 10kgf, 15.625kgf, 30kgf, 31.25kgf, 62.5kgf |
Maximum allowable height of the test piece |
175mm |
The distance from the center of the indenter to the machine wall |
125mm |
power supply |
AC220V，50Hz |
Measuring system magnification |
50X 100X |
Brick Tower Way |
Automatic turret |
Dimensions |
320mm*580mm*620mm |
Weight |
65Kg |
