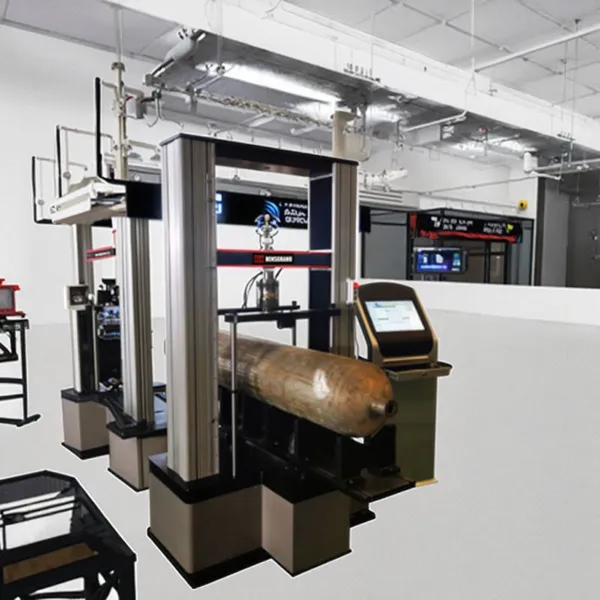

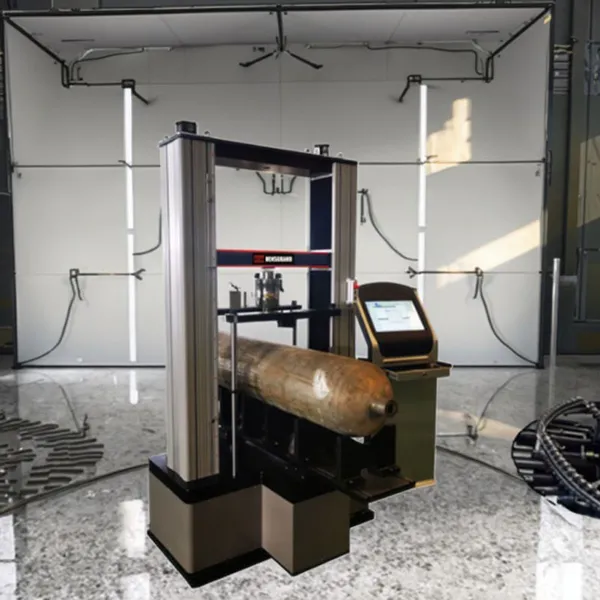

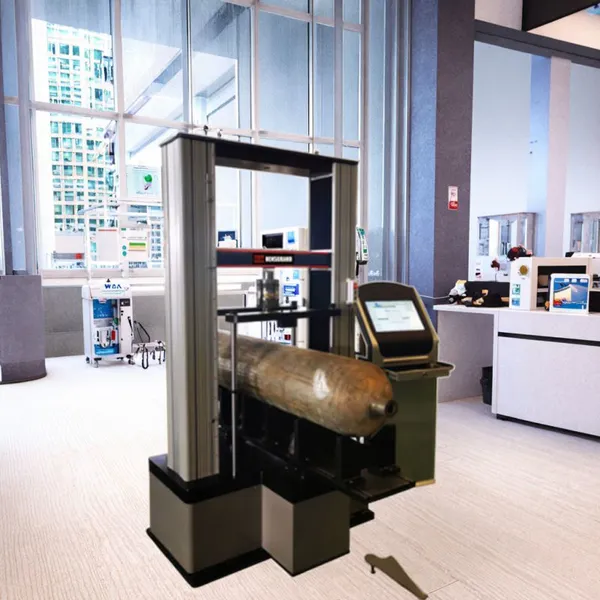

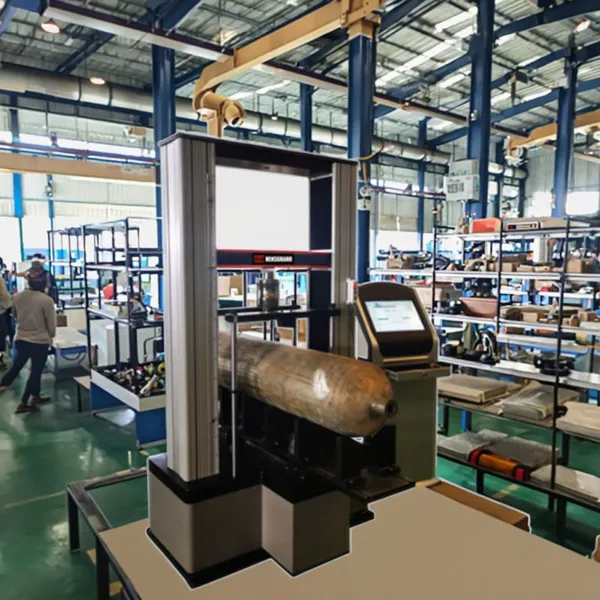

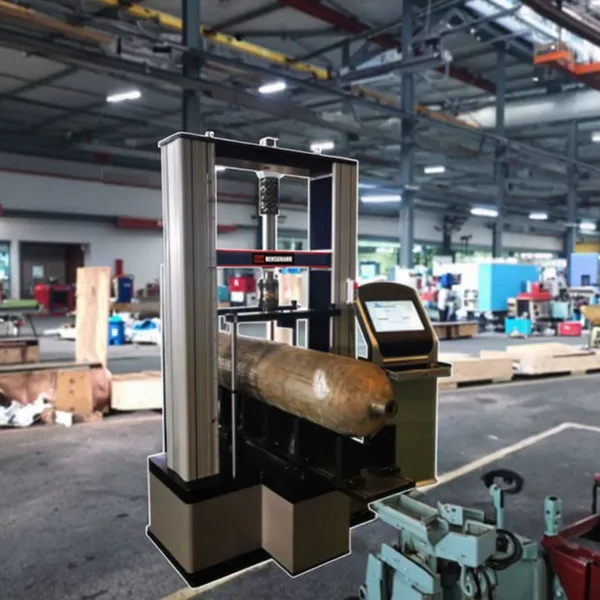

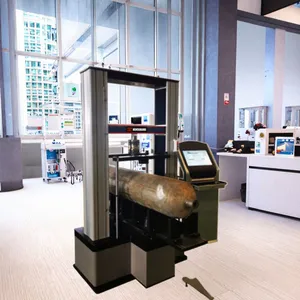

HST-H1110C Online Rockwell Hardness Testing Line -- Customized Version for Gascylinders
US$ 14000 - 18000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-HRS-150T-Z Z-Axis Automatic Touch Screen Rockwell Hardness TesterUS$ 3650 - 4320MOQ: 1 Set -
HST-PHR 1 PHR-1 Portable Rockwell Hardness TesterUS$ 1000 - 1400MOQ: 1 Set
-
HST HRS-150/45TN-ZH Z-Axis Automatic Rockwell Hardness TesterUS$ 7900 - 9300MOQ: 1 Set
-
High Quality HST-HR150AS Digital Display Manual Rockwell Hardness TesterUS$ 620 - 750MOQ: 1 Set
-
HST-XHR150 Manual Plastic Rockwell Hardness Tester Manual Dial Display TypeUS$ 680 - 880MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
3.7kw
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Logo/graphic design
Digital Printing
Product name
Online Rockwell Hardness Testing Line
Model
HST-H1110C
Test force
98.07N/10kgf, 588.4N/60 kgf, 980.7N/100 kgf, 1471N/150 kgf
Force accuracy
±1%
Measuring range
HRBW in accordance with the standard
F1 loading time (s)
≤5
Maximum allowable sample diameter (mm)
≤300
Y-axis aluminum bottle line length
3.2m
bottle conveyor line moving speed
up to 2000(mm/min)
Power supply
AC 380V; total power: 3.7KW
HST-H1110C Online Rockwell Hardness Testing Line
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Design principles :
This project is designed to meet the needs of online fully automatic Rockwell hardness testing of aluminum gas cylinders, focusing on its small batch and multi-variety product types, and solving the hardness measurement problems of aluminum cylinders with diameters of Ø80mm to Ø300mm and different lengths. The system design takes economy, safety, reliability, flexibility, applicability and good human-machine interface interaction as design criteria to ensure the successful delivery of the project and quality management throughout the life cycle.
1.2 Design ideas
This solution is mainly suitable for online Rockwell hardness fully automatic testing of gas cylinders. This solution complies with GB/T230.1-2018 "Metallic Materials Rockwell Hardness Test Method" and ASTM E18 American Standard.
The test line adopts a modular design. The system consists of a gantry frame, a crossbeam hydraulic lifting mechanism (including a hydraulic station), a hardness loading and clamping mechanism, a V-shaped aluminum bottle conveyor line, a PLC control system, and a large module of a Rockwell hardness measurement system. High installation efficiency, convenient maintenance, and strong interchangeability of spare parts.
Rockwell hardness measurement system. The workpiece ID number is established by group, the upper and lower limits are set, and the workpiece is automatically judged whether it is qualified. The qualified ones are displayed in green, and the unqualified ones are displayed in red. There is also an audible and visual alarm device. It can also achieve real-time communication with the equipment; the test results can be set with functions such as input, export, and sharing according to different permissions.
1.1 User requirements
This project is designed to meet the needs of online fully automatic Rockwell hardness testing of aluminum gas cylinders, focusing on its small batch and multi-variety product types, and solving the hardness measurement problems of aluminum cylinders with diameters of Ø80mm to Ø300mm and different lengths. The system design takes economy, safety, reliability, flexibility, applicability and good human-machine interface interaction as design criteria to ensure the successful delivery of the project and quality management throughout the life cycle.
1.2 Design ideas
This solution is mainly suitable for online Rockwell hardness fully automatic testing of gas cylinders. This solution complies with GB/T230.1-2018 "Metallic Materials Rockwell Hardness Test Method" and ASTM E18 American Standard.
The test line adopts a modular design. The system consists of a gantry frame, a crossbeam hydraulic lifting mechanism (including a hydraulic station), a hardness loading and clamping mechanism, a V-shaped aluminum bottle conveyor line, a PLC control system, and a large module of a Rockwell hardness measurement system. High installation efficiency, convenient maintenance, and strong interchangeability of spare parts.
Rockwell hardness measurement system. The workpiece ID number is established by group, the upper and lower limits are set, and the workpiece is automatically judged whether it is qualified. The qualified ones are displayed in green, and the unqualified ones are displayed in red. There is also an audible and visual alarm device. It can also achieve real-time communication with the equipment; the test results can be set with functions such as input, export, and sharing according to different permissions.
2.Standard specifications
(1) GB/T230.1-2018 "Metallic Materials Rockwell Hardness Test Method"
(2) 4.1, 4.2, 4.3, 4.5 in GB/T230.2-2012 standard; the repeatability and relative error of the hardness tester are in accordance
with Table 2.
(3) ISO6508-2015 Metallic materials — Rockwell hardnesstest —Part 1: Test method Table2
(4) ASTM E18-2017 Standard Test Method for Rockwell Hardness of Metallic Materials Table3
(6) JJG China National Metrology Verification Procedure JJG112-2006.
3.Specifications
MODEL |
HST-LZHX-3000 |
||
Convertible scale |
HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、 HR45N、HR15T、HR30T、HR45T
|
||
Test force (Kgf) |
62.5kgf，100kgf，125kgf，187.5kgf，250kgf，500kgf，750kgf， 1000kgf，1500kgf，3000kgf
|
||
612.9N，980.7N，1266N，1839N，2452N，4903N，7355N， 9807N，14710N，29420N
|
|||
Measuring range |
8~650HBW |
||
Data output |
Built-in printer |
||
Maximum test piece height |
280mm |
||
Load retention period |
0～99S |
||
Distance from the center of the pressure head to the machine wall |
150mm |
||
Electric Power supply |
AC220V，50Hz |
||
Hardness reading Digital |
display touch screen LCD reads hardness value |
||
Implementation standards |
ISO 6506，ASTM E10-12，JIS Z2243，GB/T 231.2 |
||
Power supply |
AC220+5%，50~60Hz |
||
