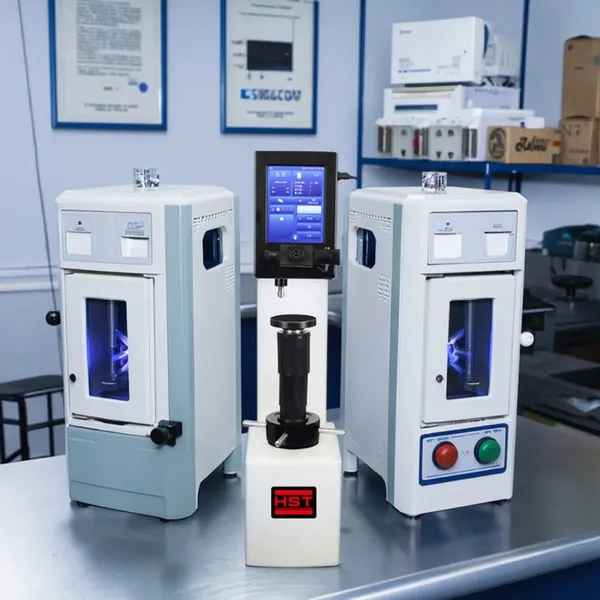

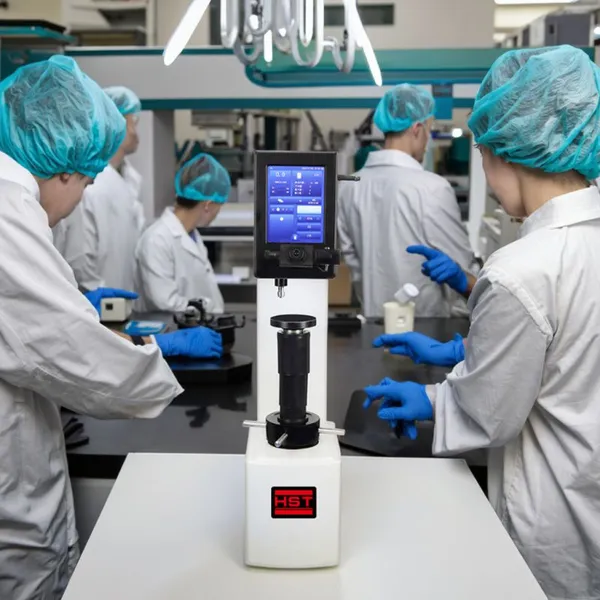

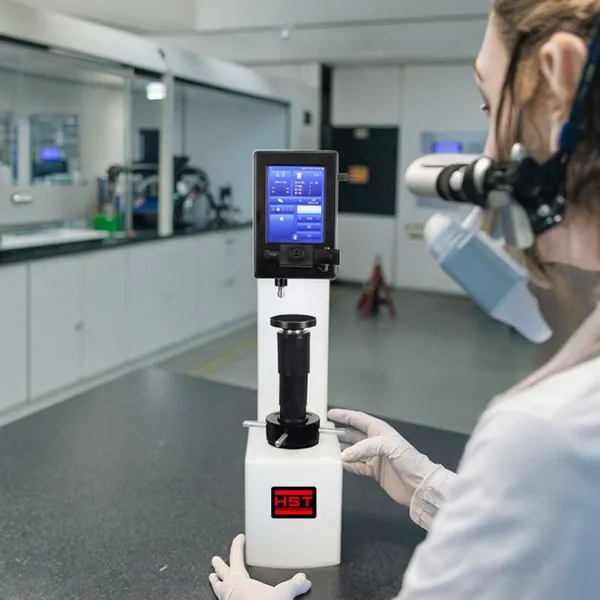

High Quality HST-HBS-3000ET-ZH Touch Screen Display Automatic Turret Brinell Hardness Tester
US$ 2650 - 3120
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤±1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality HST-HB3000B Brinell Hardness Tester Weighted Load Brinell Hardness TesterUS$ 920 - 1100MOQ: 1 Set -
HST-H1110C Online Rockwell Hardness Testing Line -- Customized Version for GascylindersUS$ 14000 - 18000MOQ: 1 Set
-
HST-HRS-150T-Z Z-Axis Automatic Touch Screen Rockwell Hardness TesterUS$ 3650 - 4320MOQ: 1 Set
-
HST-PHR 1 PHR-1 Portable Rockwell Hardness TesterUS$ 1000 - 1400MOQ: 1 Set
-
HST HRS-150/45TN-ZH Z-Axis Automatic Rockwell Hardness TesterUS$ 7900 - 9300MOQ: 1 Set
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Logo/graphic design
Laser Engraving
Product name
Automatic Turret Brinell Hardness Tester
Model
HST-HBS-3000ET-ZH
Test force
62.5~3000KGF
Measuring range
8~650HBW
Maximum height of specimen
280mm
Distance from center to inner wall
150mm
Micrometer
20X digital display micrometer
Dwelling time
0-60S
Power supply
AC220V,50Hz
Net weight
130kg
HST-HBS3000ET-ZH Automatic Turret Digital Brinell Hardness Tester
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Applications :
compensated.
2.Automatic turret, the test head and the objective lens are automatically switched between each other during testing, the test point is automatically positioned accurately, automatically loaded, and automatically unloaded.
3.Eyepiece structure with digital encoder, measure D1, D2 value, LCD directly display hardness value and D1, D2 value.
4.Can be calibrated according to standard hardness block or length scale.
5.The test force can be automatically corrected by a standard dynamometer.
6.The Rockwell and Vickers hardness values can be converted.
7.All data is saved in U disk in EXCEL format.
2.Technical Parameters:
1.Using electric loading, high-precision sensors, with a unique closed-loop control system, each gear is automatically
compensated.
2.Automatic turret, the test head and the objective lens are automatically switched between each other during testing, the test point is automatically positioned accurately, automatically loaded, and automatically unloaded.
3.Eyepiece structure with digital encoder, measure D1, D2 value, LCD directly display hardness value and D1, D2 value.
4.Can be calibrated according to standard hardness block or length scale.
5.The test force can be automatically corrected by a standard dynamometer.
6.The Rockwell and Vickers hardness values can be converted.
7.All data is saved in U disk in EXCEL format.
2.Technical Parameters:
Model |
HST-HBS3000TZ |
Test force（Kgf） |
62.5kgf，100kgf，125kgf，187.5kgf，250kgf，500kgf，750kgf，1000kgf，1500kgf，3000kgf |
612.9N，980.7N，1266N，1839N，2452N，4903N，7355N，9807N，14710N，29420N |
|
Convertible ruler |
HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
Measuring range |
8~650HBW |
Data output |
Build-in printer |
Micrometer |
20X digital display micrometer |
Max. height of the test piece |
280mm |
The distance from center of indenter to machine wall |
150mm |
Dwelling time |
0-60S |
Power supply |
AC220V，50Hz |
Hardness reading |
Digital display touch screen LCD to read hardness value |
implementation standard |
ISO 6506，ASTM E10-12，JIS Z2243，GB/T 231.2 |
Dimension |
230*600*920mm |
Weight |
130Kg |
