Home > Instruments & Meters > Test Instrument > Test Machine > High Quality HST-HB3000XP-AZF Full Automatic Brinell Hardness Tester Fully Automatic Single-station Brinell Hardness Tester

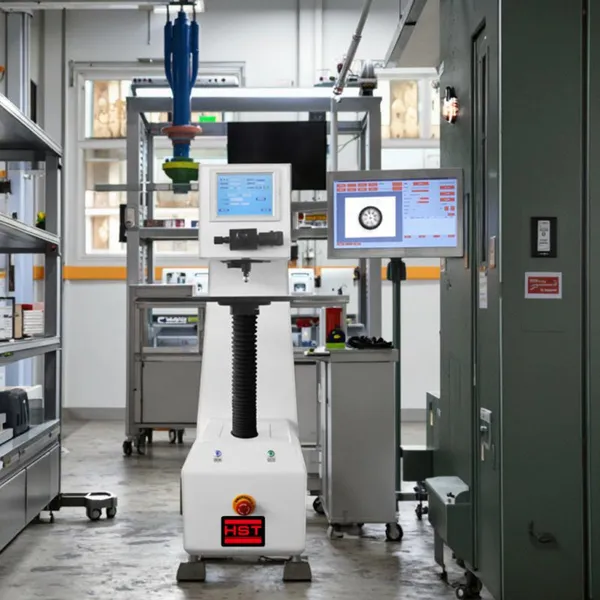

High Quality HST-HB3000XP-AZF Full Automatic Brinell Hardness Tester Fully Automatic Single-station Brinell Hardness Tester
US$ 8500 - 10080
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤±1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality HST-HBS3000CT Touch Screen Electric Brinell Hardness TesterUS$ 1360 - 1580MOQ: 1 Set -
High Quality HST-HBS-3000BT Digital Display Weight-loaded Brinell Hardness TesterUS$ 1680 - 1980MOQ: 1 Set
-
High Quality HST-HBS-3000ET Load Cell Digital Display Brinell Hardness TesterUS$ 2400 - 2850MOQ: 1 Set
-
High Quality HST-HBS-3000ET-ZH Touch Screen Display Automatic Turret Brinell Hardness TesterUS$ 2650 - 3120MOQ: 1 Set
-
High Quality HST-HB3000B Brinell Hardness Tester Weighted Load Brinell Hardness TesterUS$ 920 - 1100MOQ: 1 Set
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Logo/graphic design
Laser Engraving
Product name
Fully automatic Brinell hardness tester
Model
HST-HB3000XP-AZF
Test force
32.25~3000kgf
Accuracy of test force
62.5 ~ 250kGF ≤ 1% 500 ~ 3000kGF ≤0.5%
Measuring device resolution
0. 1 um
Maximum height of specimen
350mm
Distance from center to inner wall
250mm
Power supply
AC220± 5%, 50 ~ 60 hz
Dimensions
700 * 340 * 970 mm
Net weight
160kg
HST-HB3000XP-AZF Automatic Brinell hardness tester
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Applications :
2)The Z-axis rises and falls automatically. After placing the sample, it rises automatically and begins to press marks.Electric loading closed-loop control, automatic loading;
3)Each gear force is automatically compensated, and the precision of the force value (3000Kg) is increased by one order of magnitude to 1/1000;
4)Automatic turret, indenter position and measurement position automatic conversion;
5)When measuring indentation, it is fully automatic focusing without manual adjustment.
6)The indentation can be measured both by eyepiece and by computational maneuvering, using the first dual-optical system with built-in camera and micrometer eyepiece.
7)According to the standard block with different force value, the hardness value is automatically corrected.
8)Large sample space, large sample can be placed; On - the - go, no need to install the weight, no need to install debugging; Touch screen interface, easy to operate, any language version;
9)More sample and test information can be set and saved; Setting parameters of password protection;
10)When the hardness tester is used independently, the data usb disk is directly saved in EXCEL format for easy editing and processing.
11)The products are designed and produced by ourselves, with independent intellectual property rights and software Copyrights, which can be customized and upgraded for a long time.
2.Technical Parameters:
1)The force value ranges from 31.25-3000kGF;12 kinds of Brinell ruler, which can be customized by users;
2)The Z-axis rises and falls automatically. After placing the sample, it rises automatically and begins to press marks.Electric loading closed-loop control, automatic loading;
3)Each gear force is automatically compensated, and the precision of the force value (3000Kg) is increased by one order of magnitude to 1/1000;
4)Automatic turret, indenter position and measurement position automatic conversion;
5)When measuring indentation, it is fully automatic focusing without manual adjustment.
6)The indentation can be measured both by eyepiece and by computational maneuvering, using the first dual-optical system with built-in camera and micrometer eyepiece.
7)According to the standard block with different force value, the hardness value is automatically corrected.
8)Large sample space, large sample can be placed; On - the - go, no need to install the weight, no need to install debugging; Touch screen interface, easy to operate, any language version;
9)More sample and test information can be set and saved; Setting parameters of password protection;
10)When the hardness tester is used independently, the data usb disk is directly saved in EXCEL format for easy editing and processing.
11)The products are designed and produced by ourselves, with independent intellectual property rights and software Copyrights, which can be customized and upgraded for a long time.
2.Technical Parameters:
Model |
HST-HB3000XP-AZF |
|
Hardness tester host parameters |
||
Brinell hardness scale |
HBW1/31.25 HBW2.5/62.5 HBW2.5/187.5 HBW5/125 HB 162.5 HBW5/250 HB w5/750 HBW10/100 HB 1500 HBW10/3000 HBW10/500 HBW10/1000 |
|
Test force (Kgf) |
31.25.5 KGF (306.45N), 62.5 KGF (612.9N), 100KGF (980.7N), 125kGF (1226N), 187.5 KGF (1839N), 250kGF (2452N), 500kGF (4903N), 750KGF (4905n), 1000kGF (7905n), 1500kGF (14710N), 3000kGF (29420N) |
|
Carried standard |
BSEN 6506, ISO 6506, ASTM E10, GB/T231 |
|
Accuracy of test force |
62.5 ~ 250kGF ≤1% 500 ~ 3000kGF ≤0.5% |
|
Measuring device resolution |
0.1 um |
|
Hardness resolution |
0.1 HBW |
|
Bao load time |
0 ~ 99 s |
|
Data output |
LCD display |
|
Data store |
The measured values are stored in EXCEL format on a usb flash disk |
|
Maximum allowable specimen height |
350 mm |
|
Distance from indenter to wall |
250 mm |
|
size |
700 * 340 * 970 mm |
|
Weight |
160 kg |
|
Power supply |
AC220± 5%, 50 ~ 60 hz |
|
Software technical parameters |
||
Brinell hardness scale |
HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/250 HBW5/750 HBW10/100 HBW10/500 HBW10/1500 HBW10/3000 |
|
Carried standard |
BSEN 6506, ISO 6506, ASTM E10, GB/T231 |
|
Measuring range |
15.9-650HBW (ASTM E10 Recommended Effective hardness value) |
|
Measuring device resolution |
0.5% |
|
Accuracy of measurement |
Plus or minus 0.5% |
|
Digital imaging |
5 million industrial-grade digital cameras |
|
Measuring Method |
Manual and automatic measurement (for standard samples) |
|
Calibration method |
Standard hardness block/length scale |
|
Support language |
Chinese/English (optional) |
|
Power supply |
USB power supply |
|
Operation interface
