High Quality HST-HB3000D Electric Brinell Hardness Tester
US$ 3060 - 3600
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤±1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality HST-HB-3000DB Electronic Heightening Brinell Hardness TesterUS$ 4990 - 5880MOQ: 1 Set -
High Quality HST-HB3000XP-AZF Full Automatic Brinell Hardness Tester Fully Automatic Single-station Brinell Hardness TesterUS$ 8500 - 10080MOQ: 1 Set
-
High Quality HST-HBS3000CT Touch Screen Electric Brinell Hardness TesterUS$ 1360 - 1580MOQ: 1 Set
-
High Quality HST-HBS-3000BT Digital Display Weight-loaded Brinell Hardness TesterUS$ 1680 - 1980MOQ: 1 Set
-
High Quality HST-HBS-3000ET Load Cell Digital Display Brinell Hardness TesterUS$ 2400 - 2850MOQ: 1 Set
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Logo/graphic design
Laser Engraving
Product name
Electric Brinell Hardness Tester
Model
HST-HB3000D
Measuring range
3.18~653HBW
Test force
62.5~3000KGF
Maximum height of specimen
205mm
Distance from center to inner wall
135mm
Minimum Division Value of Drum Wheel
5μm
Dwell Time
0~60s
Dimensions
545*235*755mm
Net weight
130kg

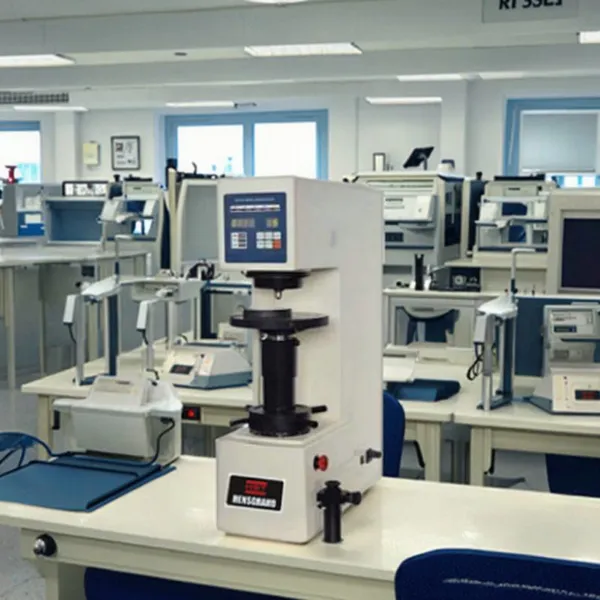

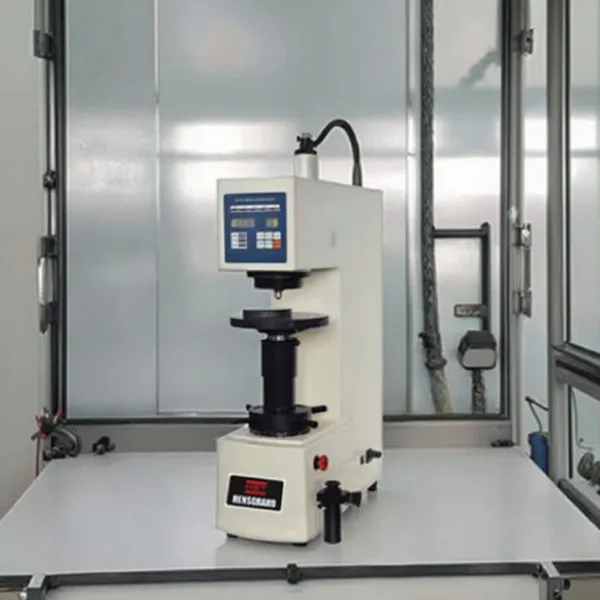

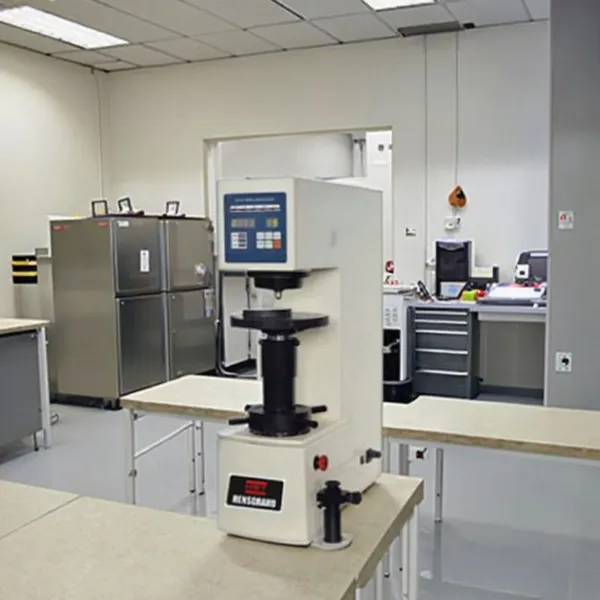

HST-HB3000D Electric Digital Brinell Hardness Tester
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Applications :
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc . Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.
Features
HST-HB3000D Electronic Brinell hardness tester is an unified product combining the precise mechanical structure and the load cell control system . The instrument adopts the motorized test force application without weights, and uses 0.5‰ accuracy compression sensor to feedback and the CPU control system to automatically compensate the test force lost during the test. The test force and dwell time can be directly set on the touch keyboard with reliable repeatability, precise reading and easy operation. It can be equipped with V1.0 Brinell image automatic measuring system.
2.Technical Parameters:
HST-HB3000D Electronic Brinell hardness tester is an unified product combining the precise mechanical structure and the load cell control system . The instrument adopts the motorized test force application without weights, and uses 0.5‰ accuracy compression sensor to feedback and the CPU control system to automatically compensate the test force lost during the test. The test force and dwell time can be directly set on the touch keyboard with reliable repeatability, precise reading and easy operation. It can be equipped with V1.0 Brinell image automatic measuring system.
2.Technical Parameters:
Name |
HST-HB3000D |
||
Test Force |
612.9n(62.5kgf) |
4903n(500kgf) |
|
980.7n(100kgf) |
7355n(750kgf) |
||
1226n(125kgf) |
9807n(1000kgf) |
||
1839n(187.5kgf) |
14710n(1500kgf) |
||
2452n(250kgf) |
29420n(3000kgf) |
||
Test Range |
3.18~653HBW |
||
Hardness Reading |
Check Hardness Table |
||
Microscope |
20× Reading Microscope |
||
Minimum Division Value of Drum Wheel |
5μm |
||
Dwell Time |
0~60s |
||
Max. Height of Specimen |
205mm |
||
Throat |
135mm |
||
Power Supply |
AC220V, 50Hz |
||
Execute Standard |
ISO 6506, ASTM E10-12, jIS Z2243, GB/T 231.2 |
||
Dimension |
545×235×755mm Packing Dimension: 650×435×1020mm |
||
Weight |
net Weight: 130kg Gross Weight: 160kg |
||
