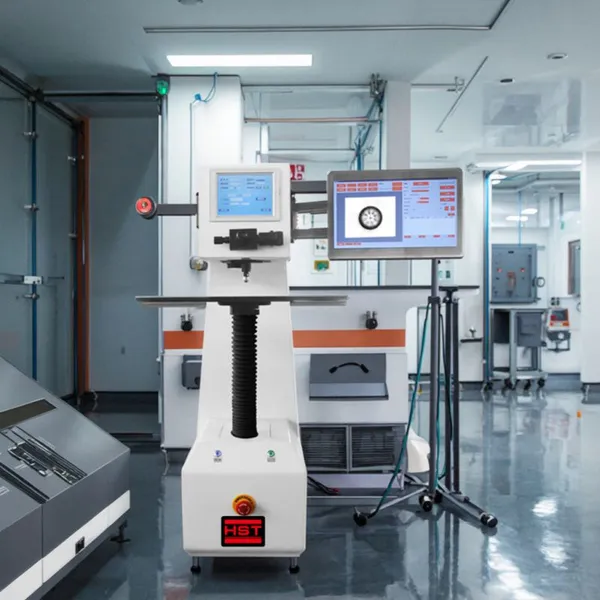

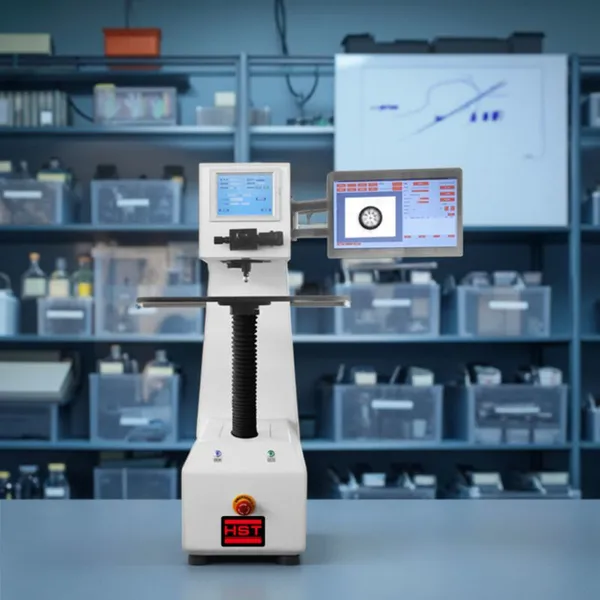

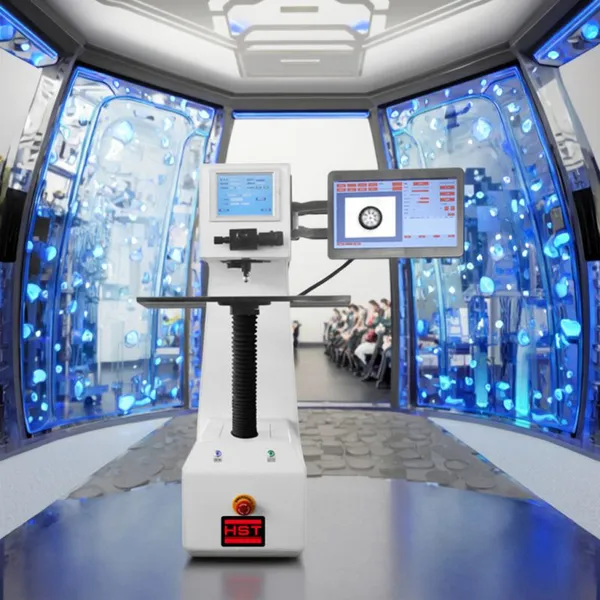

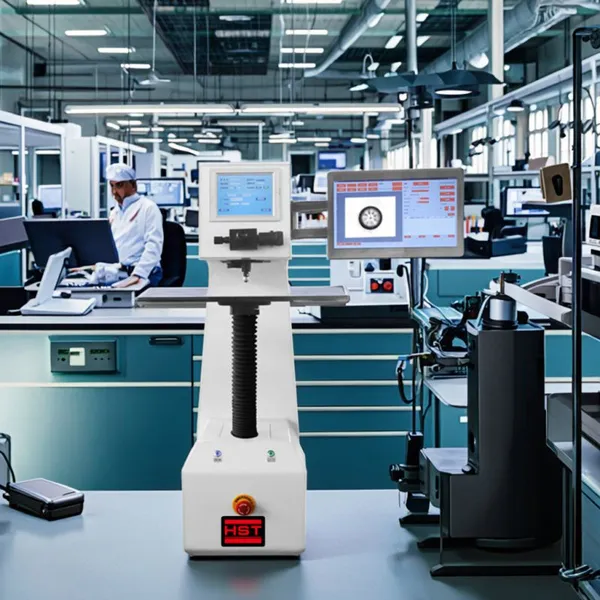

High Quality HST-HB3000XP-AZF-5 Full Automatic Brinell Hardness Tester Fully Automatic Five-position Brinell Hardness Tester
US$ 10350 - 12180
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤±1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality HST-HB3000D Electric Brinell Hardness TesterUS$ 3060 - 3600MOQ: 1 Set -
High Quality HST-HB-3000DB Electronic Heightening Brinell Hardness TesterUS$ 4990 - 5880MOQ: 1 Set
-
High Quality HST-HB3000XP-AZF Full Automatic Brinell Hardness Tester Fully Automatic Single-station Brinell Hardness TesterUS$ 8500 - 10080MOQ: 1 Set
-
High Quality HST-HBS3000CT Touch Screen Electric Brinell Hardness TesterUS$ 1360 - 1580MOQ: 1 Set
-
High Quality HST-HBS-3000BT Digital Display Weight-loaded Brinell Hardness TesterUS$ 1680 - 1980MOQ: 1 Set
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Logo/graphic design
Laser Engraving
Product name
Fully automatic Brinell hardness tester
Model
HST-HB3000XP-AZF-5
Test force
62.5~3000kgf
Accuracy of test force
62.5 ~ 250kGF ≤ 1% 500 ~ 3000kGF ≤0.5%
Measuring device resolution
0. 1 um
Maximum height of specimen
350mm
Distance from center to inner wall
250mm
Power supply
AC220± 5%, 50 ~ 60 hz
Dimensions
700 * 340 * 970 mm
Net weight
160kg
HST-HB3000XP-AZF-5 Fully automatic five-position Brinell hardness tester
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Applications :
1. Wide force range, from 62.5-3000Kgf; 12 types of Brinell scales, customizable by users.
2. Z-axis automatically rises and falls, after placing the sample, it automatically rises and starts indentation; electric loading closed-loop control, automatic load application.
3. Each force level is automatically compensated, and the accuracy of the force value (at 3000Kg) is improved by one order of magnitude to one thousandth.
4. Automatic brick tower, automatic conversion of the indenter position and the measurement position.
5. When measuring indentation, it is fully automatically focused without manual adjustment.
6. The first dual optical path system is adopted, with a built-in camera. The micrometer eyepiece and the camera can measure at the same time. The indentation can be measured by the eyepiece or automatically by the computer.
7. According to the standard blocks with different force values, the hardness value is automatically corrected.
8. Large sample space, large samples can be placed; it can be used immediately after startup, without installing weights, installation and debugging; touch screen interface, easy to operate, any language version.
9. More samples and test information can be set and saved; set passwords to protect setting parameters.
10. When the hardness tester host is used independently, the data U disk is directly saved in EXCEL format for easy editing and processing.
11. The product is designed and produced by itself, with independent intellectual property rights and software copyrights, and can be customized and long-term software upgrades.
2.Technical Parameters:
2.Technical Parameters:
Model |
HST-HB3000XP-AZF-5 |
|
Hardness tester host parameters |
||
Brinell hardness scale |
HBW2.5/62.5 HBW2.5/187.5 HBW5/125 HB 162.5 HBW5/250 HB w5/750 HBW10/100 HB 1500 HBW10/3000 HBW10/500 HBW10/1000 HBW10/1500、HBW10/3000 |
|
Test force (Kgf) |
62.5 KGF (612.9N), 100KGF (980.7N), 125kGF (1226N), 187.5 KGF (1839N), 250kGF (2452N), 500kGF (4903N), 750KGF (4905n), 1000kGF (7905n), 1500kGF (14710N), 3000kGF (29420N) |
|
Carried standard |
BSEN 6506, ISO 6506, ASTM E10, GB/T231 |
|
Accuracy of test force |
62.5 ~ 250kGF ≤1% 500 ~ 3000kGF ≤0.5% |
|
Measuring device resolution |
0.1 um |
|
Hardness resolution |
0.1 HBW |
|
Bao load time |
0 ~ 99 s |
|
Data output |
LCD display |
|
Data store |
The measured values are stored in EXCEL format on a usb flash disk |
|
Maximum allowable specimen height |
350 mm |
|
Distance from indenter to wall |
250 mm |
|
size |
700 * 340 * 970 mm |
|
Weight |
160 kg |
|
Power supply |
AC220± 5%, 50 ~ 60 hz |
|
Software technical parameters |
||
Brinell hardness scale |
HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/250 HBW5/750 HBW10/100 HBW10/500 HBW10/1500 HBW10/3000 |
|
Carried standard |
BSEN 6506, ISO 6506, ASTM E10, GB/T231 |
|
Measuring range |
15.9-650HBW (ASTM E10 Recommended Effective hardness value) |
|
Measuring device resolution |
0.5% |
|
Accuracy of measurement |
±0.5% |
|
Digital imaging |
5 million industrial-grade digital cameras |
|
Measuring Method |
Manual and automatic measurement (for standard samples) |
|
Calibration method |
Standard hardness block/length scale |
|
Support language |
Chinese/English (optional) |
|
Power supply |
USB power supply |
|
Operation interface
